Brief Introduction
Beta 2.5 |

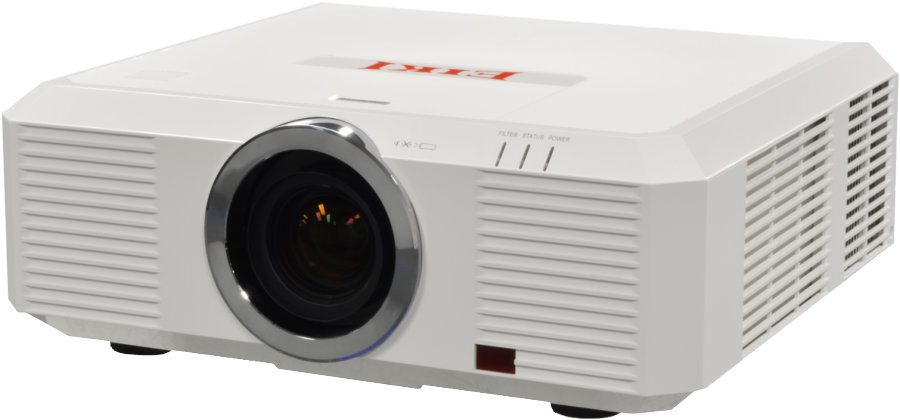

A brief introduction to the EK-501W: The Eiki LCD projector offers 6000 Ansi lumens, a contrast of 2500:1 and a WXGA 1280 x 800 resolution. Including a lens shift and keystone correction function, which provides freedom during installation. 787 cm image width, the projector will be able to illuminate well. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 525 cm here. Even 1080P video signals are no problem for the projector. Even projection onto the ceiling is possible thanks to the 360° projection. It was launched on the market in 2016 and is no longer offered by the manufacturer Eiki.
|
| Display Type |
3 x 0,75" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
6000 |
Screen |
2400 Lux (200 cm Screen width) |
| Contrast |
2500:1 full on/off |
2500:1 full on/off
|
| Black Level |
2,4000 min. Lumen |
0,961 min. Lumen |
| Lens shift |
Vert.: +/-70% Hori.: +/-30%
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p 80p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |

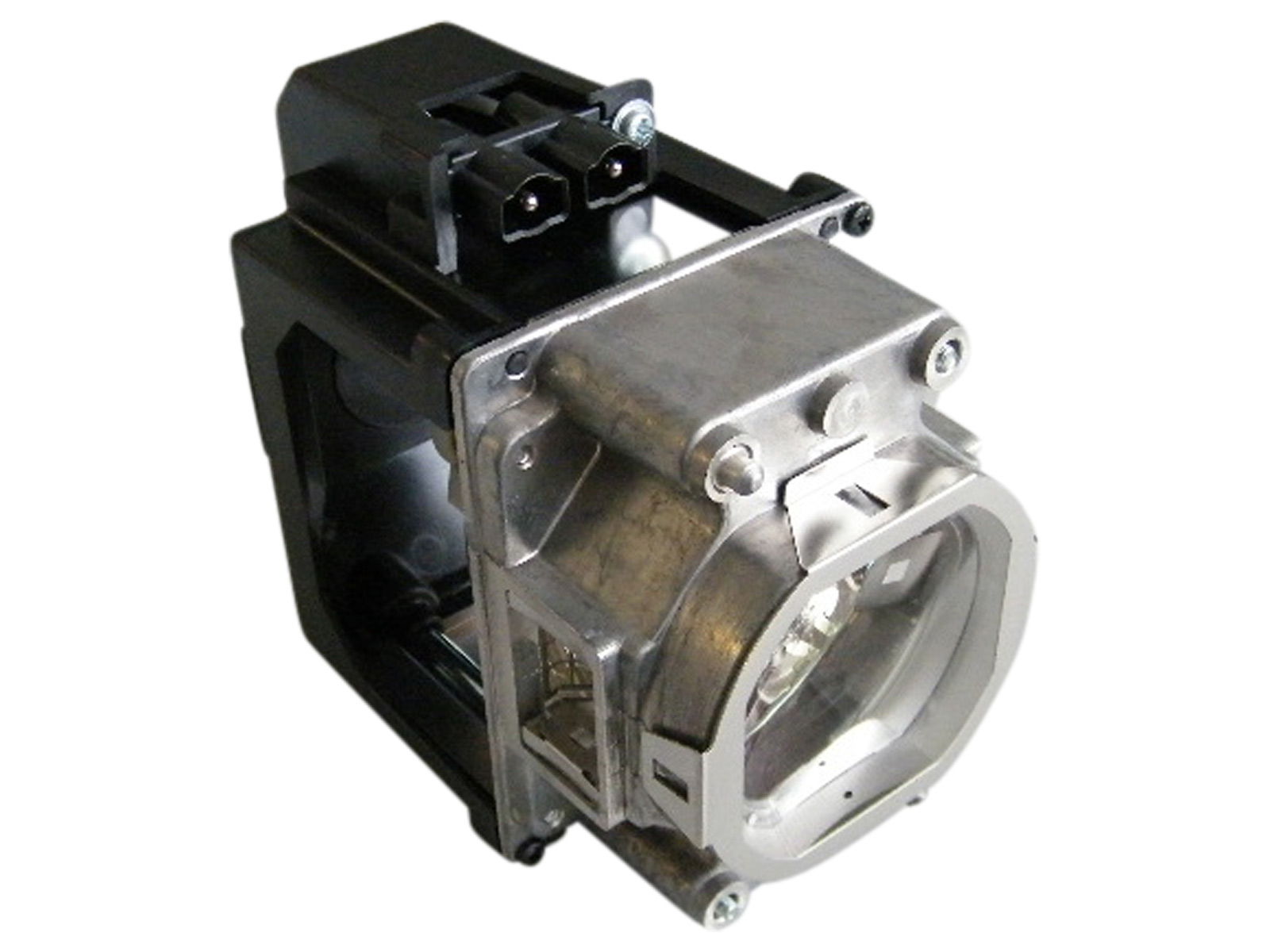

350W Lamp
Article Nr.: 23040051
|
|
| Light Life |
3000 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
294 - 530 cm
|
 |
|
Lux: |
2400 Lux |
|
Room light max.: |
480 Lux |
|
Candela pro m²: |
764 cd/m² |
|
Foot-Lamberts: |
223 fL |
|
 |
| 88 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,8 |
| Objective |
F=1,8-2,58 f=23,95-43,18 mm |
| Throw Ratio |
1,47-2,65:1 show |
| Audio |
10W |

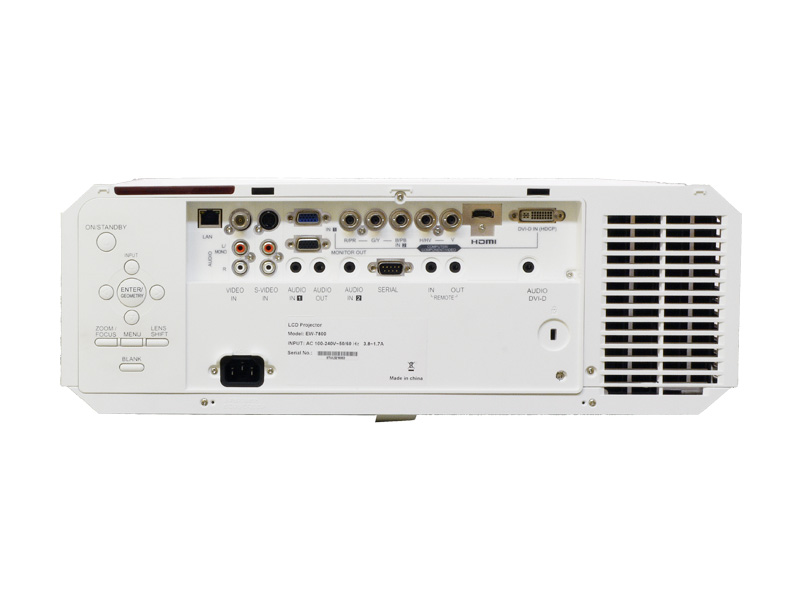

| Connections |
2 x HDMI in
DVI-D in
D-Sub 15 pin in und out
5 x BNC RGBHV in
S-Video in
1 x BNC Video in
Mini Jack Audio in und out
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
480 / 360W in Eco Mode |
| Size WxHxD |
503 x 179 x 481 mm (19,8"x7"x18,9") 43,31 L/dm³
|
| Operating Noise |
36 / 32 dB in Eco Mode |
Key: 79 cm
Shift: 88 cm |
Shift: 60 cm
|
|
Shift: 60 cm
|
| |
|
|
| Weight |
10,50 kg / 23,15 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
80% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 48-85 Hz
Range max.: 150 MHz |
| Foot-Lamberts |
223 fL
/ max. 787 cm screen width |
| Candela m² |
764 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Blackboard Modus
Eco Mode
Dynamic iris
360° installable
Lan network compatible.
Internal test image signals for optimal image adjustment.
E-mail alert function for direct notification of
faults in projector operation.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Eiki EK-501W compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
59 |
Weight: |
|
98 |
| Contrast: |
|
1 |
dB: |
|
94 |
| Black level: |
|
93 |
Power cons.: |
|
95 |
| Picture Total Points: | 51 |
Projector Total Points: | 96 |
|
| Popularity Top 100 |
|
| Points: |
|
26 |
| Ranking: |
937 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| AH-E23020 | 4.37-7.42:1 | 874-1484 m |
+/-70% |
+/-30% |
Powered |
| AH-E23010 | 2.83-4.58:1 | 566-916 m |
+/-70% |
+/-30% |
Powered |
| AH-E21010 | 1.49-2.68:1 | 298-536 m |
+/-70% |
+/-30% |
Powered |
| AH-E22020 | 1.2-1.55:1 | 240-310 m |
+/-70% |
+/-30% |
Powered |
| AH-E22010 | 0.77:1 | 154 m |
0.00% Fix |
+/-30% |
No Zoom |
|
| Status |
2016 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2016-02-03 17:06:50
|
| Data |
 Product Sheet english HC

|
Eiki Contact
