Brief Introduction
Beta 2.5 |
A brief introduction to the EIP S200: The Eiki standard portable DLP projector offers 2000 Ansi lumens, a contrast of 2000:1 and an SVGA 800 x 600 resolution. 2000 Ansi lumens ensure that a picture width of 389 cm is also possible. However, if room light is available, the picture should be max. 259 cm wide. On the market since 2007, the model is no longer offered by the manufacturer Eiki.
|
| Display Type |
1 x 0,55" DDR 2000 DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2000 |
Screen |
667 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
1,0000 min. Lumen |
0,334 min. Lumen |
| Offset |
39% show
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

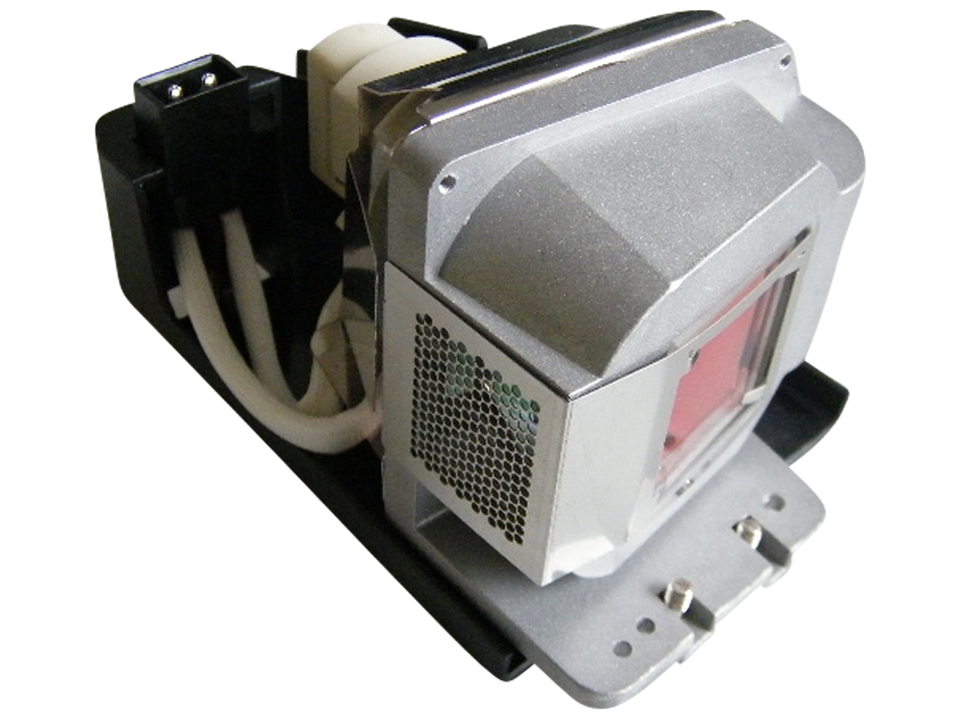

200W UHP Lamp
Article Nr.: P8384-1014
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
340 - 392 cm
|
 |
|
Lux: |
667 Lux |
|
Room light max.: |
133 Lux |
|
Candela pro m²: |
212 cd/m² |
|
Foot-Lamberts: |
62 fL |
|
 |
| 59 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,15 |
| Objective |
F=2,4-2,58 f=19-21,9 mm |
| Throw Ratio |
1,70-1,96:1 show |
| Audio |
2W Mono |
| Connections |
D-sub 15 pin in
S-Video in
Cinch Video in
Mini Jack Audio in
RS232C Din 9 pin in
USB Typ B
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
250W |
| Size WxHxD |
255,5 x 101,5 x 223 mm (10"x4"x8,8") 5,74 L/dm³
|
| Operating Noise |
32dB |
|
| Weight |
2,80 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
85% |
| Frequenz |
H-sync: 31-79 kHz
V-sync: 50-85 Hz
Range max.: 108 MHz |
| Foot-Lamberts |
62 fL
/ max. 389 cm screen width |
| Candela m² |
212 cd/m² |
| Features |
 Eco Mode
Kensington Slot
Gamma correction
|
|
- |
In Comparison
The Eiki EIP S200 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
44 |
| Black level: |
|
96 |
Power cons.: |
|
98 |
| Picture Total Points: | 40 |
Projector Total Points: | 76 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5369 (From: 7662) |
|
|
|
|
|
| Status |
2007 Discontinued (EOL) // Last update of the data: 2023-08-07
|
| Data |
 Product Sheet english HC
Product Sheet RS232C
Product Sheet USA
Product Sheet USA Color
User Manual english (2.41 MB)
|
Eiki Contact
