Brief Introduction
Beta 2.5 |
A brief introduction to the Eiki LC XB250W. The LCD projector has an XGA 1024 x 768 resolution and a contrast of 2000:1. The model offers a microphone jack plug and 10W speakers, so no additional audio devices are required for presentations or training courses. An image width of up to 551 cm is possible as the projector has 4000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 367 cm. Even 1080P video signals are no problem for the projector. The model was built by Eiki in 2011 and is no longer current.
|
| Display Type |
3 x 0,63" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1333 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
2,0000 min. Lumen |
0,668 min. Lumen |
| Offset |
40% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |

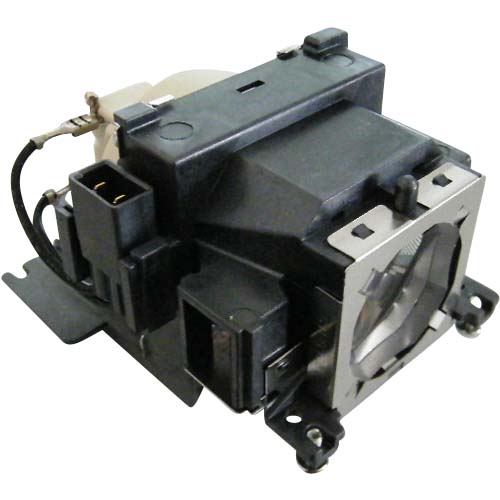

| Light Source |

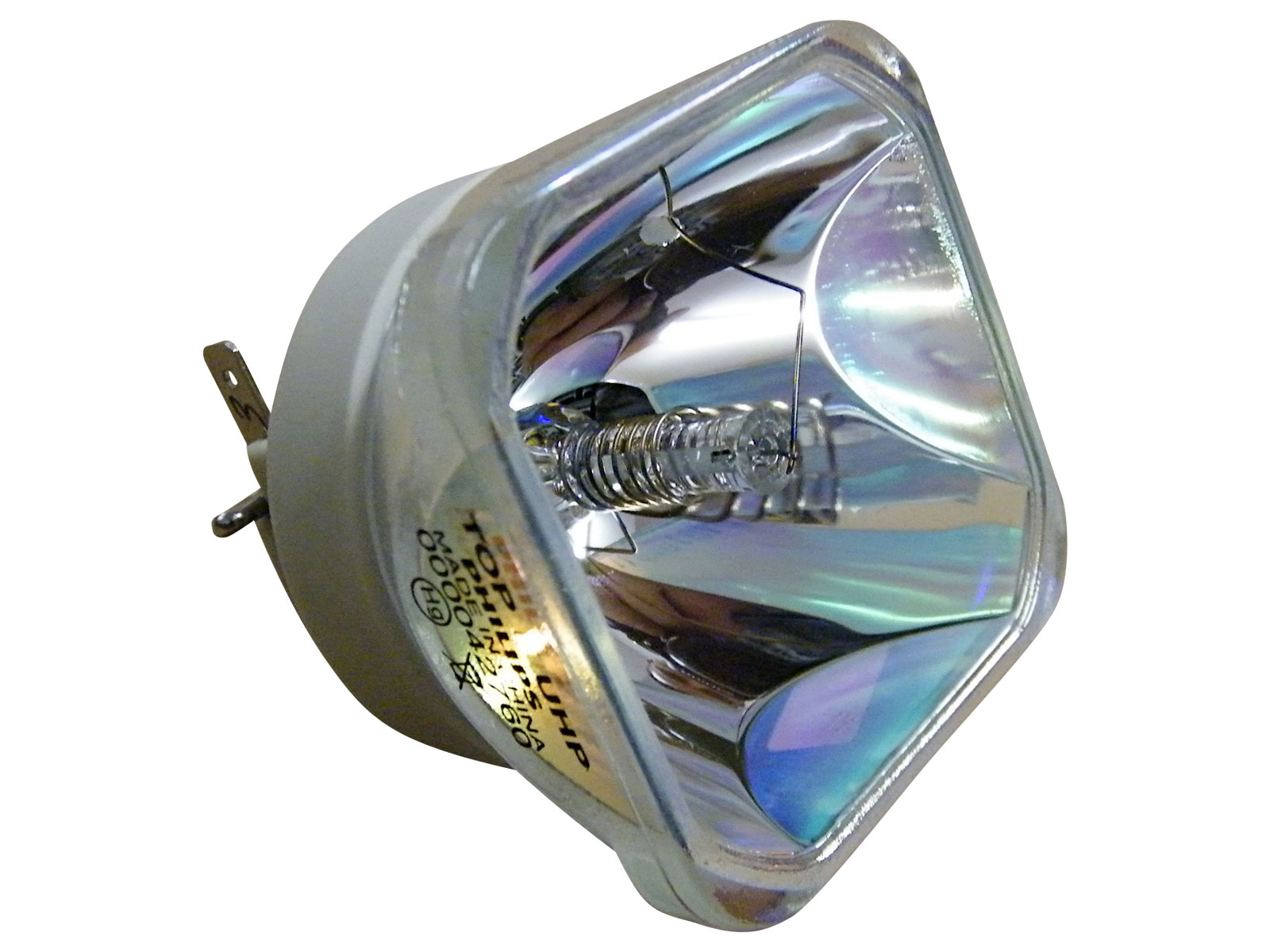

245W UHP Lamp
Article Nr.: 610 352 7949 / LMP148
|
|
| Light Life |
3000 h. 5000 h. in Eco Mode |
| Operating Costs |
-
|
|
236 - 382 cm
|
 |
|
Lux: |
1333 Lux |
|
Room light max.: |
267 Lux |
|
Candela pro m²: |
425 cd/m² |
|
Foot-Lamberts: |
124 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,59 |
| Objective |
F=1,65-2,33 f=15,5-24,5 mm |
| Throw Ratio |
1,18-1,91:1 show |
| Audio |
10W Mono |
| Connections |
DVI-I mit HDCP in
D-sub 15 pin in und out
S-Video in
Cinch Video in
RJ45 in
Mini Jack Audio in
RS232C Din 9 pin in
Mikrofon in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
322W |
| Size WxHxD |
326 x 92,6 x 266,8 mm (12,8"x3,6"x10,5") 7,98 L/dm³
|
| Operating Noise |
34 / 29 dB in Eco Mode |
|
| Weight |
3,40 kg / 7,5 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
124 fL
/ max. 551 cm screen width |
| Candela m² |
425 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Blackboard Modus
User logo
Eco Mode
Kensington Slot
Gamma correction
Password protection
Remote control with laser pointer und mouse control
PJLink™
Wi-Fi network compatible.
Lan network compatible.
|
|
- |
In Comparison
The Eiki LC XB250W compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
84 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
93 |
Power cons.: |
|
97 |
| Picture Total Points: | 48 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4731 (From: 7662) |
|
|
|
|
|
| Status |
2011 Discontinued (EOL) // Last update of the data: 2023-08-04
|
