Brief Introduction
Beta 2.5 |
The LC XB20 LCD has 2000 Ansi lumens, a contrast of 400:1 full on / off and an XGA 1024 x 768 resolution. The horizontal and vertical keystone correction provides leeway when setting up. The projector can illuminate a picture width of up to 389 cm thanks to its 2000 Ansi lumens. In room light, however, the image width should ideally be less than 259 cm. This model is no longer available from Eiki.
|
| Display Type |
3 x 0,79" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2000 / 1600 im Eco Mode |
Screen |
667 Lux (200 cm Screen width) |
| Contrast |
400:1 full on / off |
400:1 full on / off
|
| Black Level |
5,0000 min. Lumen |
1,68 min. Lumen |
| Offset |
40% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
NTSC/PAL/SECAM/NTSC 4.43/PAL-M&N HDTV 1080i, 720p EDTV 576p, 480p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

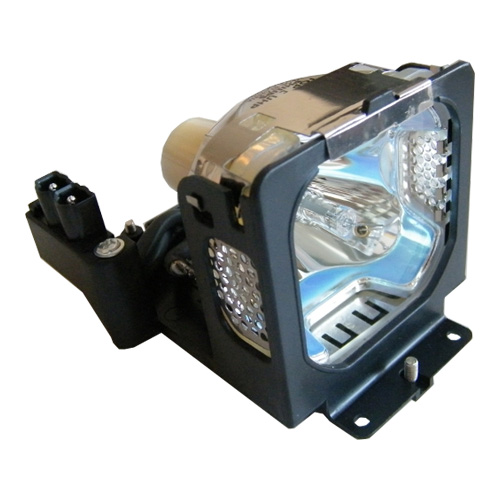

200W UHP Lamp
Article Nr.: 610 309 2706
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
250 - 374 cm
|
 |
|
Lux: |
667 Lux |
|
Room light max.: |
133 Lux |
|
Candela pro m²: |
212 cd/m² |
|
Foot-Lamberts: |
62 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,5 |
| Objective |
F=1,7-2,5 f=20-30 mm |
| Throw Ratio |
1,25-1,87:1 show |
| Audio |
1W Mono |
| Connections |
DVI-I in
D-sub 15pin in
Cinch Video in
Cinch Stereo in
S-Video in
USB in
Mini Jack in und out
Service Port
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
270 / 196W in Eco Mode |
| Size WxHxD |
298 x 71 x 218 mm (11,7"x2,8"x8,6") 4,61 L/dm³
|
| Operating Noise |
36dB |
Key: 270 cm |
Key: 91 cm |
| Key: 91 cm |
| |
|
|
| Weight |
2,80 kg / 6,17 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-20°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
62 fL
/ max. 389 cm screen width |
| Candela m² |
212 cd/m² |
| Features |
 Freeze
User logo
Eco Mode
Kensington Slot
Gamma correction
Remote control with laser pointer
Intelligent cooling fan
The new fan adapts optimally to the room temperature.
Digital Zoom
|
|
- |
In Comparison
The Eiki LC XB20 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
33 |
| Black level: |
|
81 |
Power cons.: |
|
97 |
| Picture Total Points: | 35 |
Projector Total Points: | 72 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5343 (From: 7662) |
|
|
|
|
|
| Status |
2003 Discontinued (EOL) // Last update of the data: 2023-08-04
|
