Brief Introduction
Beta 2.5 |
A brief introduction to the ACCO NOBO S22E. The standard portable DLP projector has an SVGA 800 x 600 resolution and a contrast of 2000:1. The projector will be able to illuminate an image width of 408 cm well. However, if room light is available, the picture width should ideally not exceed 272 cm. The model built in 2007 is no longer offered by ACCO.
|
| Display Type |
1 x 0,55" DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2200 / 1500 im Eco Mode |
Screen |
733 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
1,1000 min. Lumen |
0,367 min. Lumen |
| Offset |
65% show
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

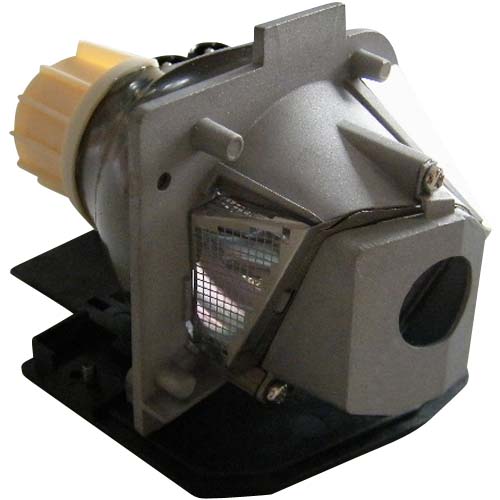

180W Lamp
Article Nr.: SP.88N01GC01
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
390 - 430 cm
|
 |
|
Lux: |
733 Lux |
|
Room light max.: |
147 Lux |
|
Candela pro m²: |
233 cd/m² |
|
Foot-Lamberts: |
68 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,41-2,55 f=21,79-23,99 mm |
| Throw Ratio |
1,95-2,15:1 show |
| Audio |
1W Mono |
| Connections |
D-sub 15 pin in
S-Video in
Cinch Video in
USB Maus Port |
| Ceiling Mounting |
Yes, is possible. |
| Power |
260W / 10W standby |
| Size WxHxD |
235 x 60 x 200 mm (9,3"x2,4"x7,9") 2,82 L/dm³
|
| Operating Noise |
32 / 30 dB in Eco Mode |
|
| Weight |
2,00 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-18°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 43-85 Hz
|
| Foot-Lamberts |
68 fL
/ max. 408 cm screen width |
| Candela m² |
233 cd/m² |
| Features |
 Eco Mode
Kensington Slot
Password protection
BrilliantColor™
Remote control with laser pointer
5-segment colour wheel.
|
|
- |
In Comparison
The ACCO NOBO S22E compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
26 |
Weight: |
|
91 |
| Contrast: |
|
1 |
dB: |
|
44 |
| Black level: |
|
96 |
Power cons.: |
|
98 |
| Picture Total Points: | 41 |
Projector Total Points: | 78 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3444 (From: 7662) |
|
|
|
|
|
| Status |
2007 Discontinued (EOL) // Last update of the data: 2023-08-04
|
