Brief Introduction
Beta 2.5 |

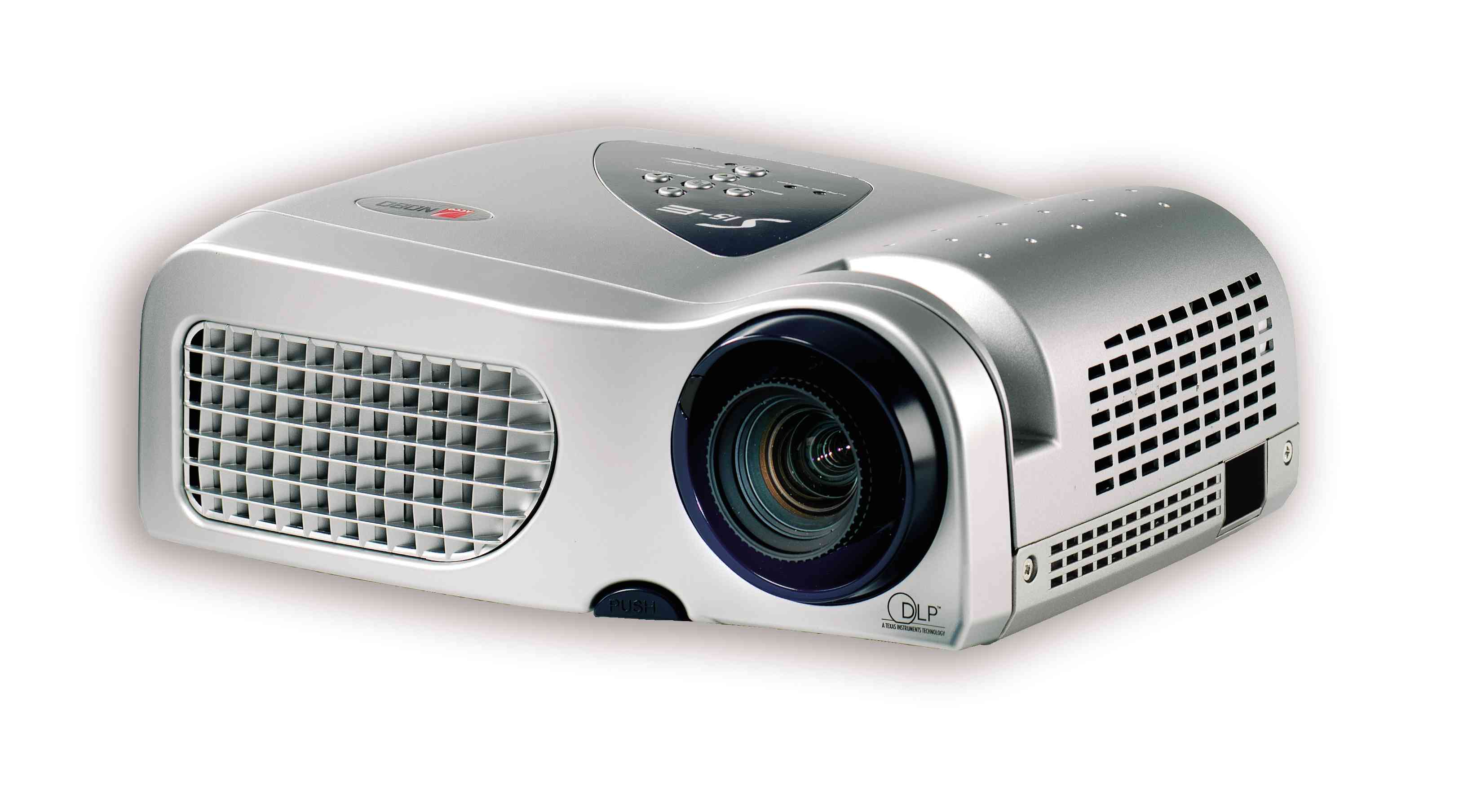

The standard portable NOBO S15E DLP has 1500 Ansi lumens, a contrast of 2000:1 and an SVGA 800 x 600 resolution. An image width of up to 337 cm is possible. However, the image should be smaller in room light. We recommend max. 225 cm. The model built in 2004 is no longer offered by ACCO.
|
| Display Type |
1 x 0,55" DDR DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1500 |
Screen |
500 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
0,7500 min. Lumen |
0,25 min. Lumen |
| Offset |
-
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, PAL-M, PAL-N, PAL-60, SECAM, NTSC, HDTV 720p, 1080i, |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

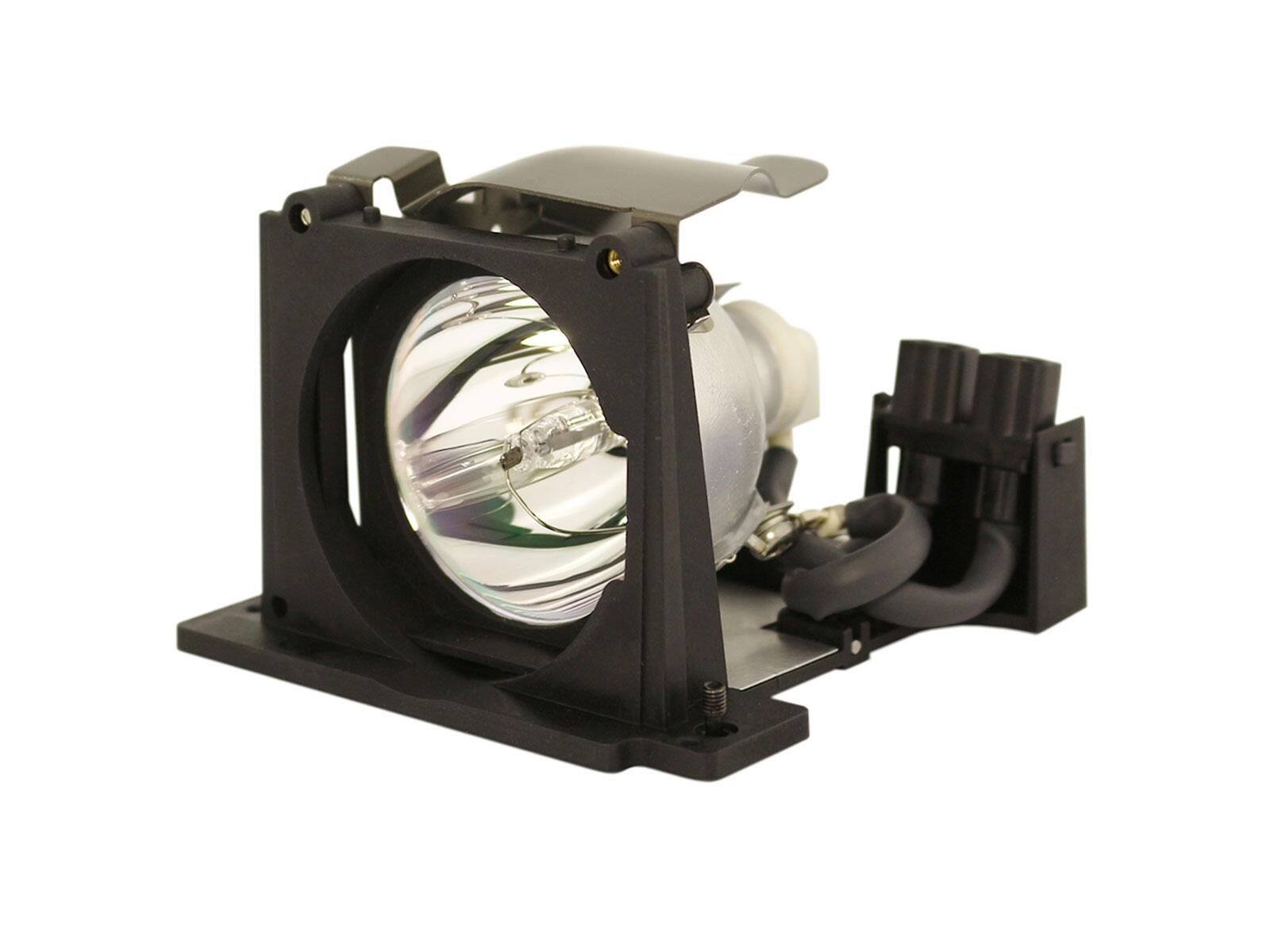

200W P-VIP Lamp
Article Nr.: SP.80V01.001
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
346 - 420 cm
|
 |
|
Lux: |
500 Lux |
|
Room light max.: |
100 Lux |
|
Candela pro m²: |
158 cd/m² |
|
Foot-Lamberts: |
46 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,21 |
| Objective |
- |
| Throw Ratio |
1,73-2,1:1 show |
| Audio |
nein |

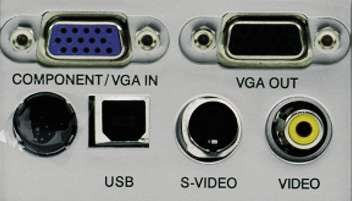

| Connections |
D-sub 15pin in und out
Cinch Video in
S-Video in
USB
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
265 x 105 x 210 mm (10,4"x4,1"x8,3") 5,84 L/dm³
|
| Operating Noise |
32dB |
|
| Weight |
2,22 kg / 4,89 lbs. |
| Keystone |
Vert.: +/-16°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-70 kHz
V-sync: 43-85 Hz
|
| Foot-Lamberts |
46 fL
/ max. 337 cm screen width |
| Candela m² |
158 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
sRGB
Digital Zoom
De-interlacer
|
|
- |
In Comparison
The ACCO NOBO S15E compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
17 |
Weight: |
|
90 |
| Contrast: |
|
1 |
dB: |
|
44 |
| Black level: |
|
97 |
Power cons.: |
|
0 |
| Picture Total Points: | 38 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
6033 (From: 7662) |
|
|
|
|
|
| Status |
2004 Discontinued (EOL) // Last update of the data: 2025-02-26
|
| Data |
 Product Sheet english HC
User Manual english (1 MB)

|
