Brief Introduction
Beta 2.5 |
The standard portable NOBO S18E DLP projector from ACCO has 1800 Ansi lumens, a contrast of 2000:1 and an SVGA 800 x 600 resolution. An image width of up to 369 cm is possible as the projector has 1800 Ansi lumens. However, if room light is available, the image should be max. 246 cm wide. With only 27 decibels of operating noise, the model is very quiet compared to others. It was launched in 2005 and is no longer offered by the manufacturer ACCO.
|
| Display Type |
1 x 0,55" DDR DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1800 |
Screen |
600 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
0,9000 min. Lumen |
0,3 min. Lumen |
| Offset |
-
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, PAL-M, PAL-N, PAL-60, SECAM, NTSC, EDTV HDTV 720p, 1080i, |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |

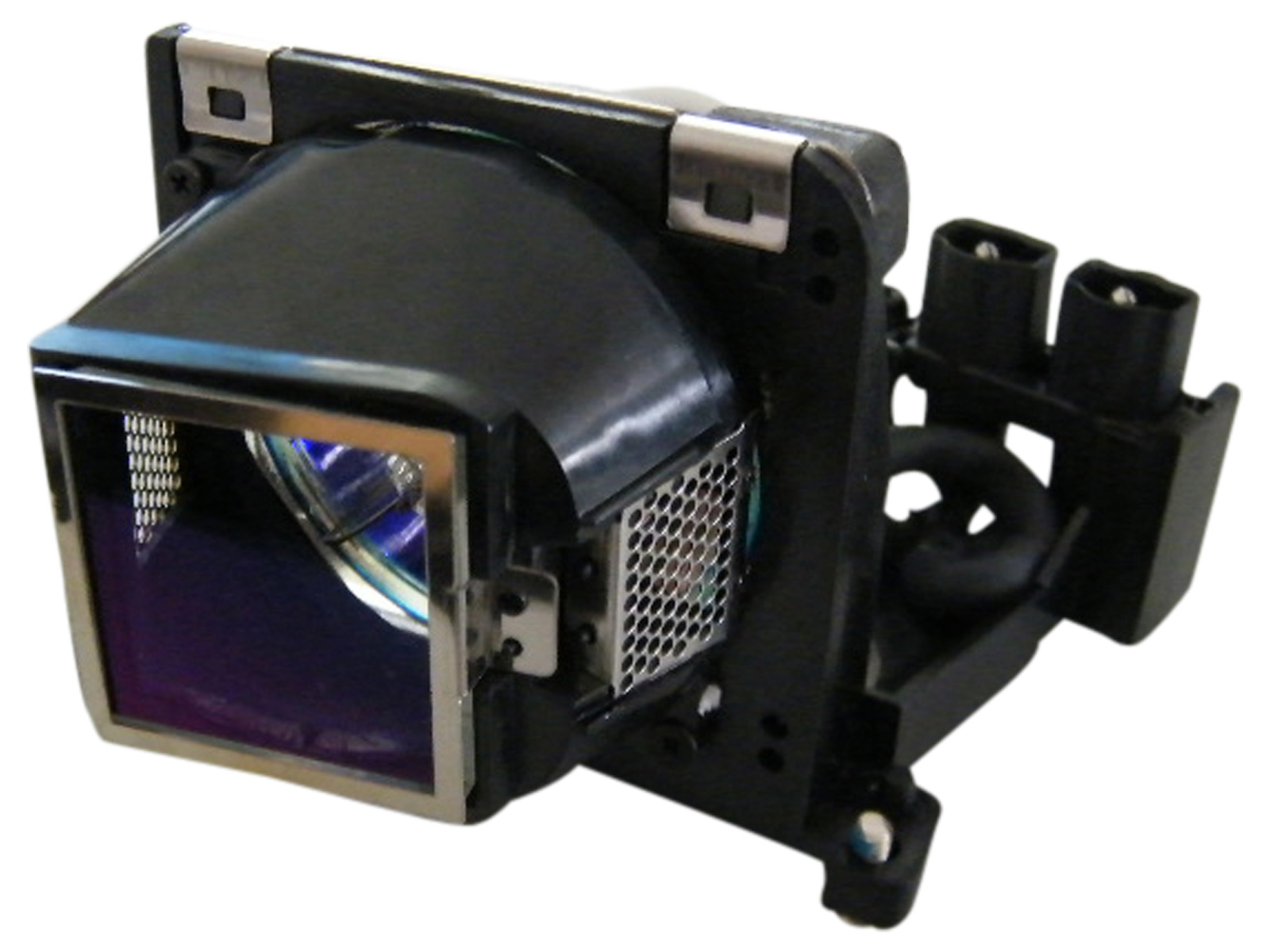

| Light Source |

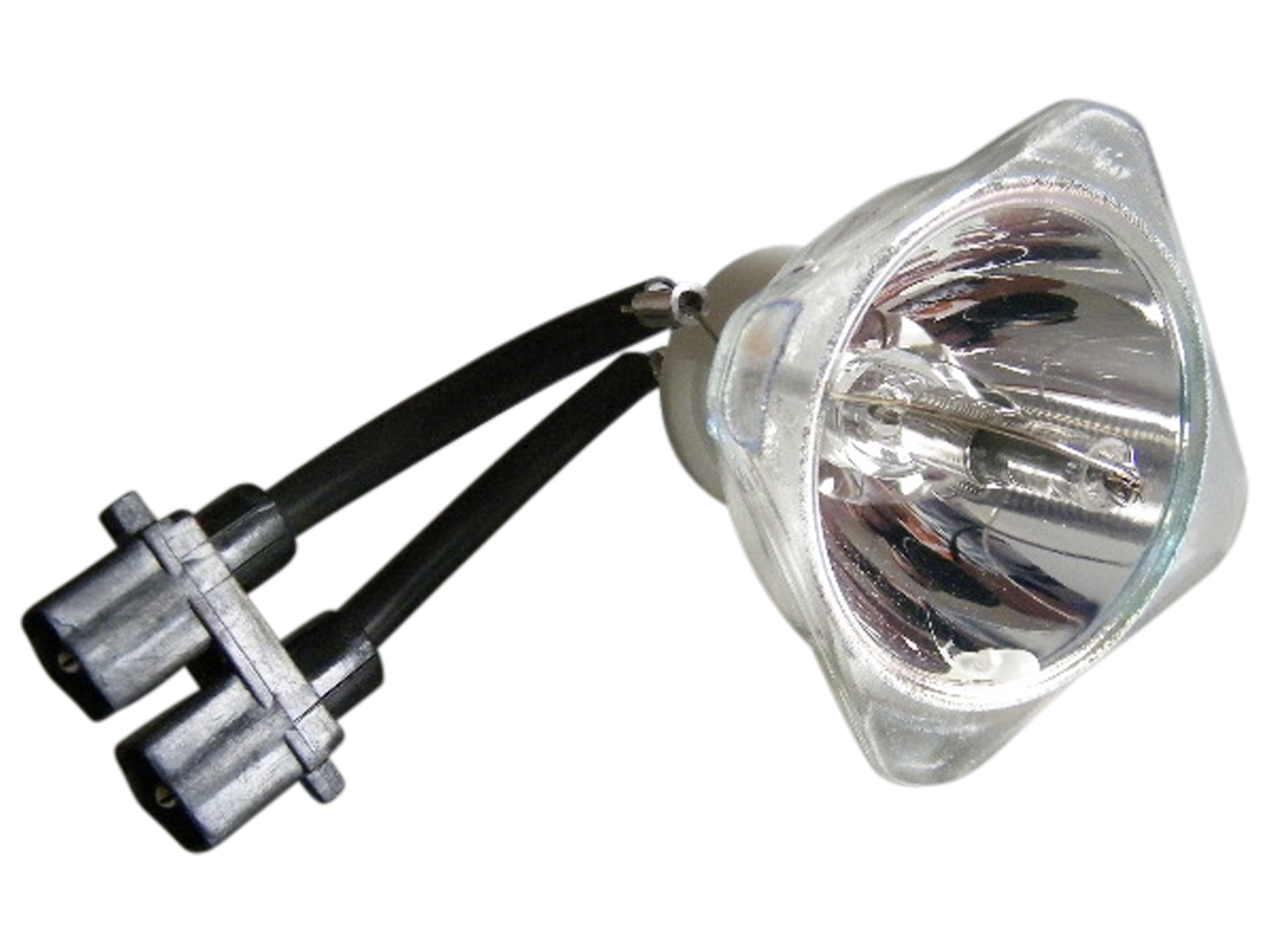

200W SHP Lamp
Article Nr.: SP.80Y01.001
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
400 - 480 cm
|
 |
|
Lux: |
600 Lux |
|
Room light max.: |
120 Lux |
|
Candela pro m²: |
192 cd/m² |
|
Foot-Lamberts: |
56 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,6-2,81 f=22,3-26,8 mm |
| Throw Ratio |
2,0-2,4:1 show |
| Audio |
1 x 3W |
| Connections |
D-sub 15pin in
Cinch Video in
S-Video in
Mini Jack
USB
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
265W / 15W standby |
| Size WxHxD |
265 x 104 x 236 mm (10,4"x4,1"x9,3") 6,5 L/dm³
|
| Operating Noise |
27dB |
|
| Weight |
2,40 kg / 5,29 lbs. |
| Keystone |
Vert.: +/-16°
|
| Illumination |
85% |
| Frequenz |
V-sync: 31,5-100 Hz
|
| Foot-Lamberts |
56 fL
/ max. 369 cm screen width |
| Candela m² |
192 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
sRGB
Gamma correction
Remote control with mouse control
|
|
- |
In Comparison
The ACCO NOBO S18E compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
20 |
Weight: |
|
89 |
| Contrast: |
|
1 |
dB: |
|
56 |
| Black level: |
|
97 |
Power cons.: |
|
97 |
| Picture Total Points: | 39 |
Projector Total Points: | 81 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5812 (From: 7662) |
|
|
|
|
|
| Status |
2005 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (2.3 MB)
|
