Brief Introduction
Beta 2.5 |

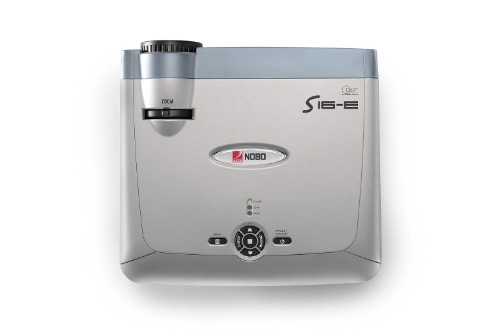

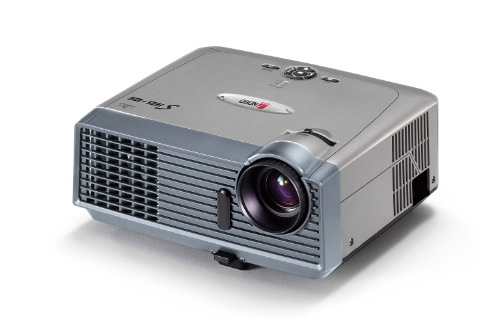

The ACCO NOBO S16E DLP projector has 1800 Ansi lumens, a contrast of 2000:1 and an SVGA 800 x 600 resolution. An image width of up to 369 cm is possible. However, the image should be smaller in room light. We recommend max. 246 cm. This model is no longer offered by ACCO.
|
| Display Type |
1 x 0,55" DDR DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1800 / 1450 im Eco Mode |
Screen |
600 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
0,9000 min. Lumen |
0,3 min. Lumen |
| Offset |
-
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
SXGA+ 1400 x 1050 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
160W SHP Lamp
Article Nr.: SP.82G01.001
|
|
| Light Life |
3000 h. 4000 h. in Eco Mode |
| Operating Costs |
|
|
386 - 426 cm
|
 |
|
Lux: |
600 Lux |
|
Room light max.: |
120 Lux |
|
Candela pro m²: |
192 cd/m² |
|
Foot-Lamberts: |
56 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,7-3,0 f=22-24 mm |
| Throw Ratio |
1,93-2,13:1 show |
| Audio |
1 x 2W Mono |
| Connections |
2 x D-sub 15pin in 1 x out
Cinch Video in
S-Video in
Mini Jack in
USB
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
265W / 5W standby |
| Size WxHxD |
230 x 95 x 230 mm (9,1"x3,7"x9,1") 5,03 L/dm³
|
| Operating Noise |
- |
|
| Weight |
2,00 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
85% |
| Frequenz |
H-sync: 31,5-100 kHz
V-sync: 56-85 Hz
|
| Foot-Lamberts |
56 fL
/ max. 369 cm screen width |
| Candela m² |
192 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
sRGB
Password protection
Remote control with laser pointer und mouse control
De-interlacer with 3:2 2:2 pull down
Digital Zoom
|
|
- |
In Comparison
The ACCO NOBO S16E compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
20 |
Weight: |
|
91 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
97 |
Power cons.: |
|
97 |
| Picture Total Points: | 39 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
4 |
| Ranking: |
7018 (From: 7662) |
|
|
|
|
|
| Status |
2005 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (0.63 MB)

|
|
|
Autor:
Jenner 15.12.19 |
|
1.5 Stars |
USB connection |
|
hello, it is supposed to be possible to operate it with a mouse, can anyone help me-which mouse do you need etc?
|
|
|
Autor:
Jenner 06.01.19 |
|
3.5 Stars |
USB port |
|
Device is good but
what do you do with the USB port ?
|
|
|
Autor:
Sandra R. 15.02.11 |
|
4.5 Stars |
instructions for use |
|
hello, i need instructions on how to use this item. acco nobo s16e
|
|
|
Autor:
Rika 01.02.09 |
|
4 Stars |
Would take it again |
|
Not top quality, but quite usable via the Scart/VGA connection. Many connection options via adapter. Picture rarely jerks, rainbow effect is limited, fly screen only visible if you stand directly in front of it. Picture quality when watching sports/soccer is still ok. The Eco mode for evenings is bright enough, the fan is pleasantly quiet and a replacement lamp is available from 165 euros. The 16:9 mode is also very good. Small speaker is integrated. I bought it second-hand for 200 euros (had 290 of 3000 or 4000 hours down) and have not regretted it :)
|
|
|
|
