Brief Introduction
Beta 2.5 |

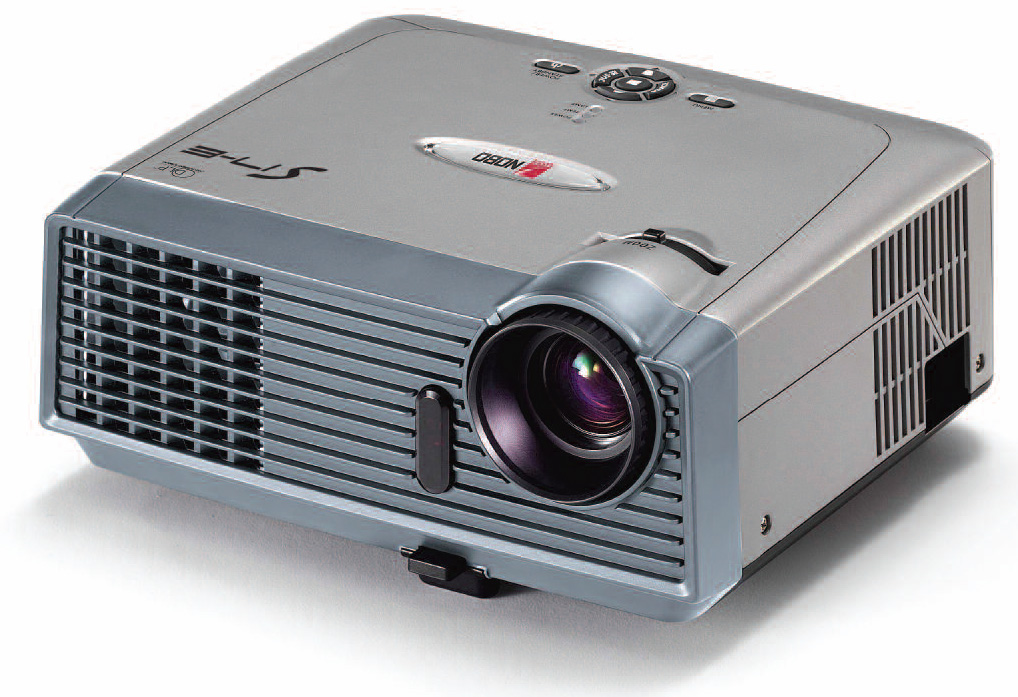

The ACCO NOBO X17E standard portable DLP projector has 1800 Ansi lumens, a contrast of 2000:1 and an XGA 1024 x 768 resolution. 1800 Ansi lumens ensure that a picture width of 369 cm is also possible. However, if room light is available, the picture should be max. 246 cm wide. The model was built by ACCO in 2007 and is no longer current.
|
| Display Type |
1 x 0,55" DDR DC2 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1800 / 1450 im Eco Mode |
Screen |
600 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
0,9000 min. Lumen |
0,3 min. Lumen |
| Offset |
65% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

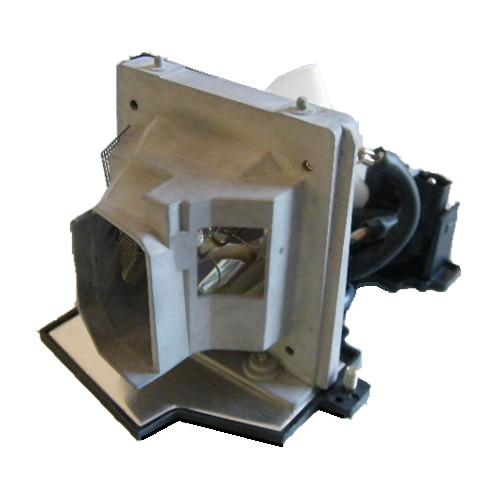

170W SHP Lamp
Article Nr.: SP.82G01.001
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
|
|
386 - 426 cm
|
 |
|
Lux: |
600 Lux |
|
Room light max.: |
120 Lux |
|
Candela pro m²: |
192 cd/m² |
|
Foot-Lamberts: |
56 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,10 |
| Objective |
F=2,35-2,47 f=21,83-23,81 mm |
| Throw Ratio |
1,93-2,13:1 show |
| Audio |
2W Mono |
| Connections |
D-sub 15pin in und out
S-Video in
Cinch Video in
USB in
Mini Jck in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
265W / 15W standby |
| Size WxHxD |
230 x 95 x 210 mm (9,1"x3,7"x8,3") 4,59 L/dm³
|
| Operating Noise |
32 / 27 dB in Eco Mode |
|
| Weight |
2,00 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-16°
|
| Illumination |
85% |
| Frequenz |
V-sync: 31,5-68,7 Hz
|
| Foot-Lamberts |
56 fL
/ max. 369 cm screen width |
| Candela m² |
192 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
sRGB
Password protection
Remote control with mouse control
Digital Zoom
5-segment colour wheel.
De-interlacer with 3:2 2:2 pull down..
|
|
- |
In Comparison
The ACCO NOBO X17E compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
20 |
Weight: |
|
91 |
| Contrast: |
|
1 |
dB: |
|
44 |
| Black level: |
|
97 |
Power cons.: |
|
97 |
| Picture Total Points: | 39 |
Projector Total Points: | 77 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
5157 (From: 7662) |
|
|
|
|
|
| Status |
2007 Discontinued (EOL) // Last update of the data: 2023-08-04
|
