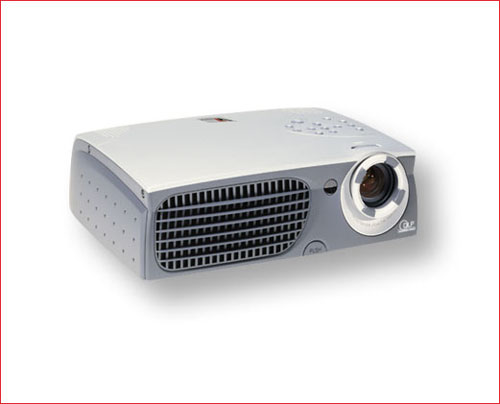

Behind the name PD755 is a DLP projector by Videoseven, whose main features include 2000 ANSI lumens, a contrast of 600:1 and a XGA 1024 x 768 resolution. The manufacturer specifies a runtime of 2000 hours for this projector's lamp. Looking at practical performance, up to 389 cm can be illuminated with 2000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 259 cm. This device is no longer manufactured and has been removed from Videoseven's current lineup. Important maintenance note: It is no longer possible to procure replacement lamps for this model.
Display Type
1 x 0,7" DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2000
Screen
667 Lux (200 cm Screen width)
Contrast
600:1 on/off 300:1 nach Ansi
600:1 on/off 300:1 nach Ansi
Black Level
3,3333 min. Lumen
1,117 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Eingang: 1 x HD 15-Pin D-Sub (Komponente Video/HDTV-Eingang)
1 x DVI-Eingang
1 x Audio-Buchse (für 15 pin D-Sub)
1 x Audio-Buchse für DVI
Ausgang: 1 x Mini D-Sub 15-pin für Monitor E/A Schleife
Eingang: 1 x Mini DIN für S-Video-Eingang
1 x RCA-Buchse für Composite Video-Eingang
1 x Phono-Buchse (Audio-Eingang)
1 x RS 232-Schnittstelle
Ausgang: 1 x Mini DIN-Audio-Ausgang für VGA/Video
Ceiling Mounting
Yes, is possible.
Power
-
Size WxHxD
-
Operating Noise
32dB
Key: 116 cm
Without offset
Key: 116 cm
Weight
2,90 kg / 6,39 lbs.
Keystone
Vert.: +/-16°
Illumination
90%
Frequenz
H-sync: 15-100 kHz V-sync: 43-120 Hz Range max.: 160 MHz
Remote control with laser pointer und mouse control Also included: • Audio cable: 1 x headphone jack to two RCA audio cables • Y-cable for mouse operation (supports USB/Com interface) • User manual (CD-ROM and quick start card) and warranty card
Remote control with laser pointer und mouse control
