Plus V 332

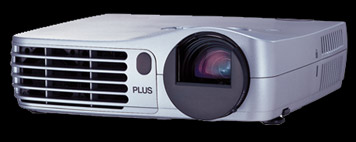

Image Plus V 332
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview Based on DLP technology, the Plus V 332 projects images in a Micro-Portabel environment, with technical specs listing 1200 ANSI lumens, a contrast of 2000:1 and a XGA 1024 x 768 resolution. The manufacturer specifies a runtime of 1500 hours for this projector's lamp.
Regarding projection size, the value of 1200 ANSI lumens allows for an image width of up to 302 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 201 cm.
The projector was released in 2004 and is officially no longer distributed by Plus.
Display Type       1 x 0,7" DLP Chip
      XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 1200 / 960 im Eco Mode
Screen
 400 Lux (200 cm Screen width)
Contrast 2000:1 full on/off 2000:1 full on/off
Black Level 0,6000 min. Lumen 0,2 min. Lumen
Offset 67% 26 cm over screen top edge →
SCREEN
+ Projector
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, PAL-M, PAL-N, PAL-60, SECAM, NTSC, EDTV HDTV 720p, 1080i, 1080i,
Application Micro-Portabel | Small mobile presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 130W Lamp
Article Nr.: 28-056
Order Lamp
84,79 84,79 €
Light Life 1500 h. 2000 h. in Eco Mode
Operating Costs -
Calculated brightness quality Good (1.8)
388 - 464 cm
Lux: 400 Lux
Contrast: 2000:1
Candela pro m²: 127 cd/m²
Foot-Lamberts: 37 fL
101 cm


Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,2
Objective F=2,6-2,9 f=27,5-33,0 mm
Throw Ratio 1,94-2,32:1 show
Audio 0,5W Mono
Connections D-sub 15pin in
Cinch Video in
S-Video in
Mini Jack
USB Typ B
Ceiling Mounting Yes, is possible.
Power 190 / 170W in Eco Mode
Size WxHxD 186 x 46 x 176 mm (7,3"x1,8"x6,9") 1,51 L/dm³
Operating Noise 36dB
Key: 258 cm
Key: 18 cm
Weight 1,30 kg / 2,87 lbs.
Keystone Vert. +17°-22°
Illumination -
Frequenz H-sync: 15-80 kHz
V-sync: 50-85 Hz
Foot-Lamberts 37 fL / max. 302 cm screen width
Candela m² 127 cd/m²
Features Freeze
Eco Mode
Kensington Slot
Gamma correction
Password protection
Remote control with laser pointer und mouse control
Screen Mirroring -
In Comparison
The Plus V 332 compared to others not current "Micro-Portabel" projectors.
Ansi-Lumen:
34 Weight:
14
Contrast:
1 dB:
30
Black level:
91 Power cons.:
57
Picture Total Points:42 Projector Total Points:34
Popularity Top 100
1 popularity points 22 popularity points 23 popularity points 0 popularity points 2 popularity points 6 popularity points
Points:
6
Ranking: 288 (From: 393)
Optional accessories
lamp Original28-05684,79 €
Universal Remote Fernb-uni-V322,31 €
ceiling bracket length: 100-120mmHalterung10047,86 €
Status 2004 Discontinued (EOL) // Last update of the data: 2026-06-09
