Plus U3 1080
Image Plus U3 1080
Customer review
3.8 from 5 Stars 5 Reviews
✎ Help other users and share your review.
✎ Help other users and share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The Plus U3 1080 is a DLP projector that brings 800 ANSI lumens, a XGA 1024 x 768 resolution alongside a contrast of 300:1. In operating mode, the installed projector lamp offers a lifespan of 1000 hours.
Regarding projection size, the value of 800 ANSI lumens allows for an image width of up to 246 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 164 cm.
This model dates back to 2000 and is no longer part of Plus's current product range.
Display Type       DLP Chip
      XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 800
Screen
 267 Lux (200 cm Screen width)
Contrast 300:1 nach Ansi (800:1) 300:1 nach Ansi (800:1)
Black Level 2,6667 min. Lumen 0,899 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes NTSC, PAL, SECAM, NTSC 4,43 YcbCr, YPbPr
Application Micro-Portabel | Small mobile presentations.
Small screen width, rooms with very little ambient light below 50 lumens.

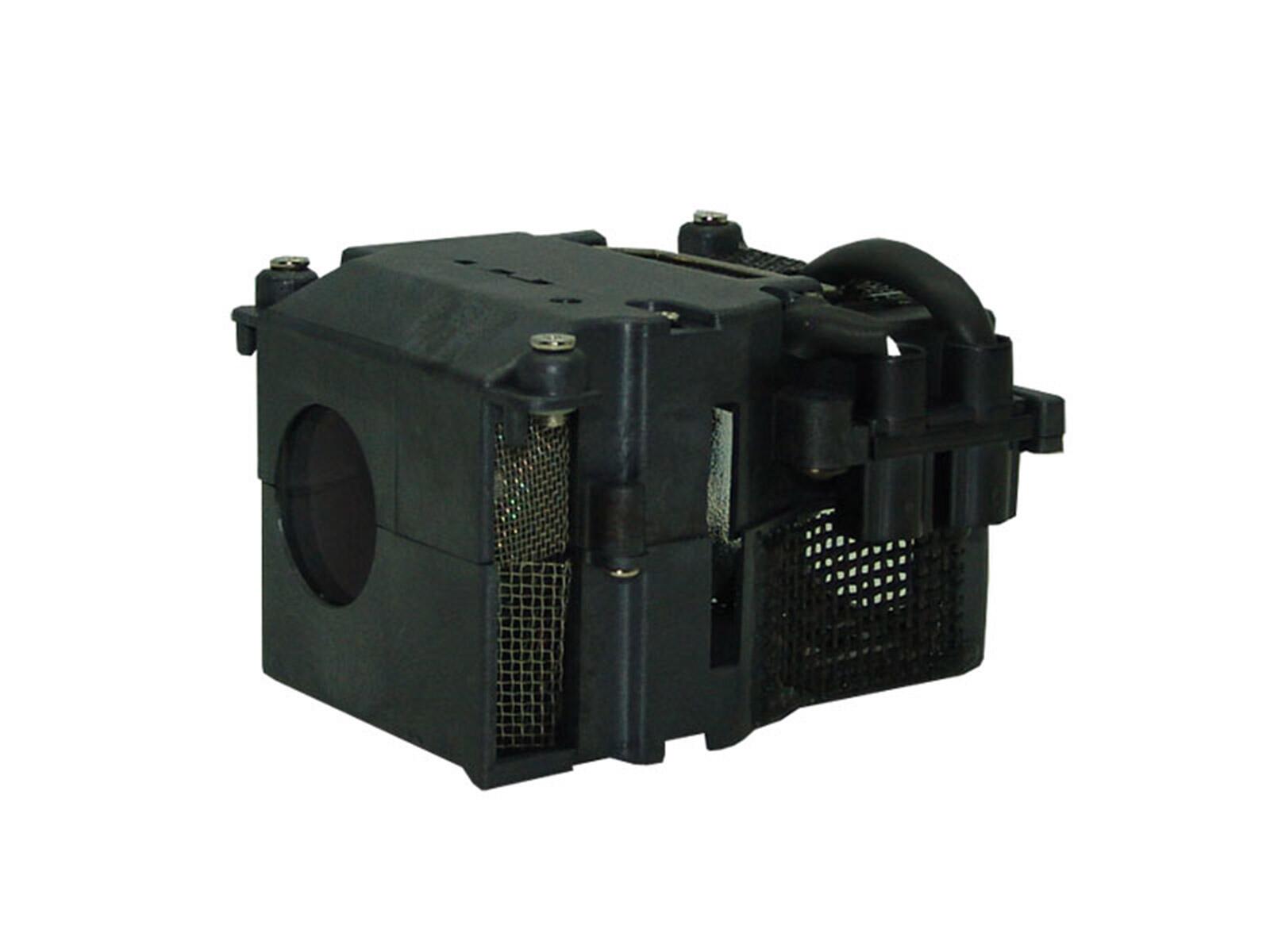

Light Source 130W High Perfürmance Compact Lamp
Article Nr.: 28-631 / PU31080LP
Order Lamp
62,15 - 108,53 €
Light Life 1000 h.
Operating Costs -
Calculated brightness quality Good (2.5)
Lux: 267 Lux
Contrast: 300:1
Candela pro m²: 86 cd/m²
Foot-Lamberts: 25 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom No Zoom
Objective F=3,0 f=23mm
Throw Ratio -
Audio 0,5W Mono
Connections 1 x HD D-sub 15pin ,
1 x Computer Audio Stereo Mini Jack,
1 x S-Video in ,
1 Eingang für Composite Video (RCA),
1 x Mausausgang,
Ceiling Mounting -
Power 180W
Size WxHxD 230 x 48 x 177 mm (9,1"x1,9"x7") 1,95 L/dm³
Operating Noise 40dB

Weight 1,30 kg / 2,87 lbs.
Keystone -
Illumination -
Frequenz H-sync: 15-91 kHz
V-sync: 50-85 Hz
Range max.: 57,5 MHz
Foot-Lamberts 25 fL / max. 246 cm screen width
Candela m² 86 cd/m²
Features Freeze
Kensington Slot
Gamma correction
Picture-in-Picture
Remote control with mouse control
Screen Mirroring -
In Comparison
The Plus U3 1080 compared to others not current "Micro-Portabel" projectors.
Ansi-Lumen:
20 Weight:
14
Contrast:
1 dB:
10
Black level:
62 Power cons.:
62
Picture Total Points:28 Projector Total Points:29
Popularity Top 100
4 popularity points 18 popularity points 23 popularity points 0 popularity points 2 popularity points 6 popularity points
Points:
6
Ranking: 267 (From: 393)
Optional accessories
lamp ruby Ruby-LMP2961108,53 €
lamp Original28-390 / 28-631 / PU31080LPEOL €
Compatible lamp LMP-K295862,15 €
Universal Remote Fernb-uni-V322,31 €
Status 2000 Discontinued (EOL) // Last update of the data: 2026-07-28
Data
Product Sheet


Popular Alternatives
800   ANSI-Lumen
Vision OneE1BL128+Beamer 25000 LumenYG600 Plus
Model Vision OneE1BL128+Beamer 25000 LumenYG600 Plus
Ansi-Lumen 800800800800800
Specifications HDTV LED WLAN MPHDTV LED WLAN HDTV LED WLAN MPHDTV LED Android LAN WLAN HDTV LED Bluetooth WLAN MP
Compare CompareCompareCompareCompareCompare


All: 3.8 from 5 Stars 5 Reviews

Autor: 28.07.26
5 Stars Beamer Medium plus u3 1080
Lüftergeräusch, gibt es Ersatzteile mediumplus u3 1080
Autor: 22.02.10
4 Stars Remote control
Could someone tell me whether the remote control from the U3-1080 device is backwards compatible with the U2-1130 device? My address lautet:uwe.b@goldmail.de Thank you !
Autor: 24.05.08
2 Stars Ceiling mounting or image rotation possible!
Image reversal is possible!
Look at the operating instructions page D-20 and D-21.
Under the menu item Setup and then on Projection, confirm with the finger button under the remote control,
then you can rotate and mirror the image depending on how you need it.
Big minus with the projector, the fans are extremely loud.
Greß
Mattes
Autor: 09.03.06
4 Stars Correction : for 05.03.06 (sorry)
Has keystone setting !
Unfortunately not suitable for ceiling mounting / projection - no setting for image reversal. Lamp change + counter reset can be done by yourself.
Autor: 05.03.06
4 Stars Good projector
Very small + handy, very good clear and bright picture, unfortunately no keystone correction.connections for video + PC/notebook. Recommended.
