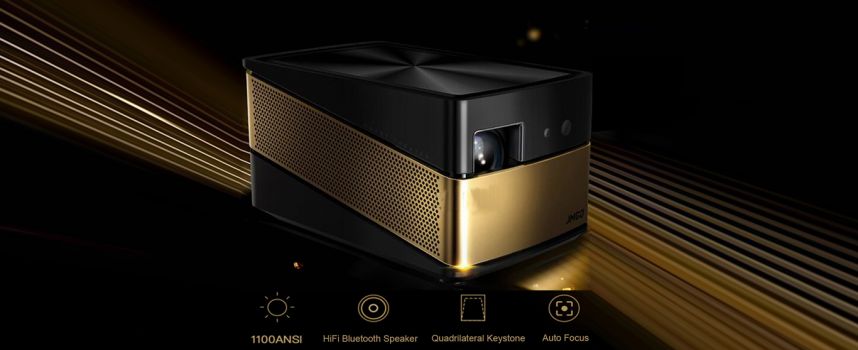

The basic data of the Jmgo V8 includes 1100 ANSI lumens, a resolution of HDTV 1920 x 1080 as well as a contrast of 5000:1. For basic image adjustment, the device is equipped with horizontal and vertical keystone correction, allowing digital compensation for trapezoidal distortion at angled projection setups. Looking at practical performance, up to 337 cm can be illuminated with 1100 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 225 cm. Regarding signal processing, the model is compatible with incoming 1080P content. Also on board is a local media player that allows reading and playing content directly from storage media. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. The projector was released in 2017 and is officially no longer distributed by Jmgo.
Display Type
1 x 0,47" DMD DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1100
Screen
489 Lux (200 cm Screen width)
Contrast
3000-5000:1 full on/off
3000-5000:1 full on/off
Black Level
0,3667 min. Lumen
0,163 min. Lumen
Offset
50% Exactly on screen top edge →
SCREEN
+Projector
Resolution
HDTV 1920 x 1080
2.073.600 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p Media player formats: Video Format: 1080P HD playback, supporting AVI, H.264, VC-1, MPEG-2, MPEG-4, DIVD/DIVX, Real 8/9/10, RM, RMVB, PMP, FLV, MP4, M4V, VOB, 3GP, MKV, M2TS etc
Audio Format: Stereo Hi-Fi audio. Supporting MPI, MP2, MP3, WMA, OGG, AAC, M4A, FLAC, APE, AC3, AMR, DTS, RA, WAV etc, supporting audio classification, album cover displaying etc
Coding Format Supporting the latest H.265, H.264, H.265, 4K@30fps, MPEG1/2/4, real7/8/9, maximum 1080@30 fps @
3D Compatibility
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Light Source
-
Light Life
-
Operating Costs
-
Calculated brightness quality Perfect
240 cm (no Zoom)
Lux:
489 Lux
Contrast:
3000-5000:1
Candela pro m²:
154 cd/m²
Foot-Lamberts:
45 fL
56 cm
•
Focus
Automatic
Zoom
No Zoom
Objective
-
Throw Ratio
1,2:1
Audio
-
Connections
HDMI in
USB 2.0 und 3.0 in
RS232C Din 9 pin in
RJ45 in
Full HD 1080P compatible
Jmgo Website
Product Sheet english HC
