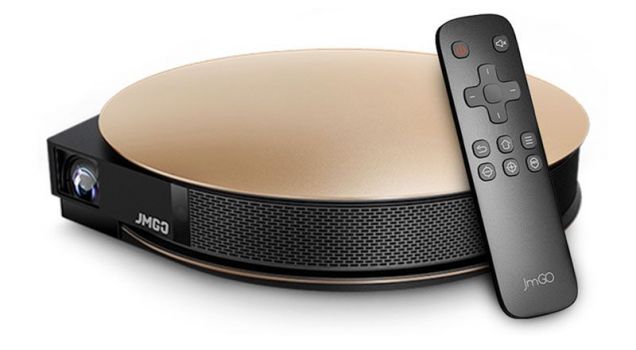

As a projector, the Jmgo G3 Pro combines DLP technology with a resolution of WXGA 1280 x 800, and is additionally specified with 1000 ANSI lumens and a contrast of 40000:1. Regarding projection size, the value of 1000 ANSI lumens allows for an image width of up to 321 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 214 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. As an additional feature, an integrated media player enables the direct playback of files without an external source device. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. The projector was released in 2016 and is officially no longer distributed by Jmgo.
Display Type
1 x 0,45" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1000
Screen
400 Lux (200 cm Screen width)
Contrast
40000:1 full on/off
40000:1 full on/off
Black Level
0,0250 min. Lumen
0,01 min. Lumen
Offset
-
Resolution
WXGA 1280 x 800
1.024.000 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p Media player formats: Video Format: 1080P HD playback, supporting AVI, H.264, VC-1, MPEG-2, MPEG-4, DIVD/DIVX, Real 8/9/10, RM, RMVB, PMP, FLV, MP4, M4V, VOB, 3GP, MKV, M2TS etc
Audio Format: Stereo Hi-Fi audio. Supporting MPI, MP2, MP3, WMA, OGG, AAC, M4A, FLAC, APE, AC3, AMR, DTS, RA, WAV etc, supporting audio classification, album cover displaying etc
Coding Format Supporting the latest H.265, H.264, H.265, 4K@30fps, MPEG1/2/4, real7/8/9, maximum 1080@30 fps @
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Light Source
-
Light Life
-
Operating Costs
-
Calculated brightness qualityGood (1.8)
280 cm (no Zoom)
Lux:
400 Lux
Contrast:
40000:1
Candela pro m²:
127 cd/m²
Foot-Lamberts:
37 fL
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
1,4:1
Audio
-

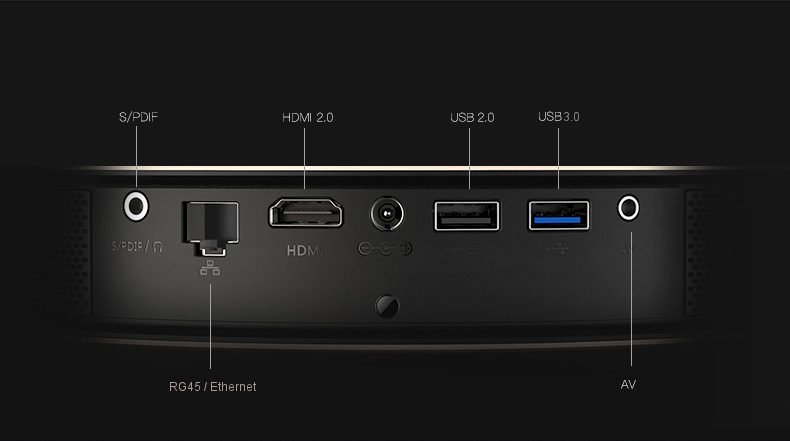

Connections
HDMI in
USB 2.0 und 3.0 in
RS232C Din 9 pin in
RJ45 in
Full HD 1080P compatible
