Brief Introduction
Beta 2.5 |

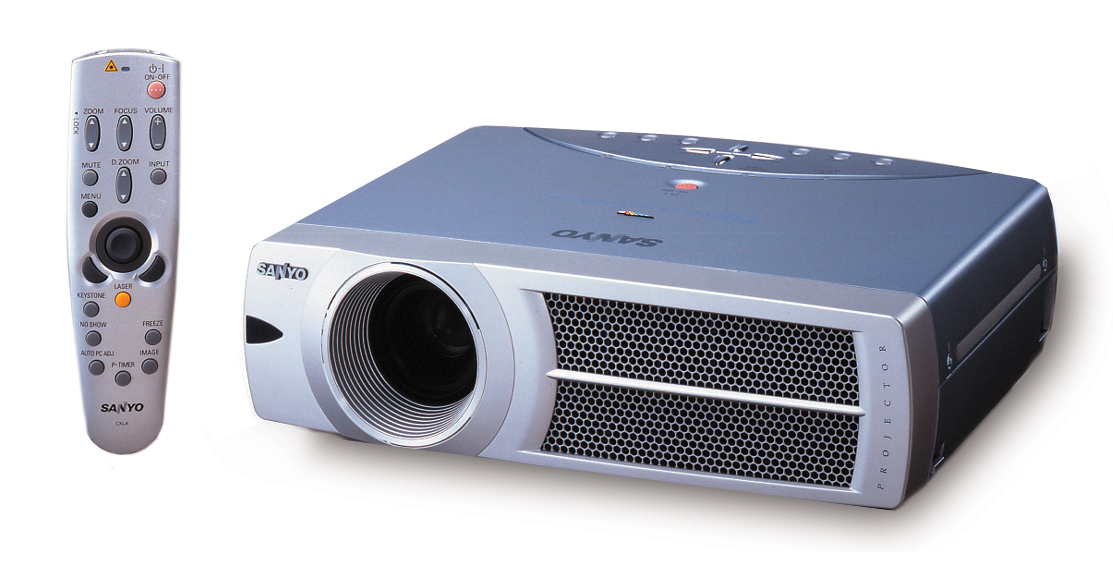

The PLC XU37 LCD has 2000 Ansi-Lumen, a contrast of 350:1 and an XGA 1024 x 768 resolution. The projector is equipped with an integrated media player, so direct playback of files will not be a problem. An image width of up to 389 cm is possible. However, the picture should be smaller in room lighting. We recommend max. 259 cm. The projector was launched in 2002 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,9" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
2000 |
Screen |
667 Lux (200 cm Screen width) |
| Contrast |
350:1 full on/off |
350:1 full on/off
|
| Black Level |
5,7143 min. Lumen |
1,922 min. Lumen |
| Offset |
40% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, Secam, NTSC, NTSC 4.3, PAL-M, PAL-N HDTV 1080i, 720p, 480p
Media player formats: BMP JPEG |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
200W UHP Lamp
Article Nr.: 610 293 2751
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
380 - 520 cm
|
 |
|
Lux: |
667 Lux |
|
Room light max.: |
133 Lux |
|
Candela pro m²: |
212 cd/m² |
|
Foot-Lamberts: |
62 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,29 |
| Objective |
F=1,7-2,0 f=37,4-48,3 mm |
| Throw Ratio |
1,9-2,6:1 show |
| Audio |
1W Mono |
| Connections |
1 x D-sub 15pin in und out
1 x DVI Eingang
1 x Audio Mini-Jack Eingang
1 x RCA
YUV in
1 x Audioaus. eingang RCA x2
1 x USB
1 x Control Port RS232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
300W |
| Size WxHxD |
333 x 895 x 253 mm (13,1"x35,2"x10") 75,4 L/dm³
|
| Operating Noise |
36dB |
|
| Weight |
4,20 kg / 9,26 lbs. |
| Keystone |
- |
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
62 fL
/ max. 389 cm screen width |
| Candela m² |
212 cd/m² |
| Features |
 Integrated Mediaplayer
Freeze
Eco Mode
Kensington Slot
Gamma correction
Remote control with laser pointer und mouse control
Optional Wi-Fi network compatible.
PCMCIA und SD Memory Card slot Optional mit Multi Card Imager der am DVI Angeschlossen wird
|
|
- |
In Comparison
The Sanyo PLC XU37 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
80 |
| Contrast: |
|
1 |
dB: |
|
33 |
| Black level: |
|
79 |
Power cons.: |
|
97 |
| Picture Total Points: | 34 |
Projector Total Points: | 70 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4744 (From: 7662) |
|
|
|
| Please note |
PCMCIA and SD Memory Card slot Optional with Multi Card Imager connected to DVI
|
|
|
| Status |
2002 Discontinued (EOL) // Last update of the data: 2023-08-04
|
