Brief Introduction
Beta 2.5 |

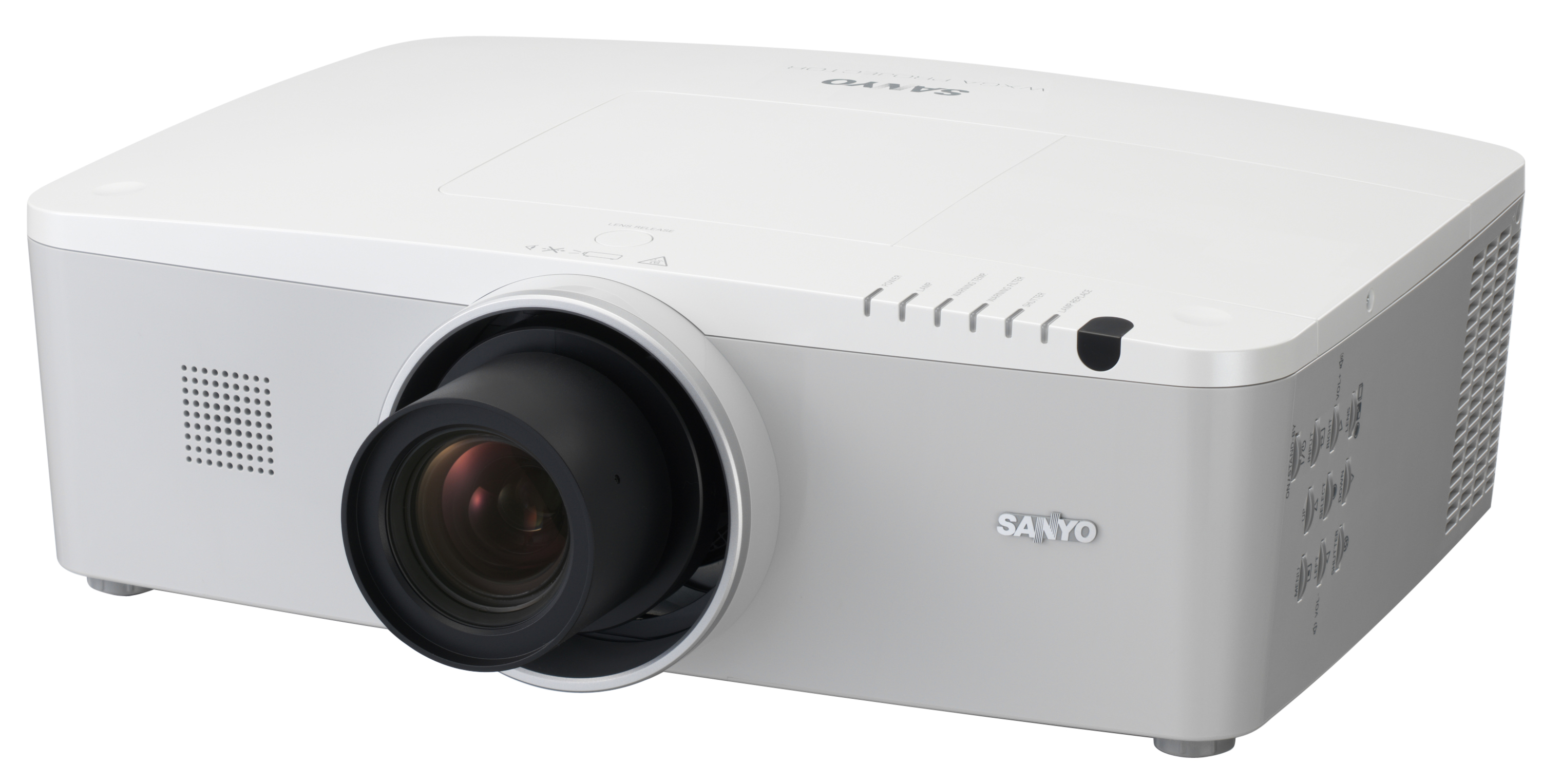

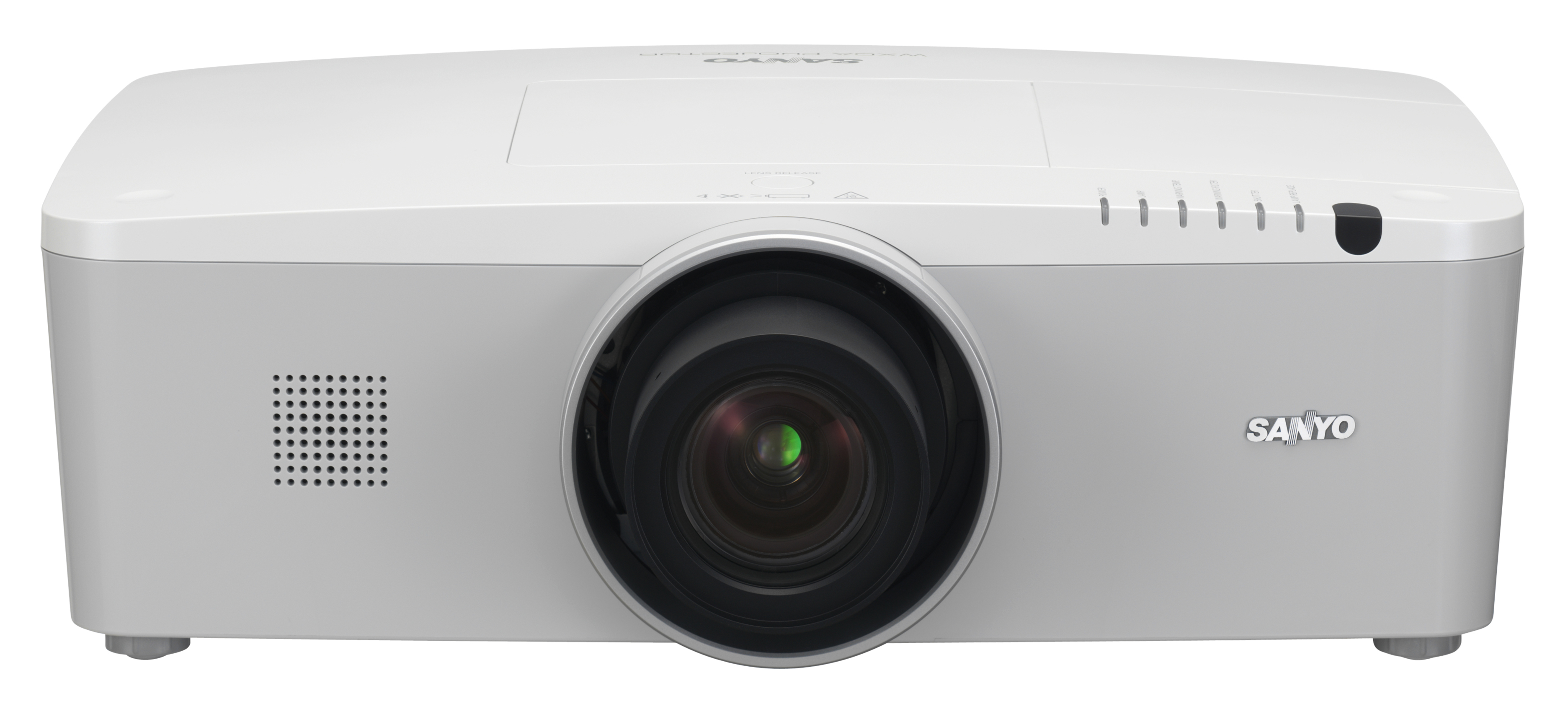

A brief introduction to the PLC WM4500/L: The Sanyo stationary LCD projector offers 4500 Ansi lumens, a contrast of 800:1 and a WXGA 1280 x 800 resolution. With the lens shift function, the projector can be positioned very freely. 682 cm image width, the projector will be able to illuminate well. Rooms with residual light can be created by the projector with a smaller image width, we recommend a maximum of 455 cm. Playing 1080P is also no problem for the projector. The projector was launched in 2010 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,75" LCD TFT Panel mit MLA
WXGA 16/10 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
4500 |
Screen |
1800 Lux (200 cm Screen width) |
| Contrast |
800:1 full on/off |
800:1 full on/off
|
| Black Level |
5,6250 min. Lumen |
2,257 min. Lumen |
| Lens shift |
Vert.: +/-70% Hori.: +/-10%
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

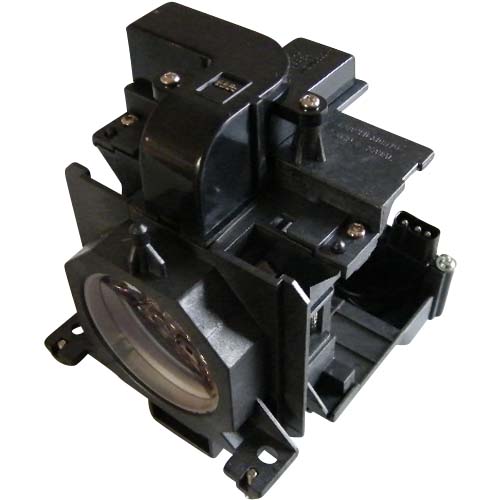

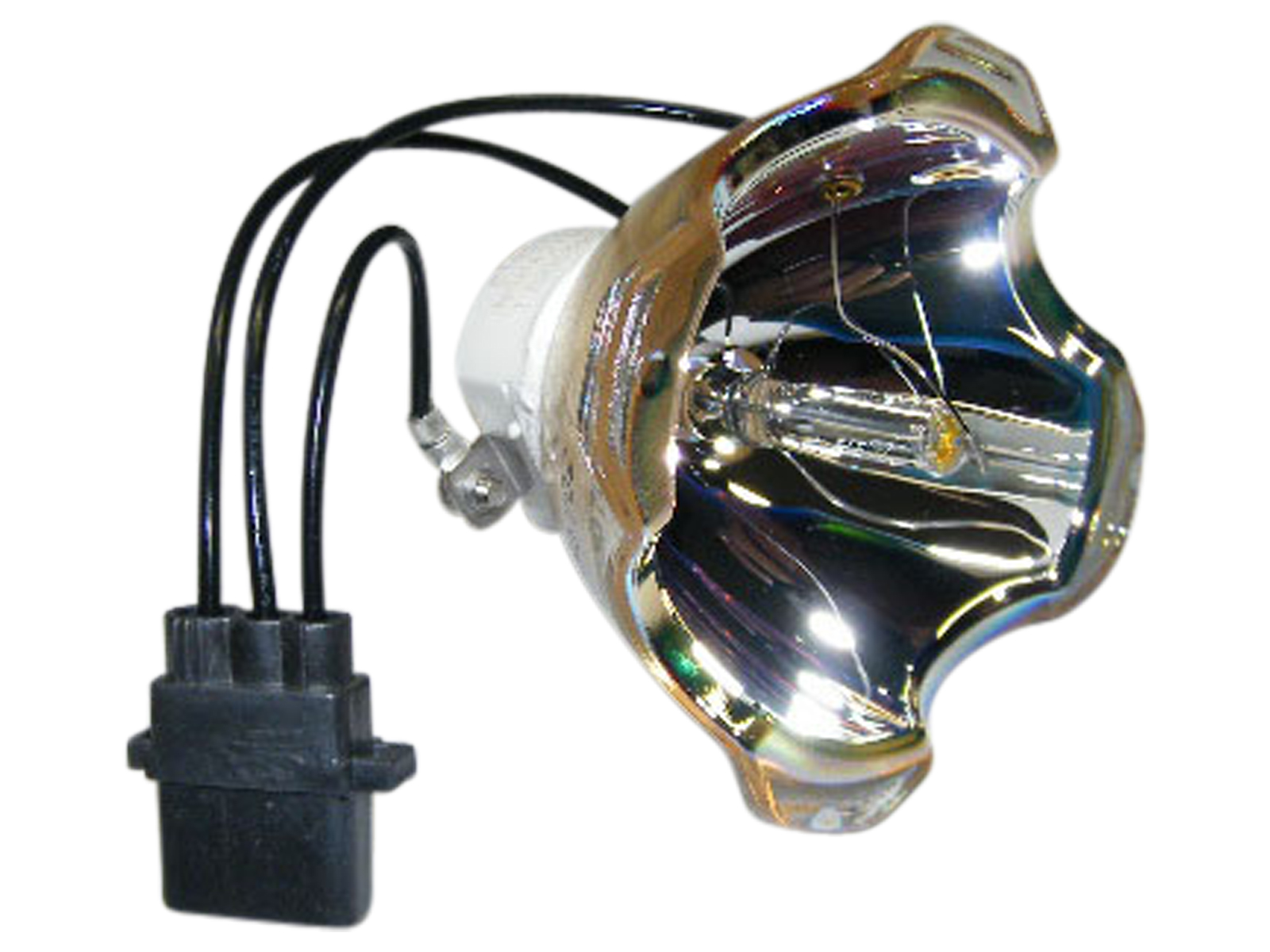

330W NSH Lamp
Article Nr.: 610-347-5158 / LMP137
|
|
| Light Life |
2000 h. 3000 h. in eco Mode |
| Operating Costs |
-
|
|
334 - 562 cm
|
 |
|
Lux: |
1800 Lux |
|
Room light max.: |
360 Lux |
|
Candela pro m²: |
572 cd/m² |
|
Foot-Lamberts: |
167 fL |
|
 |
| 88 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,69 |
| Objective |
F=1,7-2,3 f=26,9-45,4 mm / L optional |
| Throw Ratio |
1,67-2,81:1 show |
| Audio |
7W Mono |

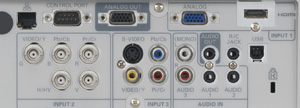

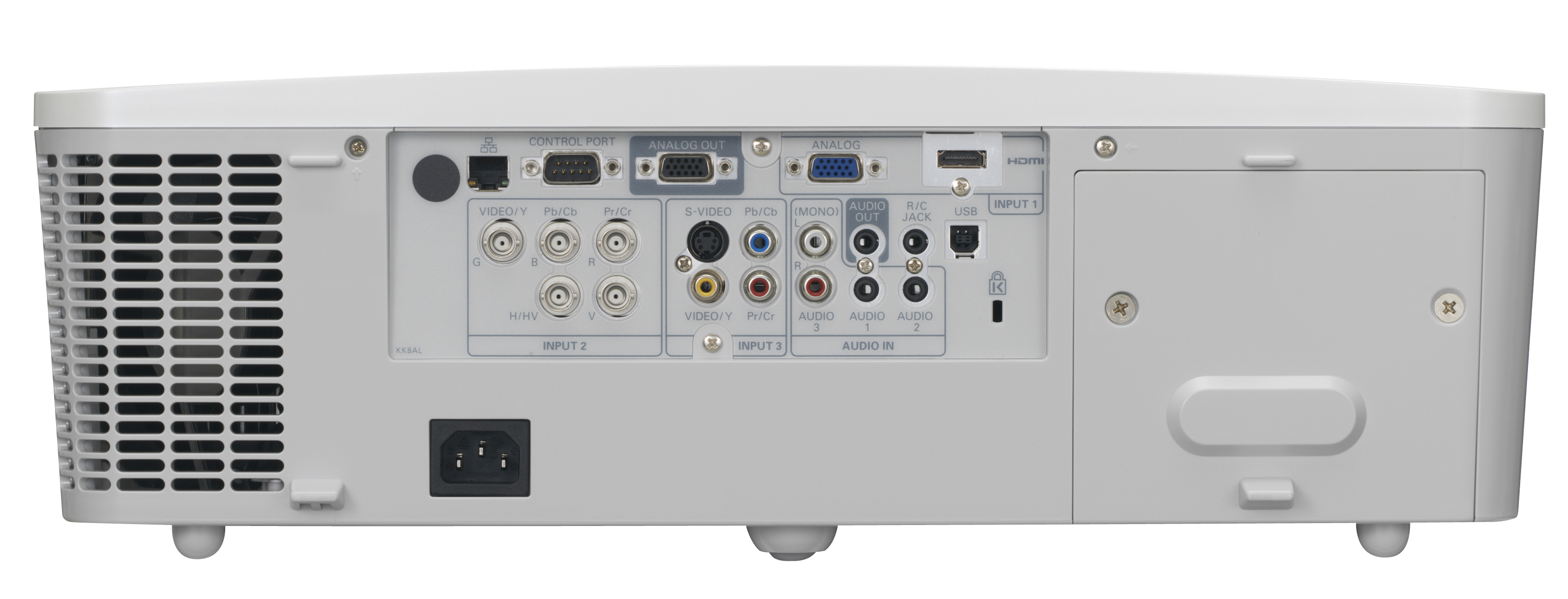

| Connections |
HDMI 1.3 in
5 x BNC RGBHC in
D-sub 15 pin in und out
YUV in
S-Video in
Cinch Video in
Mini Jack Audio in und out
USB Typ B
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
460 / 385W in Eco Mode |
| Size WxHxD |
489,5 x 164 x 434,8 mm (19,3"x6,5"x17,1") 34,81 L/dm³
|
| Operating Noise |
38 / 31 dB in Eco Mode |
Key: 280 cm
Shift: 88 cm |
Key: 122 cm
Shift: 20 cm |
| Key: 122 cm
Shift: 20 cm |
| |
|
|
| Weight |
8,90 kg / 19,62 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-20°
|
| Illumination |
90% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 48-100 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
167 fL
/ max. 682 cm screen width |
| Candela m² |
572 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Lens shift Funktion
Freeze
User logo
Eco Mode
Kensington Slot
Gamma correction
Picture-in-Picture
Password protection
PJLink™
Lan network compatible.
Digital Zoom and Picture-in-Picture
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Sanyo PLC WM4500/L compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
44 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
94 |
| Black level: |
|
83 |
Power cons.: |
|
95 |
| Picture Total Points: | 43 |
Projector Total Points: | 96 |
|
| Popularity Top 100 |
|
| Points: |
|
43 |
| Ranking: |
235 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| LNS-T21 | 4.6-7.36:1 | 920-1472 m |
+/-70% |
+/-10% |
Powered |
| LNS-T20 | 2.89-4.6:1 | 578-920 m |
+/-70% |
+/-10% |
Powered |
| LNS-S20 | 1.7-2.89:1 | 340-578 m |
+/-70% |
+/-10% |
Powered |
| LNS-W20 | 1.25-1.7:1 | 250-340 m |
+/-70% |
+/-10% |
Powered |
| LNS-W21 | 0.8:1 | 160 m |
0.0% Fix |
+/-10% |
No Zoom |
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC
Product Sheet USA
User Manual english (10.4 MB)

|
Sanyo Website
