Brief Introduction
Beta 2.5 |

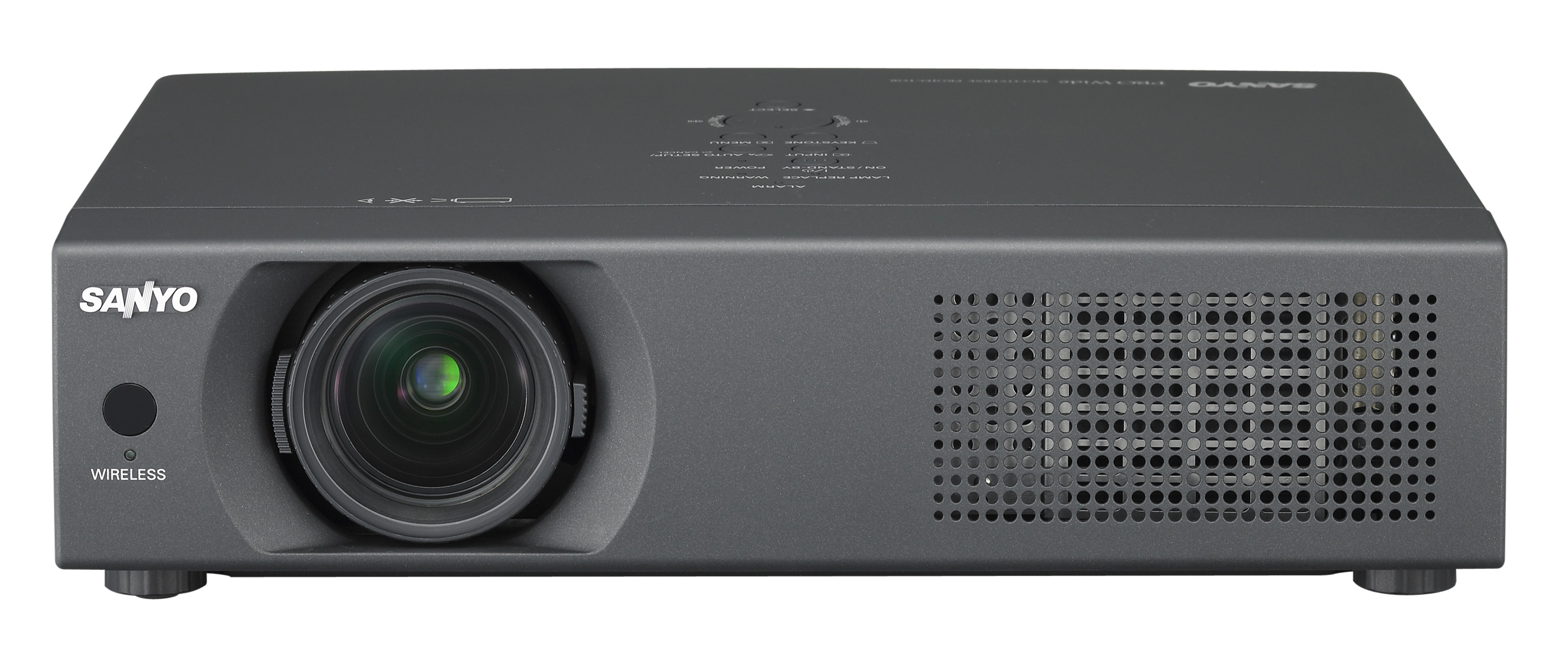

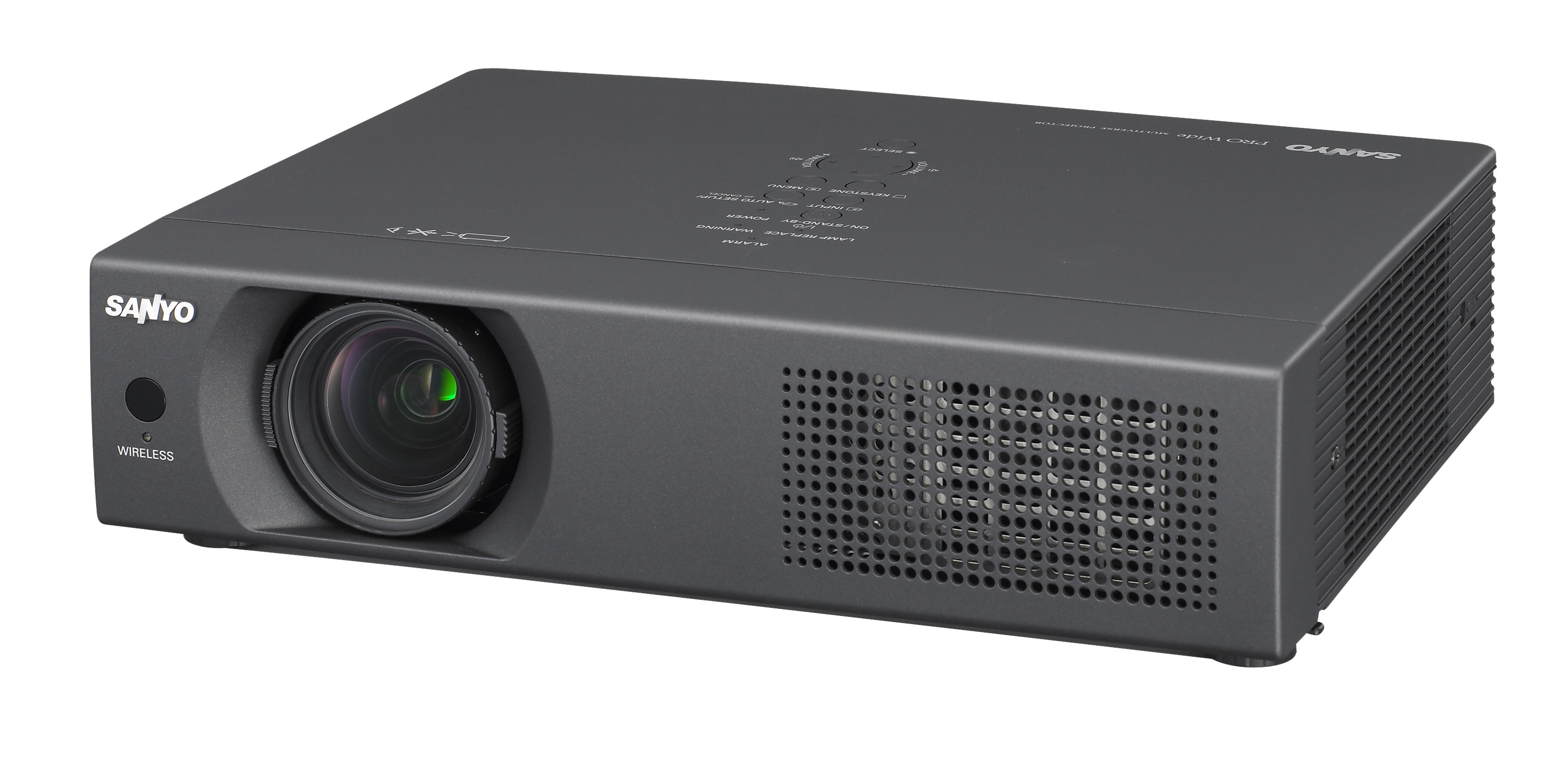

The Sanyo model PLC WXU30 is an LCD projector with WXGA 1280 x 800 resolution and a contrast of 500:1. The projector is equipped with an integrated media player, so direct playback of files will not be a problem. The projector will be able to illuminate a screen width of 618 cm. Rooms with residual light can be created by the projector with a smaller image width, max. 412 cm is recommended here. This model is no longer offered by Sanyo.
|
| Display Type |
3 x 0,74" LCD TFT Panel mit MLA
WXGA 16/10 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
3700 |
Screen |
1480 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
7,4000 min. Lumen |
2,975 min. Lumen |
| Offset |
48% show
|
| Resolution |
WXGA 1280 x 800
1.049.088 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Media player formats: JPEG BMP TXT PPT |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

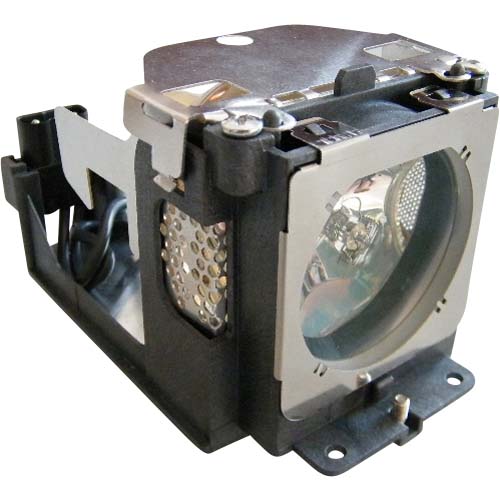

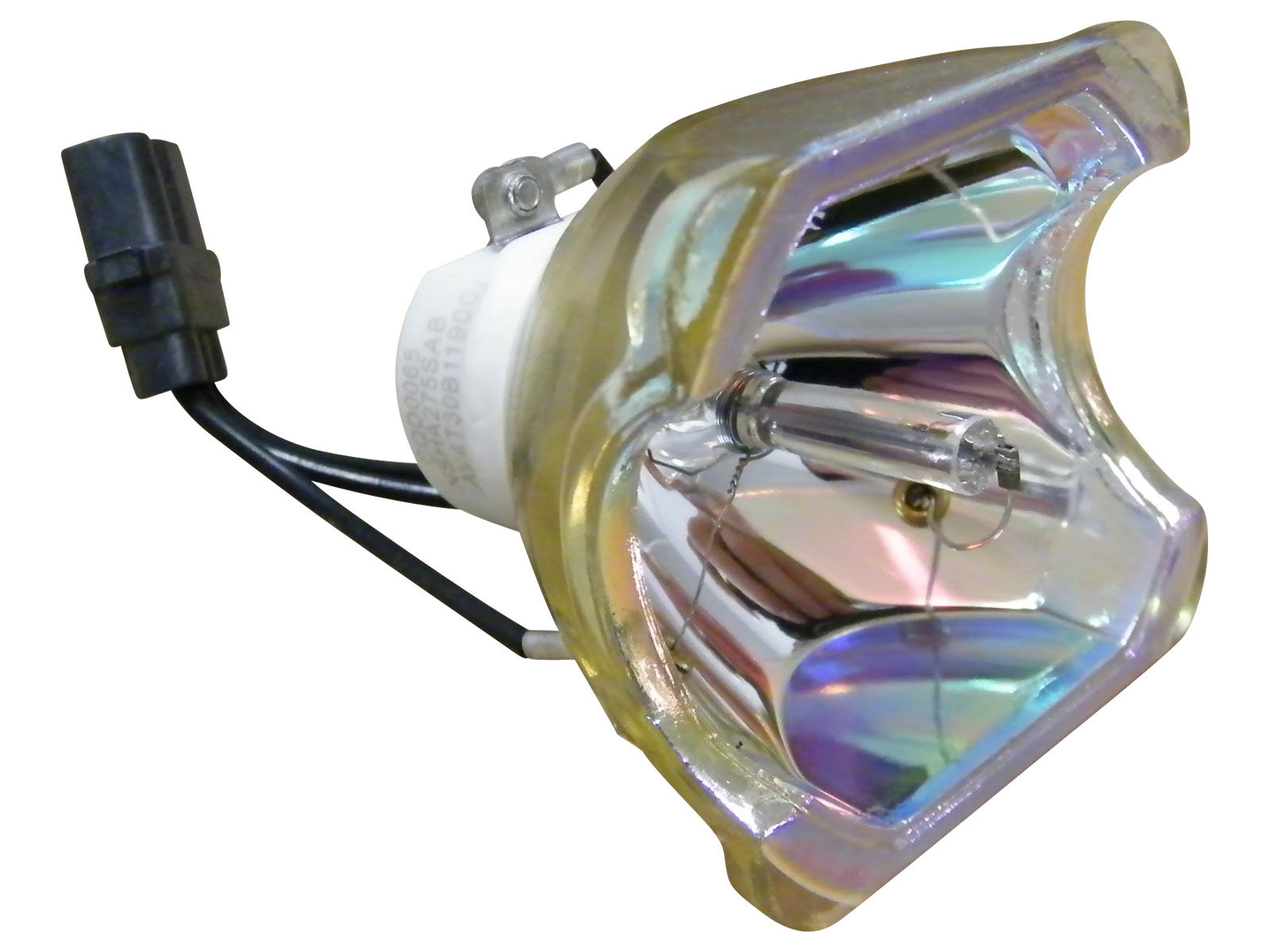

275W NSH Lamp
Article Nr.: LMP-111
|
|
| Light Life |
2500 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
234 - 372 cm
|
 |
|
Lux: |
1480 Lux |
|
Room light max.: |
296 Lux |
|
Candela pro m²: |
469 cd/m² |
|
Foot-Lamberts: |
137 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,6 |
| Objective |
F=1,7-2,5 f=19,2-30,2 mm |
| Throw Ratio |
1,17-1,86:1 show |
| Audio |
1W Mono |

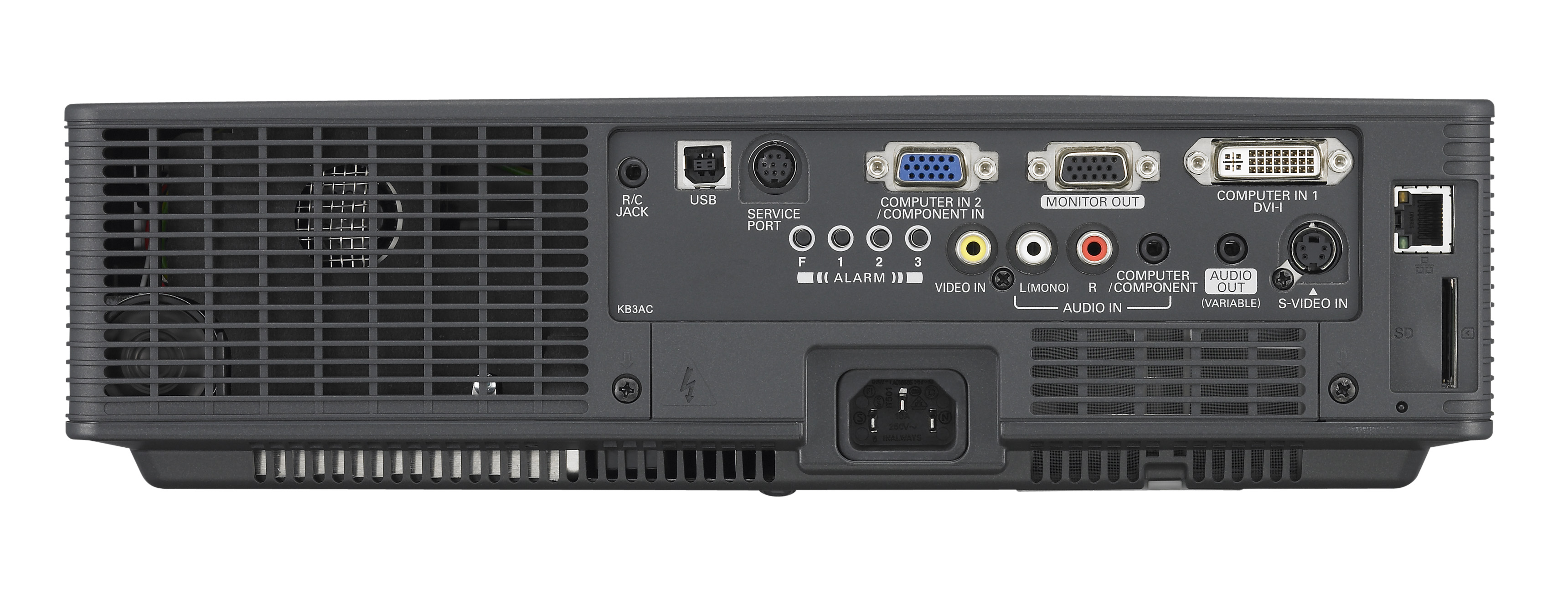

| Connections |
DVI-I mit HDCP
D-sub 15 pin in und out
S-Video in
Cinch Video in
Cinch Stereo in
USB Typ B in
RJ45 in
RS232C Din 9pin
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
346 / 278W in Eco Mode |
| Size WxHxD |
334 x 78 x 257,5 mm (13,1"x3,1"x10,1") 6,7 L/dm³
|
| Operating Noise |
34 / 30 dB in Eco Mode |
|
| Weight |
3,60 kg / 7,94 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
137 fL
/ max. 618 cm screen width |
| Candela m² |
469 cd/m² |
| Features |
 Integrated Mediaplayer
Freeze
Blackboard Modus
User logo
Eco Mode
Kensington Slot
Gamma correction
Password protection
Remote control with laser pointer und mouse control
PJLink™
Control via web browser
Wi-Fi network compatible.
Lan network compatible.
|
|
- |
In Comparison
The Sanyo PLC WXU30 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
45 |
Weight: |
|
83 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
72 |
Power cons.: |
|
96 |
| Picture Total Points: | 39 |
Projector Total Points: | 72 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
3109 (From: 7662) |
|
|
|
|
|
| Status |
2007 Discontinued (EOL) // Last update of the data: 2023-08-04
|
