Brief Introduction
Beta 2.5 |

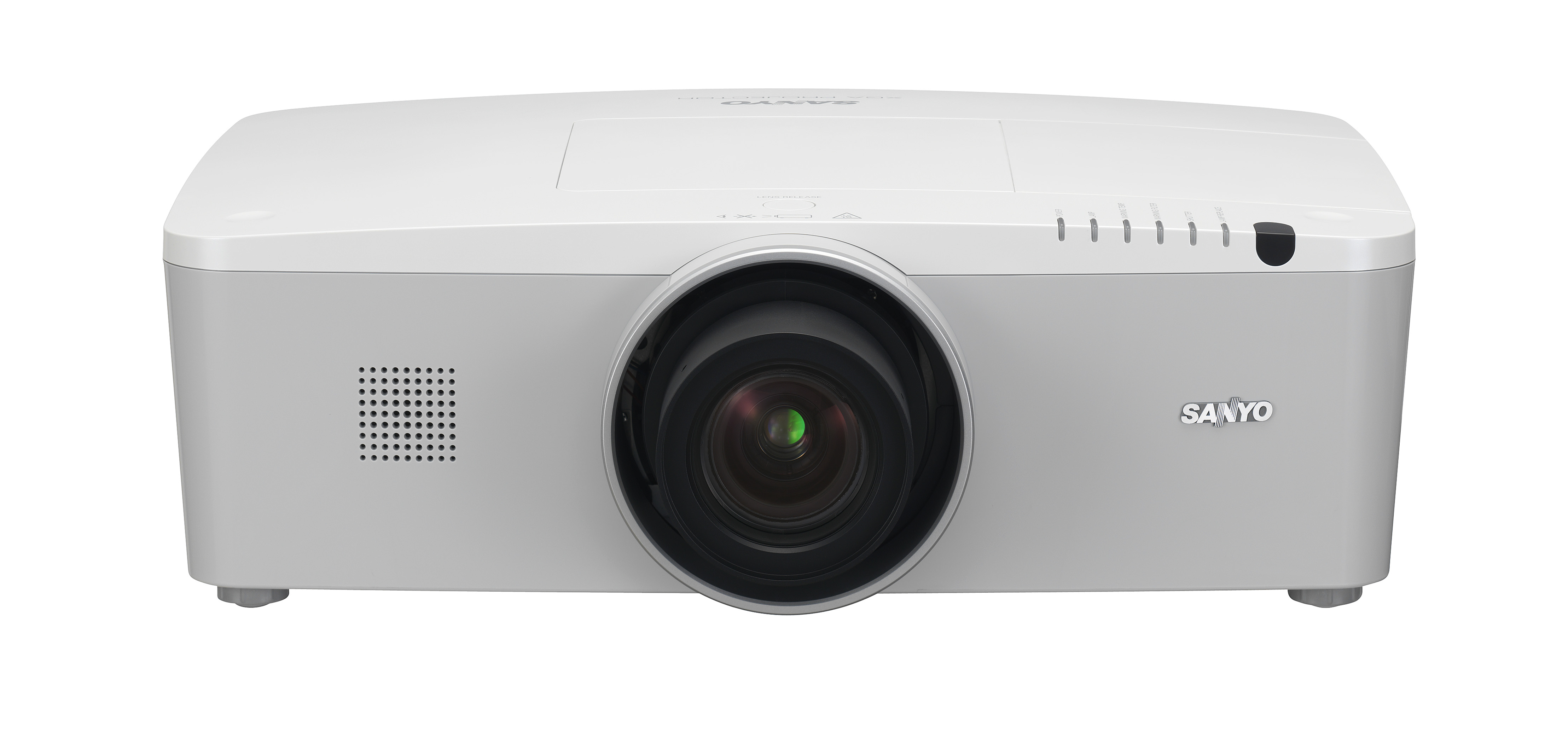

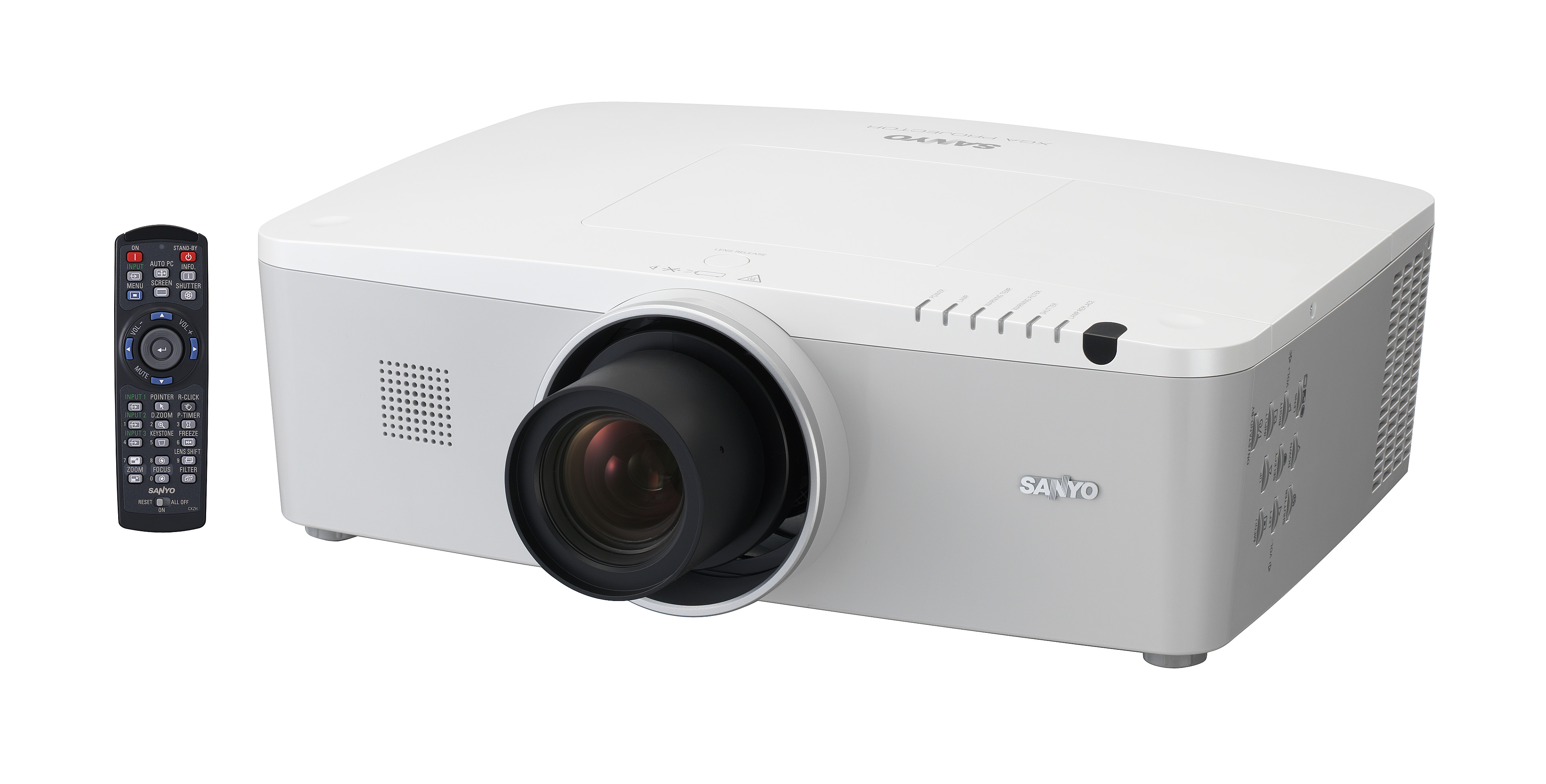

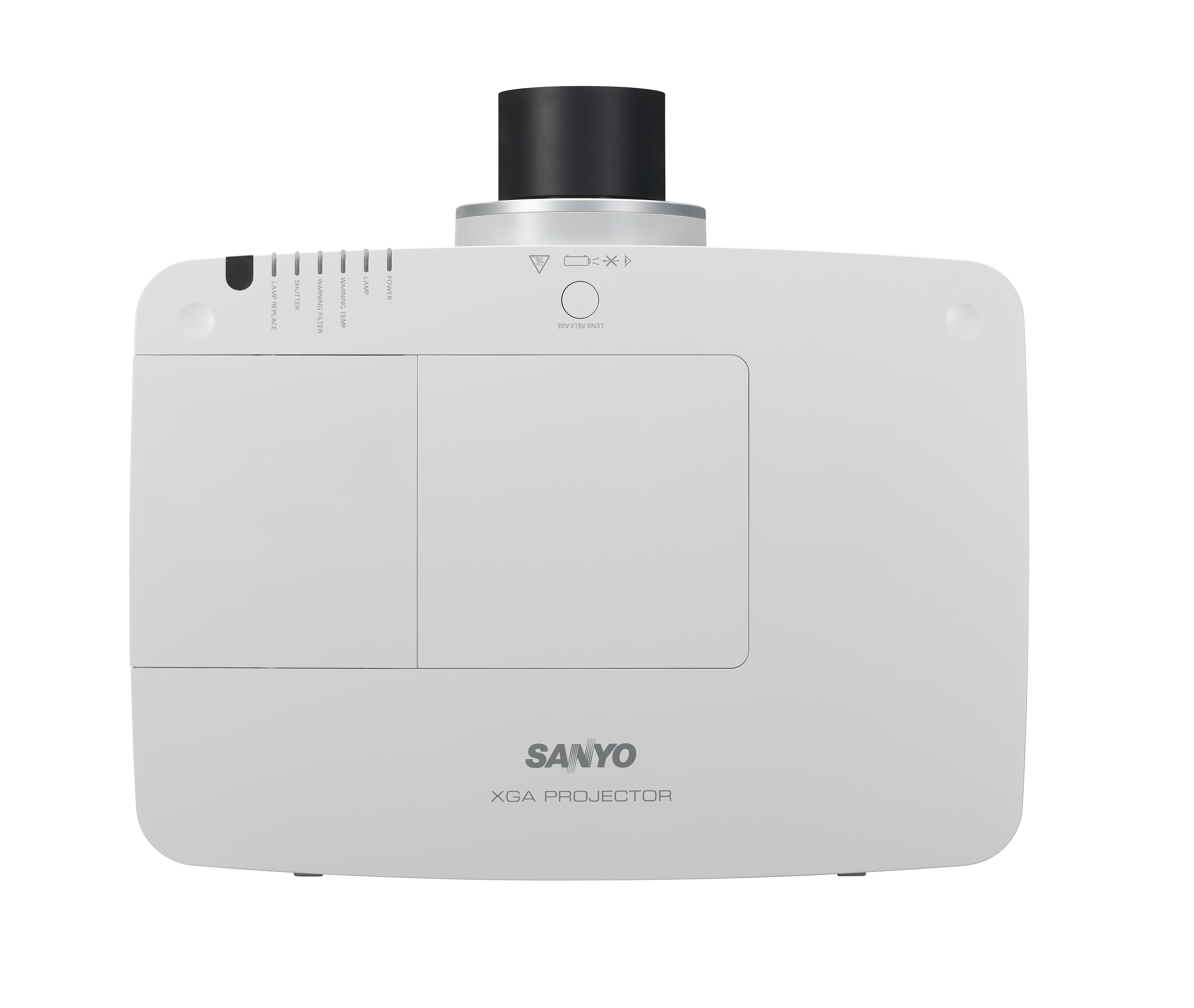

A brief introduction to the PLC XM100/L: The Sanyo stationary LCD projector offers 5000 Ansi lumens, a contrast of 1000:1 and an XGA 1024 x 768 resolution. The integrated lens shift gives freedom when positioning the projector. Thanks to the brightness of 5000 Ansi lumens, an image width of 616 cm is possible. The projector can also handle slightly brighter rooms with a narrower image width (we recommend max. 411 cm). It is also Full HD 1080P compatible. The model built in 2009 is no longer offered by Sanyo, but is still a popular projector in our database.
|
| Display Type |
3 x 0,8" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
1667 Lux (200 cm Screen width) |
| Contrast |
1000:1 full on/off |
1000:1 full on/off
|
| Black Level |
5,0000 min. Lumen |
1,672 min. Lumen |
| Lens shift |
Vert.: +/-50% Hori.: +/-10%
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

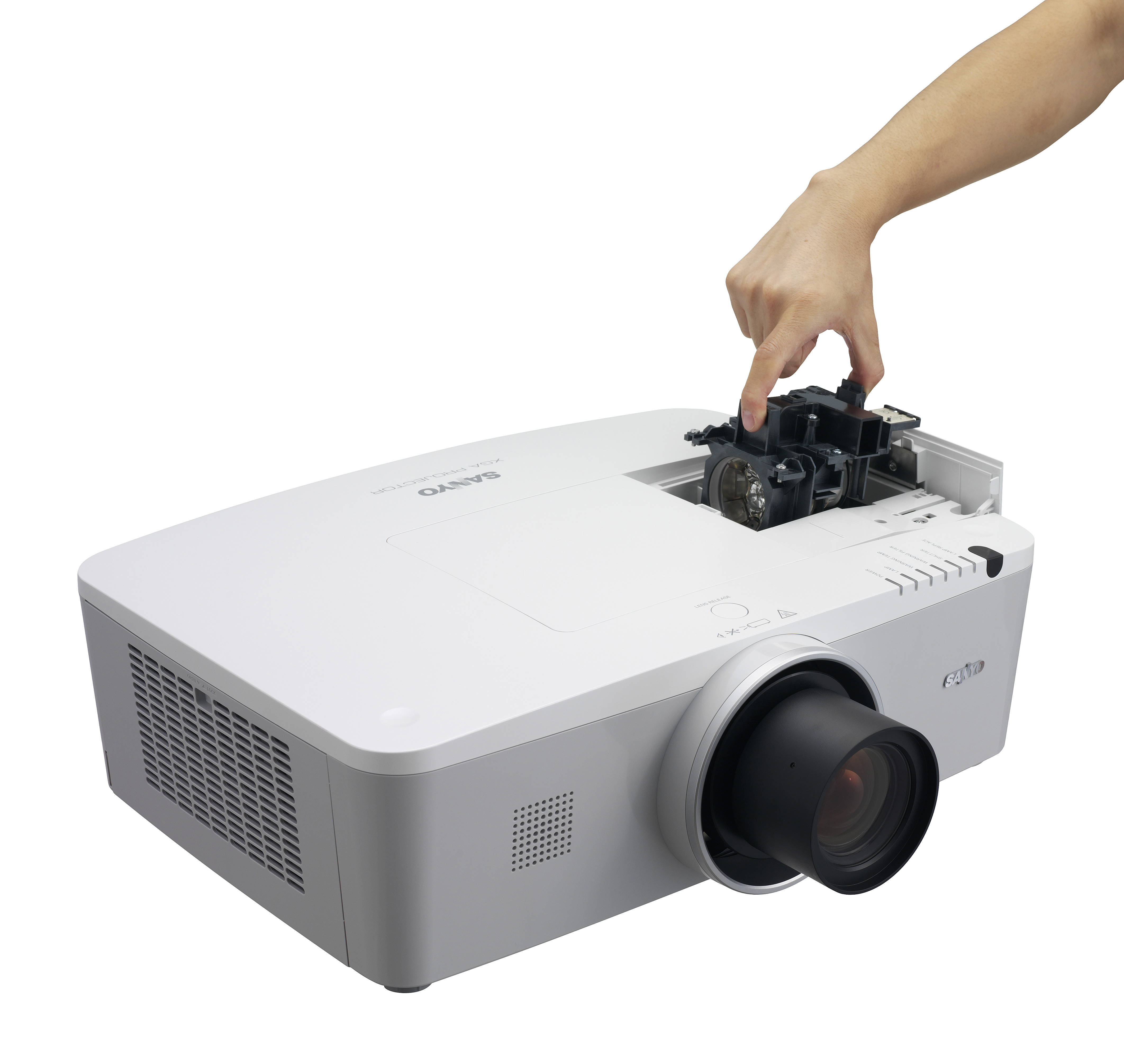

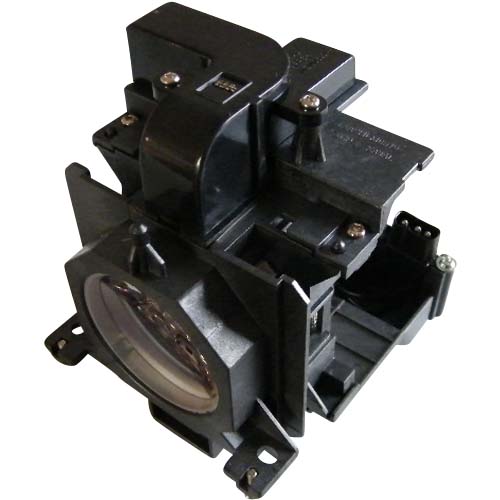

275W Lamp
Article Nr.: 610-347-5158 / LMP137
|
|
| Light Life |
2000 h. 3000 h. in eco Mode |
| Operating Costs |
-
|
|
340 - 578 cm
|
 |
|
Lux: |
1667 Lux |
|
Room light max.: |
333 Lux |
|
Candela pro m²: |
531 cd/m² |
|
Foot-Lamberts: |
155 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,69 |
| Objective |
F=1,8-2,3 f=26,9-45,4 mm / L optional |
| Throw Ratio |
1,70-2,89:1 show |
| Audio |
7W Mono |

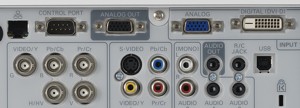

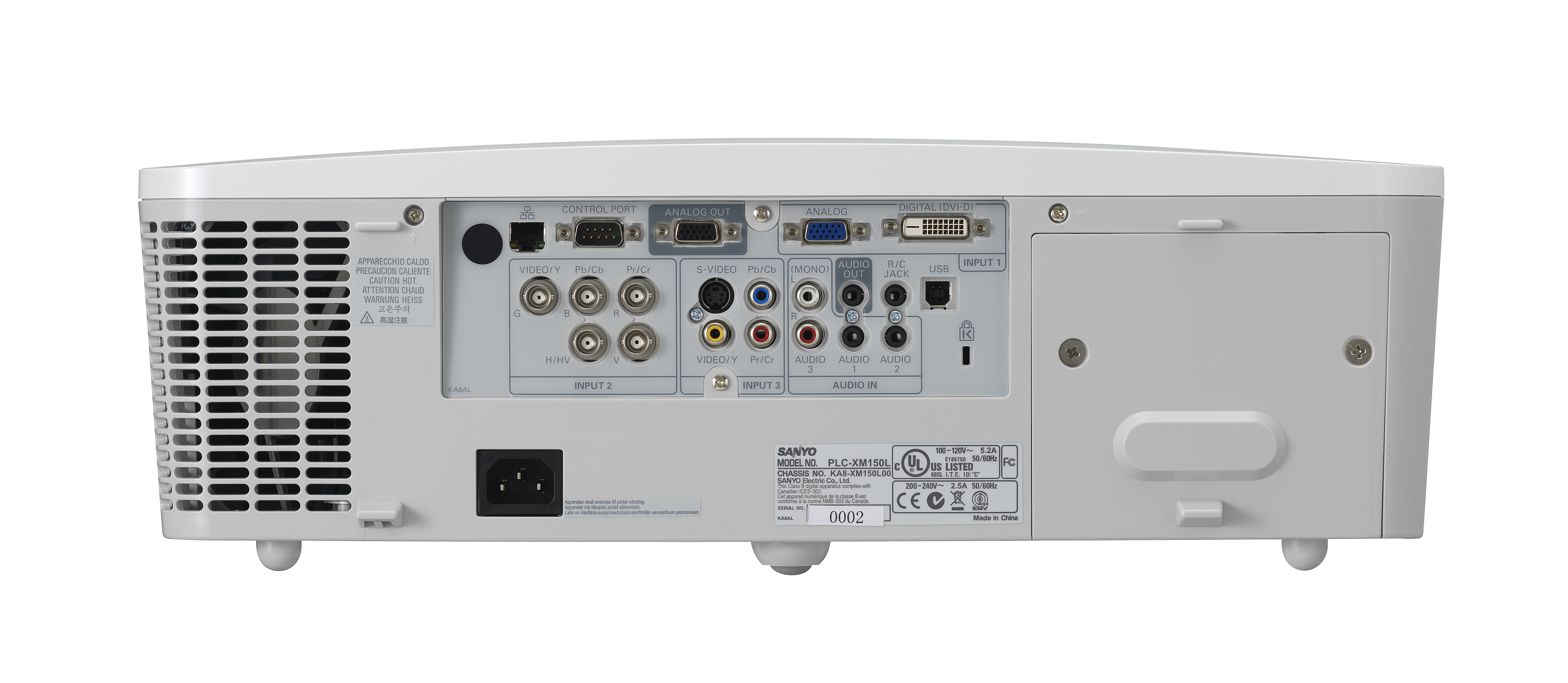

| Connections |
DVI in
5 x BNC RGBHC in
D-sub 15 pin in und out
YUV in
S-Video in
Cinch Video in
Mini Jack Audio in und out
USB
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
490W |
| Size WxHxD |
489,5 x 164 x 434,8 mm (19,3"x6,5"x17,1") 34,81 L/dm³
|
| Operating Noise |
31 dB in Eco Mode |
Key: 285 cm
Shift: 75 cm |
Key: 124 cm
Shift: 20 cm |
| Key: 124 cm
Shift: 20 cm |
| |
|
|
| Weight |
9,70 kg / 21,38 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-20°
|
| Illumination |
90% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 48-100 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
155 fL
/ max. 616 cm screen width |
| Candela m² |
531 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Freeze
User logo
Eco Mode
Kensington Slot
Gamma correction
Password protection

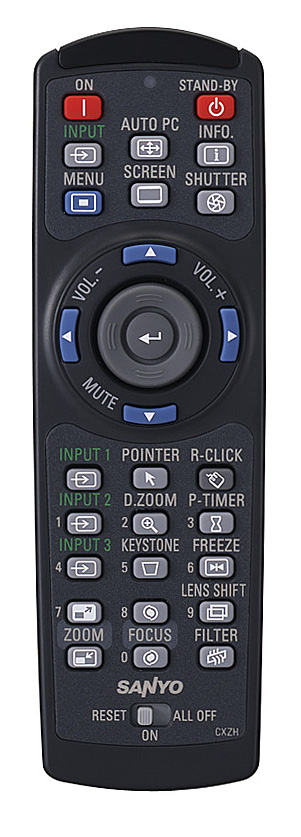

Remote control with mouse control
PJLink™
Control via web browser
Lan network compatible.
|
|
- |
In Comparison
The Sanyo PLC XM100/L compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
98 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
85 |
Power cons.: |
|
94 |
| Picture Total Points: | 45 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
46 |
| Ranking: |
192 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| LNS-T21 | 4.6-7.36:1 | 920-1472 m |
+/-50% |
+/-10% |
Powered |
| LNS-T20 | 2.89-4.6:1 | 578-920 m |
+/-50% |
+/-10% |
Powered |
| LNS-S20 | 1.7-2.89:1 | 340-578 m |
+/-50% |
+/-10% |
Powered |
| LNS-W20 | 1.25-1.7:1 | 250-340 m |
+/-50% |
+/-10% |
Powered |
| LNS-W21 | 0.8:1 | 160 m |
0.0% Fix |
+/-10% |
No Zoom |
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Prosepkt USA
Product Sheet english
Product Sheet english HC
User Manual english (13.24 MB)

|
Sanyo Website
