Brief Introduction
Beta 2.5 |

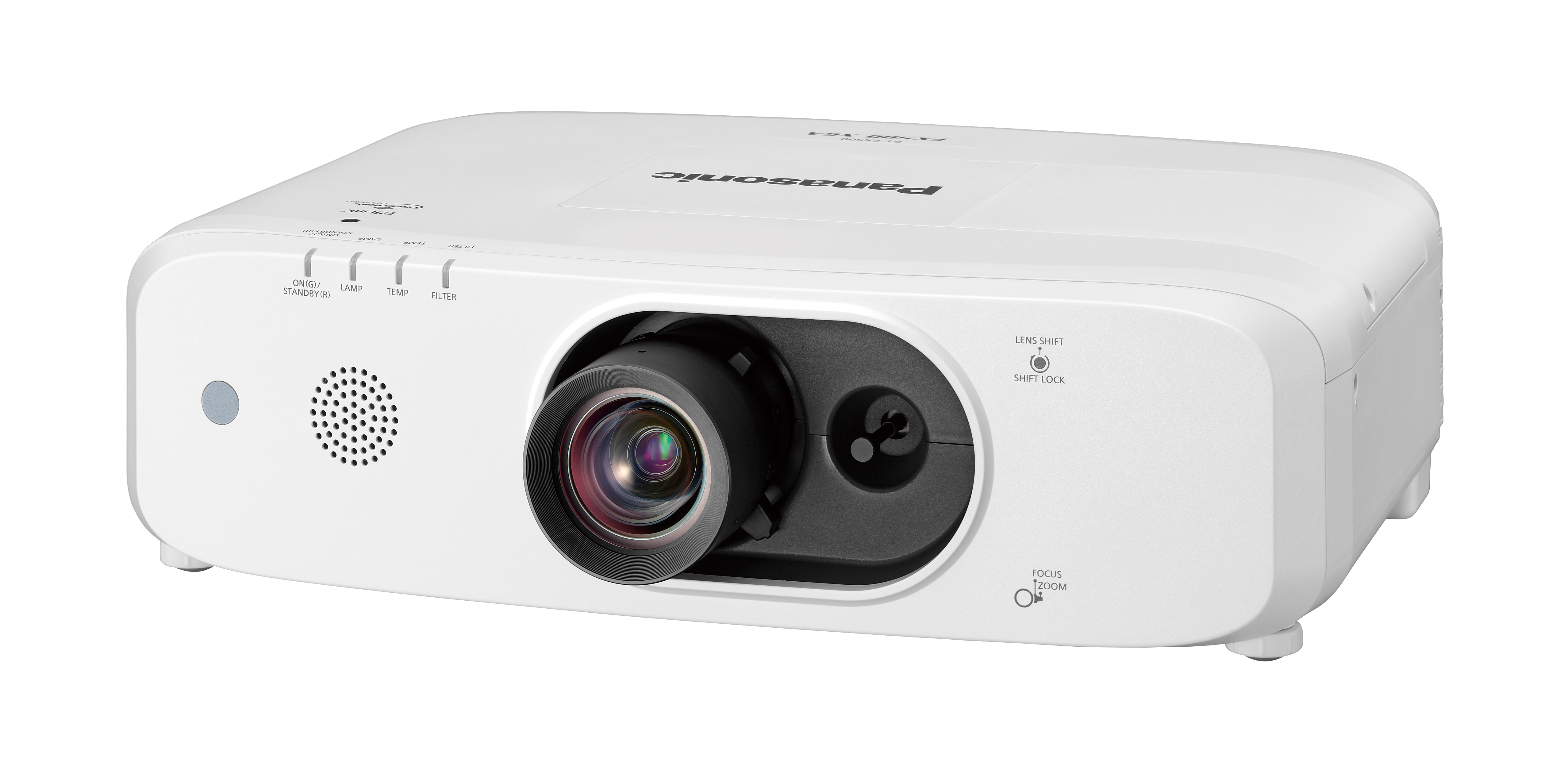

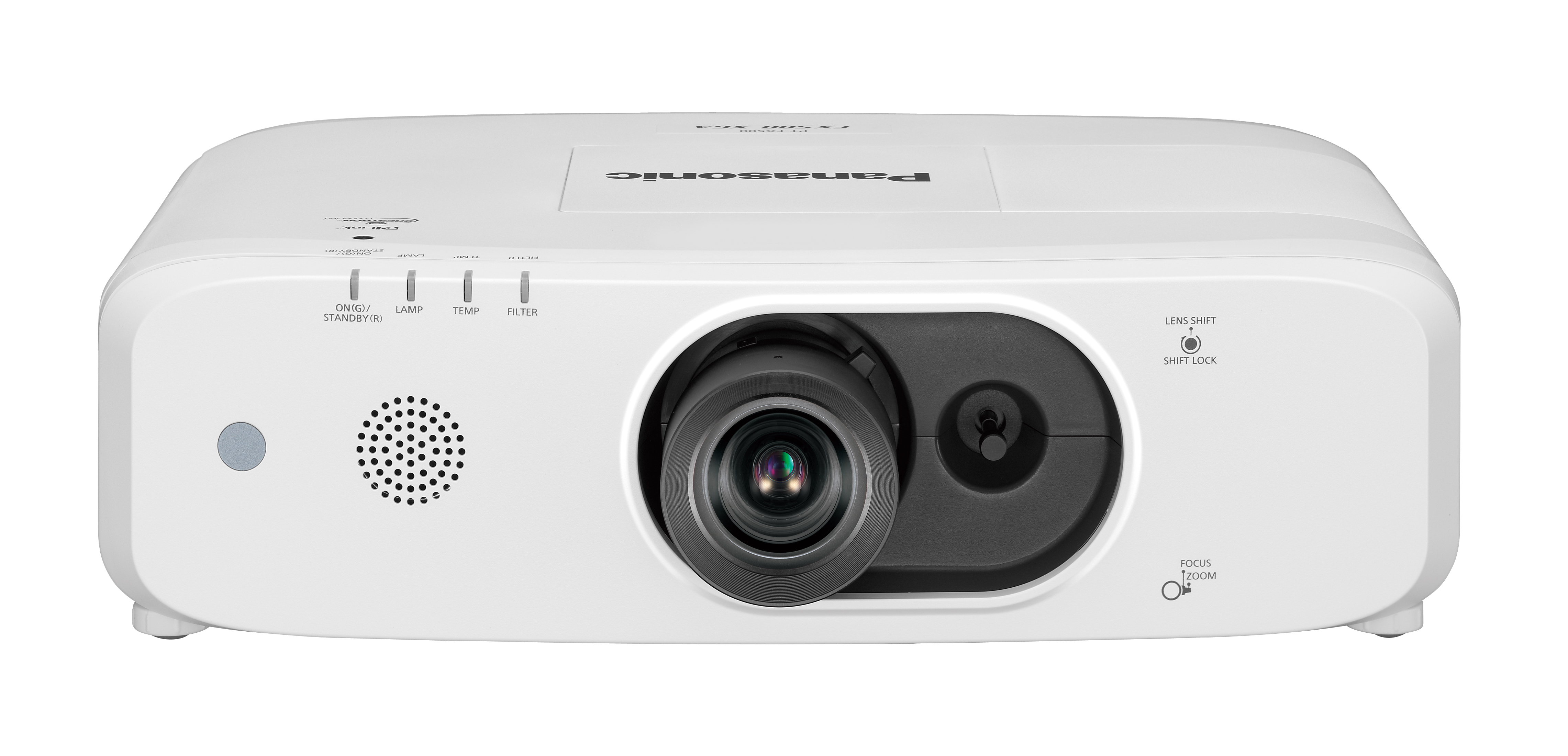

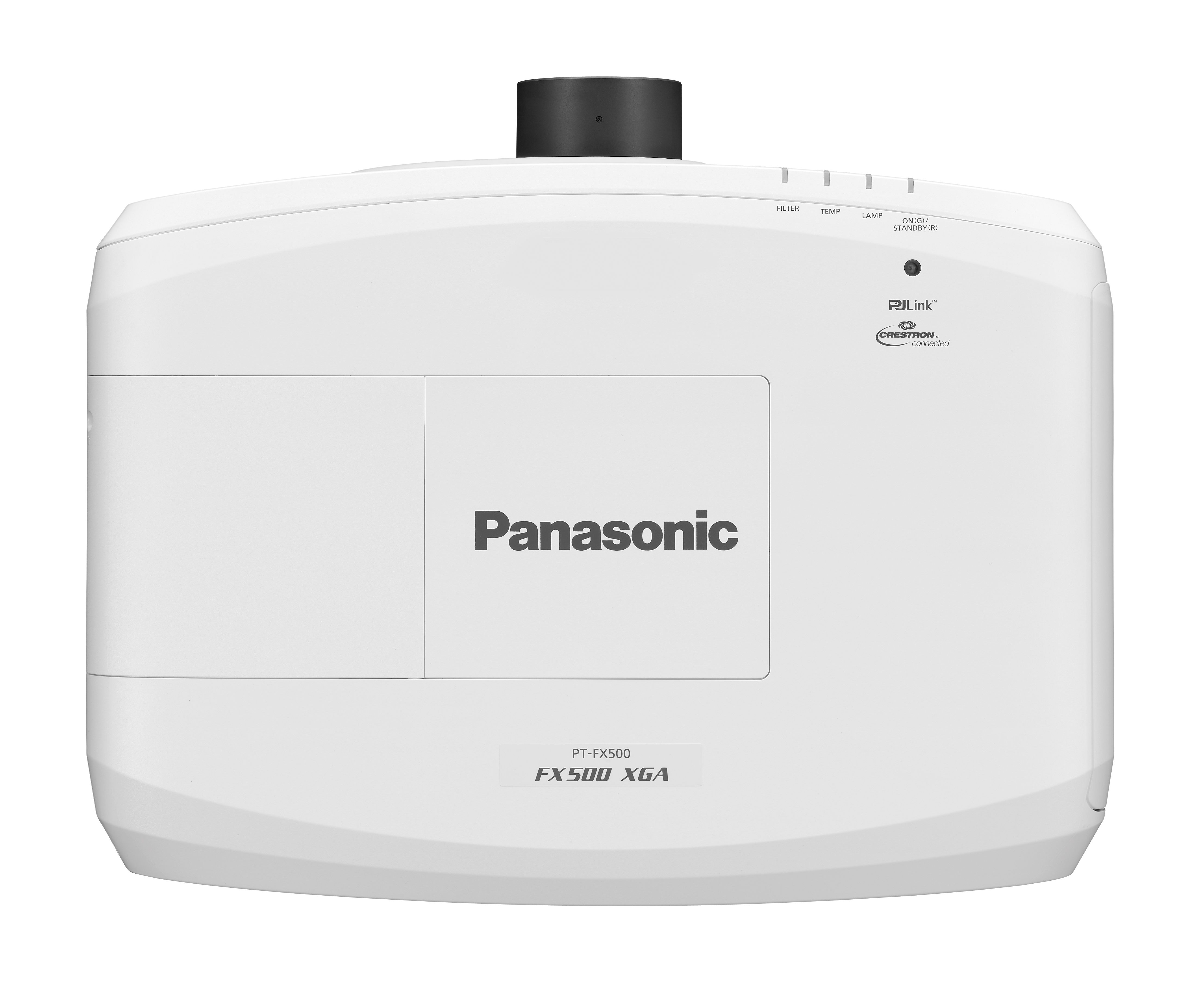

A brief introduction to the PT-FX500: The Panasonic stationary LCD projector offers 5000 Ansi lumens, a contrast of 10000:1 and an XGA 1024 x 768 resolution. The manufacturer specifies a lamp life of 6000 hours, which is over 8.2 years with a daily viewing time of 2 hours. With the lens shift function, the projector can be positioned very freely. Thanks to the brightness of 5000 Ansi lumens, an image width of 616 cm is possible. The projector can also handle slightly brighter rooms with a narrower image width (we recommend max. 411 cm). The model was built by Panasonic in 2016 and is no longer current.
|
| Display Type |
3 x 0,63" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
1667 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,5000 min. Lumen |
0,167 min. Lumen |
| Lens shift |
Vert.: +/-50% Hori.: +/-30%
|
| Resolution |
XGA 1024 x 768
786.432 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

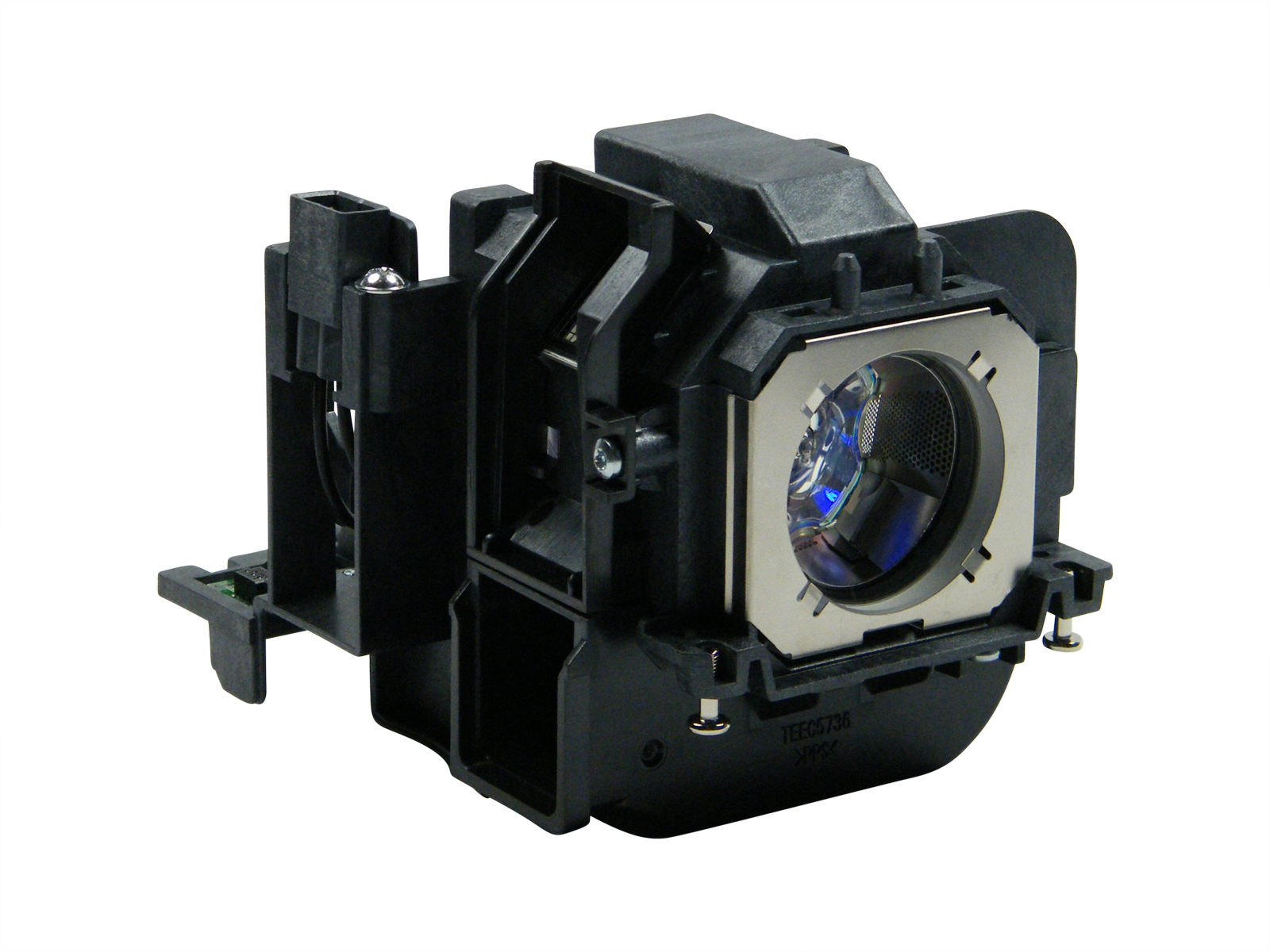

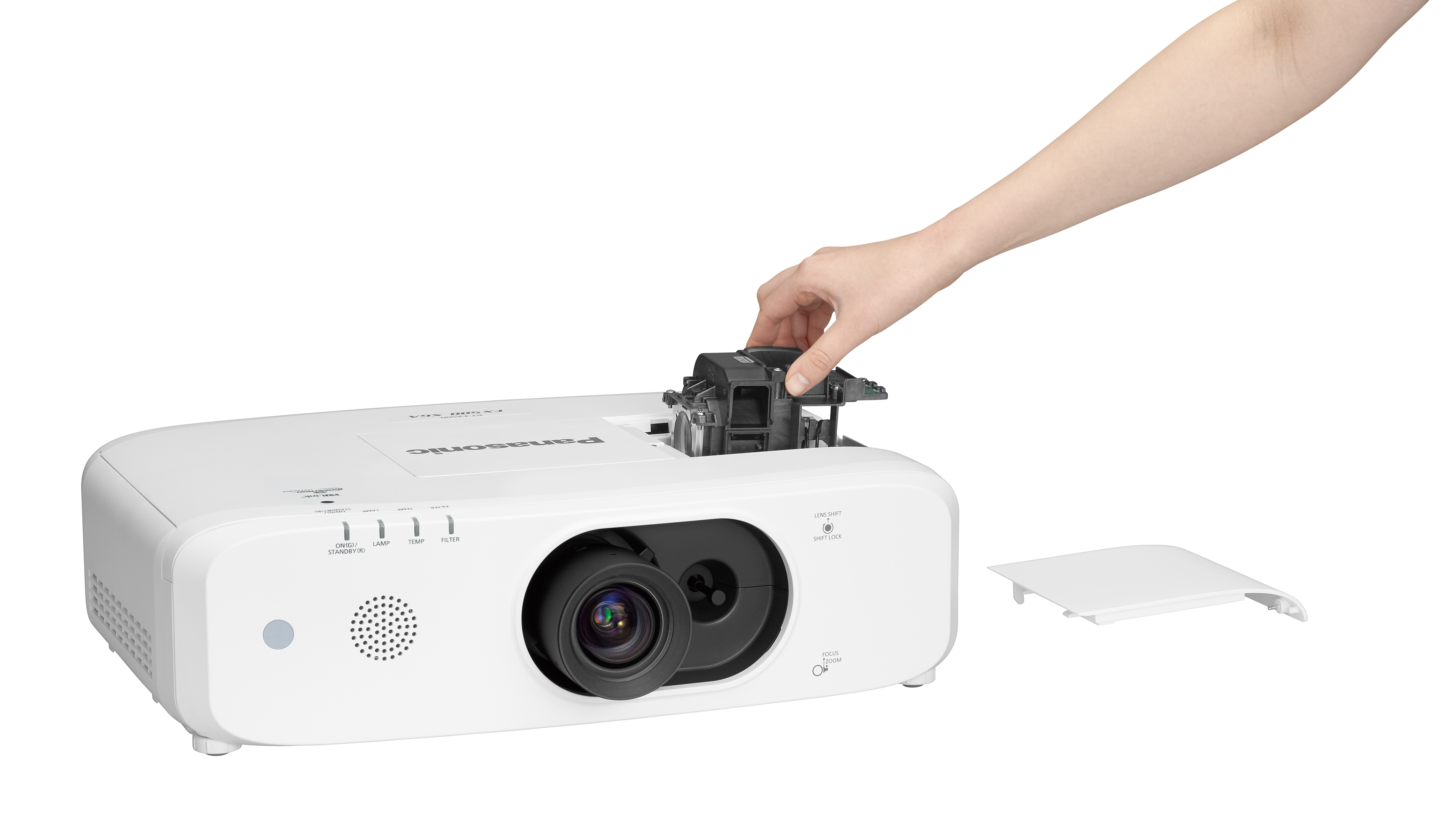

270W UHM Lamp
Article Nr.: ET-LAEF100
|
|
| Light Life |
6000 h. 8000 h. in Eco Mode |
| Operating Costs |
|
|
264 - 488 cm
|
 |
|
Lux: |
1667 Lux |
|
Room light max.: |
333 Lux |
|
Candela pro m²: |
531 cd/m² |
|
Foot-Lamberts: |
155 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,85 |
| Objective |
F=1,7-2,2 f=17,1-31,7 mm |
| Throw Ratio |
1,32-2,44:1 show |
| Audio |
10W |
| Connections |
HDMI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 mit DIGITAL LINK HDBaseT in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
400W |
| Size WxHxD |
498 x 145 x 398,3 mm (19,6"x5,7"x15,7") 28,74 L/dm³
|
| Operating Noise |
33 / 29 dB in Eco Mode |
Key: 185 cm
Shift: 75 cm |
Key: 185 cm
Shift: 60 cm |
| Key: 185 cm
Shift: 60 cm |
| |
|
|
| Weight |
9,00 kg / 19,84 lbs. |
| Keystone |
Vert.: +/-35°
Hori.: +/-35°
|
| Illumination |
90% |
| Frequenz |
H-sync: 15-91 kHz
V-sync: 24-120 Hz
Range max.: 162 MHz |
| Foot-Lamberts |
155 fL
/ max. 616 cm screen width |
| Candela m² |
531 cd/m² |
| Features |
 Lens shift Funktion
Eco Mode
Dynamic iris
PJLink™
Lan network compatible.
DICOM simulation
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Panasonic PT-FX500 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
95 |
| Black level: |
|
99 |
Power cons.: |
|
96 |
| Picture Total Points: | 50 |
Projector Total Points: | 97 |
|
| Popularity Top 100 |
|
| Points: |
|
20 |
| Ranking: |
1320 (From: 2514) |
|
|
|
|
|
| Status |
2016 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2016-02-12 13:16:41
|
| Data |
 Product Sheet english
Product Sheet english
Product Sheet english HC
User Manual english (20.05 MB)

|
Panasonic Website
