Brief Introduction
Beta 2.5 |
A brief introduction to the Panasonic PT DW100E/U. The large-screen DLP projector has a WXGA 1366 x 768 resolution and a contrast of 5000:1. The built-in lens shift and keystone correction function provides freedom when setting up. The projector can illuminate images up to 1016 cm wide thanks to its 10000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, max. 677 cm is recommended. In the event that the image is still too small, the projector offers integrated edge blending software, which allows several projectors to project a large image together. It is also Full HD 1080P compatible. The model built in 2006 is no longer offered by Panasonic.
|
| Display Type |
3 x 0,85" DLP Chip
WXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
10000 |
Screen |
4444 Lux (200 cm Screen width) |
| Contrast |
5000:1 full on/off |
5000:1 full on/off
|
| Black Level |
2,0000 min. Lumen |
0,889 min. Lumen |
| Lens shift |
Vert.: +/-60% Hori.: +/-20% motorisch
|
| Resolution |
WXGA 1366 x 768
1.049.088 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Event | Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |

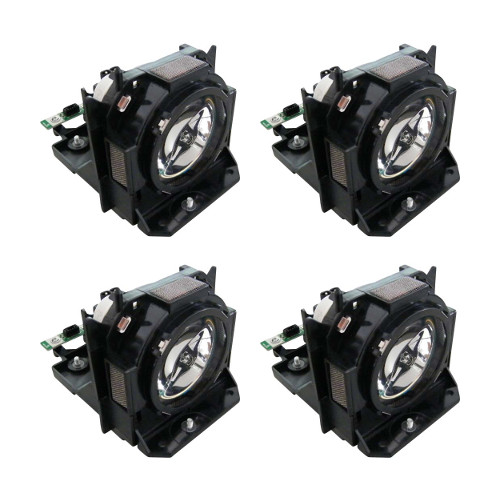

4 x 300W Lamp
Article Nr.: ET-LAD12K
|
|
| Light Life |
2000 h. in Eco Mode |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
4444 Lux |
|
Room light max.: |
889 Lux |
|
Candela pro m²: |
1415 cd/m² |
|
Foot-Lamberts: |
413 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
DVI-D mit HDCP
5 x BNC RGBHV in
BNC Video in und out
RS232C in und out
RS442C in
Fernbedienung in und out
RJ45 in
Weitere Anschlüsse optional |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1450W / 12W standby |
| Size WxHxD |
578 x 320 x 643 mm (22,8"x12,6"x25,3") 118,93 L/dm³
|
| Operating Noise |
35 dB in Eco Mode |
Shift: 68 cm
|
Shift: 40 cm
|
|
Shift: 40 cm
|
| |
|
|
| Weight |
32,00 kg / 70,55 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-120 Hz
Range max.: 162 MHz |
| Foot-Lamberts |
413 fL
/ max. 1016 cm screen width |
| Candela m² |
1415 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion motorisch
Eco Mode
sRGB
Gamma correction
Dynamic iris
Edge Blending
Picture-in-Picture
Password protection
Remote control with backlight
PJLink™
Control via web browser
Lan network compatible.
Digital zoom
Liquid cooling system
De-interlacer with 3:2 pull down.
|
|
- |
In Comparison
The Panasonic PT DW100E/U compared to others not current "Event" projectors. |
| Ansi-Lumen: |
|
7 |
Weight: |
|
90 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
97 |
Power cons.: |
|
85 |
| Picture Total Points: | 35 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
49 |
| Ranking: |
70 (From: 576) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| ET-D75LE4 | 5.2-8.2:1 | 1040-1640 m |
+/-60% |
+/-20% |
Powered |
| ET-D75LE3 | 3.1-5.2:1 | 620-1040 m |
+/-60% |
+/-20% |
Powered |
| ET-D75LE2 | 2.1-3.1:1 | 420-620 m |
+/-60% |
+/-20% |
Powered |
| ET-D75LE8 | 8.2-15.4:1 | 1640-3080 m |
+/-60% |
+/-20% |
Powered |
| ET-D75LE1 | 1.5-1.8:1 | 300-360 m |
+/-60% |
+/-20% |
Powered |
| ET-D75LE6 | 1-1.2:1 | 200-240 m |
+/-50% |
+/-15% |
Powered |
| ET-D75LE5 | 0.8:1 | 160 m |
0.0% Fix |
+/-15% |
No Zoom |
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2025-03-03
|
| Data |
 Prosepkt Japanisch
Product Sheet english
Product Sheet english HC
|
Panasonic Website
