Brief Introduction
Beta 2.5 |

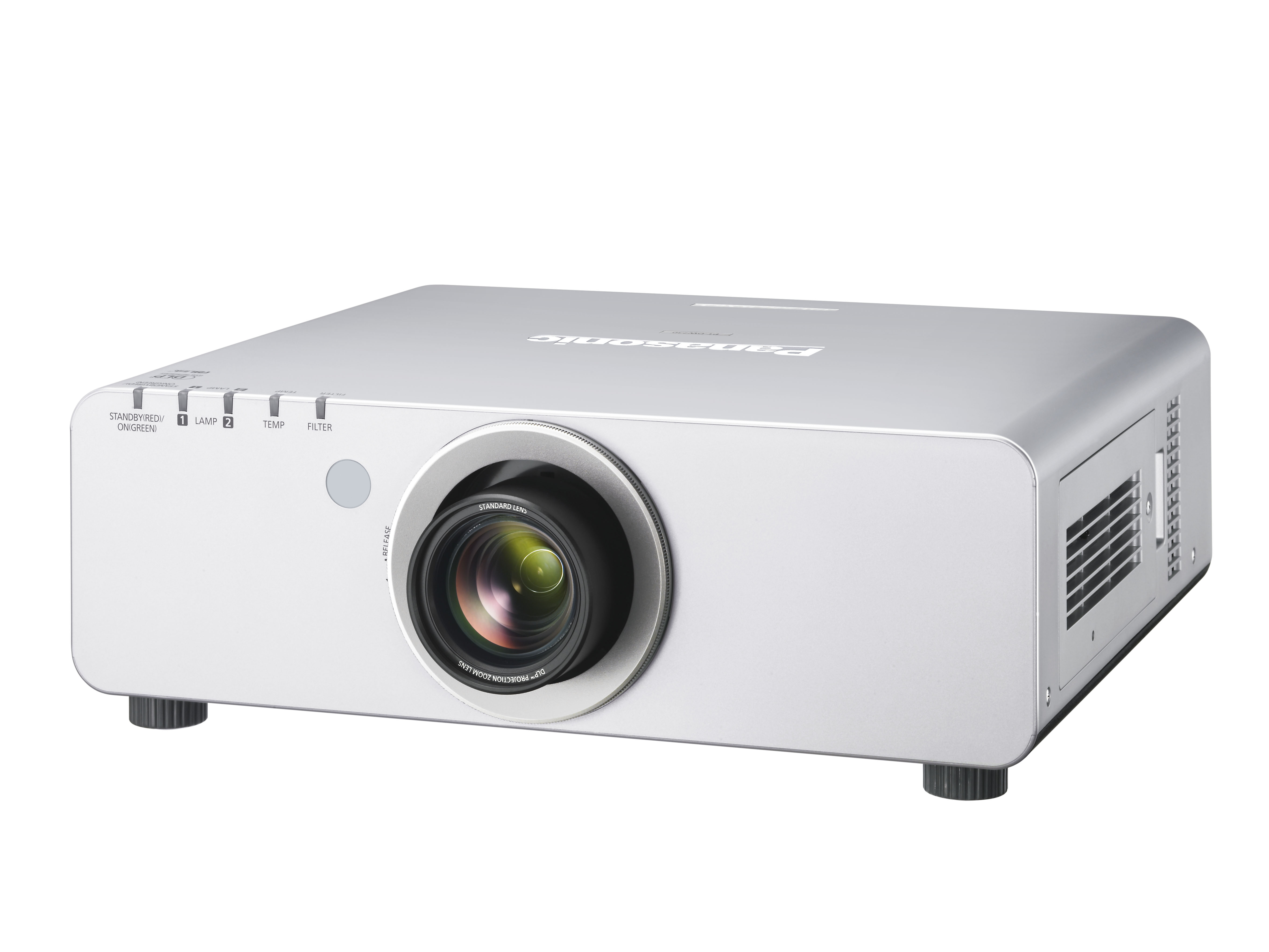

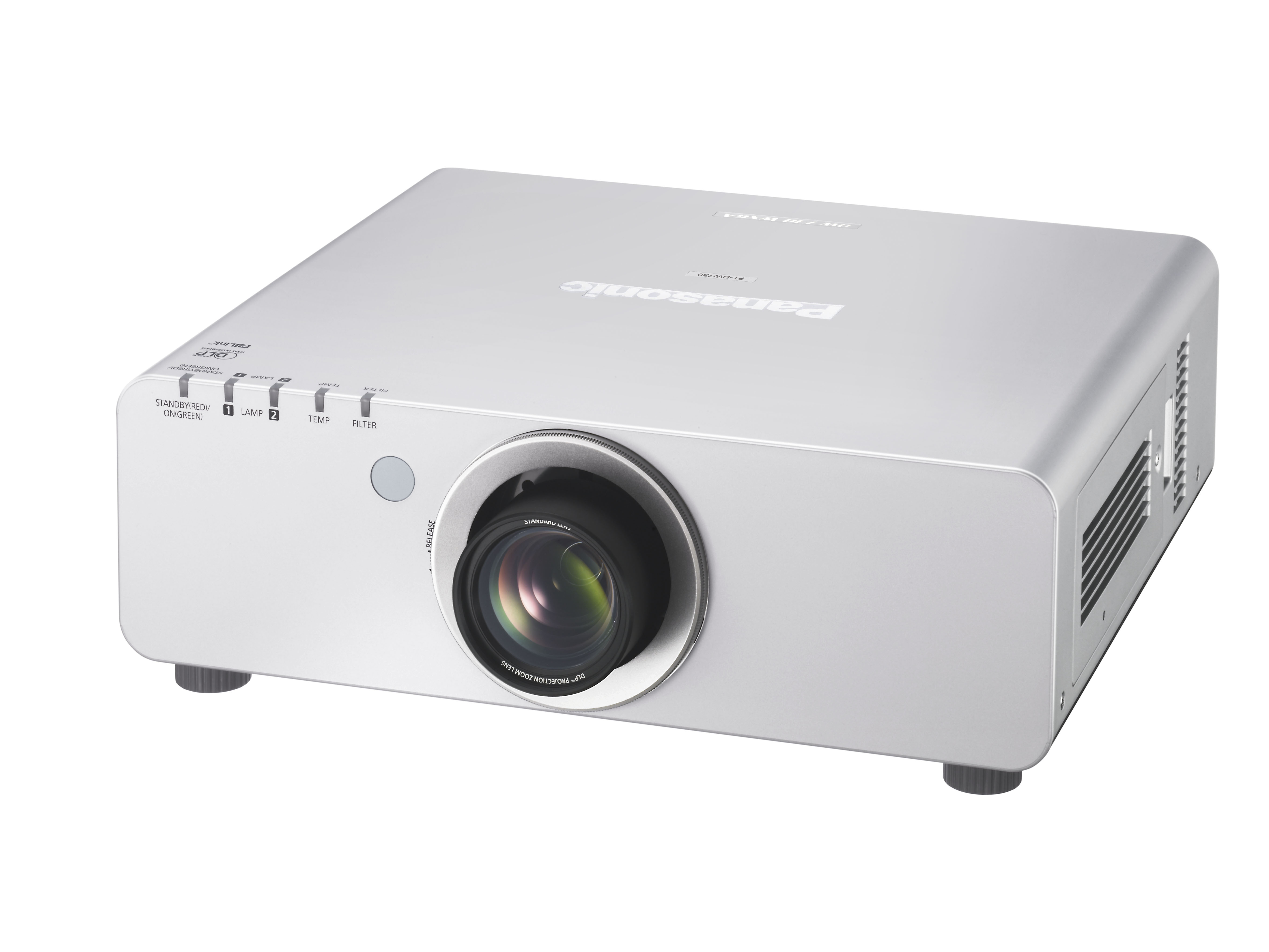

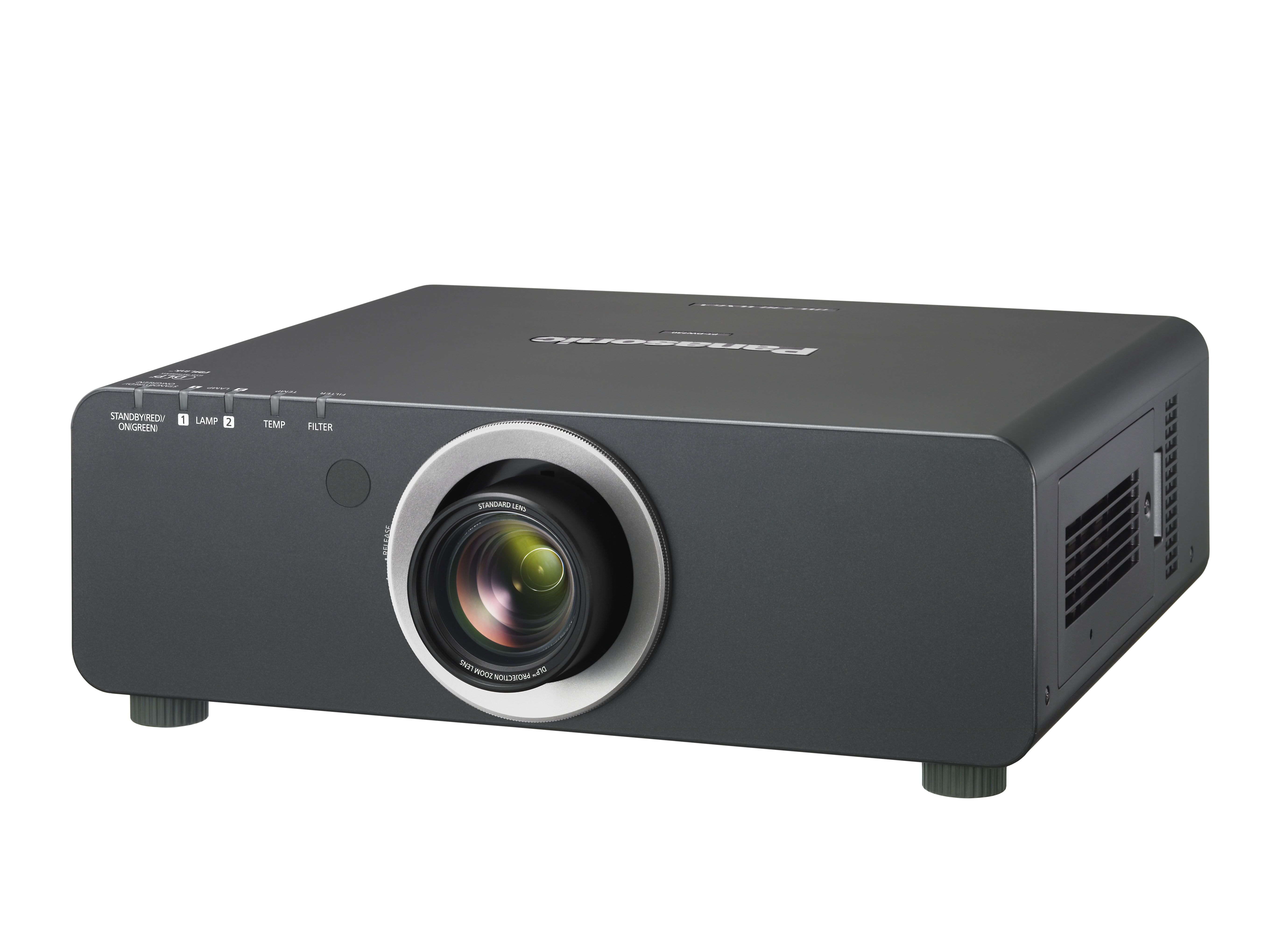

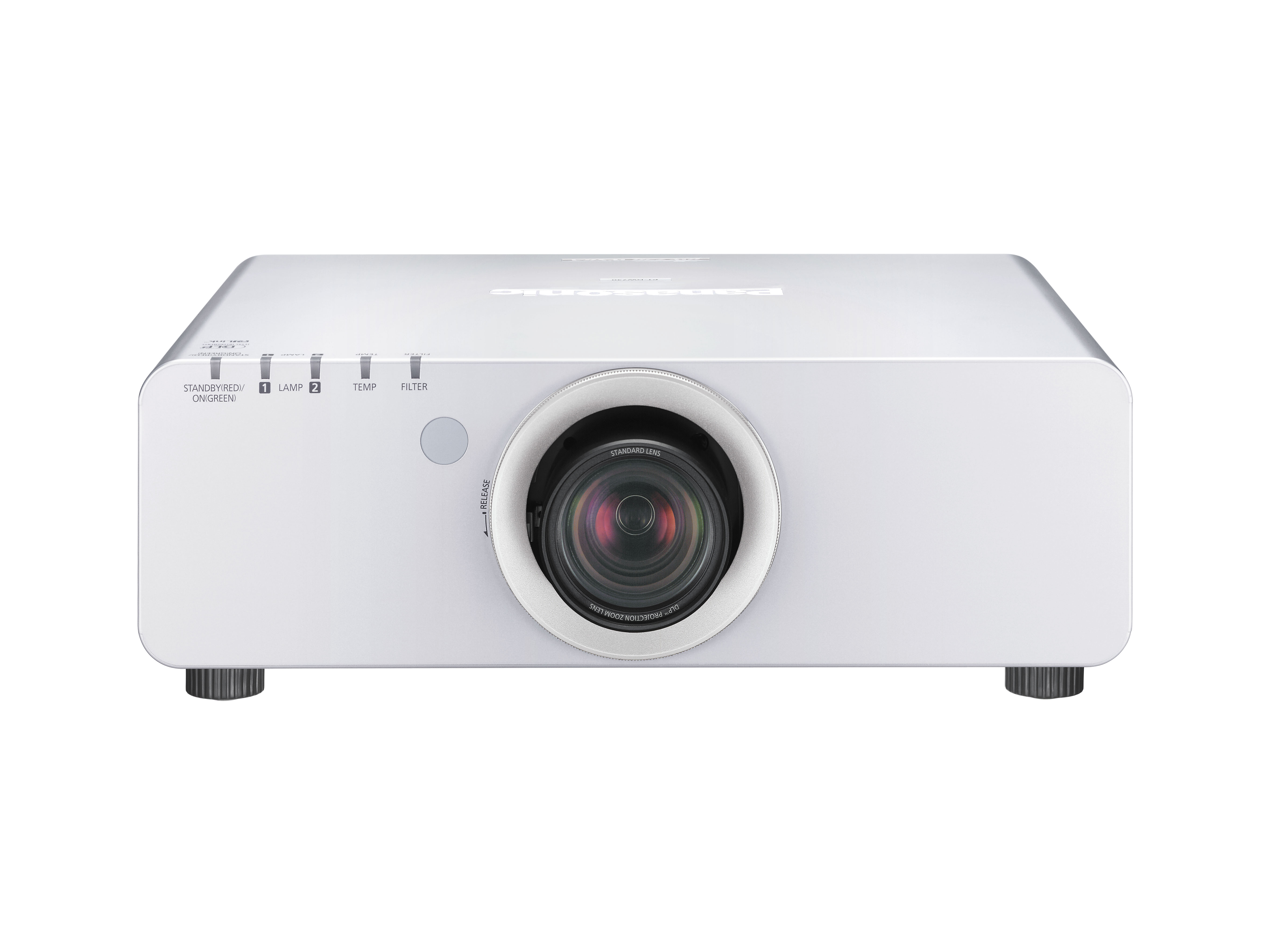

The stationary PT DW730/E/U/L/S DLP projector from Panasonic has 7000 Ansi lumens, a contrast of 2000:1 and a WXGA 1280 x 800 resolution. The integrated lens shift gives freedom when positioning the projector. 7000 Ansi lumens ensure that a picture width of 850 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 567 cm. If the image width is not sufficient, the projector offers integrated edge blending software, which allows several projectors to project a large image together. Even 1080P video signals are no problem for the projector, which can even project Blu-rays onto the ceiling thanks to 360° projection. On the market since 2011, the model is no longer offered by the manufacturer Panasonic.
|
| Display Type |
1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
7000 |
Screen |
2800 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
3,5000 min. Lumen |
1,402 min. Lumen |
| Lens shift |
Vert.: +60% -0% Hori.: +/-10%
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |

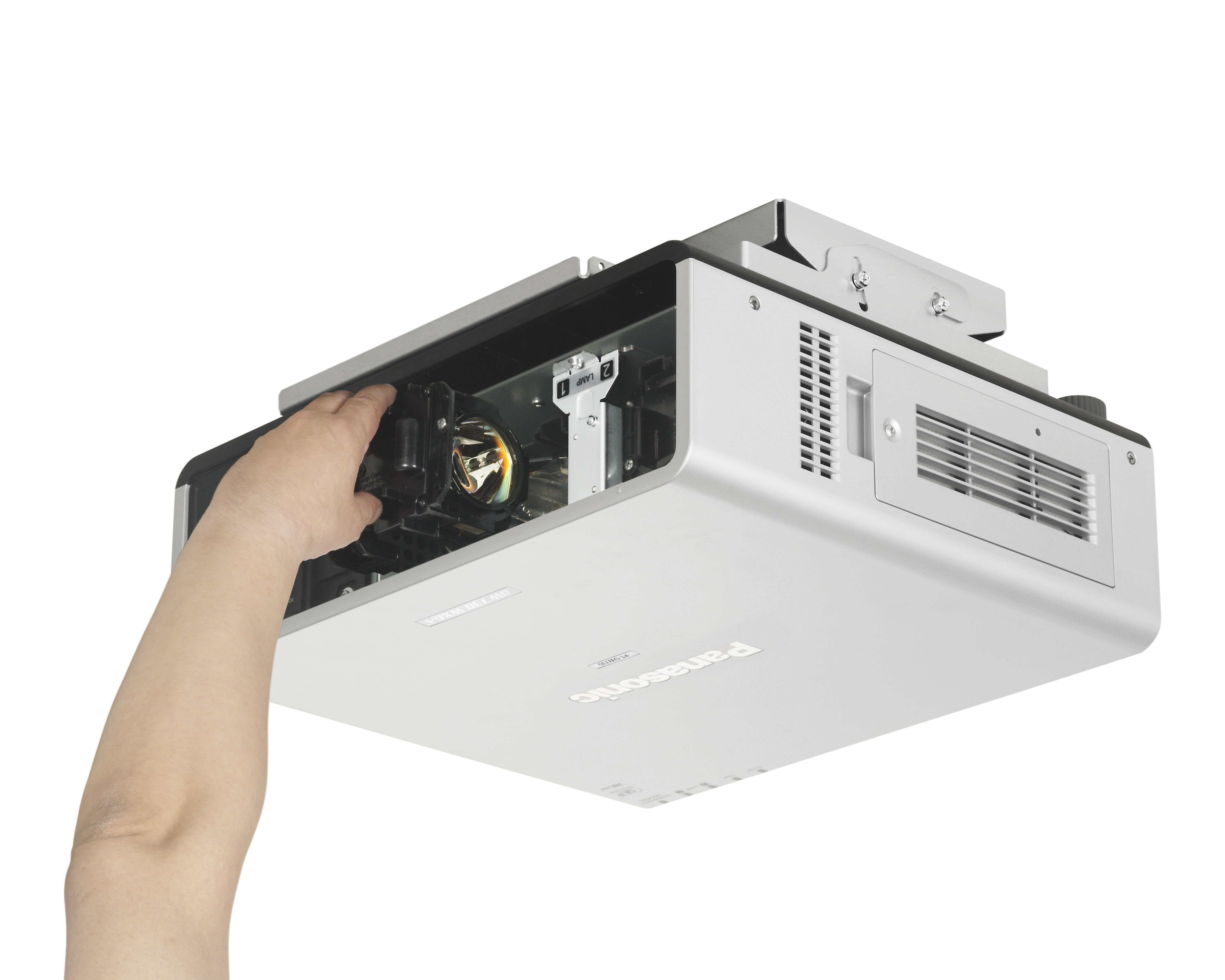

2 x 300W UHM Lamp
Article Nr.: ET-LAD60
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
|
|
360 - 500 cm
|
 |
|
Lux: |
2800 Lux |
|
Room light max.: |
560 Lux |
|
Candela pro m²: |
891 cd/m² |
|
Foot-Lamberts: |
260 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,32 |

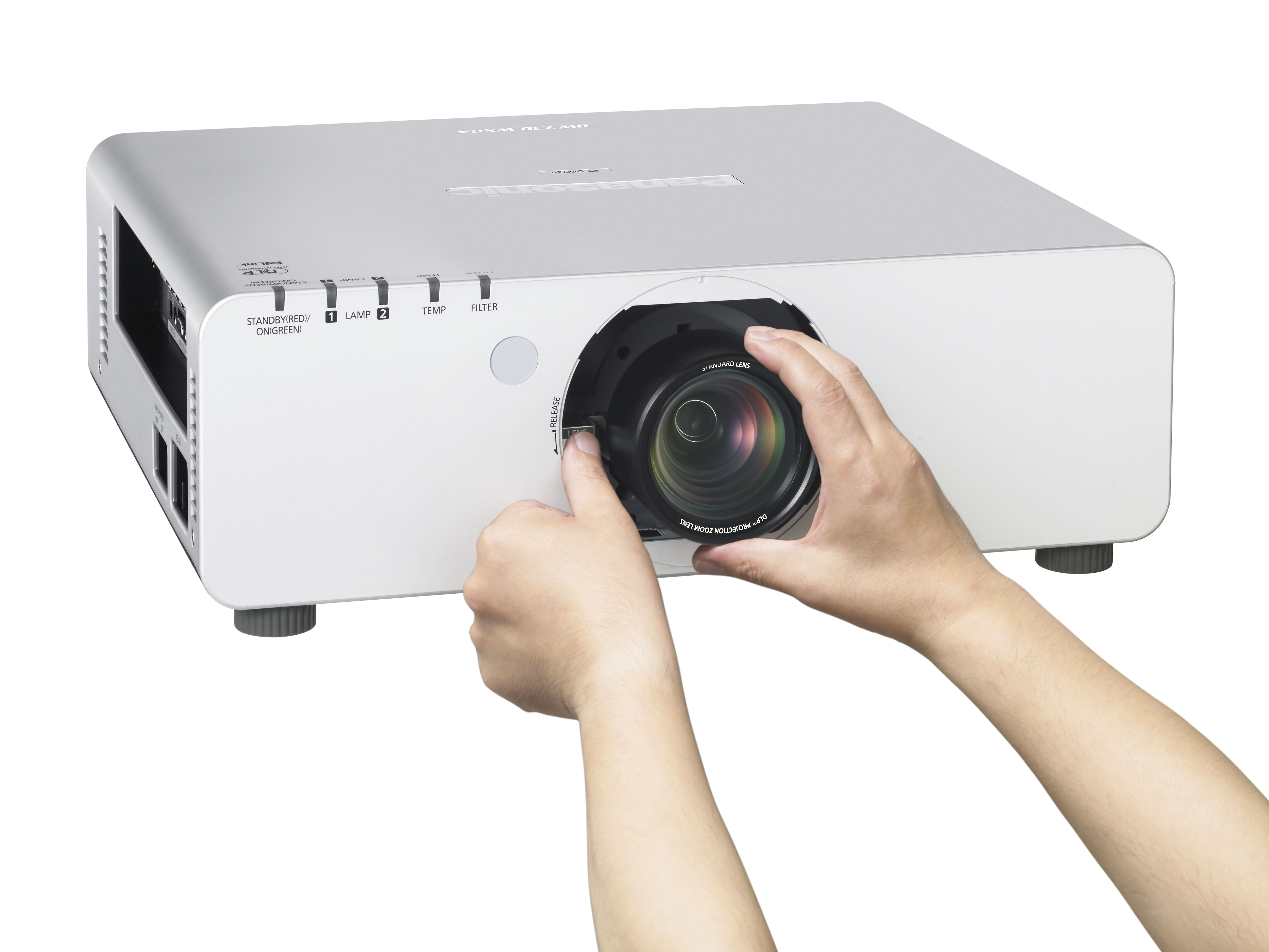

| Objective |
F=1,7-2,0 f=25,6-33,8 mm / L optional |
| Throw Ratio |
1,8-2,5:1 show |
| Audio |
- |

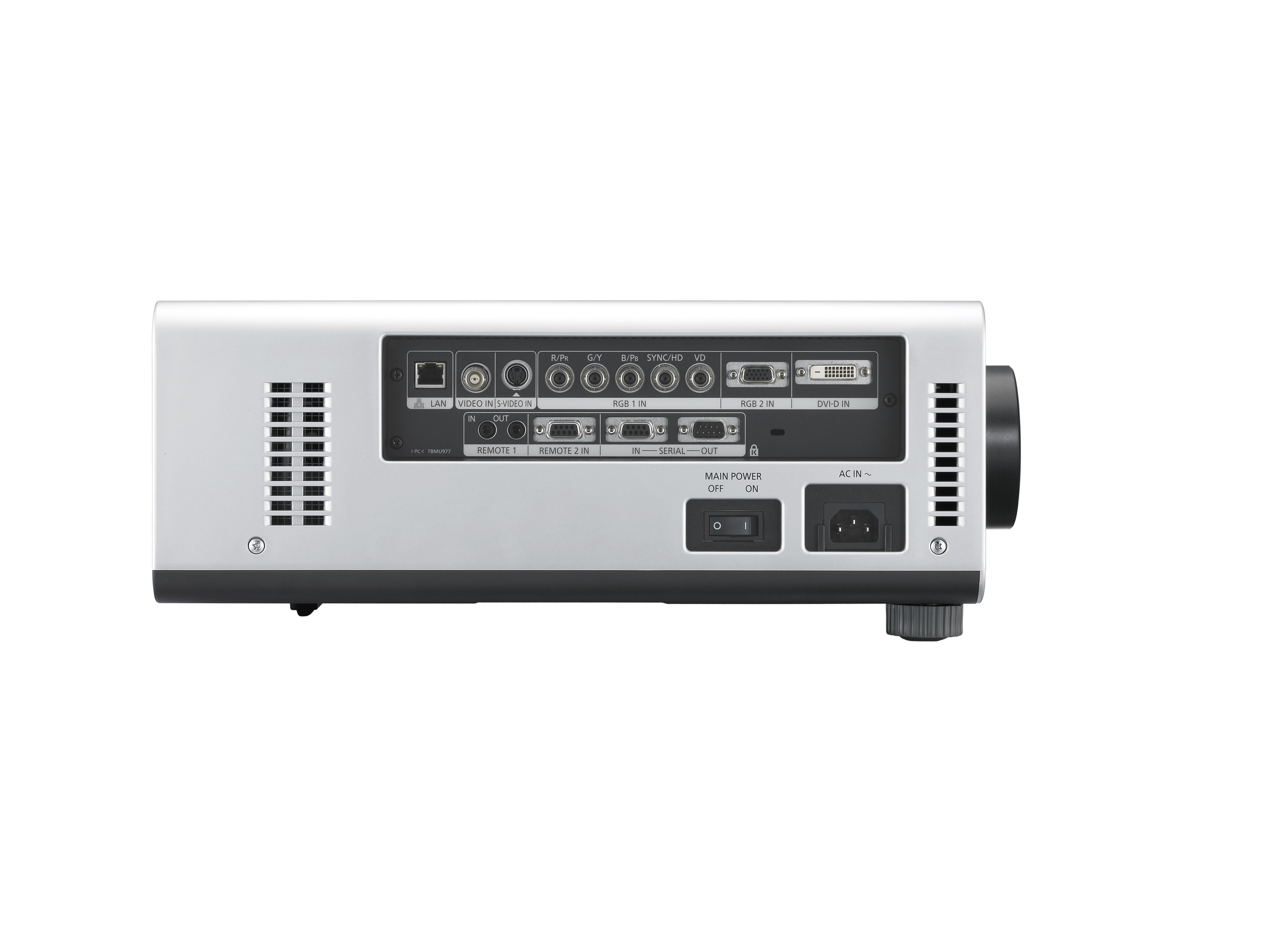

| Connections |
DVI-D in
5 x BNC RGBHV in
D-sub 15 pin in
BNC Video in
S-Video in
RS232C Din 9 pin
RJ45 in |

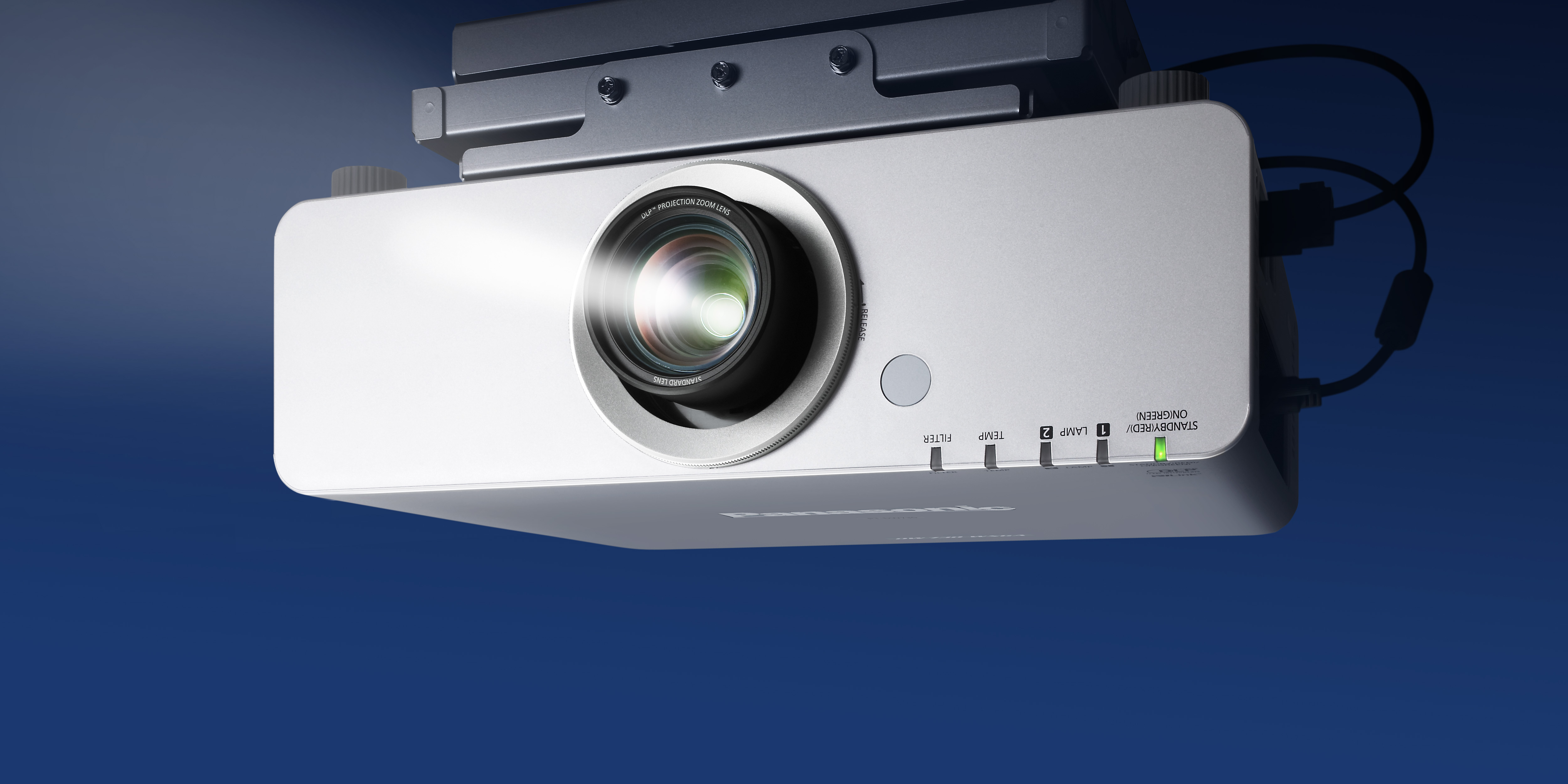

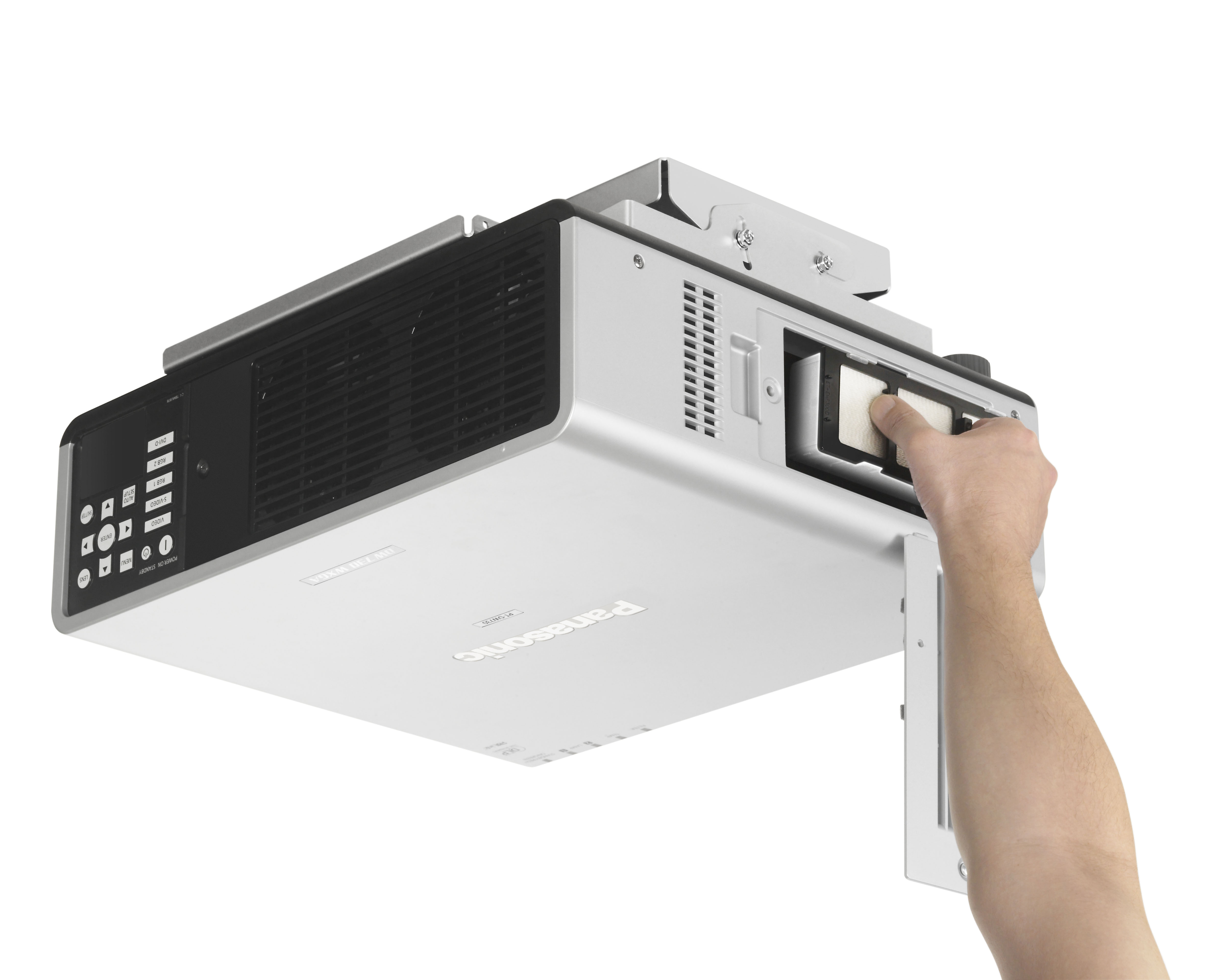

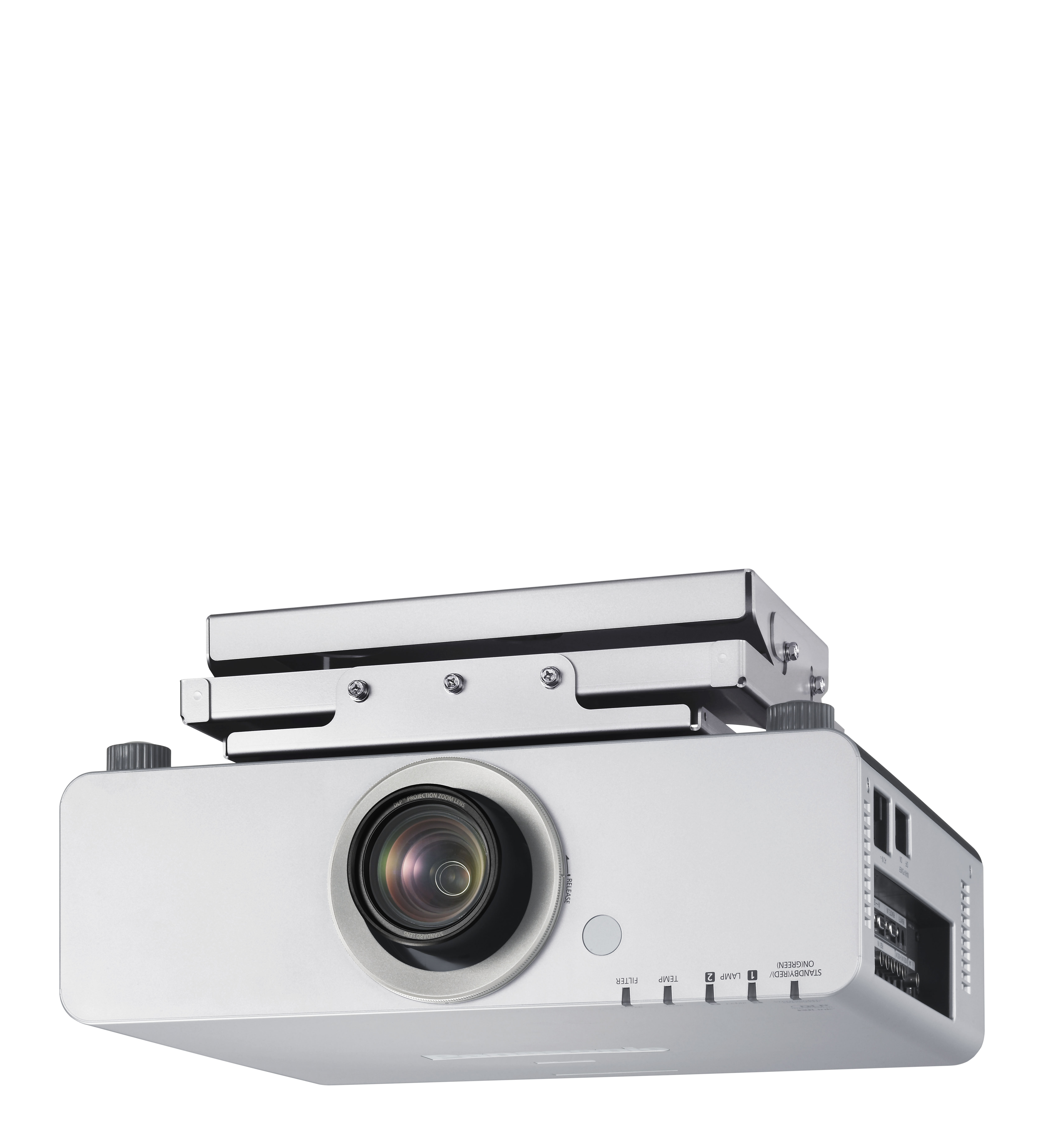

| Ceiling Mounting |
Yes, is possible. |
| Power |
760W |
| Size WxHxD |
498 x 175 x 432 mm (19,6"x6,9"x17") 37,65 L/dm³
|
| Operating Noise |
- |
Key: 302 cm
Shift: 75 cm |
Shift: 20 cm
|
|
Shift: 20 cm
|
| |
|
|
| Weight |
16,30 kg / 35,94 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-91 kHz
V-sync: 50-85 Hz
Range max.: 150 MHz |
| Foot-Lamberts |
260 fL
/ max. 850 cm screen width |
| Candela m² |
891 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Lens shift Funktion
Eco Mode
Gamma correction
Warping
360° installable
24/7 continuous operation capable
Edge Blending
PJLink™
Control via web browser
Lan network compatible.
|
|
- |
In Comparison
The Panasonic PT DW730/E/U/L/S compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
69 |
Weight: |
|
95 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
90 |
Power cons.: |
|
90 |
| Picture Total Points: | 53 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
49 |
| Ranking: |
149 (From: 2514) |
|
|
|
| Optional accessories |

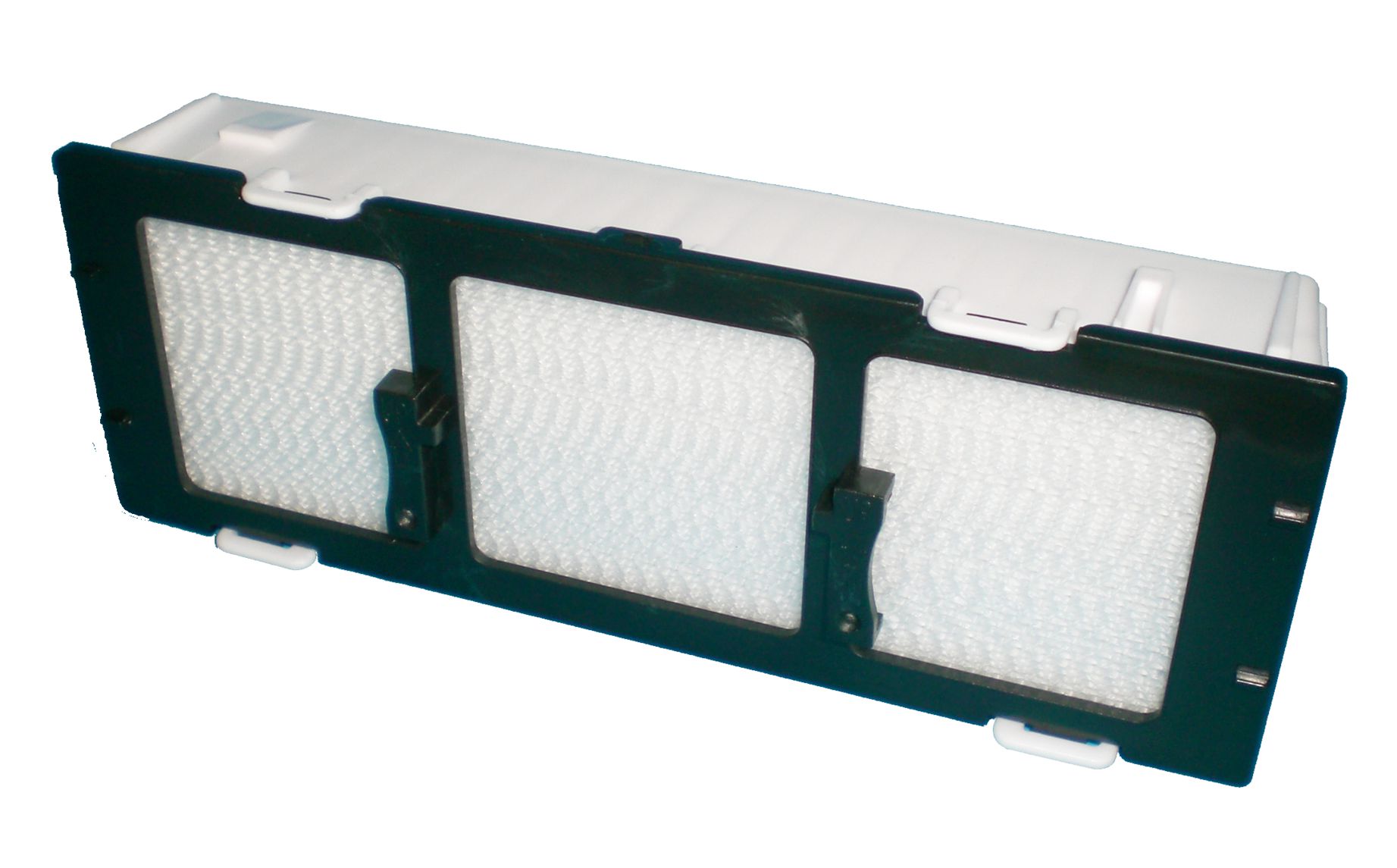

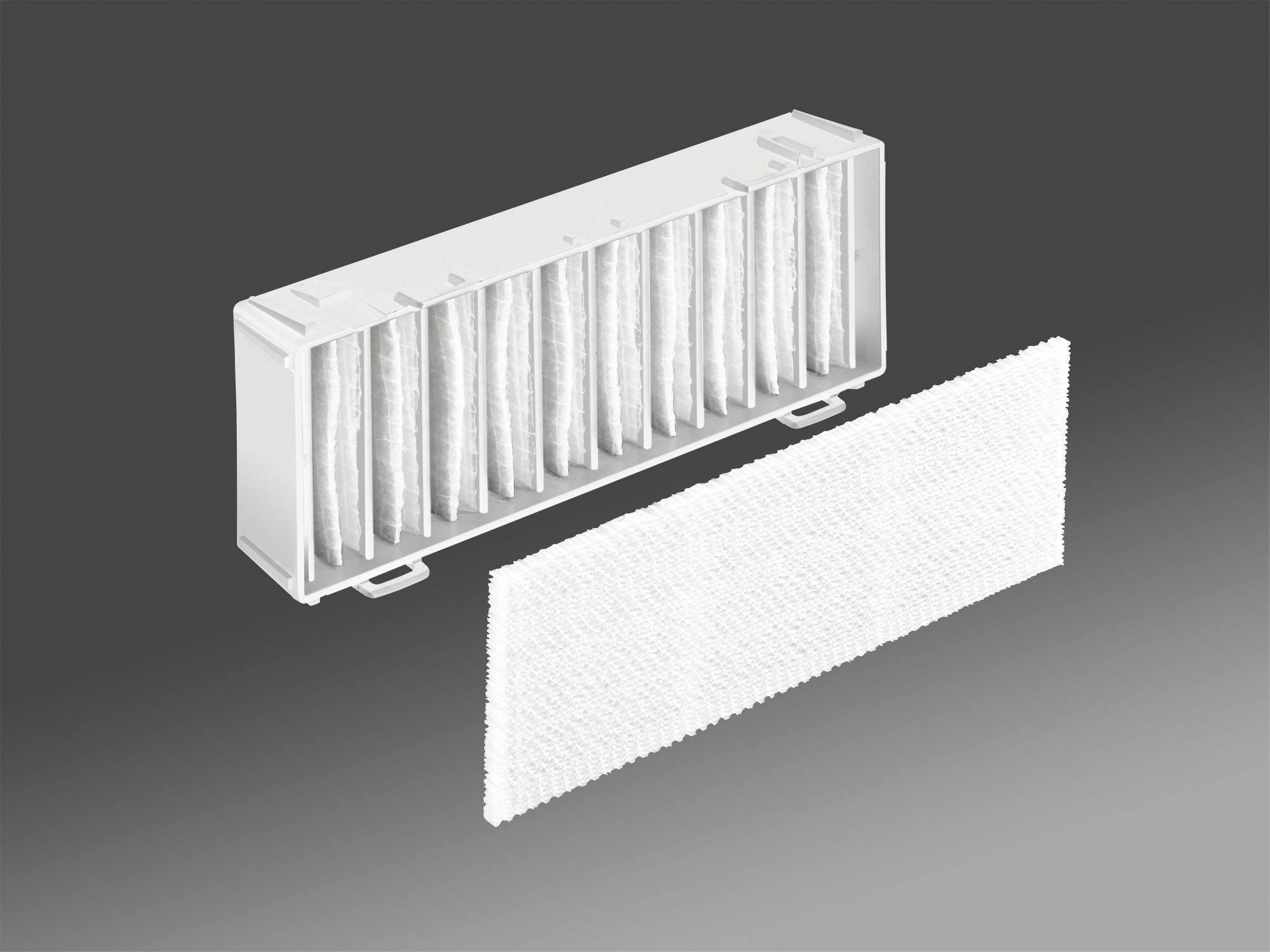

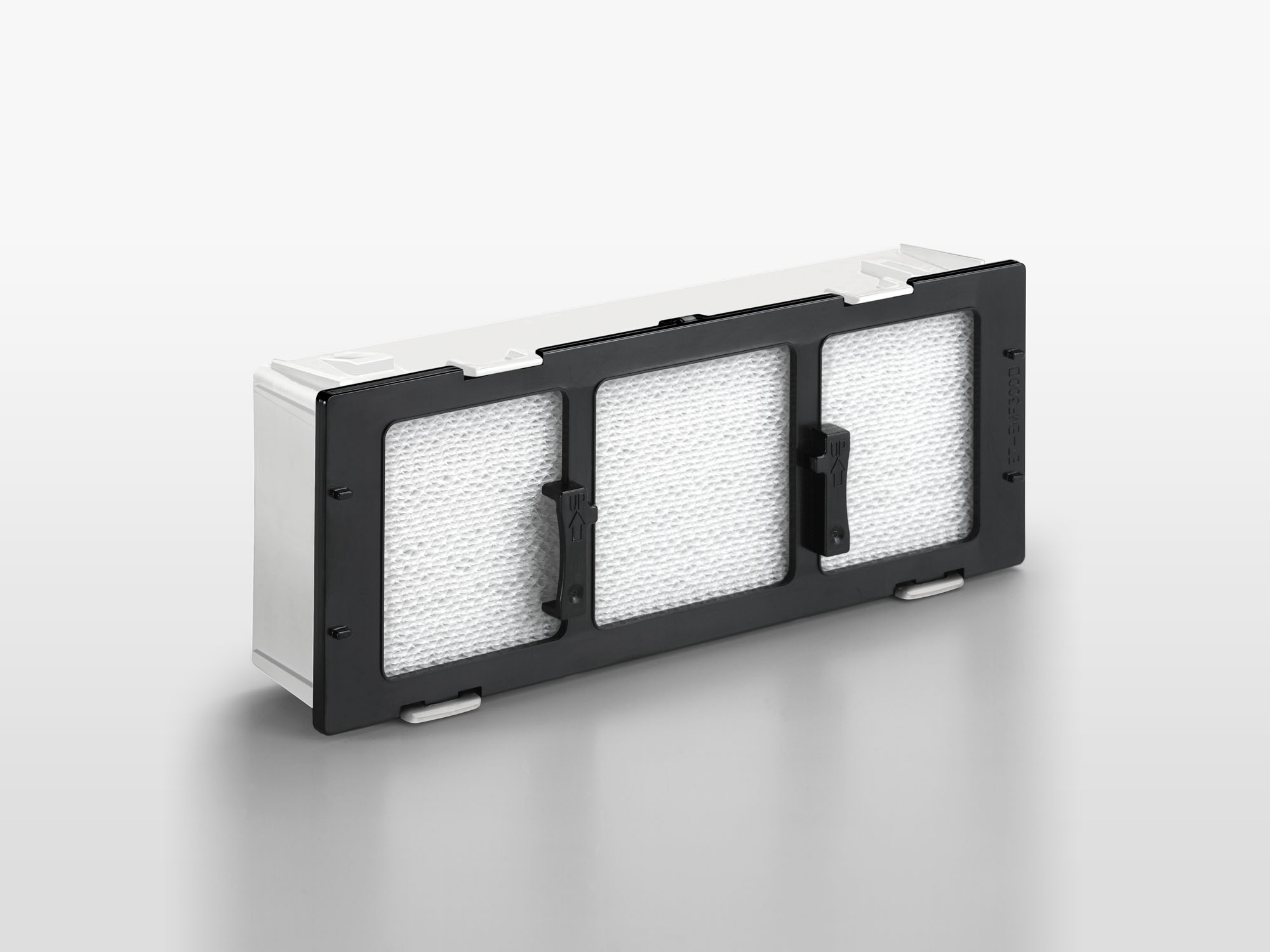

 | single lamp ruby | Ruby-LMP25312 | 135,42 € |  | dual lamp ruby | Ruby-LMP18907 | 250,20 € |  | single lamp incl. airfilter Original | ET-LAD60 / ET-LAD60A | 375,42 € |  | Twin lamp Original | ET-LAD60W / ET-LAD60AW | 561,64 € |  | Compatible lamp | LMP-K18905 | 76,12 € |  | Compatible lamp | LMP-K18907 | 140,29 € |  | air filter compatible | Alternative zu:ET-EMF300 | 25,29 € |  | object lens Original | ET-DLE150 | 2.142,44 € |  | Rental Frame Original | ET-RFD91 | EOL € |  | Lens Used Original | ET-DLE250 | 1.898,73 € |  | Lens Used Original | ET-DLE150Z | 1.839,23 € |  | Lens Used Original | ET-DLE450 | 1.482,23 € |  | Lens Used Original | ET-DLE350 | 2.142,44 € |  | Lens Used Original | ET-DLE030 | 4.363,33 € |  | object lens Original | ET-DLE055 | 2.631,65 € |  | remote control Original | N2QAYA000063 / N2QAYA000105 / N2QAYA000158 | 40,76 € |  | air filter Original | ET-EMF300 | 87,73 € |  | Ceiling Mount 220 | Halterung45 | 83,60 € |
|
|

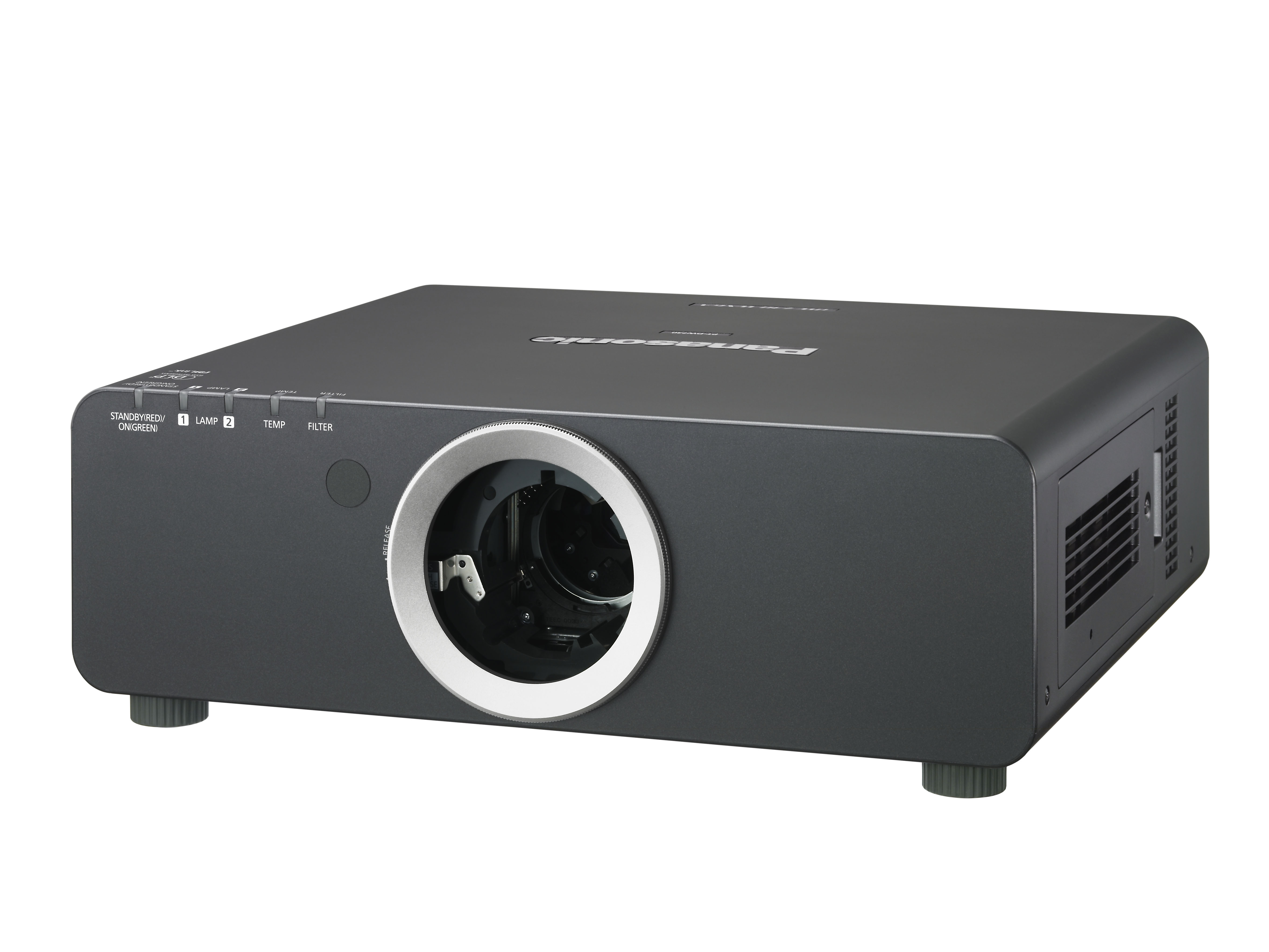

Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| ET-DLE450 | 5.6-9:1 | 1120-1800 m |
60% |
+/-10% |
Powered |
| ET-DLE350 | 3.8-5.7:1 | 760-1140 m |
60% |
+/-10% |
Powered |
| ET-DLE250 | 2.4-3.8:1 | 480-760 m |
60% |
+/-10% |
Powered |
| ET-DLE150 | 1.4-2:1 | 280-400 m |
60% |
+/-10% |
Powered |
| ET-DLE055 | 0.8:1 | 160 m |
0.0% Fix |
+/-10% |
No Zoom |
| ET-DLE030 | 0.4:1 | 80 m |
0.0% Fix |
+/-10% |
No Zoom |
|
| Status |
2011 Discontinued (EOL) // Last update of the data: 2023-10-17
|
