Brief Introduction
Beta 2.5 |
The stationary PT DW750/L DLP has 7000 Ansi lumens, a contrast of 3000:1 and a WXGA 1280 x 800 resolution. The lamp life is specified by the manufacturer as 4000 hours, which is over 5.5 years if enjoyed for two hours a day. Includes a lens shift and keystone correction function, which provides freedom during installation. The projector can illuminate images up to 850 cm wide thanks to its 7000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 567 cm. If the image is still too small, the integrated edge blending software can help to project a larger image with additional projectors. Even 1080P playback is no problem for the projector. With only 30 decibels of operating noise, the model is already very quiet compared to others. The model was built by Panasonic in 2015 and is no longer current.
|
| Display Type |
1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
7000 |
Screen |
2800 Lux (200 cm Screen width) |
| Contrast |
3000:1 full on/off |
3000:1 full on/off
|
| Black Level |
2,3333 min. Lumen |
0,934 min. Lumen |
| Lens shift |
Vert.: +60% -16% Hori.: +10% -30%
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
2 x 310W Lamp
Article Nr.: ET-LAD70W
|
|
| Light Life |
4000 h. |
| Operating Costs |
|
|
360 - 500 cm
|
 |
|
Lux: |
2800 Lux |
|
Room light max.: |
560 Lux |
|
Candela pro m²: |
891 cd/m² |
|
Foot-Lamberts: |
260 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,39 |
| Objective |
L / optional |
| Throw Ratio |
1,8-2,5:1 show |
| Audio |
Nein |

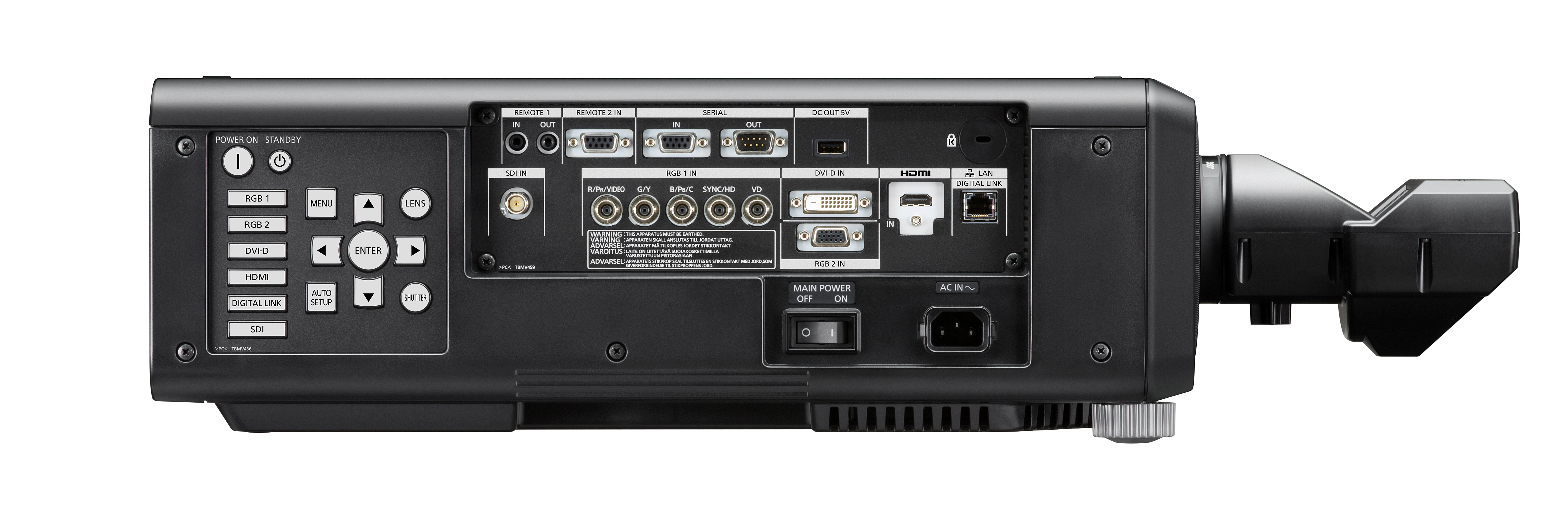

| Connections |
HDMI in
DVI-D
D-Sub 15 pin in
5 x BNC RGBHV in
Video BNC in
S-Video in
RS232C Din 9 pin in und out
Mini jack Remote in und out
RJ458 in
SDI über BNC in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
498 x 175 x 521 mm (19,6"x6,9"x20,5") 45,41 L/dm³
|
| Operating Noise |
30 / 28 dB in Eco Mode |
Key: 302 cm
Shift: 75 cm |
Key: 96 cm
Shift: 60 cm |
| Key: 96 cm
Shift: 20 cm |
| |
|
|
| Weight |
17,60 kg / 38,8 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-15°
|
| Illumination |
90% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-120 Hz
Range max.: 162 MHz |
| Foot-Lamberts |
260 fL
/ max. 850 cm screen width |
| Candela m² |
891 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
Warping
24/7 continuous operation capable
Edge Blending
Lan network compatible.
Liquid-cooled system
Daylight View 2
Detail Clarity Processor
Dynamic RGB Booster
Art-Net DMX compatible
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Panasonic PT DW750/L compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
69 |
Weight: |
|
94 |
| Contrast: |
|
1 |
dB: |
|
96 |
| Black level: |
|
93 |
Power cons.: |
|
0 |
| Picture Total Points: | 54 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
29 |
| Ranking: |
775 (From: 2514) |
|
|
|
| Optional accessories |

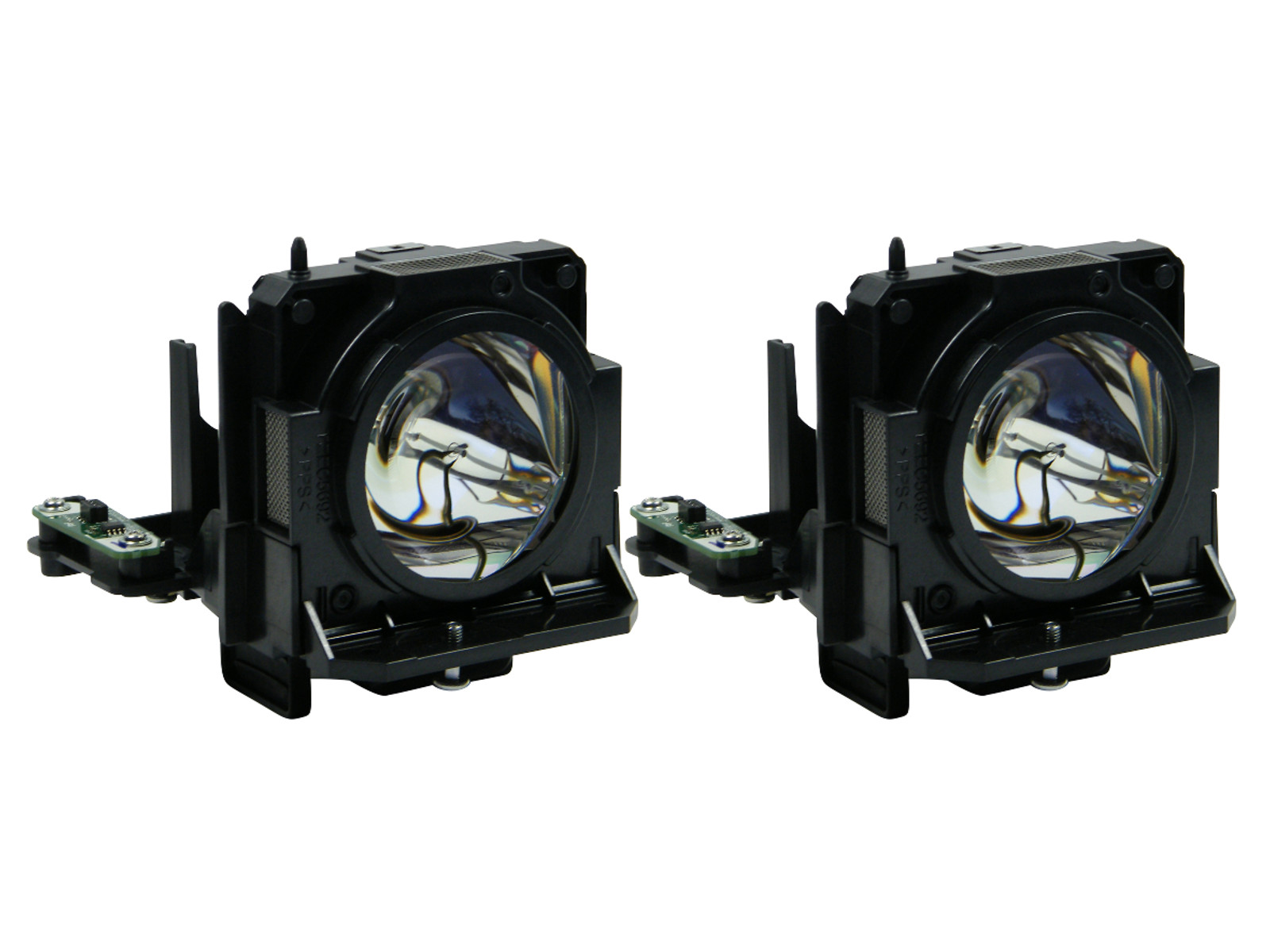

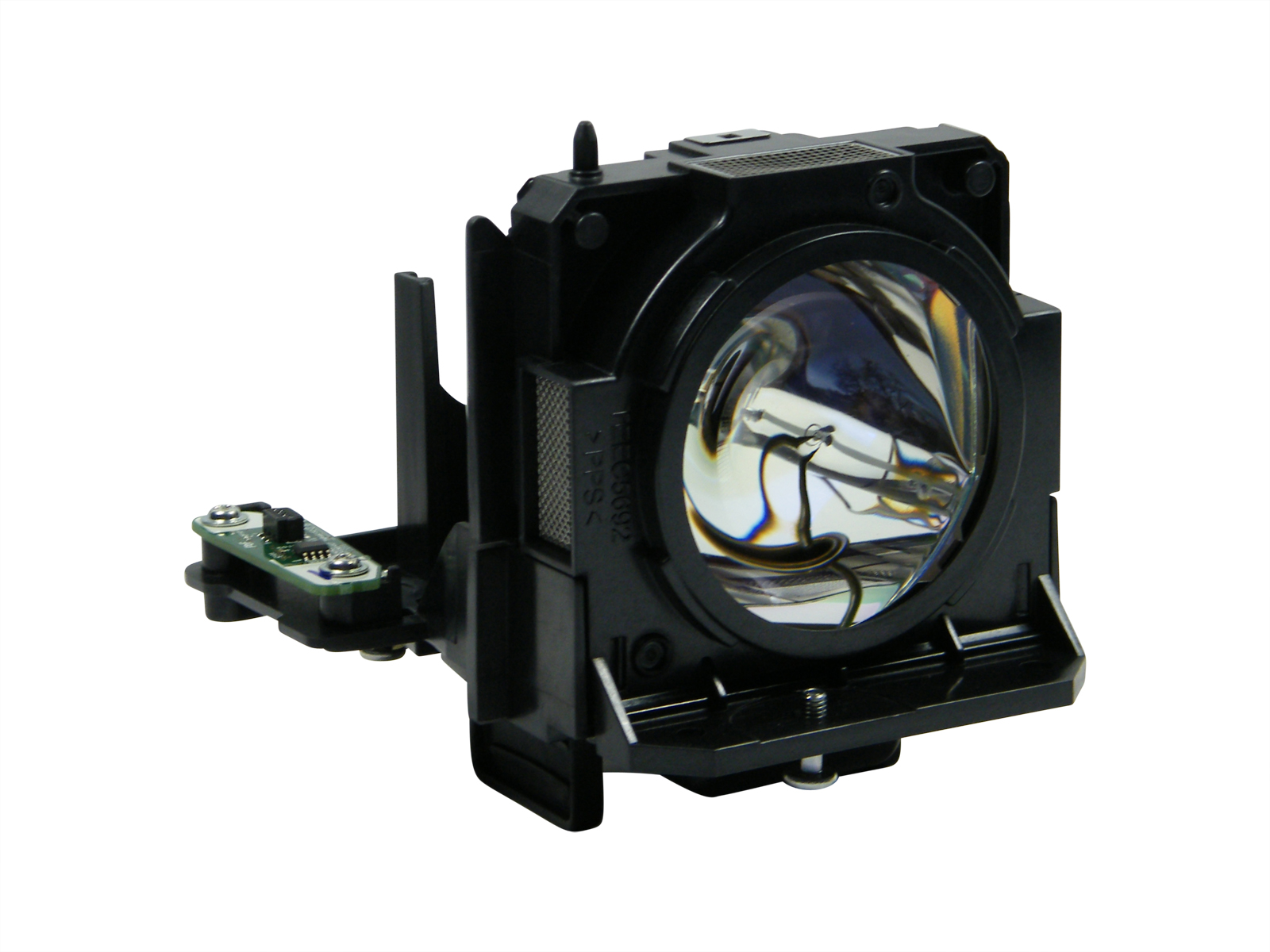

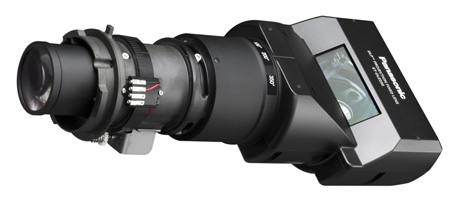

 | dual lamp ruby | Ruby-LMP23290 | 363,74 € |  | single lamp ruby | Ruby-LMP23288 | 172,90 € |  | Twin lamp Original | ET-LAD70W / ET-LAD70AW | 573,28 € |  | single lamp Original | ET-LAD70 | 444,76 € |  | Compatible lamp | LMP-K23289 | 160,51 € |  | Compatible lamp | LMP-K23286 | 81,87 € |  | object lens Original | ET-DLE150 | 2.142,44 € |  | object lens Original | ET-DLE060 | 4.005,06 € |  | object lens Original | ET-DLE105 | 3.282,56 € |  | ceiling bracket Original | ET-PKD130B | EOL € |  | ceiling bracket Original | ET-PKD120S | EOL € |  | ceiling bracket Original | ET-PKD120H | EOL € |  | Lens Used Original | ET-DLE250 | 1.898,73 € |  | Lens Used Original | ET-DLE150Z | 1.839,23 € |  | Lens Used Original | ET-DLE450 | 1.482,23 € |  | Lens Used Original | ET-DLE350 | 2.142,44 € |  | Lens Used Original | ET-DLE030 | 4.363,33 € |  | object lens Original | ET-DLE055 | 2.631,65 € |  | Lens Used Original | ET-DLE085 | 2.811,38 € |  | remote control Original | N2QAYA000060 | EOL € |  | Filter Original | TMZX5229-1 | 22,91 € |  | Ceiling Mount 220 | Halterung45 | 83,60 € |
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2015-02-10 15:26:31
|
| Data |
 Product Sheet english
Product Sheet english
Product Sheet english HC
Product Sheet english neu
User Manual english (21.92 MB)

|
Panasonic Website
