Brief Introduction
Beta 2.5 |
A brief introduction to the ZW400: The Optoma 3D laser DLP projector offers 4000 Ansi lumens, a contrast of 2500000:1 and a WXGA 1280 x 800 resolution. It is a laser projector with 30000 hours of light life, which is over 20.5 years with four hours of use every day. 4000 Ansi lumens ensure that a picture width of 643 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 429 cm. The HDMI MHL (Mobile High-Definition Link) port allows 1080p / 60 Hz image mirroring (screen mirroring) to be transmitted from a smartphone while it is being charged at the same time via the connection. The projector can also play 1080P and 4K (compressed) without any problems. Even projection onto the ceiling is possible thanks to the 360° projection. This model is no longer offered by Optoma.
|
| Display Type |
DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1600 Lux (200 cm Screen width) |
| Contrast |
2500000:1 |
2500000:1
|
| Black Level |
0,0016 min. Lumen |
0,001 min. Lumen |
| Offset |
63% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UHD (4K2K) 3840 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p |
| 3D Compatibility |
Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
Laser
Article Nr.: BR-5053C/BR-5080C/SP.72702GC01
|
|
| Light Life |
30000 h. |
| Operating Costs |
0,00 € Laser
|
|
236 - 308 cm
|
 |
|
Lux: |
1600 Lux |
|
Room light max.: |
320 Lux |
|
Candela pro m²: |
511 cd/m² |
|
Foot-Lamberts: |
149 fL |
|
 |
| 79 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,3 |
| Objective |
f=16,9-21,6 mm |
| Throw Ratio |
1,18-1,54:1 show |
| Audio |
1 x 10W |

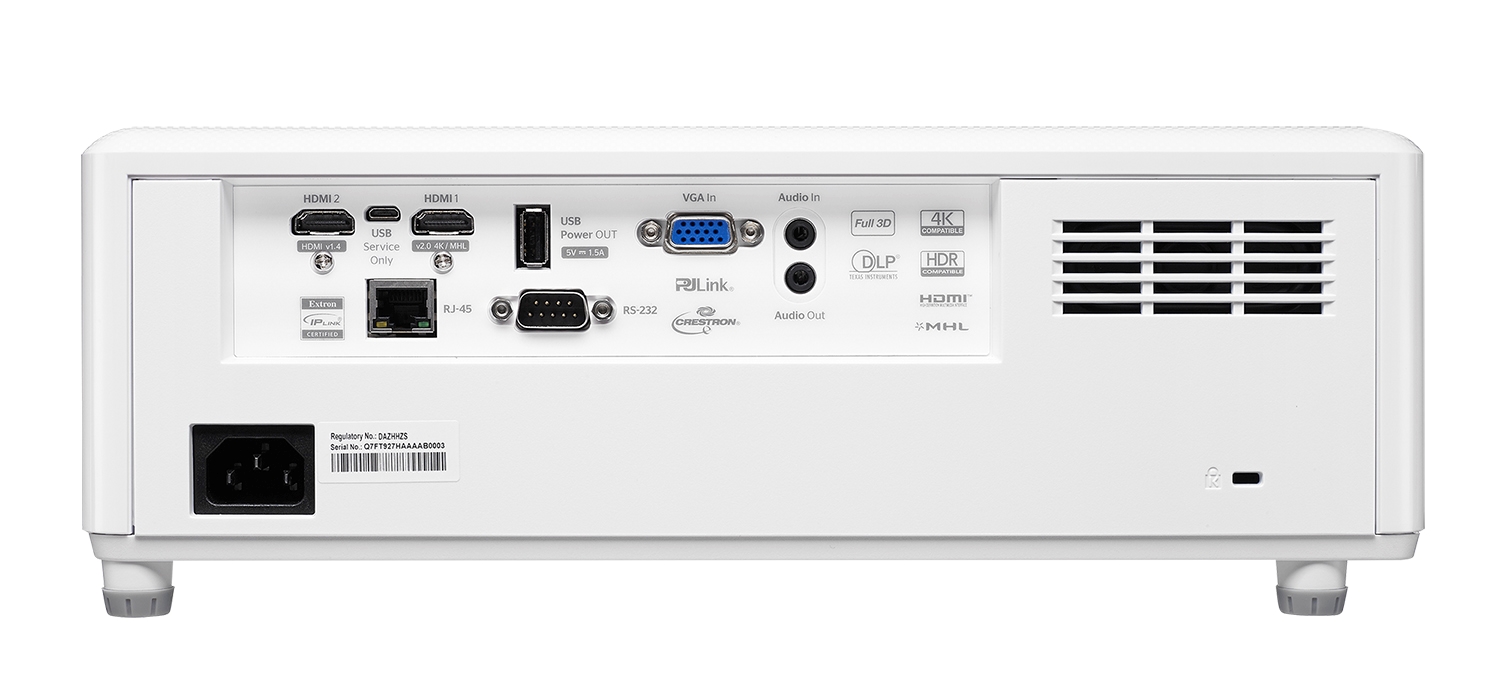

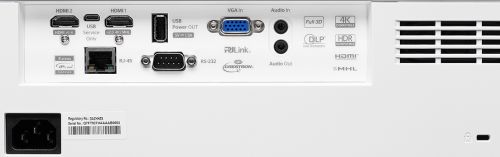

| Connections |
2 x HDMI v1.4 + v2.0 MHL in
D-sub 15pin in
Mini Jack Audio in und out
USB
RS232C Din 9 pin in
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
211W / 157W in Eco Mode |
| Size WxHxD |
337 x 122,5 x 265 mm (13,3"x4,8"x10,4") 10,9 L/dm³
|
| Operating Noise |
32 / 30 dB in Eco Mode |
|
| Weight |
5,50 kg / 11,02 lbs. |
| Keystone |
Vert.: +/-40° automatisch
|
| Illumination |
- |
| Frequenz |
H-sync: 15,37-91,1 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
149 fL
/ max. 643 cm screen width |
| Candela m² |
511 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
360° installable
24/7 continuous operation capable
Password protection
Optional Wi-Fi network compatible.
Lan network compatible.
Crestron®-Software compatible.
AMX
Extron
PJ-Link
|
|
über HDMI MHL |
In Comparison
The Optoma ZW400 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
39 |
Weight: |
|
97 |
| Contrast: |
|
62 |
dB: |
|
96 |
| Black level: |
|
100 |
Power cons.: |
|
99 |
| Picture Total Points: | 67 |
Projector Total Points: | 97 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
2405 (From: 7662) |
|
|
|
|
|
| Status |
2021 Discontinued (EOL) // Last update of the data: 2024-10-02
