Brief Introduction
Beta 2.5 |
A brief introduction to the EH1020: The Optoma BrilliantColor DLP projector offers 3000 Ansi lumens, a contrast of 2200:1 and HDTV 1920 x 1080 resolution. The manufacturer specifies a lamp life of 4000 hours, which converts to over 5.5 years at 2 hours per day. The projector can illuminate a picture width of up to 556 cm well thanks to the 3000 Ansi lumens. In room light, however, the picture width should ideally be less than 371 cm. It is also Full HD 1080P compatible. The projector was launched in 2010 and is no longer sold by the manufacturer, but is still very popular in our projector database.
|
| Display Type |
1 x 0,65" DC2 DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 |
Screen |
1333 Lux (200 cm Screen width) |
| Contrast |
2200:1 full on/off |
2200:1 full on/off
|
| Black Level |
1,3636 min. Lumen |
0,607 min. Lumen |
| Offset |
66% show
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

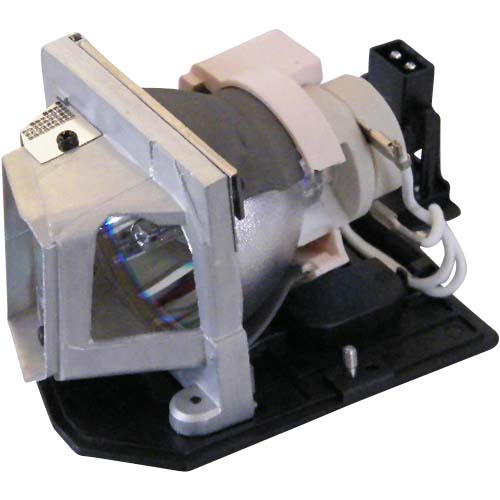

230W P-VIP Lamp
Article Nr.: BL-FP230D / SP.8EG01GC01
|
|
| Light Life |
4000 h. 5000 h. in Eco Mode |
| Operating Costs |
-
|
|
300 - 360 cm
|
 |
|
Lux: |
1333 Lux |
|
Room light max.: |
267 Lux |
|
Candela pro m²: |
425 cd/m² |
|
Foot-Lamberts: |
124 fL |
|
 |
| 74 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,55-2,87 f=22,41-26,82 mm |
| Throw Ratio |
1,5-1,8:1 show |
| Audio |
8W |
| Connections |
HDMI in
D-sub 15 pin in und out
S-Video in
Cinch Video in
Cinch Stereo in und out
12V Trigger out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
339 / 281W in Eco Mode |
| Size WxHxD |
324 x 97 x 234 mm (12,8"x3,8"x9,2") 7,35 L/dm³
|
| Operating Noise |
31 / 29 dB in Eco Mode |
|
| Weight |
2,86 kg / 6,31 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15,3-91,4 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
124 fL
/ max. 556 cm screen width |
| Candela m² |
425 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Gamma correction
Digital image shift
Password protection
BrilliantColor™

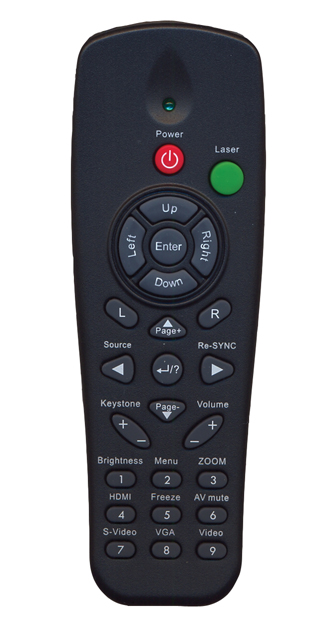

Remote control with laser pointer und mouse control
Overscan adjustable
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma EH1020 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
46 |
| Black level: |
|
95 |
Power cons.: |
|
96 |
| Picture Total Points: | 44 |
Projector Total Points: | 76 |
|
| Popularity Top 100 |
|
| Points: |
|
12 |
| Ranking: |
948 (From: 7662) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
Product Sheet USA
Product Sheet USA
User Manual english (16.48 MB)

|
Optoma Website
