Brief Introduction
Beta 2.5 |
A brief introduction to the EH503e: The Optoma stationary 3D BrilliantColor DLP projector offers 5200 Ansi lumens, a contrast of 2000:1 and a HDTV 1920 x 1080 resolution. The projector also offers a lens shift function that makes image adjustment childs play. An image width of up to 733 cm is possible, if the image width is smaller (we recommend max. 489 cm), rooms with residual light are also no problem. It is also Full HD 1080P and 3D compatible. On the market since 2017, the model is no longer offered by the manufacturer Optoma, but is still very popular in our projector database.
|
| Display Type |
1 x 0,65" DC3DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5200 |
Screen |
2311 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
2,6000 min. Lumen |
1,157 min. Lumen |
| Lens shift |
Vert.: +50% -30% Hori.: +/-10%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

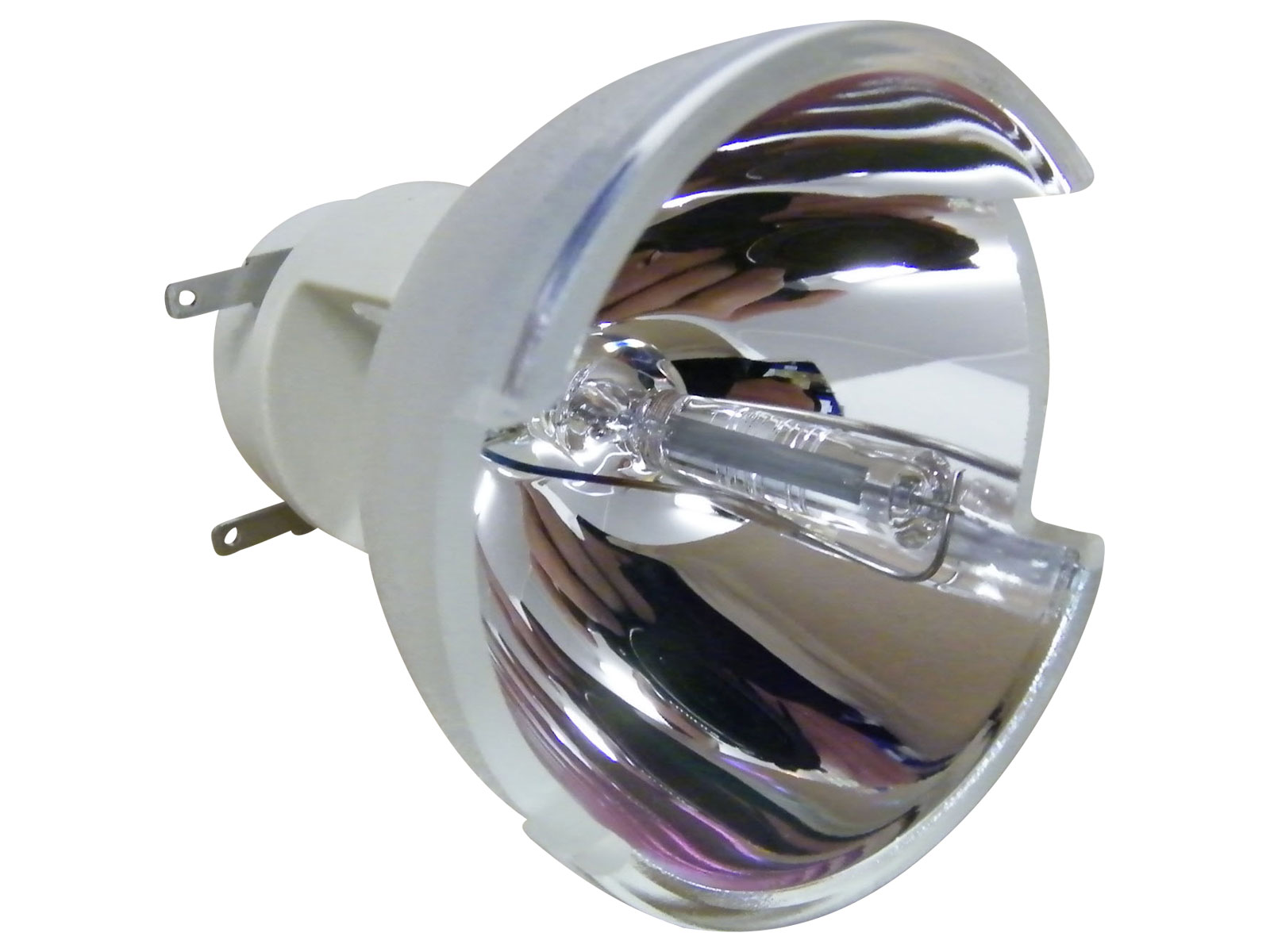

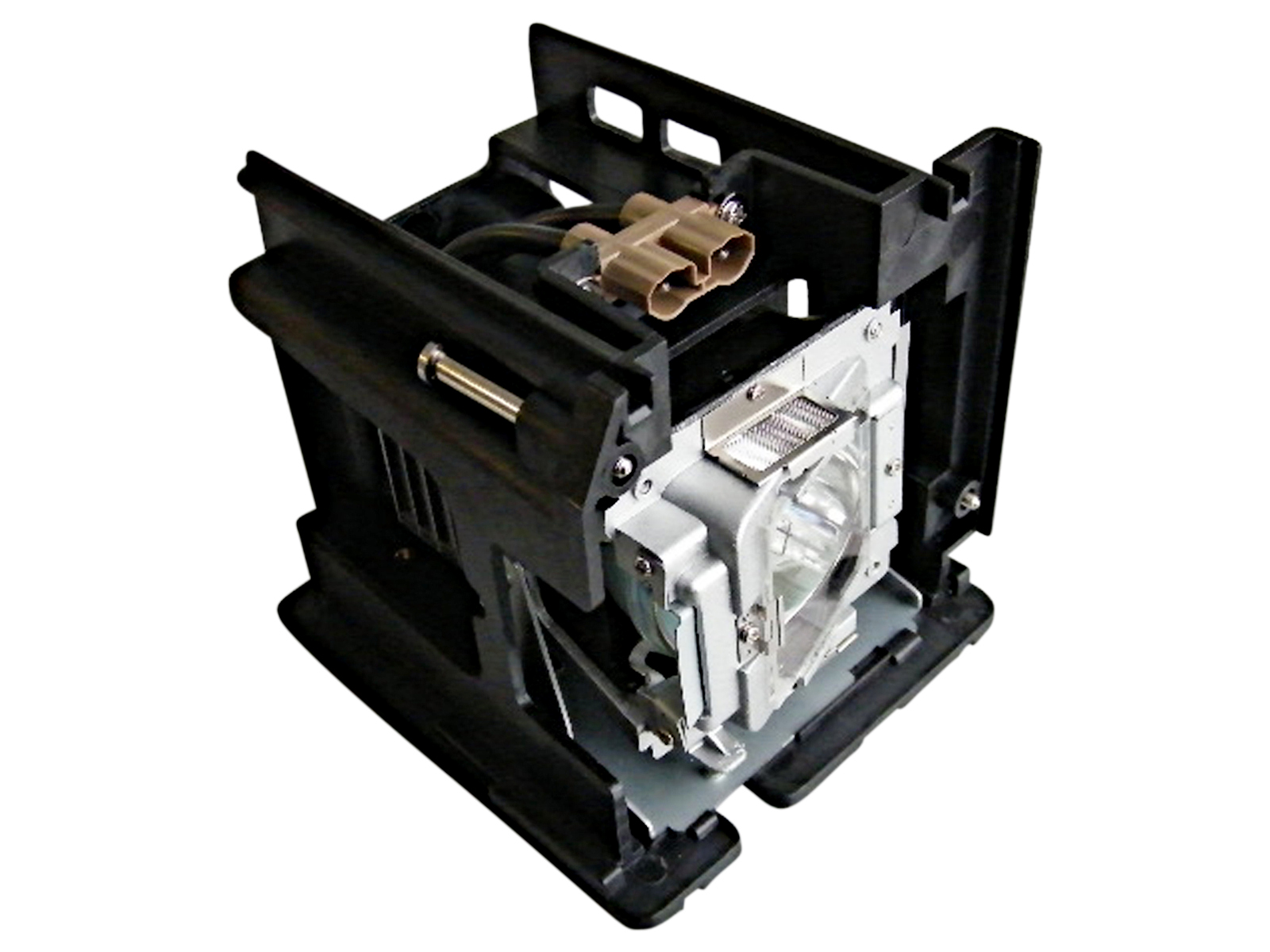

365W Lamp
Article Nr.: BL-FU365B / DE.5811122724-SOT
|
|
| Light Life |
3000 h. / 4000 h. in eco Mode |
| Operating Costs |
-
|
|
154 - 1000 cm
|
 |
|
Lux: |
2311 Lux |
|
Room light max.: |
462 Lux |
|
Candela pro m²: |
737 cd/m² |
|
Foot-Lamberts: |
215 fL |
|
 |
| 56 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Powered 6,49 |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
2 x 3W |
| Connections |
HDMI 1.4a in
DVI-D in
2 x D-Sub 15 pin in 1 x out
5 x BNC RGBHV in
YUV in
S-Video in
Cinch Stereo in und out
Cinch Video in
Mini Jack Audio in und out
12V Trigger out
3D SYNC Out (5V)
Display Port |
| Ceiling Mounting |
Yes, is possible. |
| Power |
480 / 330W |
| Size WxHxD |
430 x 181 x 340 mm (16,9"x7,1"x13,4") 26,46 L/dm³
|
| Operating Noise |
37dB |
Key: 41 cm
Shift: 56 cm |
Shift: 20 cm
|
|
Shift: 20 cm
|
| |
|
|
| Weight |
8,40 kg / 18,52 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
- |
| Frequenz |
H-sync: 24-85 kHz
V-sync: 15-91 Hz
|
| Foot-Lamberts |
215 fL
/ max. 733 cm screen width |
| Candela m² |
737 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
BrilliantColor™
Optional Wi-Fi network compatible.
Lan network compatible.
Short-throw projector
DICOM simulation
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma EH503e compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
51 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
94 |
| Black level: |
|
92 |
Power cons.: |
|
95 |
| Picture Total Points: | 48 |
Projector Total Points: | 96 |
|
| Popularity Top 100 |
|
| Points: |
|
32 |
| Ranking: |
623 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| BX-DL300 / Long | 1.93-2.89:1 | 386-578 m |
50-30% |
+/-10% |
Powered |
| BX-DL200 / Standard | 1.54-1.93:1 | 308-386 m |
50-30% |
+/-10% |
Powered |
| Semi short | 1.1-1.3:1 | 220-260 m |
50-30% |
+/-10% |
Powered |
| Short | 0.77:1 | 154 m |
0.0% Fix |
+/-10% |
No Zoom |
|
| Status |
2017 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2017-11-06 19:49:17
|
