Brief Introduction
Beta 2.5 |
A brief introduction to the Optoma EX762. The DLP projector has an XGA 1024 x 768 resolution and a contrast of 3000:1. Thanks to the brightness of 4000 Ansi lumens, a picture width of 551 cm is possible. The projector can also handle slightly brighter rooms with a narrower image width (we recommend max. 367 cm). Even 1080P video signals are no problem for the projector. At just 30 decibels, the device is one of the quieter projectors. This model is no longer offered by Optoma.
|
| Display Type |
1 x 0,55" DC2 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1333 Lux (200 cm Screen width) |
| Contrast |
3000:1 full on/off |
3000:1 full on/off
|
| Black Level |
1,3333 min. Lumen |
0,445 min. Lumen |
| Offset |
65% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

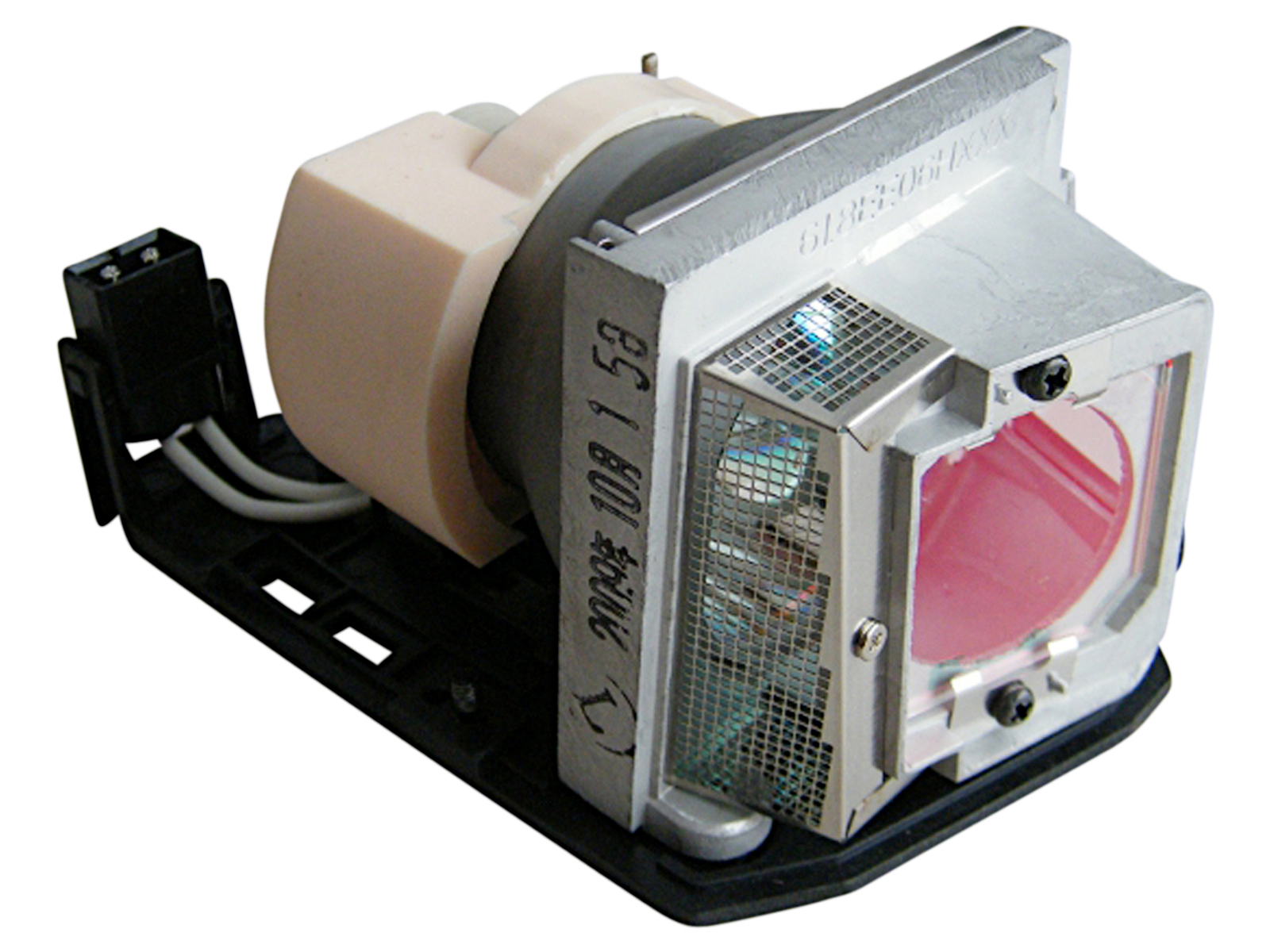

280W Lamp
Article Nr.: SP.8FB01GC01
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
320 - 384 cm
|
 |
|
Lux: |
1333 Lux |
|
Room light max.: |
267 Lux |
|
Candela pro m²: |
425 cd/m² |
|
Foot-Lamberts: |
124 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,63 |
| Objective |
F=2,41-2,66 f=18,20-21,8 mm |
| Throw Ratio |
1,6-1,92:1 show |
| Audio |
8W |
| Connections |
HDMI in
2 x D-sub 15 in 1 x out
S-Video in
Cinch Video in
Mini Jack Audio in und out
RS232C
RJ45 in
12V Trigger out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
372 /314W in Eco Mode |
| Size WxHxD |
364 x 283 x 127 mm (14,3"x11,1"x5") 13,08 L/dm³
|
| Operating Noise |
30 / 29 dB in Eco Mode |
|
| Weight |
2,90 kg / 6,39 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-91 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
124 fL
/ max. 551 cm screen width |
| Candela m² |
425 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Digital image shift
Password protection
BrilliantColor™
Remote control with laser pointer und mouse control
Control via web browser
Lan network compatible.
Overscan adjustable
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma EX762 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
49 |
| Black level: |
|
95 |
Power cons.: |
|
96 |
| Picture Total Points: | 48 |
Projector Total Points: | 77 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3639 (From: 7662) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
