| Customer review |
|
 |
|
Brief Introduction
Beta 2.5 |

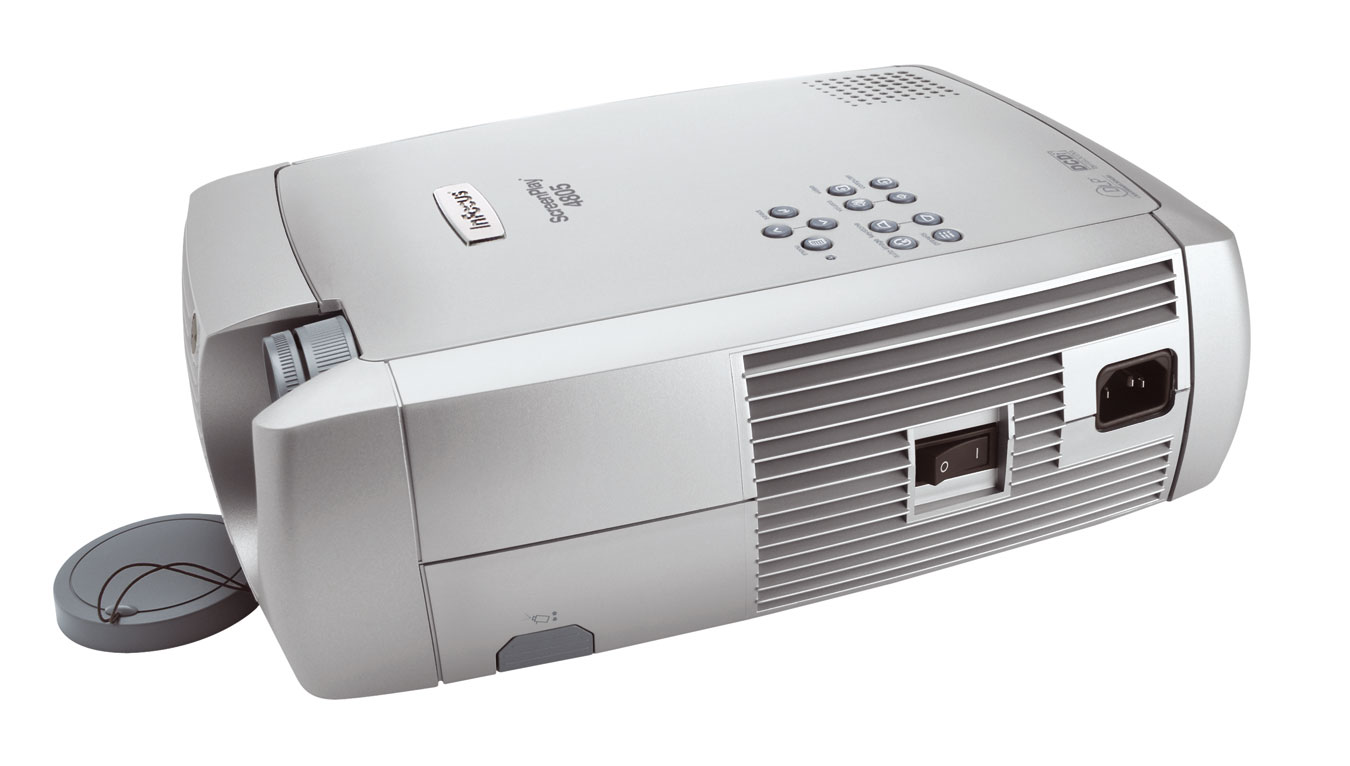

The InFocus ScreenPlay 4805 DLP projector has 750 Ansi lumens, a contrast of 2000:1 and a WVGA 854 x 480 resolution. The projector can illuminate a picture width of up to 278 cm thanks to the 750 Ansi lumens. In room light, however, the image width should ideally be less than 185 cm. The model was built by InFocus in 2004 and is no longer current.
|
| Display Type |
1 x 0,55" 12 Grad DDR DLP Chip
WVGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
750 |
Screen |
333 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
0,3750 min. Lumen |
0,167 min. Lumen |
| Offset |
60% show
|
| Resolution |
WVGA 854 x 480
409.920 Pixel
XGA 1024 x 768 compressed |
| Video Modes |
NTSC, PAL, SECAM EDTV 480p, 576p HDTV 1080i, 720p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

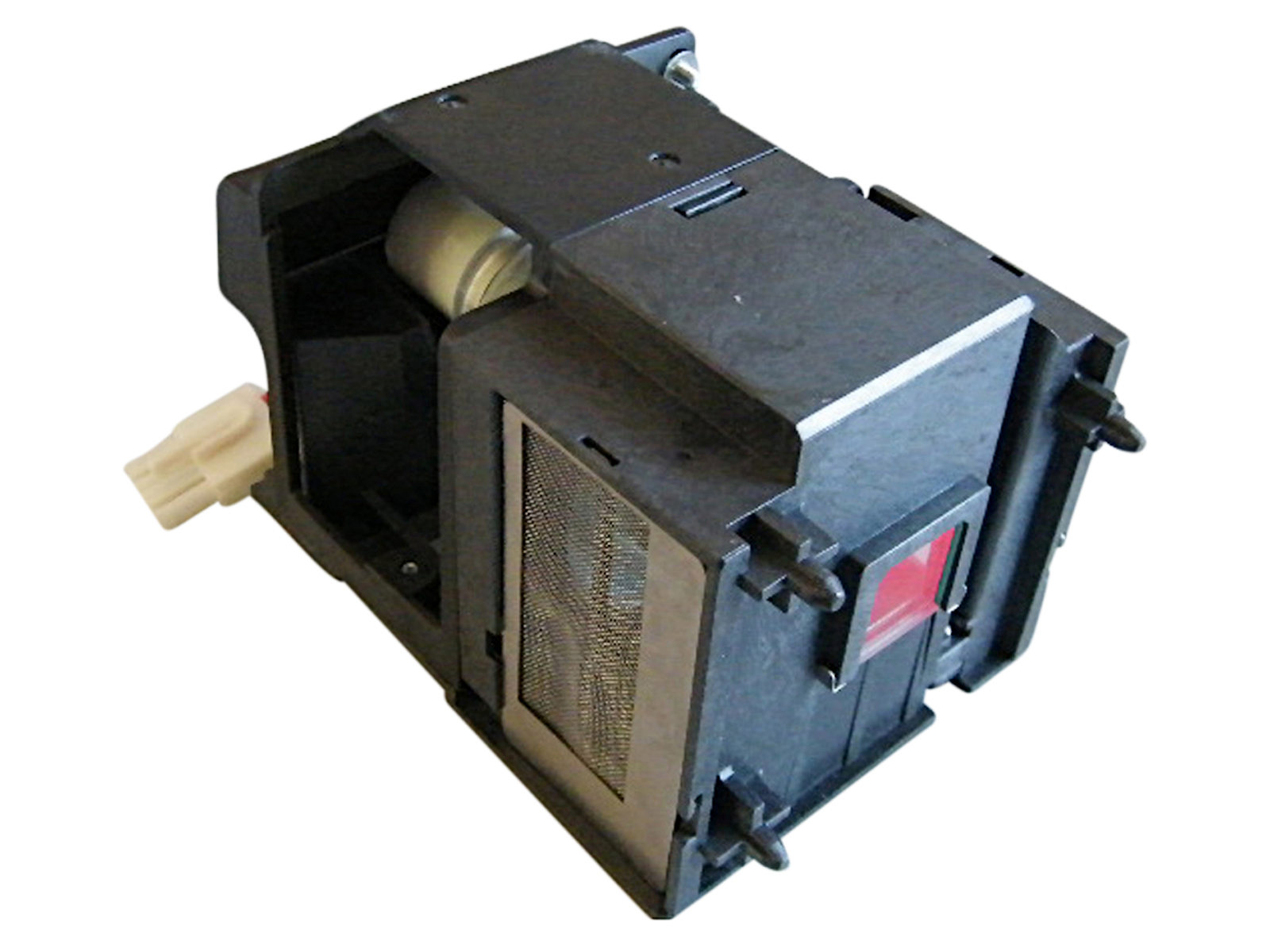

200W SHP Lamp
Article Nr.: SP-LAMP-021
|
|
| Light Life |
3000 h. |
| Operating Costs |
-
|
|
354 - 426 cm
|
 |
|
Lux: |
333 Lux |
|
Room light max.: |
67 Lux |
|
Candela pro m²: |
106 cd/m² |
|
Foot-Lamberts: |
31 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,19 |
| Objective |
F=2,4 f=21-25 mm |
| Throw Ratio |
1,77-2,13:1 show |
| Audio |
1 x 2,5W Mono |

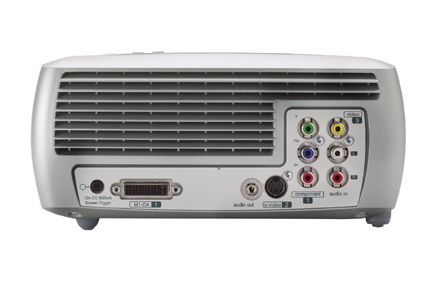

| Connections |
M1-DA (DVI)
YUV in
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
250W |
| Size WxHxD |
249 x 106 x 318 mm (9,8"x4,2"x12,5") 8,39 L/dm³
|
| Operating Noise |
- |
|
| Weight |
3,50 kg / 7,72 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
31 fL
/ max. 278 cm screen width |
| Candela m² |
106 cd/m² |
| Features |
 Blank (Black screen button)
Remote control with mouse control
Remote control with backlight
Overscan adjustable
The model is also often referred to as LS4805,
this specification does not exist according to the manufacturer.
|
|
- |
In Comparison
The InFocus ScreenPlay 4805 compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
5 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
96 |
Power cons.: |
|
95 |
| Picture Total Points: | 34 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
12 |
| Ranking: |
267 (From: 984) |
|
|
|
| In Test
|
-
|
| Please note |
The model is also often referred to as LS4805,
this specification does not exist according to the manufacturer.
|
|
|
| Status |
2004 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english 2
Product Sheet english HC
Press release english
User Manual english (2.6 MB)
Quick Start Guide english (0.45 MB)

|
InFocus Website
