Brief Introduction
Beta 2.5 |
The IN104 3D BrilliantColor DLP projector from InFocus has 2500 Ansi lumens, a contrast of 1500:1 and an XGA 1024 x 768 resolution. An image width of up to 435 cm is possible as the projector has 2500 Ansi lumens. However, if room light is available, the picture should be max. 290 cm wide. It is also Full HD 1080P compatible. The model was built by InFocus in 2010 and is no longer current.
|
| Display Type |
1 x 0,55" LVDS DDP2431 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2500 / 2000 im Eco Mode |
Screen |
833 Lux (200 cm Screen width) |
| Contrast |
1500:1 full on/off |
1500:1 full on/off
|
| Black Level |
1,6667 min. Lumen |
0,556 min. Lumen |
| Offset |
60% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

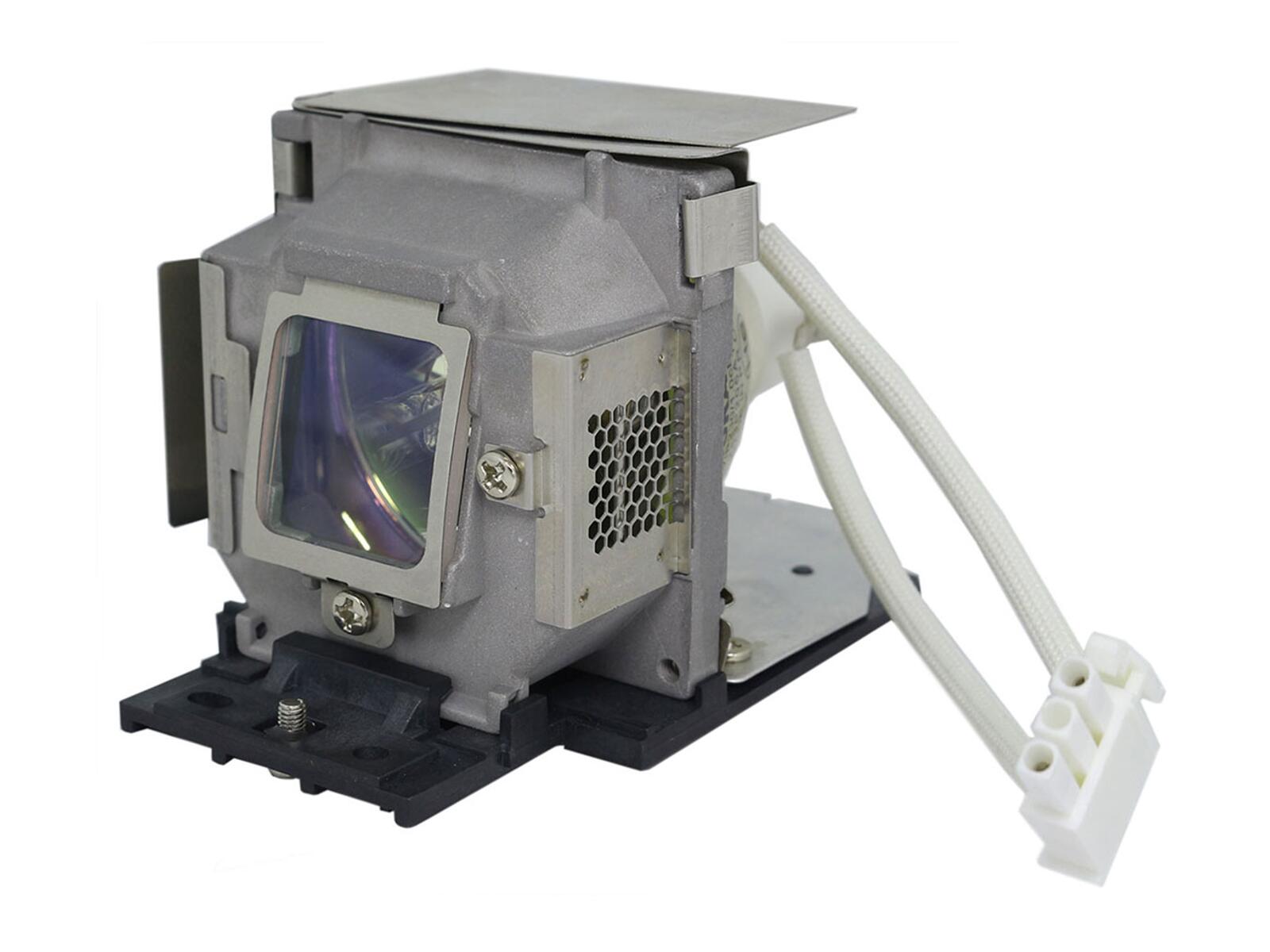

220 / 176W im Eco Mode Lamp
Article Nr.: SP-LAMP-061
|
|
| Light Life |
3000 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
370 - 408 cm
|
 |
|
Lux: |
833 Lux |
|
Room light max.: |
167 Lux |
|
Candela pro m²: |
264 cd/m² |
|
Foot-Lamberts: |
77 fL |
|
 |
| 90 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
- |
| Throw Ratio |
1,85-2,04:1 show |
| Audio |
- |
| Connections |
2 x D-sub 15 pin in 1 x out
S-video in
Cinch Video in
Mini Jack Audio in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
288 / 228W in Eco Mode |
| Size WxHxD |
393,7 x 185,4 x 289,6 mm (15,5"x7,3"x11,4") 21,01 L/dm³
|
| Operating Noise |
33 / 28 dB in Eco Mode |
|
| Weight |
2,30 kg / 5,07 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
77 fL
/ max. 435 cm screen width |
| Candela m² |
264 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Blackboard Modus
Eco Mode
Kensington Slot
24/7 continuous operation capable
Password protection
BrilliantColor™
|
|
- |
In Comparison
The InFocus IN104 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
89 |
| Contrast: |
|
1 |
dB: |
|
41 |
| Black level: |
|
94 |
Power cons.: |
|
97 |
| Picture Total Points: | 41 |
Projector Total Points: | 76 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
2106 (From: 7662) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
Quick Start Guide
User Manual english (6.36 MB)

|
InFocus Website
