Brief Introduction
Beta 2.5 |

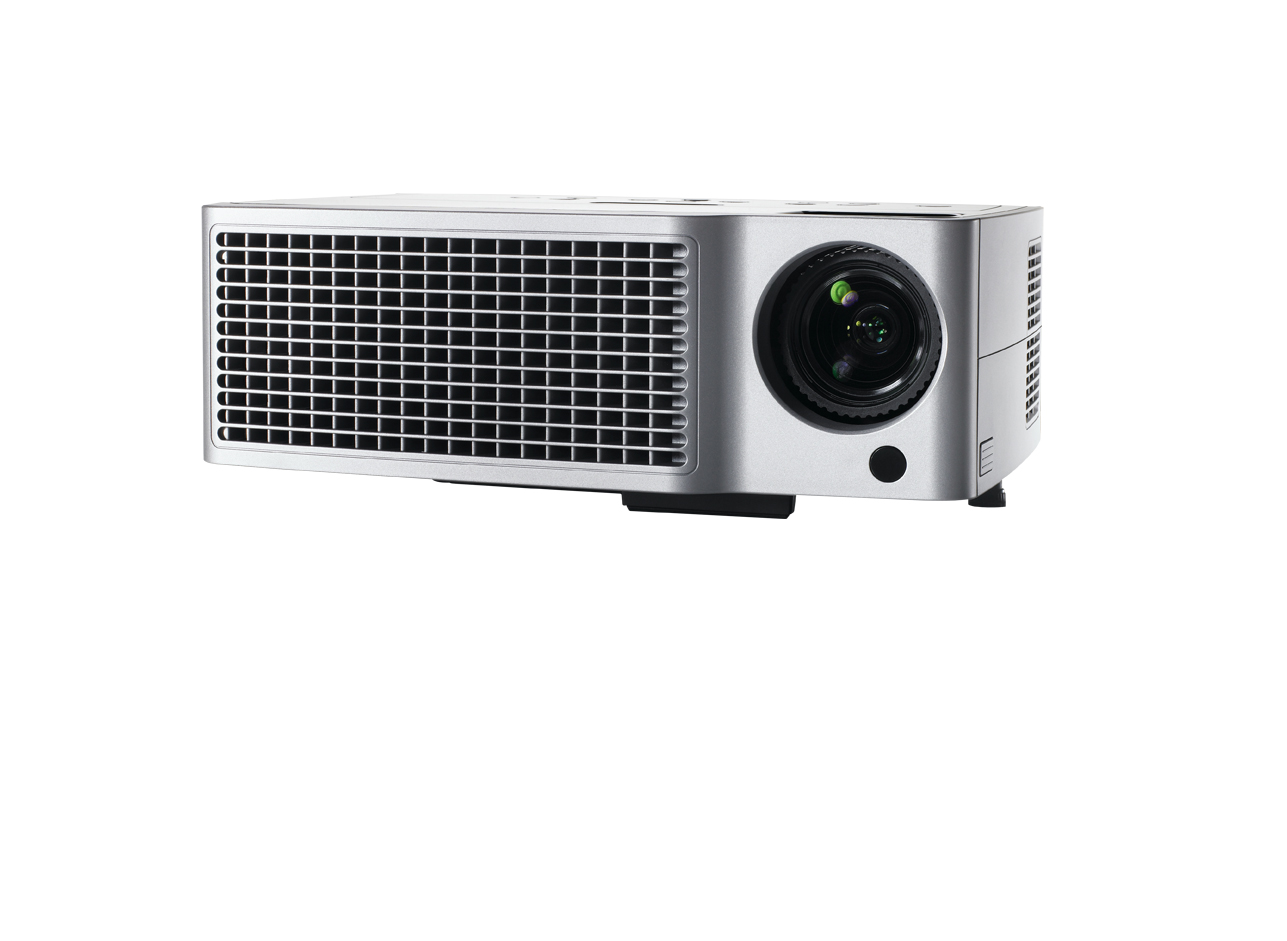

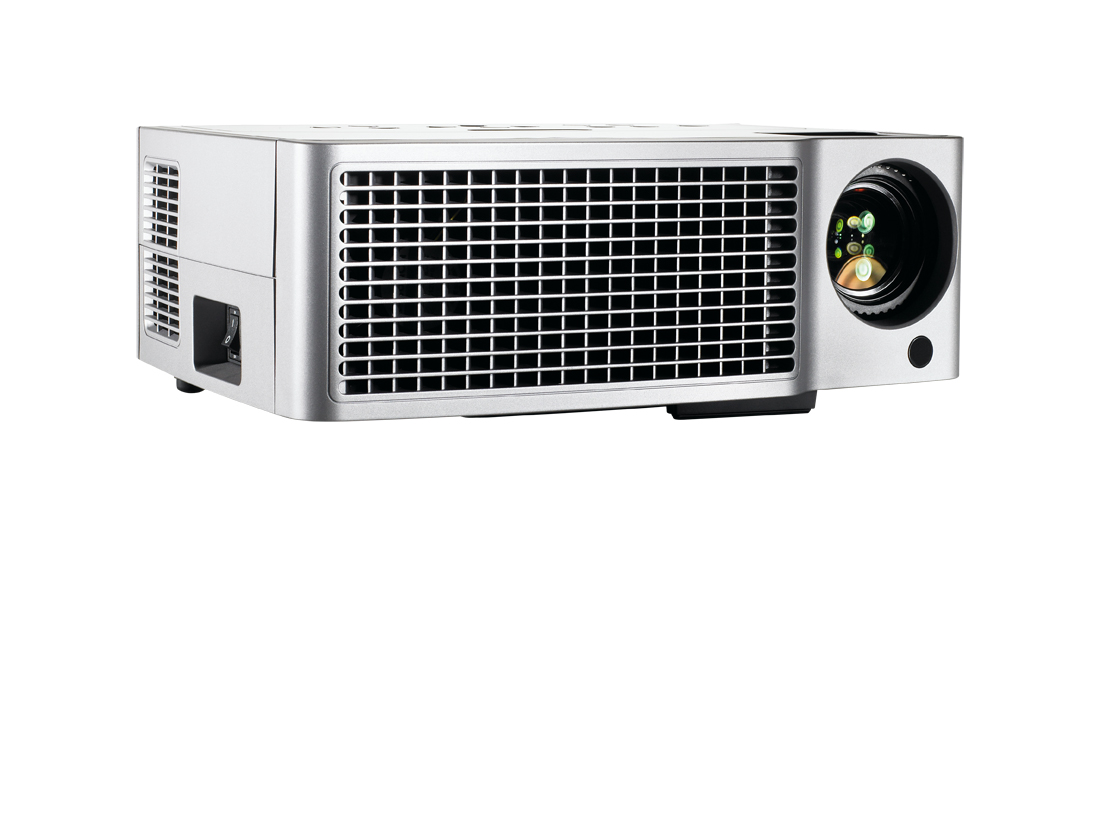

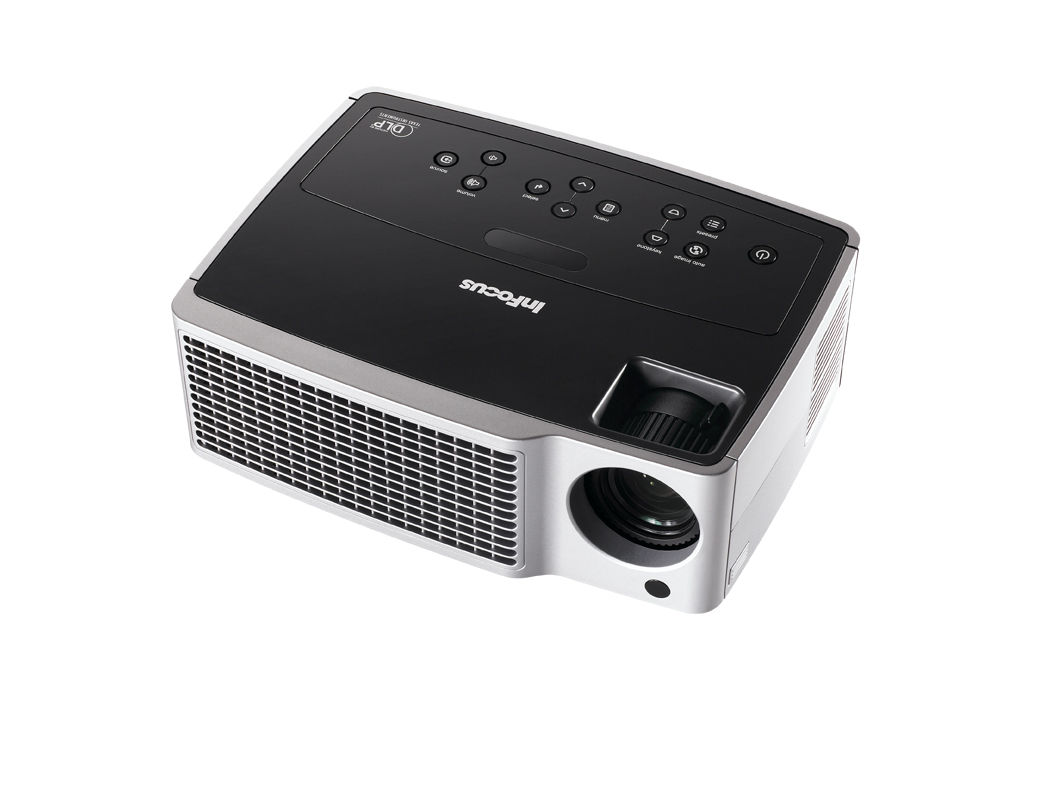

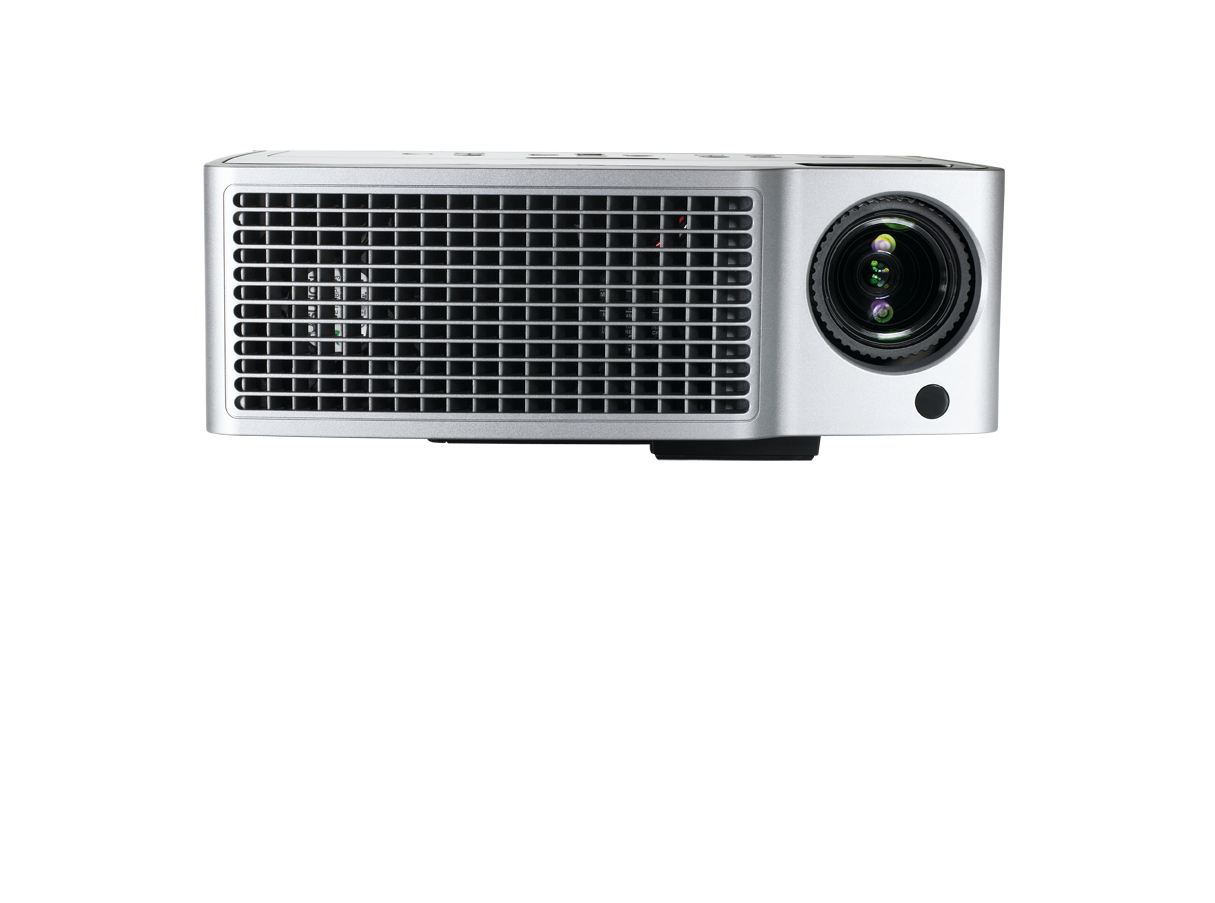

A brief introduction to the InFocus Work Big IN38. The DLP projector has an XGA 1024 x 768 resolution and a contrast of 2000:1. An image width of up to 515 cm is possible as the projector has 3500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 343 cm. The model was built by InFocus in 2007 and is no longer current.
|
| Display Type |
1 x 0,7" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3500 / 2800 im Eco Mode |
Screen |
1167 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
1,7500 min. Lumen |
0,584 min. Lumen |
| Offset |
63% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

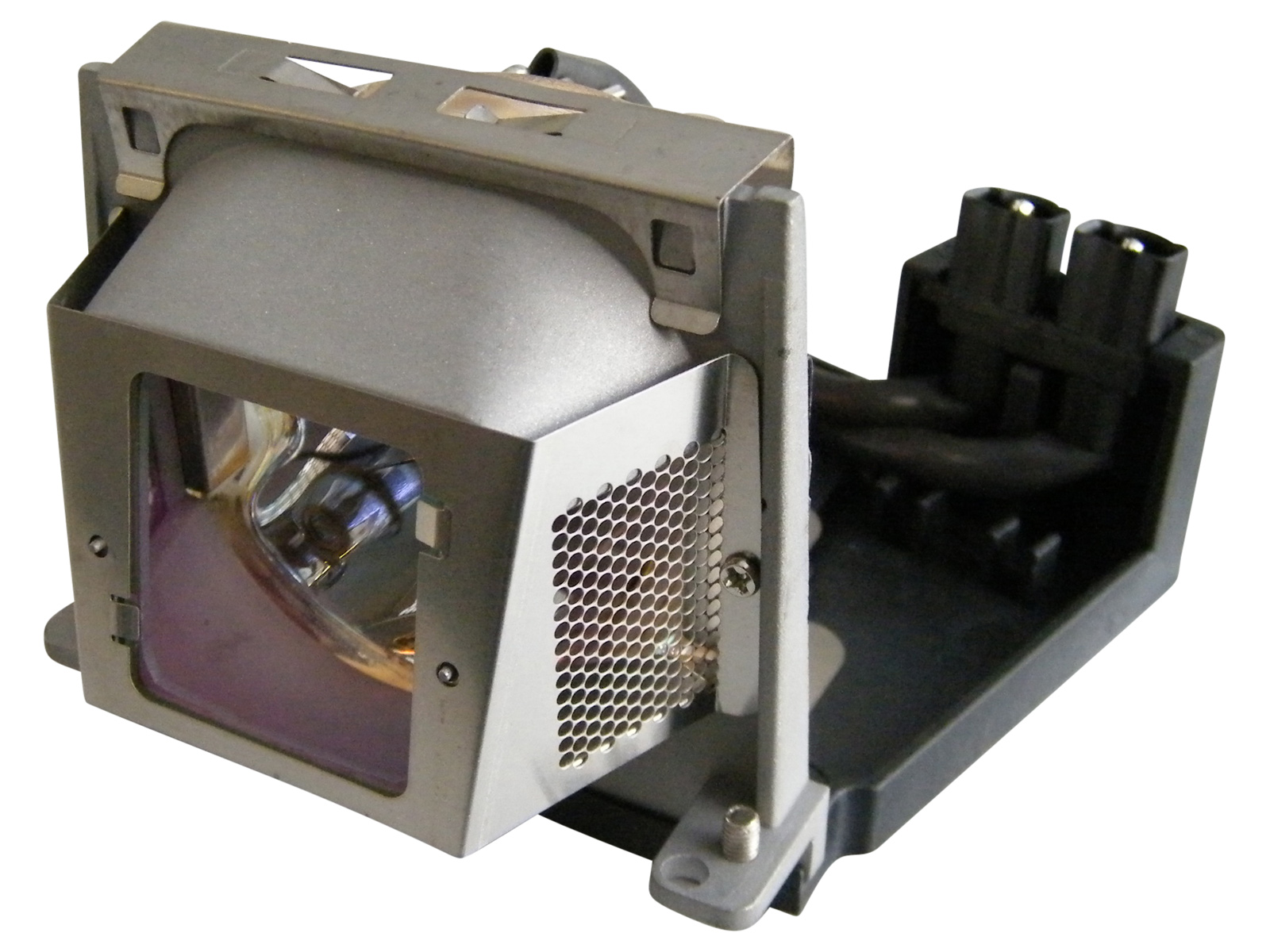

300 / 250W im Eco Mode Lamp
Article Nr.: SP-LAMP-034
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
320 - 400 cm
|
 |
|
Lux: |
1167 Lux |
|
Room light max.: |
233 Lux |
|
Candela pro m²: |
370 cd/m² |
|
Foot-Lamberts: |
108 fL |
|
 |
| 95 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,3-2,7 f=23,6-28,25 mm |
| Throw Ratio |
1,6-2,0:1 show |
| Audio |
2W Mono |

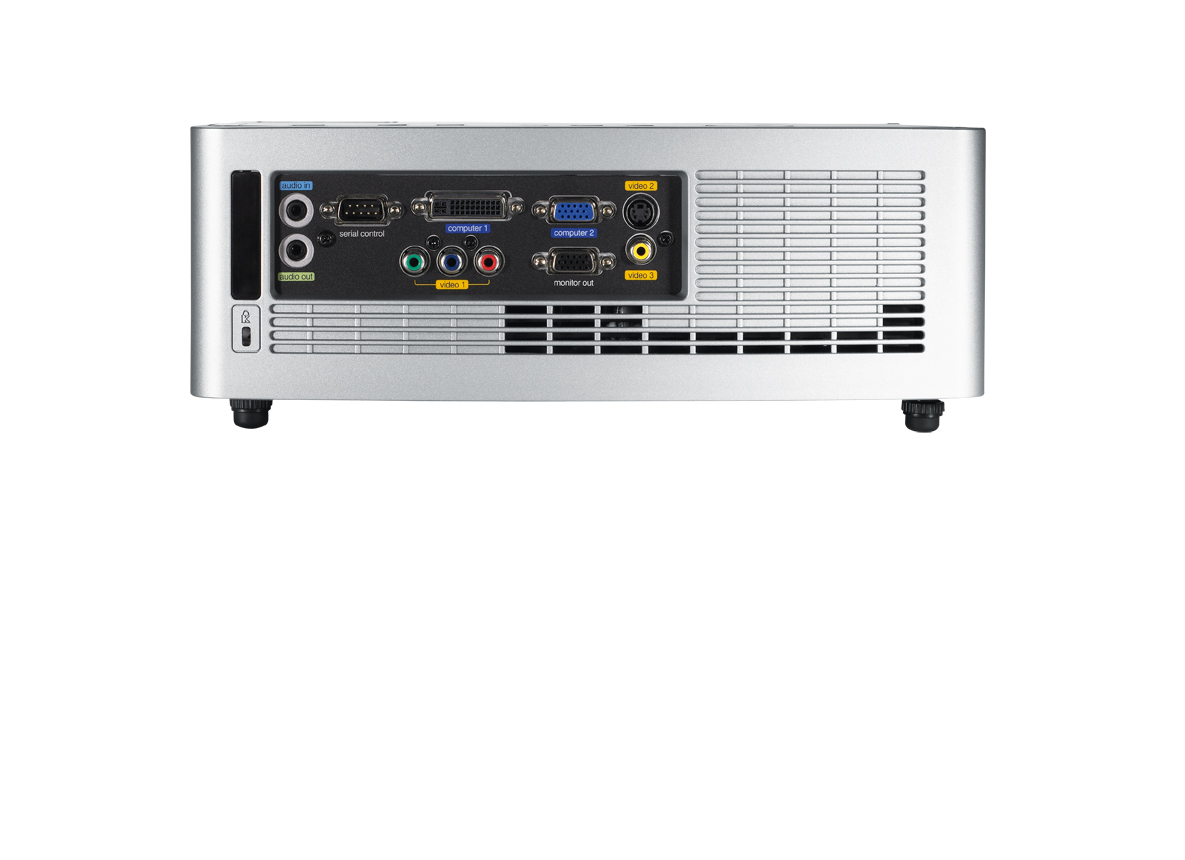

| Connections |
DVI M1DA ib
D-sub15 pin in und out
YUV in
S-Video in
Cinch Video in
Mini Jack Audio in und out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
380 / 330W in Eco Mode |
| Size WxHxD |
309 x 102 x 229 mm (12,2"x4"x9") 7,22 L/dm³
|
| Operating Noise |
34 / 31 dB in Eco Mode |
|
| Weight |
3,20 kg / 7,05 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
95% |
| Frequenz |
H-sync: 31-69 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
108 fL
/ max. 515 cm screen width |
| Candela m² |
370 cd/m² |
| Features |
 Freeze
Blank (Black screen button)
Eco Mode
Kensington Slot
Password protection
Overscan adjustable
|
|
- |
In Comparison
The InFocus Work Big IN38 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
42 |
Weight: |
|
85 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
93 |
Power cons.: |
|
96 |
| Picture Total Points: | 45 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4706 (From: 7662) |
|
|
|
|
|
| Status |
2007 Discontinued (EOL) // Last update of the data: 2023-08-04
|
