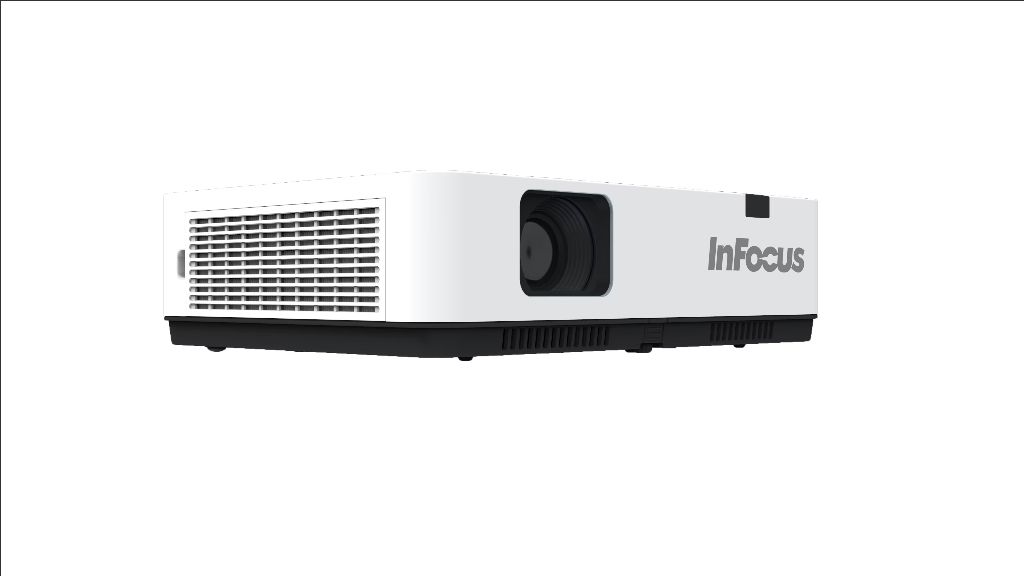

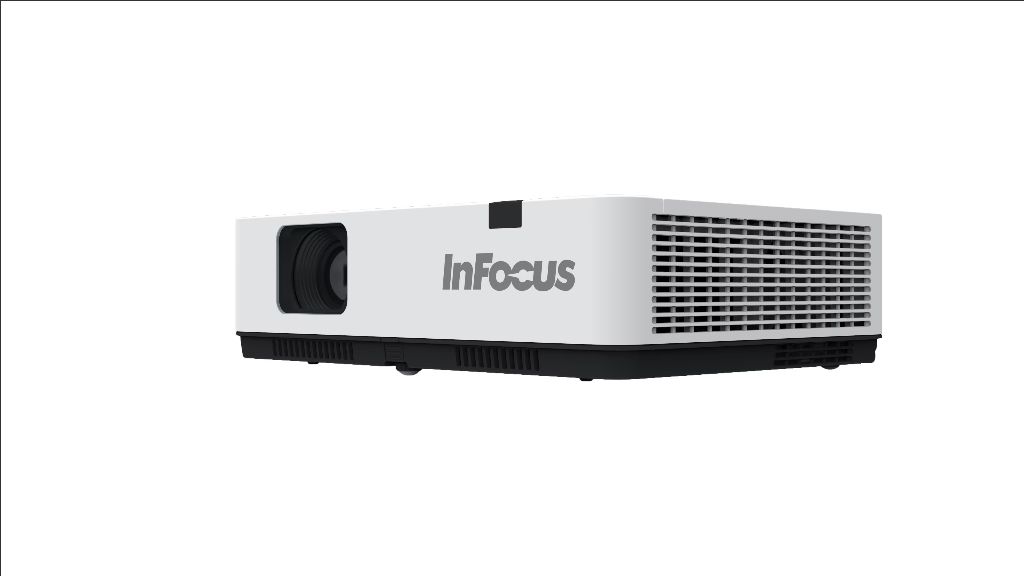

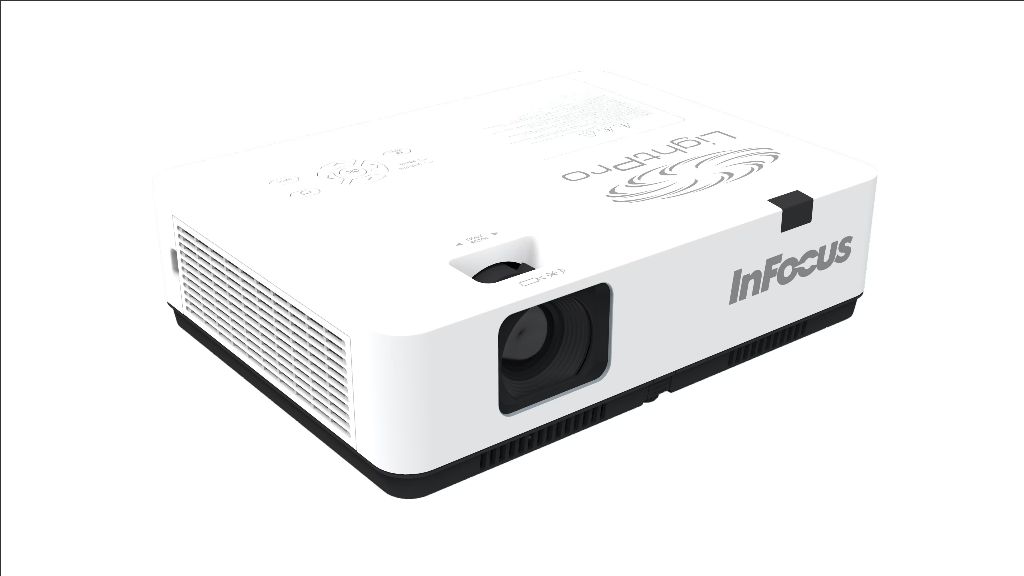

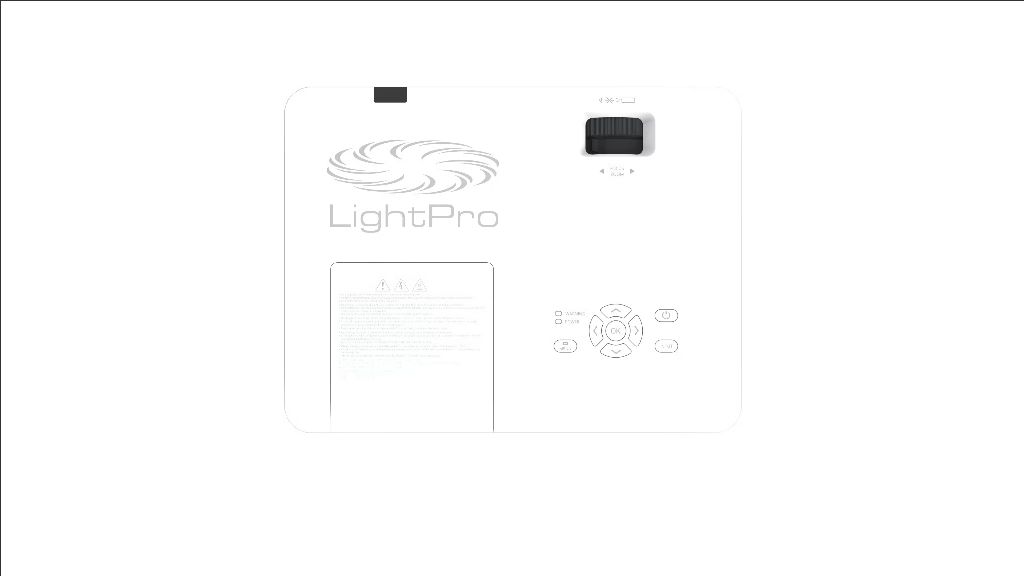

A brief introduction to the IN1024: The InFocus 3D LCD projector offers 4000 Ansi lumens, a contrast of 50000:1 and an XGA 1024 x 768 resolution. The lamp life is specified by the manufacturer as 20000 hours, which converts to over 27.4 years at 2 hours per day. Includes an integrated media player that can be used to play files directly. Horizontal and vertical keystone correction makes setting up the picture childs play. The projector can illuminate images up to 551 cm wide thanks to its 4000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 367 cm. Playback of 1080P and 4K (compressed) as well as 3D is also no problem for the projector, meaning that all Blu-ray formats currently available can be recognized by the projector.
|
| Display Type |
3 x 0,63" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1333 Lux (200 cm Screen width) |
| Contrast |
50000:1 full on/off |
50000:1 full on/off
|
| Black Level |
0,0800 min. Lumen |
0,027 min. Lumen |
| Offset |
64% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UHD (4K2K) 3840 x 2160 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p
Media player formats: jpeg bmp png gif tiff avi MotionJPEG ADPCM |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |

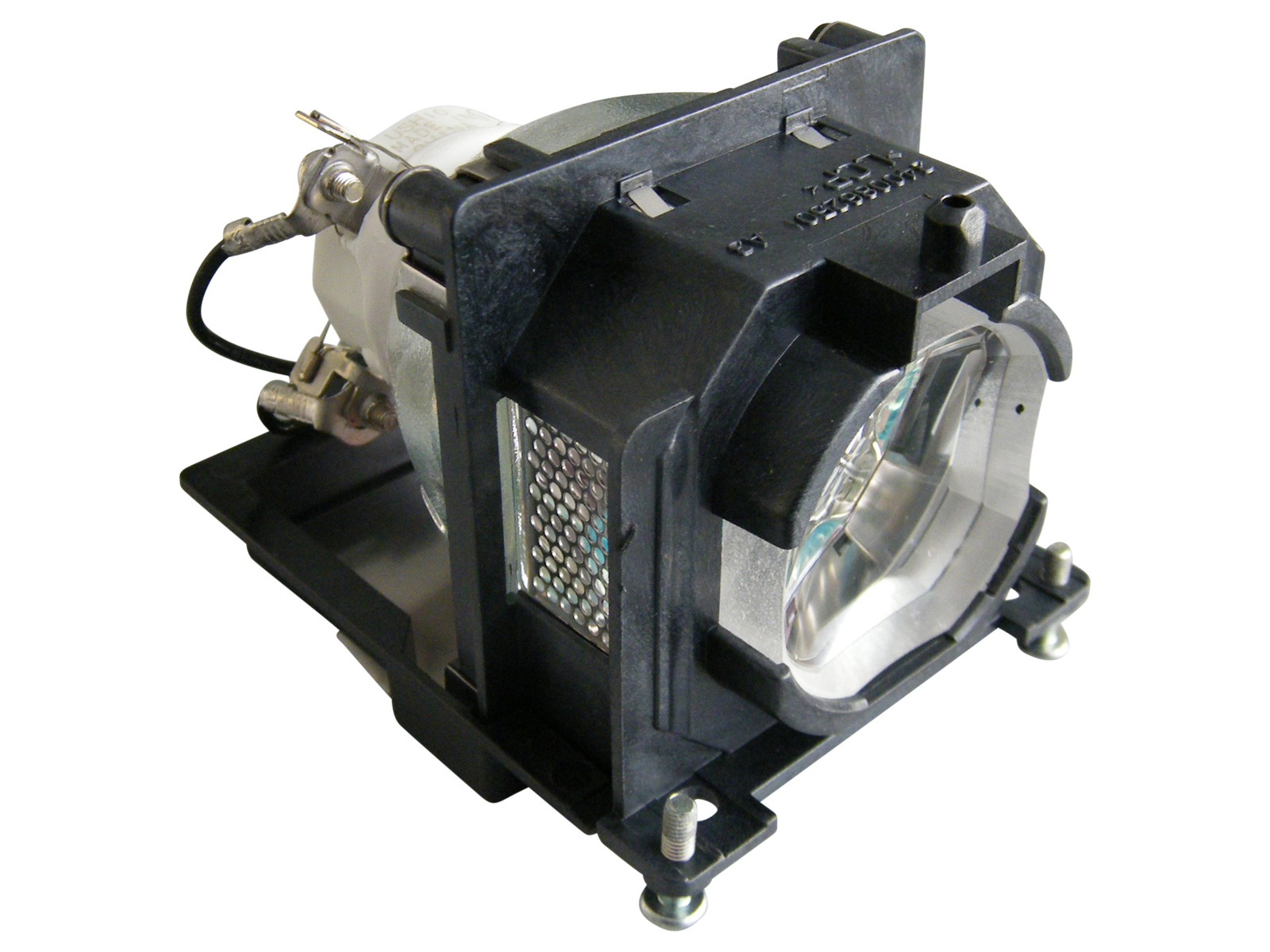

| Light Source |
UHP Lamp
Article Nr.: SP-LAMP-107
|
|
| Light Life |
20000 h. in Eco Mode |
| Operating Costs |
-
|
|
296 - 356 cm
|
 |
|
Lux: |
1333 Lux |
|
Room light max.: |
267 Lux |
|
Candela pro m²: |
425 cd/m² |
|
Foot-Lamberts: |
124 fL |
|
 |
| 96 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,6-1,76 f=19,16-23,02 mm |
| Throw Ratio |
1,48-1,78:1 show |
| Audio |
1 x 16W |

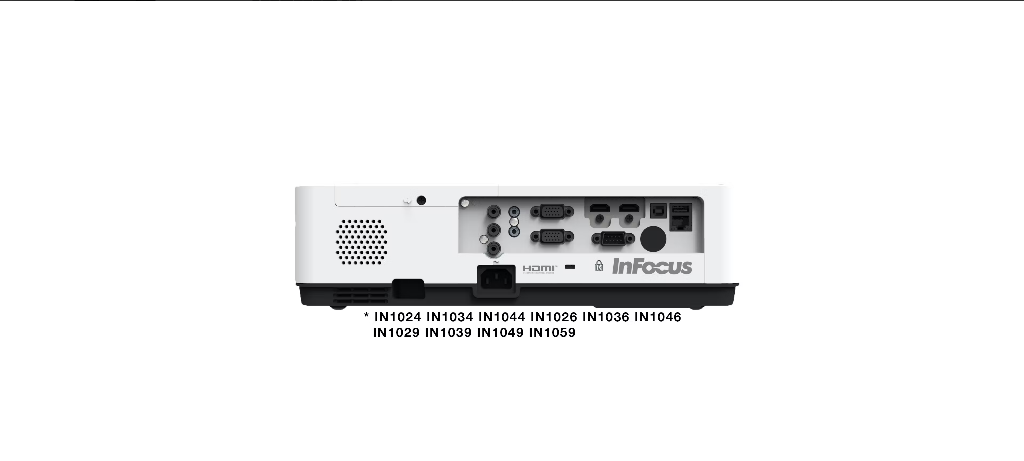

| Connections |
HDMI 1.4 in
D-sub 15pin in und out
USB Typ A,B in
RS232C Din 9 pin in
Cinch Stereo in
Cinch Video in
Mini Jack Audio in und out
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
340 / 150W in Eco Mode |
| Size WxHxD |
345 x 99 x 261 mm (13,6"x3,9"x10,3") 8,91 L/dm³
|
| Operating Noise |
32 / 26 dB in Eco Mode |
Key: 267 cm |
Key: 171 cm |
| Key: 171 cm |
| |
|
|
| Weight |
3,30 kg / 6,61 lbs. |
| Keystone |
Vert.: +/-30° automatisch
Hori.: +/-30°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 48-85 Hz
|
| Foot-Lamberts |
124 fL
/ max. 551 cm screen width |
| Candela m² |
425 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Integrated Mediaplayer
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Password protection
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The InFocus IN1024 compared to others current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
56 |
Weight: |
|
72 |
| Contrast: |
|
1 |
dB: |
|
70 |
| Black level: |
|
99 |
Power cons.: |
|
33 |
| Picture Total Points: | 52 |
Projector Total Points: | 58 |
|
| Popularity Top 100 |
|
| Points: |
|
2 |
| Ranking: |
636 (From: 849) |
|
|
|
|
|
| Status |
2022 Current model // Last update of the data: 2024-09-30
Created: 2022-01-21 10:03:55
|
