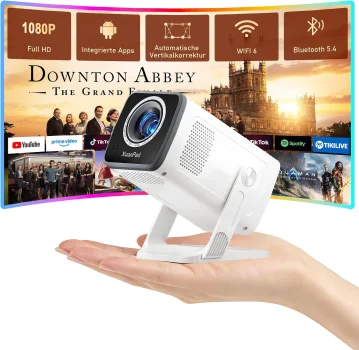

Based on LCD technology, the XuanPad Mini Projector projects images in a Game-Portabel environment, with technical specs listing 220 ANSI lumens and a HDTV 1920 x 1080 resolution. Thanks to LED technology, the projector is rated for a lifespan of up to 30000 hours – equivalent to a usable life of 20.5 years at 4 hours a day. A look at the light output reveals: The 220 ANSI lumens are sufficient to illuminate an image width of up to 161 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 107 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. Also on board is a local media player that allows reading and playing content directly from storage media. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device. In the specifications, the operating noise is listed at a mere 25 decibels, indicating very quiet cooling.
Display Type
1 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
220
Screen
98 Lux (200 cm Screen width)
Contrast
-
Black Level
0,0139 min. Lumen
-
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Mediaplayer
Application
Game-Portabel | Very portable, small-screen projections. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
30000 h.
Operating Costs
0,00 € LED
The projection is too dark. The screen width should be reduced.
160 cm (no Zoom)
Lux:
98 Lux
Contrast:
Candela pro m²:
31 cd/m²
Foot-Lamberts:
9 fL
•
Focus
Manual
Zoom
No Zoom 50%-100% Digital
Objective
-
Throw Ratio
0,8:1
Audio
Built-in loudspeaker
Connections
HDMI in
USB in
Audio Mini Jack out
Bluetooth 5.4
Ceiling Mounting
-
Power
24W
Size WxHxD
104,1 x 165,1 x 86,4 mm (4,1"x6,5"x3,4") 1,48 L/dm³
Full HD 1080P compatible
