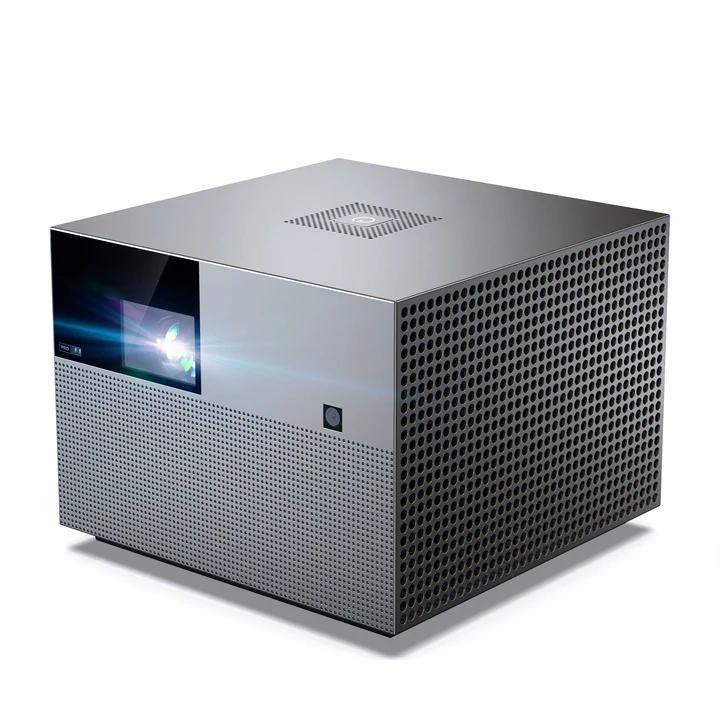

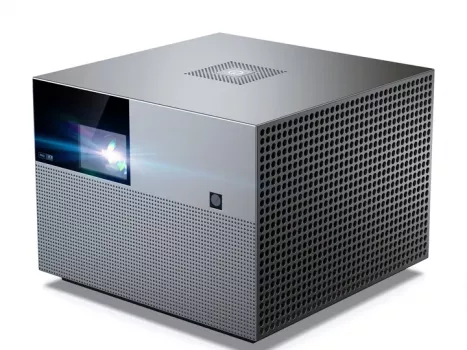

As a projector for the Standard-Portabel sector, the Wemax Vogue Pro is equipped with 1600 ANSI lumens, a HDTV 1920 x 1080 resolution and a contrast of 2500:1. Looking at practical performance, up to 406 cm can be illuminated with 1600 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 271 cm. Regarding signal processing, the model is compatible with incoming 1080P content and 4K. Also on board is a local media player that allows reading and playing content directly from storage media. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. In the specifications, the operating noise is listed at a mere 28 decibels, indicating very quiet cooling. The projector was released in 2021 and is officially no longer distributed by Wemax. In our projector directory, the device still generates high interest.
Display Type
1 x 0,47" DMD DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1600
Screen
711 Lux (200 cm Screen width)
Contrast
2500:1 full on/off
2500:1 full on/off
Black Level
0,6400 min. Lumen
0,285 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel 8K4K 8192 x 4320 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Mediaplayer
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Light Source
LED
Light Life
-
Operating Costs
0,00 € LED
Calculated brightness quality Perfect
220 cm (no Zoom)
Lux:
711 Lux
Contrast:
2500:1
Candela pro m²:
226 cd/m²
Foot-Lamberts:
66 fL
•
Focus
Automatic
Zoom
No Zoom
Objective
-
Throw Ratio
1,1:1
Audio
2 x 10W DOLBY AUDIO & dts-HD speakers

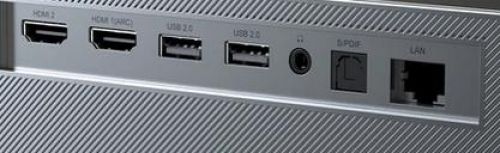

Connections
2x HDMI 2.1 in ( 1x ARC)
Mini Jack Audio out
2x USB 2.0 in
RJ45 in
Bluetooth 4.2/BLE
Full HD 1080P compatible Integrated Mediaplayer Automatic and manual vertical keystone correction High Dynamic Range (HDR) Wi-Fi network compatible. Lan network compatible. FengOS Auto Side Projection Auto Obstacle Avoidance Auto Screen Alignment
Full HD 1080P compatible
Wemax Website
Product Sheet english HC
