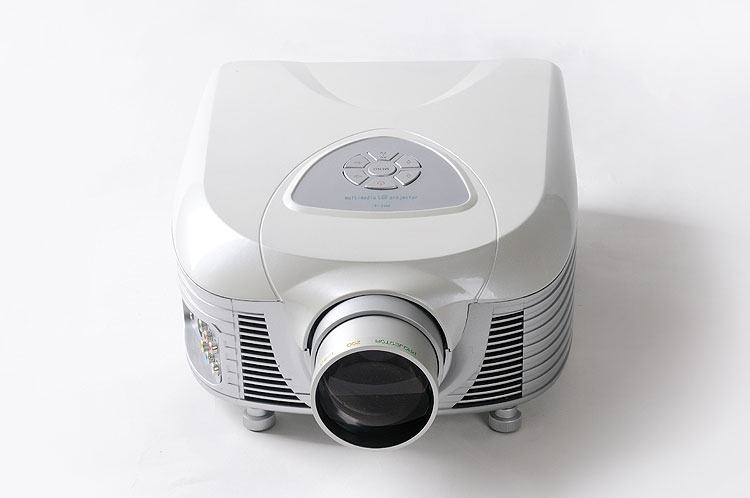

The LED 100 model is a LCD projector from HongTianPao, intended for Standard-Portabel applications, offering 350 ANSI lumens, a contrast of 800:1 at WVGA 800 x 480. The built-in LED technology features a light source lifespan of 20000 hours, covering an estimated 13.7 years based on a 4-hour daily runtime. To ensure objective comparability, an approximate ANSI lumen value was calculated based on the lumen specifications. Looking at practical performance, up to 190 cm can be illuminated with 350 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 127 cm. This model dates back to 2014 and is no longer part of HongTianPao's current product range.
Display Type
1 x LCD TFT Panel WVGA 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
350 / 2000 Lumen
Screen
156 Lux (200 cm Screen width)
Contrast
800:1 full on/off
800:1 full on/off
Black Level
0,4375 min. Lumen
0,196 min. Lumen
Offset
-
Resolution
WVGA 800 x 480
384.000 Pixel HDTV 1920 x 1080 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Very narrow picture width and rooms with very little light.
Light Source
100W LED
Light Life
20000 h.
Operating Costs
0,00 € LED
The projection is okay. A smaller screen width would result in a brighter image.
Lux:
156 Lux
Contrast:
800:1
Candela pro m²:
48 cd/m²
Foot-Lamberts:
14 fL
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
-
Audio
-
Connections
HDMI in
YUV in
Cinch Video in
Cinch Stereo in
Ceiling Mounting
-
Power
120W
Size WxHxD
377,5 x 137,6 x 259,5 mm (14,8"x5,4"x10,2") 13,38 L/dm³
