Brief Introduction
Beta 2.5 |

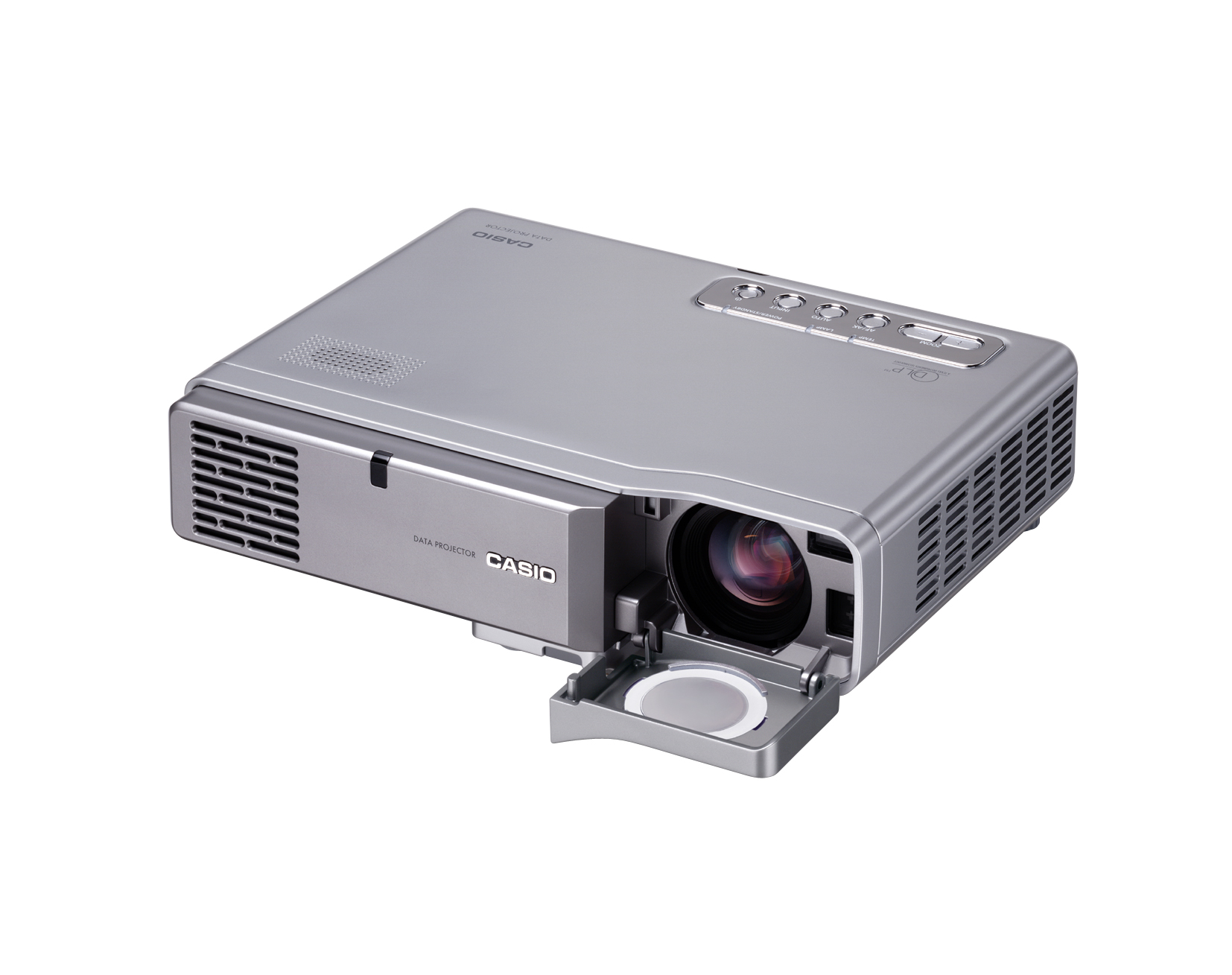

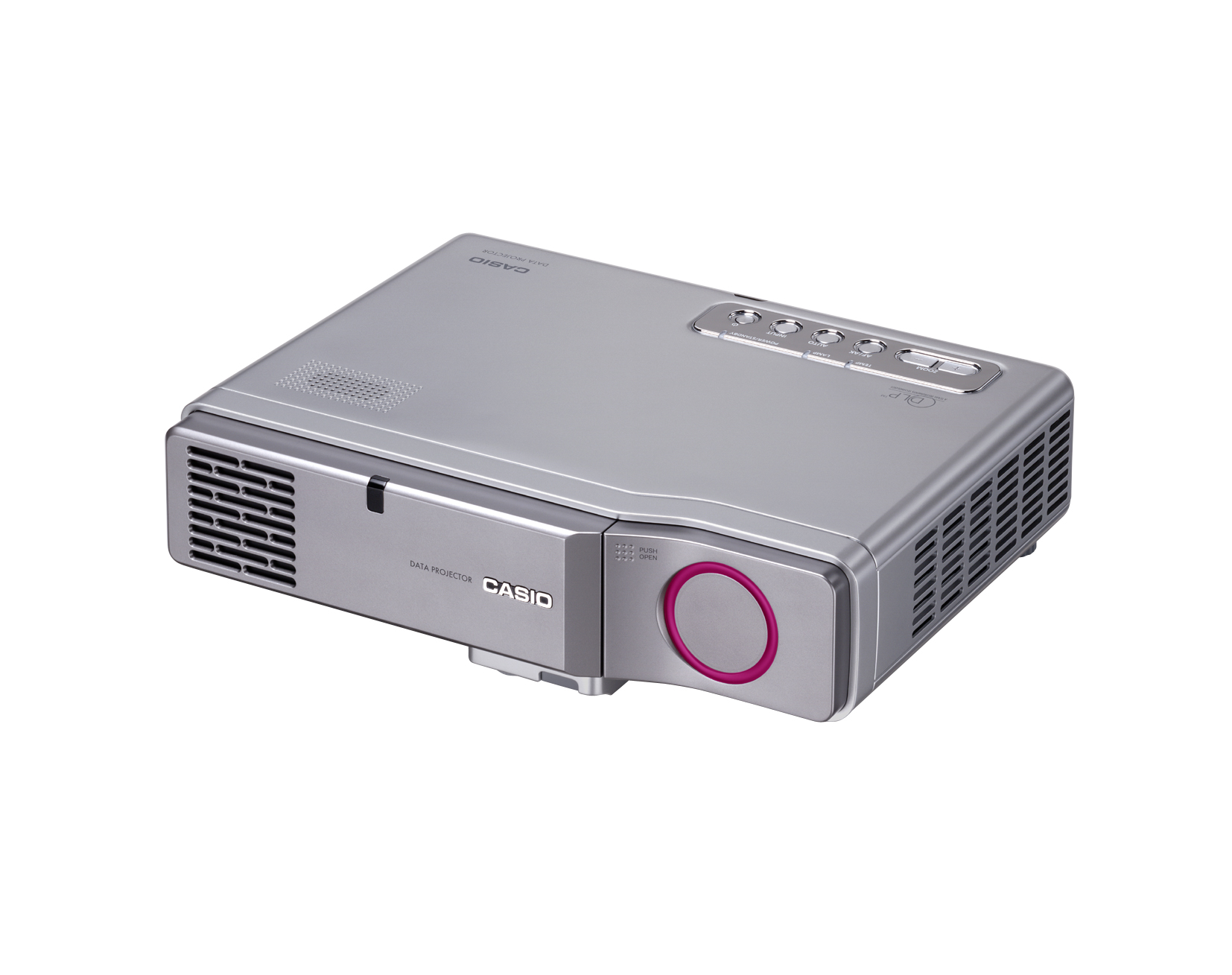

The standard portable XJ 460 DLP has 2500 Ansi lumens, a contrast of 2000:1 and an XGA 1024 x 768 resolution. A built-in horizontal and vertical keystone correction provides freedom when positioning the projector. An image width of up to 435 cm is possible as the projector has 2500 Ansi lumens. However, if room light is available, the picture should be a maximum of 290 cm wide. The model built in 2005 is no longer offered by Casio. It should also be noted that there are unfortunately no longer any replacement lamps available for the projector, neither originals nor replicas.
|
| Display Type |
1 x 0,7" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
833 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
1,2500 min. Lumen |
0,417 min. Lumen |
| Offset |
50% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, PAL-M, PAL-N, PAL-60, SECAM, NTSC, |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
270W NSH Lamp
Article Nr.: 10187943 Casio YL-41
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
280 - 560 cm
|
 |
|
Lux: |
833 Lux |
|
Room light max.: |
167 Lux |
|
Candela pro m²: |
264 cd/m² |
|
Foot-Lamberts: |
77 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Automatic |
| Zoom |
Powered 2 |
| Objective |
F=2,0-2,8 f=20,0-40,0 mm |
| Throw Ratio |
1,4-2,8:1 show |
| Audio |
1W Mono |
| Connections |
D-sub 15pin in
Cinch Video in
S-Video in
Mini Jack in
USB |
| Ceiling Mounting |
Yes, is possible. |
| Power |
300W |
| Size WxHxD |
278 x 64 x 214 mm (10,9"x2,5"x8,4") 3,81 L/dm³
|
| Operating Noise |
33dB |
Key: 237 cm |
Key: 162 cm |
| Key: 162 cm |
| |
|
|
| Weight |
2,70 kg / 5,95 lbs. |
| Keystone |
Vert.: +/-30° automatisch
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-92 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
77 fL
/ max. 435 cm screen width |
| Candela m² |
264 cd/m² |
| Features |
 Direkt Power Off
Freeze
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Picture-in-Picture
Password protection
Remote control with laser pointer und mouse control
Optional Wi-Fi network compatible.
Optional LAN network compatible.
Auto Focus
Digital Zoom 4x
Aluminium casing
Phase difference sensor system: this system detects any horizontal and vertical picture distortion at the push of a button and automatically corrects it.
Automatic vertical and horizontal keystone correction
|
|
- |
In Comparison
The Casio XJ 460 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
41 |
| Black level: |
|
95 |
Power cons.: |
|
97 |
| Picture Total Points: | 42 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
6000 (From: 7662) |
|
|
|
|
|
| Status |
2005 Discontinued (EOL) // Last update of the data: 2023-08-04
|
