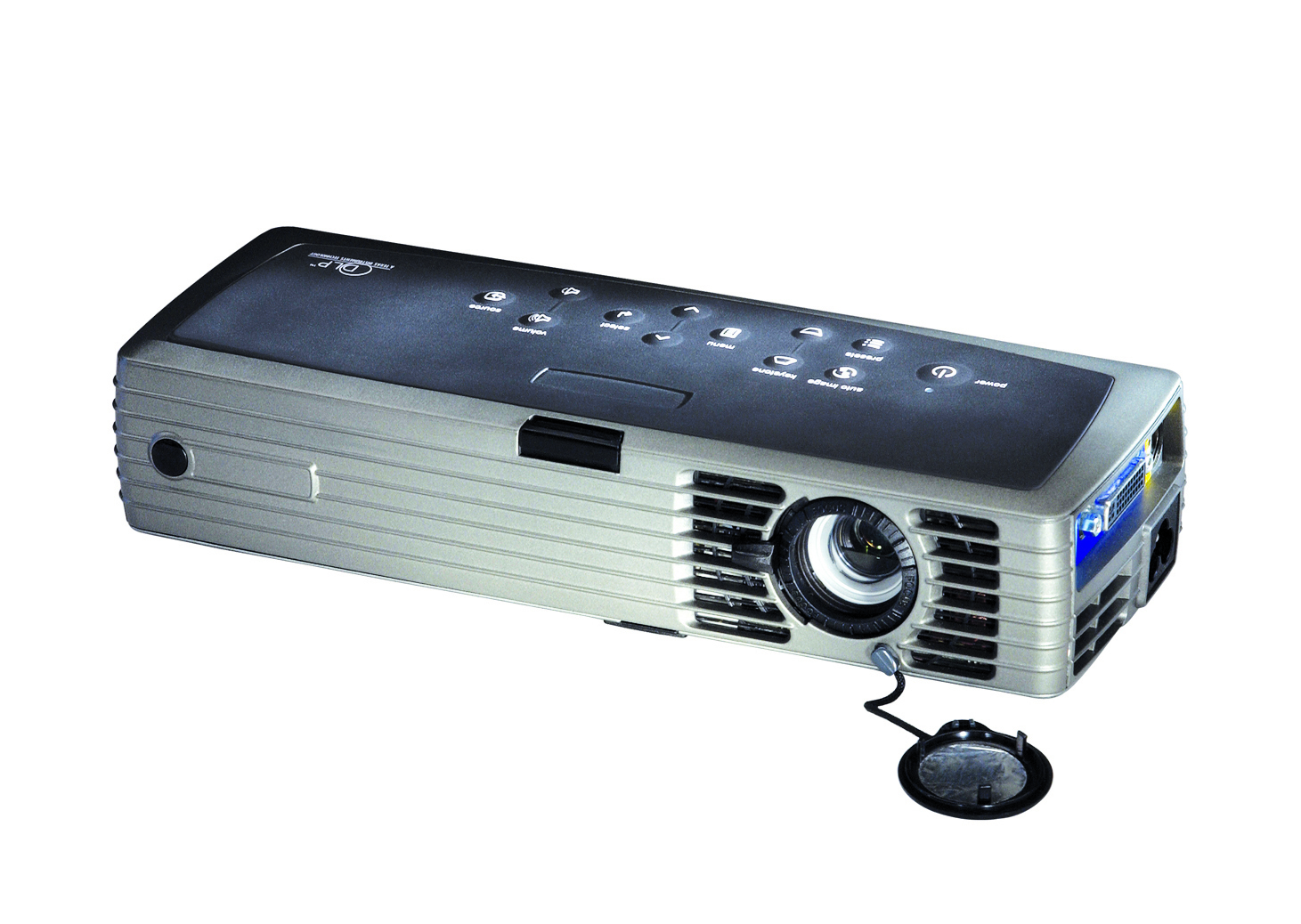

The technical data of the Boxlight XD 25m includes 1100 ANSI lumens, a contrast of 2000:1 as well as a XGA 1024 x 768 display. According to Boxlight, the included lamp lasts up to 2000 hours. Regarding projection size, the value of 1100 ANSI lumens allows for an image width of up to 289 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 193 cm. This model dates back to 2003 and is no longer part of Boxlight's current product range.
Display Type
1 x 0,7" 12° DDR DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1100
Screen
367 Lux (200 cm Screen width)
Contrast
2000:1 full on/off
2000:1 full on/off
Black Level
0,5500 min. Lumen
0,184 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC, NTSC 4.43, PAL, PAL (BGDHI), PAL-M, PAL-N, SECAM
Application
Micro-Portabel | Small mobile presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Freeze
