Model Overview
The Boxlight CP 635i is a LED-LCD projector offering 2200 ANSI lumens, a contrast of 350:1 and a resolution of SVGA 800 x 600. The manufacturer specifies a runtime of 2000 hours for this projector's lamp.
Display Type
3 x 0,9" LCD TFT Panel
Ansi-Lumen
Projector
2200
Screen
733 Lux (200 cm Screen width )
Contrast
350:1 full on/off
350:1 full on/off
Black Level
6,2857 min. Lumen
2,112 min. Lumen
Offset
-
Resolution
SVGA 800 x 600
Video Modes
NTSC, NTSC 4.43, PAL, PAL (BGDHI), PAL-M, PAL-N, PAL-60, SECAM 1080i, 1035i, 720p, 575i, 480p, 480i
Application
Standard-Portabel | External training and company presentations, as well as product presentations.

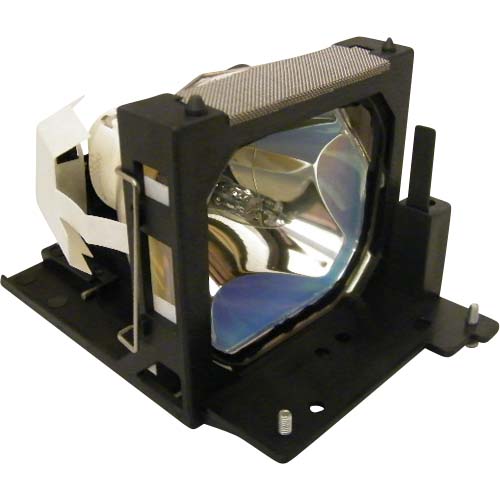

Light Source
200W UHB LampCP635i-930
Light Life
2000 h.
Operating Costs
-
Calculated brightness quality Perfect
402 - 522 cm
Lux:
733 Lux
Contrast:
350:1
Candela pro m²:
233 cd/m²
Foot-Lamberts:
68 fL
•
Focus
Manual
Zoom
Manual 1,3
Objective
F=1,7-2,1 f=36,8-47,8 mm
Throw Ratio
2,01-2,61:1 show
Audio
2 x 1W
Connections
Inputs: 2-15-pin computer, 1-component video, 1-S-video, 1-composite video, 2-computer mini-jack audio, 1-RCA audio Video Outputs: 1-15 pin monitor loop thru, 1-mini-jack audio output, 1-control port for remote Maus control, 1-USB control port for remote Maus control
Ceiling Mounting
Yes, is possible.
Power
310W
Size WxHxD
297,2 x 76,2 x 228,6 mm (11,7"x3"x9") 5,15 L/dm³
Operating Noise
34dB
Weight
3,20 kg / 7,05 lbs.
Keystone
-
Illumination
-
Frequenz
H-sync: 31-80 kHz
Foot-Lamberts
68 fL
/ max. 408 cm screen width
Candela m²
233 cd/m²
Features
-
In Comparison The Boxlight CP 635i compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
26
Weight:
85
Contrast:
1
dB:
38
Black level:
76
Power cons.:
97
Picture Total Points: 34
Projector Total Points: 73
Popularity Top 100
Points:
4
Ranking:
4012
Status
- Discontinued (EOL) // Last update of the data: 2026-06-09
