Brief Introduction
Beta 2.5 |

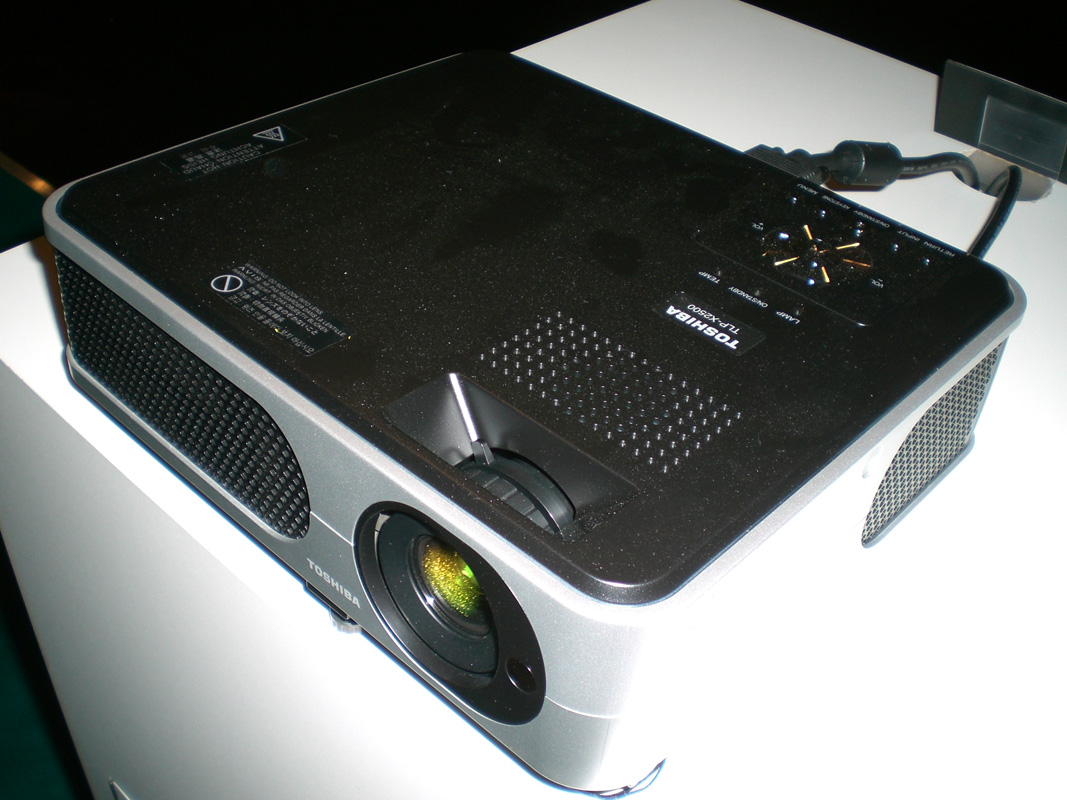

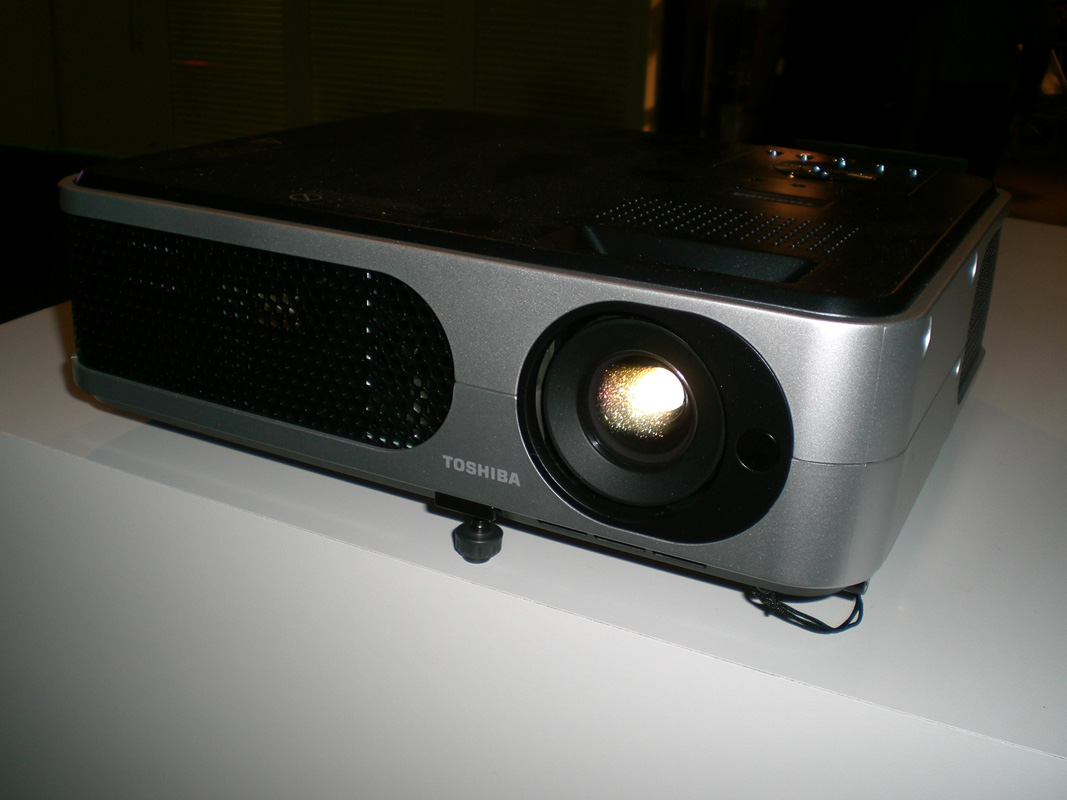

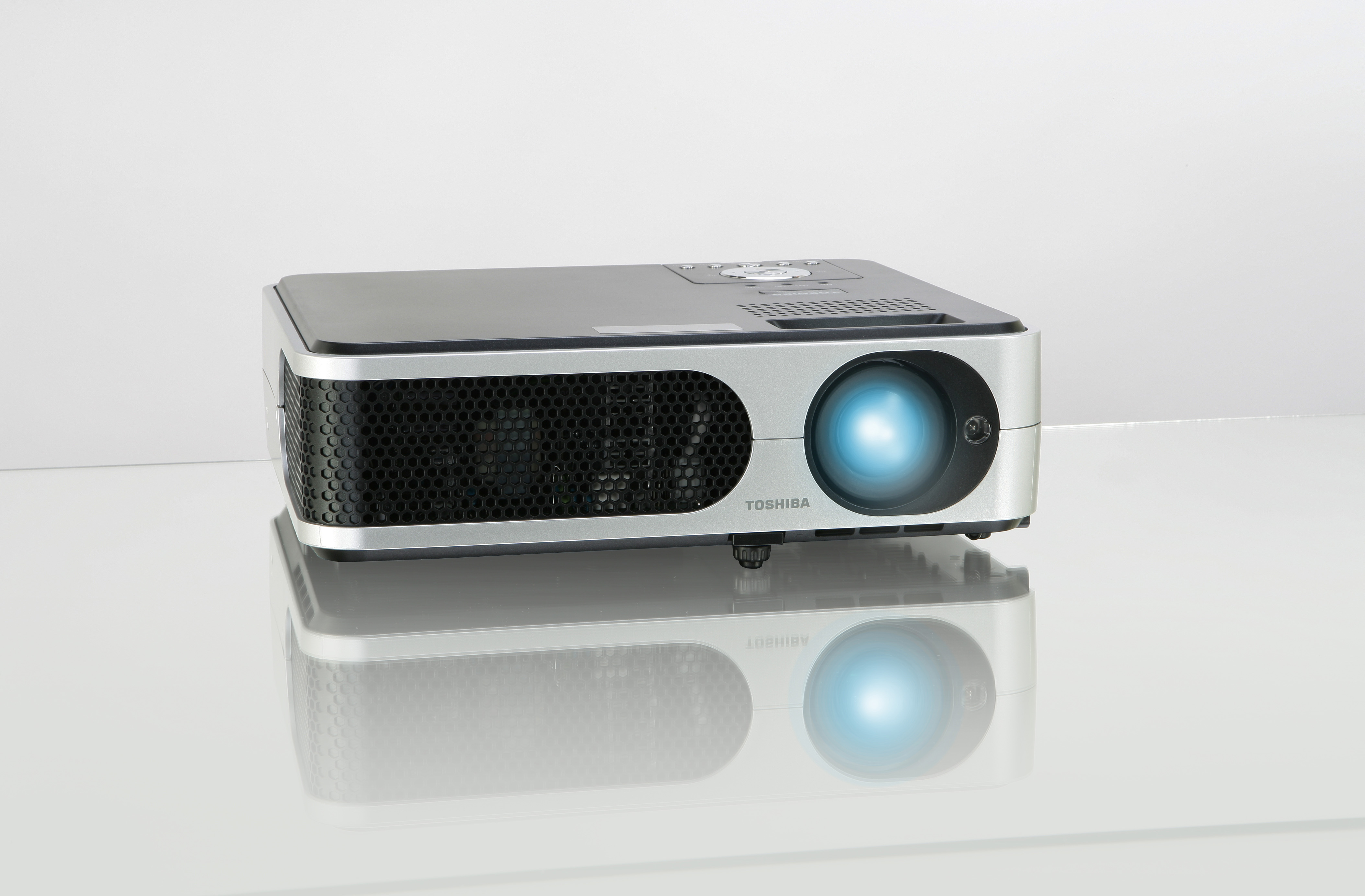

With the TLP X2500/A, manufacturer Toshiba offers a standard portable LCD projector with XGA 1024 x 768 resolution and a contrast of 600:1. An image width of up to 435 cm is possible as the projector has 2500 Ansi lumens. However, if room light is available, the picture should be a maximum of 290 cm wide. The model built in 2006 is no longer offered by Toshiba.
|
| Display Type |
3 x 0,63" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
833 Lux (200 cm Screen width) |
| Contrast |
600:1 full on/off |
600:1 full on/off
|
| Black Level |
4,1667 min. Lumen |
1,395 min. Lumen |
| Offset |
36,7% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

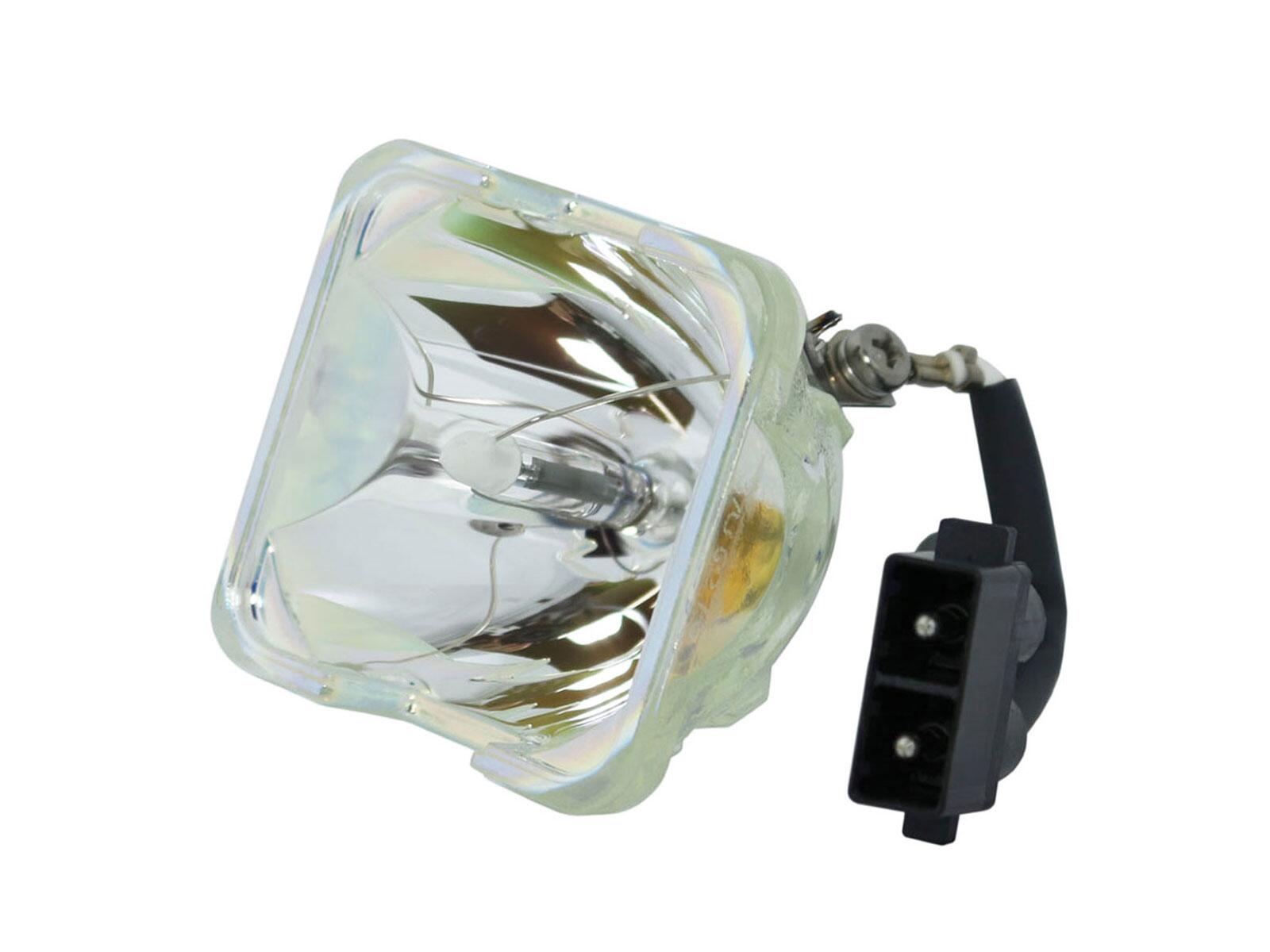

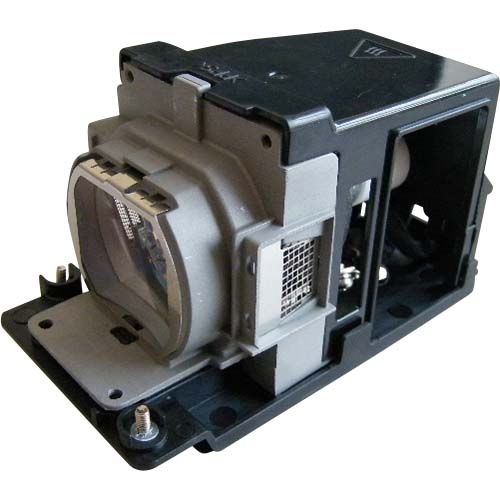

210W Lamp
Article Nr.: TLPLW11LAMP
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
290 - 348 cm
|
 |
|
Lux: |
833 Lux |
|
Room light max.: |
167 Lux |
|
Candela pro m²: |
264 cd/m² |
|
Foot-Lamberts: |
77 fL |
|
 |
| 55 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,6-1,89 f=18,6-22,3 mm |
| Throw Ratio |
1,45-1,74:1 show |
| Audio |
1W Mono |
| Connections |
D-sub 15pin in und out
S-Video in
Cinch Video in
Cinch Stereo in
RS232C Din 8pin
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
288 x 92 x 247 mm (11,3"x3,6"x9,7") 6,54 L/dm³
|
| Operating Noise |
34 / 29 dB in Eco Mode |
|
| Weight |
2,80 kg / 6,17 lbs. |
| Keystone |
Vert.: +/-30° automatisch
|
| Illumination |
- |
| Frequenz |
H-sync: 16-106 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
77 fL
/ max. 435 cm screen width |
| Candela m² |
264 cd/m² |
| Features |
 Freeze
Blackboard Modus
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Digital image shift
Password protection
Remote control with laser pointer und mouse control
.
|
|
- |
In Comparison
The Toshiba TLP X2500/A compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
84 |
Power cons.: |
|
0 |
| Picture Total Points: | 38 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
16 |
| Ranking: |
321 (From: 7662) |
|
|
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english 2
Product Sheet english HC
Product Sheet japanisch
User Manual english (5.37 MB)

|
Toshiba Website
