Brief Introduction

Beta 2.5

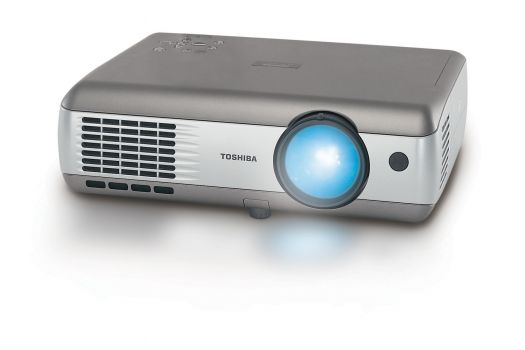

A brief introduction to the Toshiba TLP T720. The LCD projector has an XGA 1024 x 768 resolution and a contrast of 400:1. The projector is equipped with an integrated media player, so direct playback of files will not be a problem. An image width of up to 427 cm is possible as the projector has 2400 Ansi lumens. However, if room light is available, the picture should be max. 285 cm wide. On the market since 2003, the model is no longer offered by the manufacturer Toshiba.

Display Type

3 x 0,9" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array

Ansi-Lumen

Projector

2400

Screen

800 Lux (200 cm Screen width)

Contrast

400:1 full on/off

Black Level

6,0000 min. Lumen

2,015 min. Lumen

Offset

40% show

Resolution

XGA 1024 x 768
786.432 Pixel
U XGA 1600 x 1400 compressed

Video Modes

NTSC,PAL,SECAM EDV 480p HDTV 720p, 1080i
Media player formats: JPEG

Application

Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.

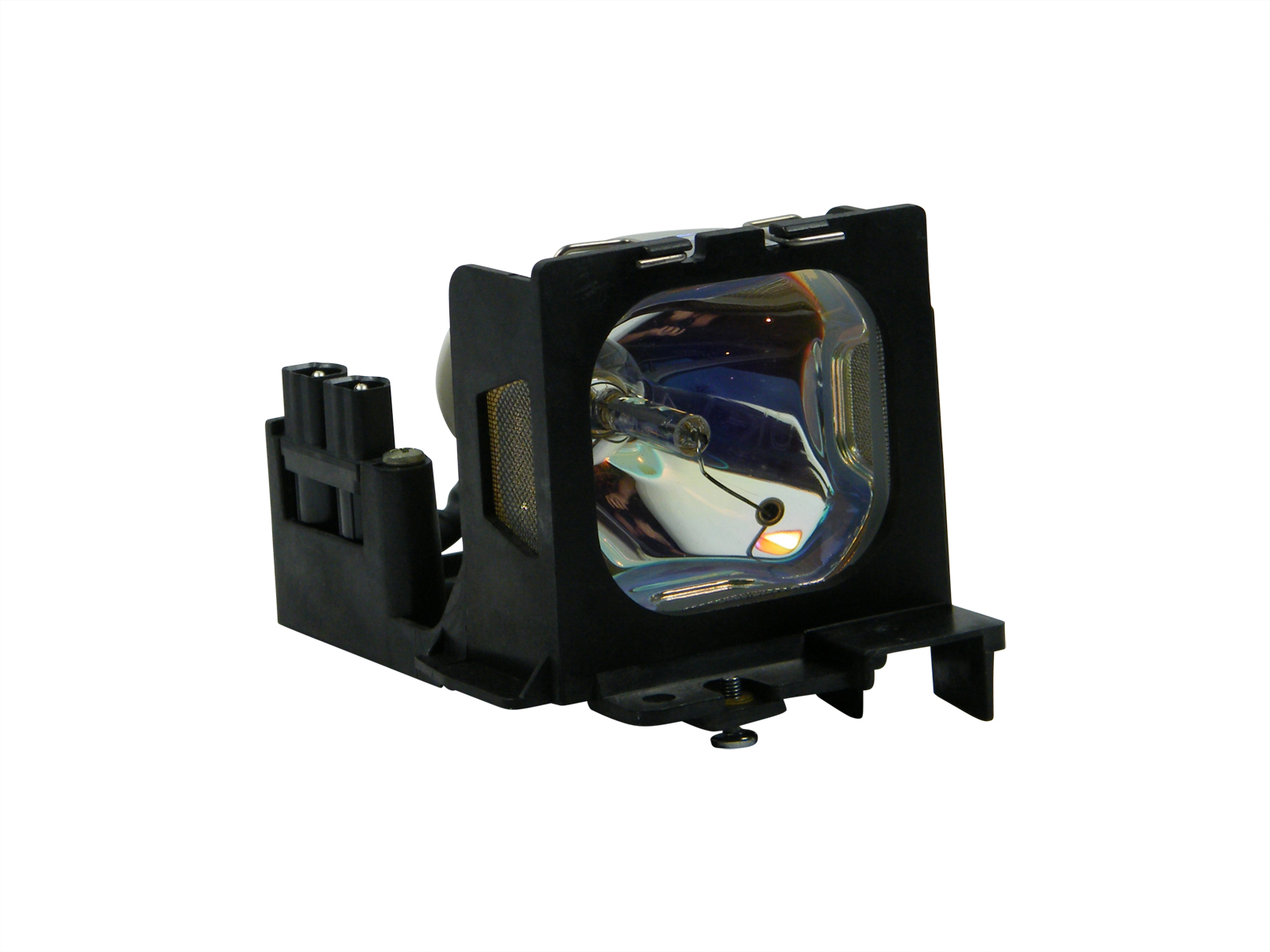

Light Source

190W Lamp
Article Nr.: TLPLW2

Order Lamp
70,36 - 132,72 €

Light Life

2000 h.

Operating Costs

| cheap

costly |

17,5% / 0,07 €

380 - 480 cm


	Lux:	800 Lux
	Room light max.:	160 Lux
	Candela pro m²:	254 cd/m²
	Foot-Lamberts:	74 fL

60 cm

Screen width: 200 cm Gain:1

Focus

Manual

Zoom

Manual 1,25

Objective

F=1,9-2,3 f=35,6-44,5 mm

Throw Ratio

1,9-2,4:1 show

Audio

1W Mono

Connections

Cinch Video in
S-Video in
2 x D-sub 15pin in 1 x out
RS232C
USB
PCMCIA

Ceiling Mounting

Yes, is possible.

Power

265W

Size WxHxD

298 x 97 x 249 mm (11,7"x3,8"x9,8") 7,2 L/dm³

Operating Noise

37dB

Key: 162 cm

	Key: 42 cm

Weight

3,40 kg / 7,5 lbs.

Keystone

Vert.: +/-15° automatisch

Illumination

Frequenz

H-sync: 15-93 kHz
V-sync: 50-85 Hz

Foot-Lamberts

74 fL / max. 427 cm screen width

Candela m²

254 cd/m²

Features

Integrated Mediaplayer

Freeze

Eco Mode

Automatic and manual vertical keystone correction

Kensington Slot

Remote control with laser pointer und mouse control

Wireless communication Wireless LAN (IEEE802.11b)

Digital Zoom

Screen Mirroring

In Comparison

The Toshiba TLP T720 compared to others not current "Standard-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

1630 (From: 7662)

Optional accessories
	lamp ruby	Ruby-LMP4430	132,72 €
	lamp Original	TLPLW2	EOL €
	Compatible lamp	LMP-K18261	70,36 €
	Universal Remote	Fernb-uni-V3	22,31 €
	ceiling bracket length: 100-120mm	Halterung120	47,86 €
	Airfilter universal	uni3mm	18,15 €
