	PDF/Print Version		Add to Watchlist		Calculator		Comparison >>

TOSHIBA TLP-X10C | TOSHIBA TLP-X10J | TOSHIBA TLP-X10U

Customer review

No rating given yet.
Write your review/experience.

Offer Ads

Discover other popular projectors on Amazon!

Brief Introduction

Beta 2.5

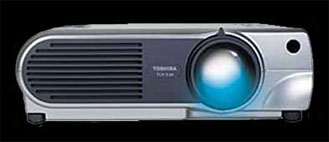

A brief introduction to the TLP X10: The Toshiba standard portable LCD projector offers 2000 Ansi lumens, a contrast of 400:1 and an XGA 1024 x 768 resolution. The integrated media player allows files to be played directly. An image width of up to 389 cm is possible as the projector has 2000 Ansi lumens. However, if room light is available, the picture should be max. 259 cm wide. This model is no longer available from Toshiba.

Display Type

3 x 1,3" LCD TFT Panels
XGA 4/3 Liquid Crystal Display

Ansi-Lumen

Projector

2000

Screen

667 Lux (200 cm Screen width)

Contrast

400:1 full on/off

Black Level

5,0000 min. Lumen

1,68 min. Lumen

Offset

Resolution

XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed

Video Modes

NTSC, PAL, SECAM
Media player formats: JPEG

Application

Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.

Light Source

200W NSH Lampen
Article Nr.: TLPLX10

Order Accessories
71,51 - 79,58 €

Light Life

1000 h.

Operating Costs

356 - 462 cm


	Lux:	667 Lux
	Room light max.:	133 Lux
	Candela pro m²:	212 cd/m²
	Foot-Lamberts:	62 fL

Screen width: 200 cm Gain:1

Focus

Manual

Zoom

Manual 1,3

Objective

F=2,2-2,5 f=47-61 mm

Throw Ratio

1,78-2,31:1 show

Audio

Built-in loudspeaker

Connections

Cinch Video in
Audio Stereo Mini Jack
D-sub 15pin in
VGA Ausgang, DVI Eingang
S Video Eingang, RS232C Controuler

Ceiling Mounting

Yes, is possible.

Power

Size WxHxD

345 x 104 x 281 mm (13,6"x4,1"x11,1") 10,08 L/dm³

Operating Noise

36dB

Weight

6,00 kg / 13,23 lbs.

Keystone

Illumination

Frequenz

H-sync: 15,63-93 kHz
V-sync: 50-85 Hz

Foot-Lamberts

62 fL / max. 389 cm screen width

Candela m²

212 cd/m²

Features

Integrated Mediaplayer

Kensington Slot

Picture-in-Picture

PC cart slot

Screen Mirroring

In Comparison

The Toshiba TLP X10 compared to others not current "Standard-Portabel" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

2594 (From: 7662)

Optional accessories

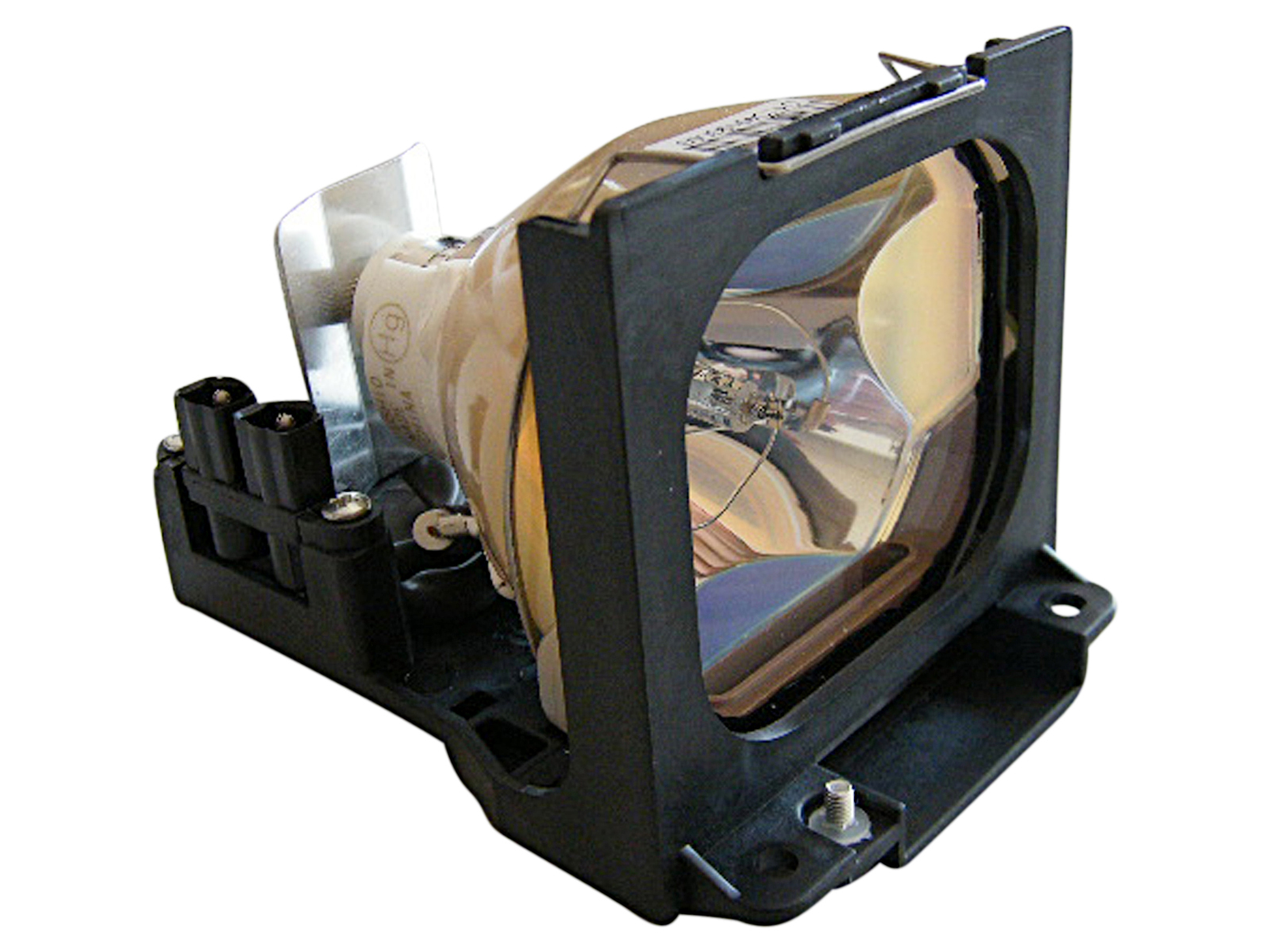

	bulb only	NLMP4145	EOL €
	lamp ruby	Ruby-LMP4145	79,58 €
	lamp Original	TLPLX10	EOL €
	Compatible lamp	LMP-K15534	71,51 €
	Universal Remote	Fernb-uni-V3	22,31 €
	ceiling bracket length: 100-120mm	Halterung120	47,86 €
	Airfilter universal	uni3mm	18,15 €
