Brief Introduction
Beta 2.5 |
The Nec P502H standard portable 3D DLP projector has 5000 Ansi lumens, a contrast of 6000:1 and an HDTV 1920 x 1080 resolution. The manufacturer Nec specifies a lamp life of 5000 hours, which is over 6.8 years with a daily viewing time of 2 hours. With the lens shift function, the projector can be positioned very freely. The projector can illuminate images up to 718 cm wide thanks to its 5000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, max. 479 cm is recommended. The HDMI MHL (Mobile High-Definition Link) port allows 1080p / 60 Hz image mirroring (screen mirroring) to be transmitted from a smartphone while it is being charged at the same time via the connection. Playing 1080P and 3D is also no problem for the projector. The model was built by Nec in 2015 and is no longer current.
|
| Display Type |
1 x 0,65" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
2222 Lux (200 cm Screen width) |
| Contrast |
6000:1 full on/off |
6000:1 full on/off
|
| Black Level |
0,8333 min. Lumen |
0,37 min. Lumen |
| Lens shift |
Vert.: +62% -0% Hori.: +/-25%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

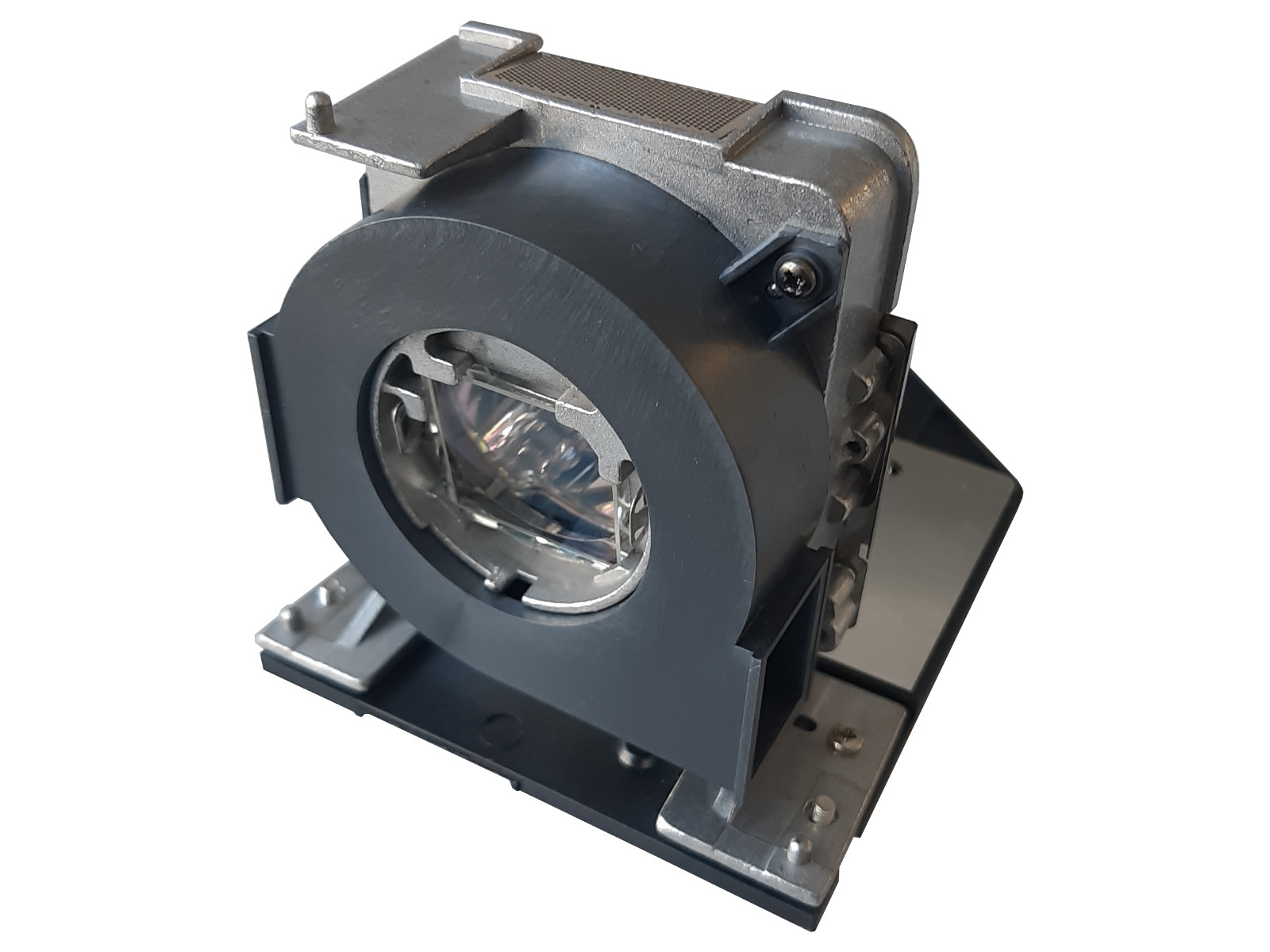

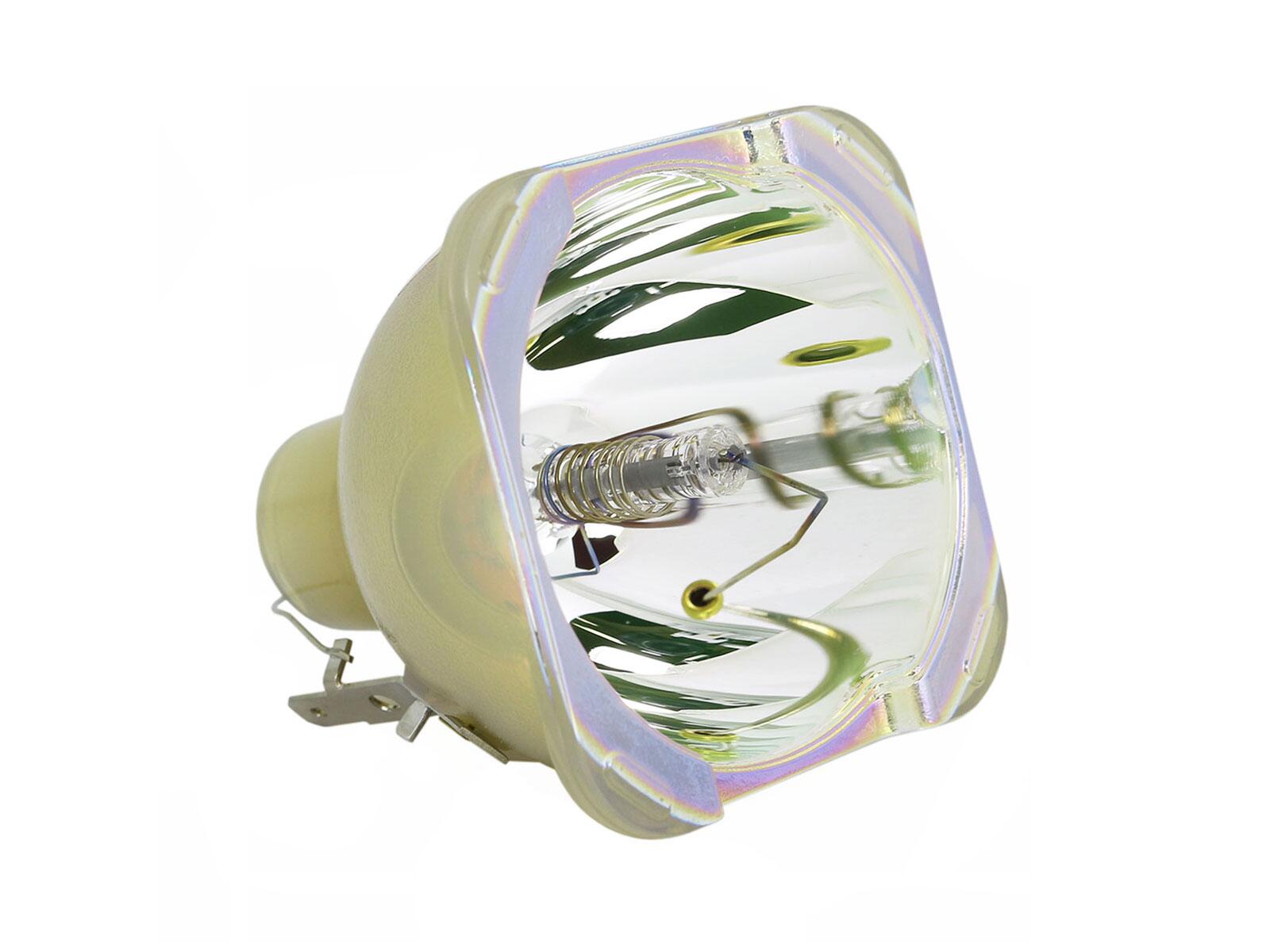

375W Lamp
Article Nr.: NP39LP
|
|
| Light Life |
5000 h. |
| Operating Costs |
|
|
248 - 420 cm
|
 |
|
Lux: |
2222 Lux |
|
Room light max.: |
444 Lux |
|
Candela pro m²: |
706 cd/m² |
|
Foot-Lamberts: |
206 fL |
|
 |
| 70 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,69 |
| Objective |
F=2,0 f=18,2-31,1 mm |
| Throw Ratio |
1,24-2,1:1 show |
| Audio |
20W |
| Connections |
HDMI mit MHL in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 mit HDBaseT in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
362 x 139 x 306 mm (14,3"x5,5"x12") 15,4 L/dm³
|
| Operating Noise |
39 / 31 dB in Eco Mode |
Key: 143 cm
Shift: 70 cm |
Key: 116 cm
Shift: 50 cm |
| Key: 116 cm
Shift: 50 cm |
| |
|
|
| Weight |
5,20 kg / 11,46 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-25°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
206 fL
/ max. 718 cm screen width |
| Candela m² |
706 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Blackboard Modus
User logo
Eco Mode
Dynamic iris
Password protection
PJLink™
Control via web browser
Optional Wi-Fi network compatible.
Optional LAN network compatible.
Crestron®-Software compatible.
Dicom simulation
|
|
über HDMI MHL |
In Comparison
The Nec P502H compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
97 |
| Contrast: |
|
1 |
dB: |
|
94 |
| Black level: |
|
98 |
Power cons.: |
|
0 |
| Picture Total Points: | 49 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
987 (From: 7662) |
|
|
|
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2023-09-20
