Brief Introduction
Beta 2.5 |

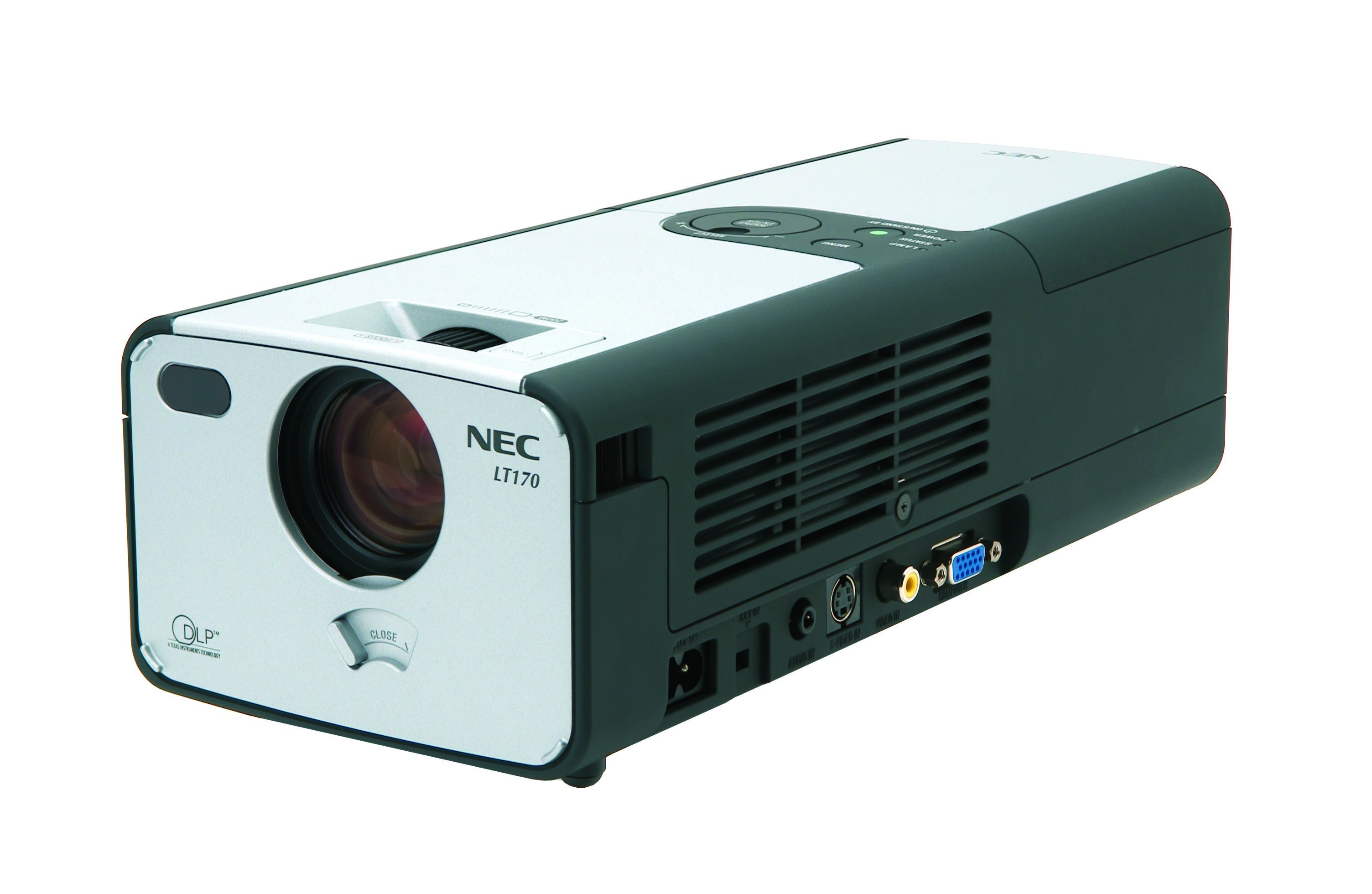

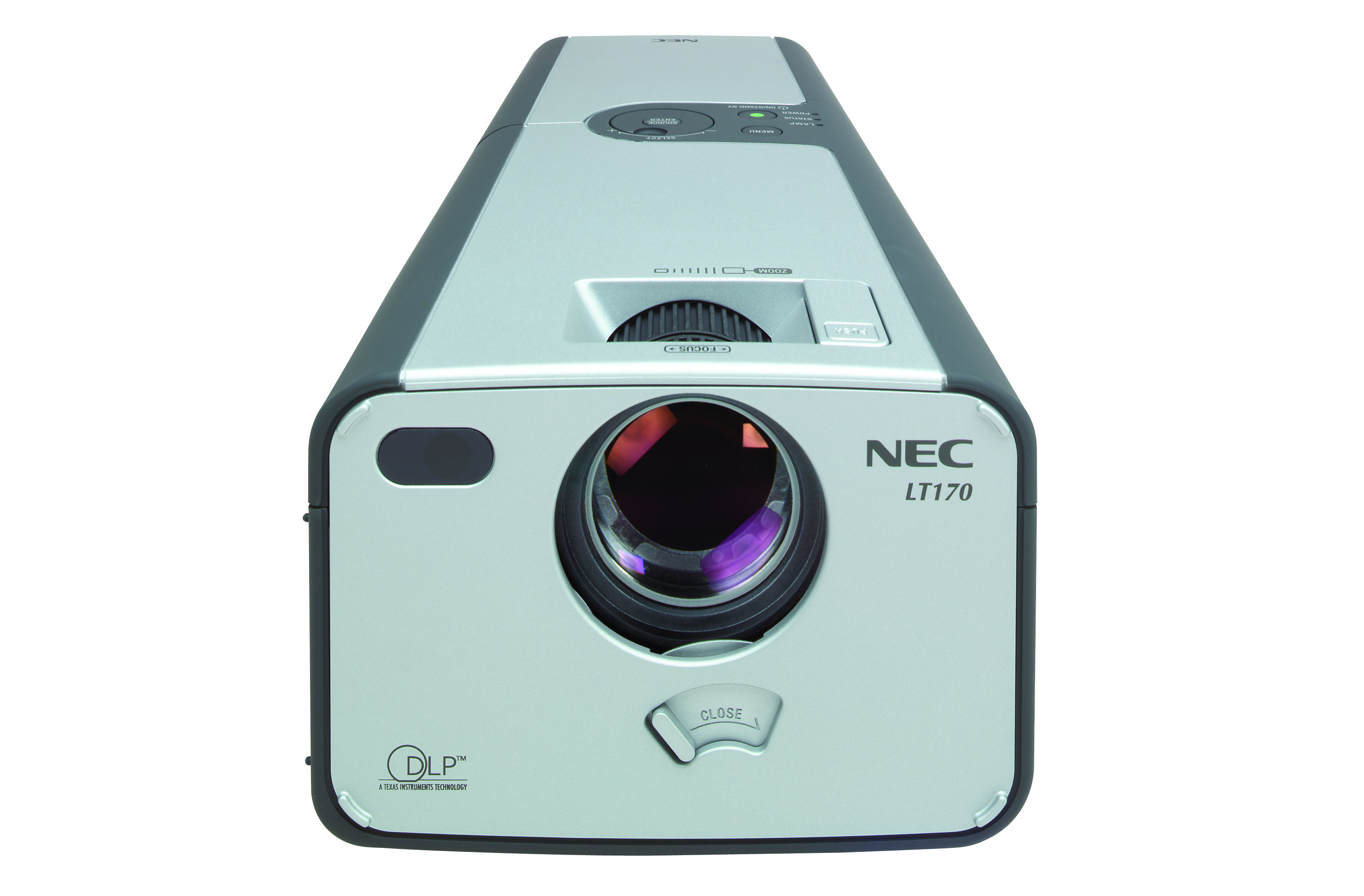

The LT170 DLP has 1500 Ansi lumens, a contrast of 1000:1 and an XGA 1024 x 768 resolution. An image width of up to 337 cm is possible. However, the image should be smaller in room light. We recommend max. 225 cm. The projector was launched in 2003 and is no longer sold by the manufacturer. It should also be noted that, unfortunately, there are no more replacement lamps for the projector, neither originals nor replicas.
|
| Display Type |
1 x 0,7" 12° DDR DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1500 / 1350 im Eco Mode |
Screen |
500 Lux (200 cm Screen width) |
| Contrast |
1000:1 full on/off |
1000:1 full on/off
|
| Black Level |
1,5000 min. Lumen |
0,502 min. Lumen |
| Offset |
40% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL/PAL60/NTSC/SECAM/NTSC 4.43/PAL-N/PAL-M |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
145W DC NSH Lamp
Article Nr.: 50024095 / LT170LP
|
|
| Light Life |
1500 h. |
| Operating Costs |
-
|
|
362 - 398 cm
|
 |
|
Lux: |
500 Lux |
|
Room light max.: |
100 Lux |
|
Candela pro m²: |
158 cd/m² |
|
Foot-Lamberts: |
46 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,0-2,13 f=25,7-28,3 mm |
| Throw Ratio |
1,81-1,99:1 show |
| Audio |
0,5W Mono |
| Connections |
D-sub 15pin in
YUV über D-sub 15pin
Mini Jack in
S-Video in
Cinch Video in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
196W / 4W standby |
| Size WxHxD |
85 x 123 x 280 mm (3,3"x4,8"x11") 2,93 L/dm³
|
| Operating Noise |
38 / 35 dB in Eco Mode |
|
| Weight |
1,80 kg / 3,97 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
46 fL
/ max. 337 cm screen width |
| Candela m² |
158 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
sRGB
Gamma correction
Password protection
Remote control with mouse control
password protection
Advanced AccuBlend
digital zoom
|
|
- |
In Comparison
The Nec LT170 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
17 |
Weight: |
|
92 |
| Contrast: |
|
1 |
dB: |
|
28 |
| Black level: |
|
94 |
Power cons.: |
|
99 |
| Picture Total Points: | 37 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
3000 (From: 7662) |
|
|
|
| In Test
|
-
|
|
|
| Status |
2003 Discontinued (EOL) // Last update of the data: 2023-08-04
|
