Brief Introduction
Beta 2.5 |
The standard portable Nec M402W 3D DLP projector has 4000 Ansi lumens, a contrast of 10000:1 and a WXGA 1280 x 800 resolution. Thanks to the ambient light sensor, the projector can automatically optimize the projected image. The projector also offers an integrated media player that can be used to play files directly. The model offers a microphone jack plug and 20W speakers, so no additional audio devices are required for presentations or training courses. Thanks to the brightness of 4000 Ansi lumens, a picture width of 643 cm is possible. The projector can also handle slightly brighter rooms with a narrower picture width (we recommend max. 429 cm). Video signals 1080P and 3D are also no problem for the projector. It was launched in 2014 and is no longer offered by the manufacturer Nec.
|
| Display Type |
1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1600 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,4000 min. Lumen |
0,16 min. Lumen |
| Offset |
29,65% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Media player formats: JPEG |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

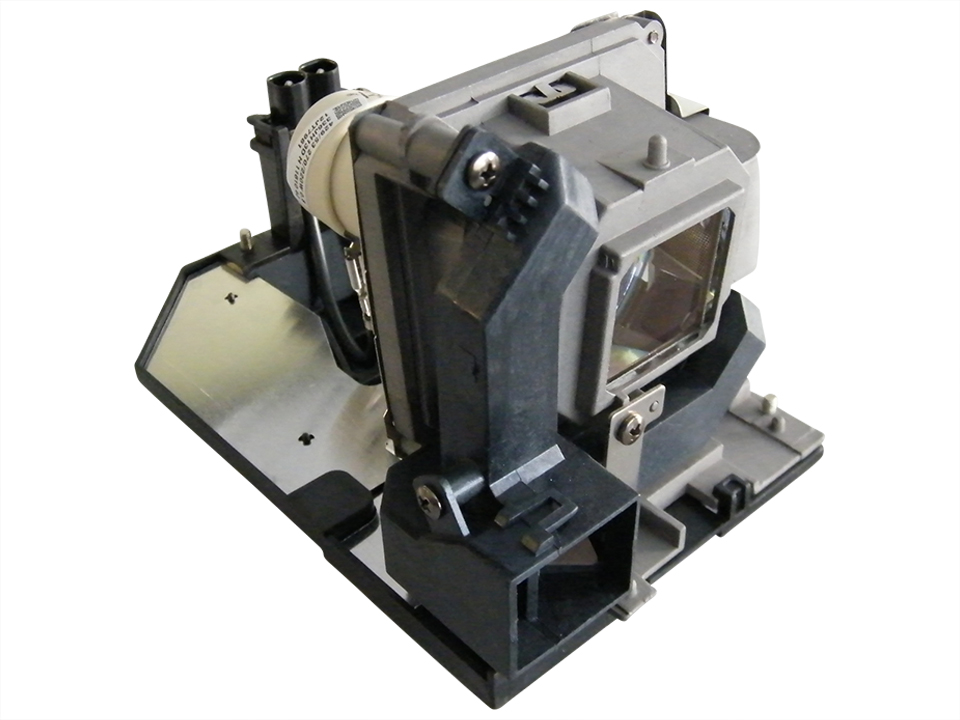

270 / 162W im Eco Mode Lamp
Article Nr.: NP30LP
|
|
| Light Life |
3500 h. 8000 in Eco Mode |
| Operating Costs |
|
|
240 - 400 cm
|
 |
|
Lux: |
1600 Lux |
|
Room light max.: |
320 Lux |
|
Candela pro m²: |
511 cd/m² |
|
Foot-Lamberts: |
149 fL |
|
 |
| 37 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,67 |
| Objective |
F=2,4-3,1 f=17,09-29,05 mm |
| Throw Ratio |
1,2-2,0:1 show |
| Audio |
20W Mono |

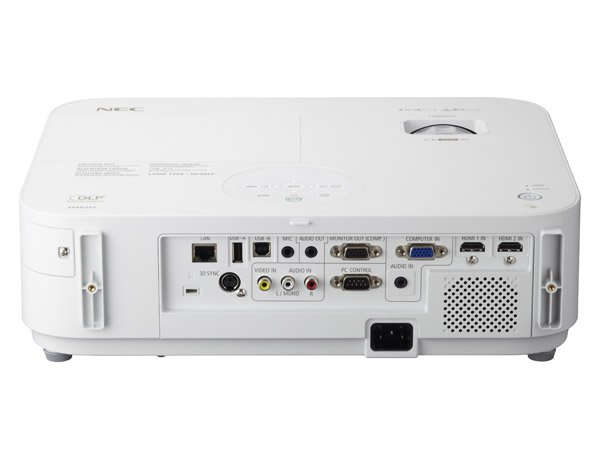

| Connections |
2 x HDMI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in
Mikrofon in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
335 / 246W in Eco Mode |
| Size WxHxD |
368 x 97,5 x 286 mm (14,5"x3,8"x11,3") 10,21 L/dm³
|
| Operating Noise |
39 / 33 dB in Eco Mode |
|
| Weight |
3,49 kg / 6,61 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
149 fL
/ max. 643 cm screen width |
| Candela m² |
511 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Integrated Mediaplayer
Freeze
User logo
Eco Mode
Kensington Slot
Password protection
Lan network compatible.
Crestron®-Software compatible.
Ambient Light Sensor.
Digital Zoom
Dicom Simulation
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Nec M402W compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
83 |
| Contrast: |
|
1 |
dB: |
|
26 |
| Black level: |
|
99 |
Power cons.: |
|
96 |
| Picture Total Points: | 50 |
Projector Total Points: | 68 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
1185 (From: 7662) |
|
|
|
|
|
| Status |
2014 Discontinued (EOL) // Last update of the data: 2023-08-12
