Brief Introduction
Beta 2.5 |
The SU922 3D DLP has 5000 Ansi-Lumen, a contrast of 3000:1 and a WUXGA 1920 x 1200 resolution. The built-in lens shift and keystone correction function provides freedom when setting up. An image width of up to 718 cm is possible, if the image width is smaller (we recommend max. 479 cm), rooms with residual light are also no problem. A smartphone with MHL connection can be connected directly to the MHL/HDMI port for 1080p / 60 Hz image mirroring (screen mirroring). Playing 1080P and 3D is also no problem for the projector. The model was built by Benq in 2015 and is no longer current.
|
| Display Type |
1 x DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
2222 Lux (200 cm Screen width) |
| Contrast |
3000:1 full on/off |
3000:1 full on/off
|
| Black Level |
1,6667 min. Lumen |
0,741 min. Lumen |
| Lens shift |
Vert.: +60% -55% Hori.: +/-2,5%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

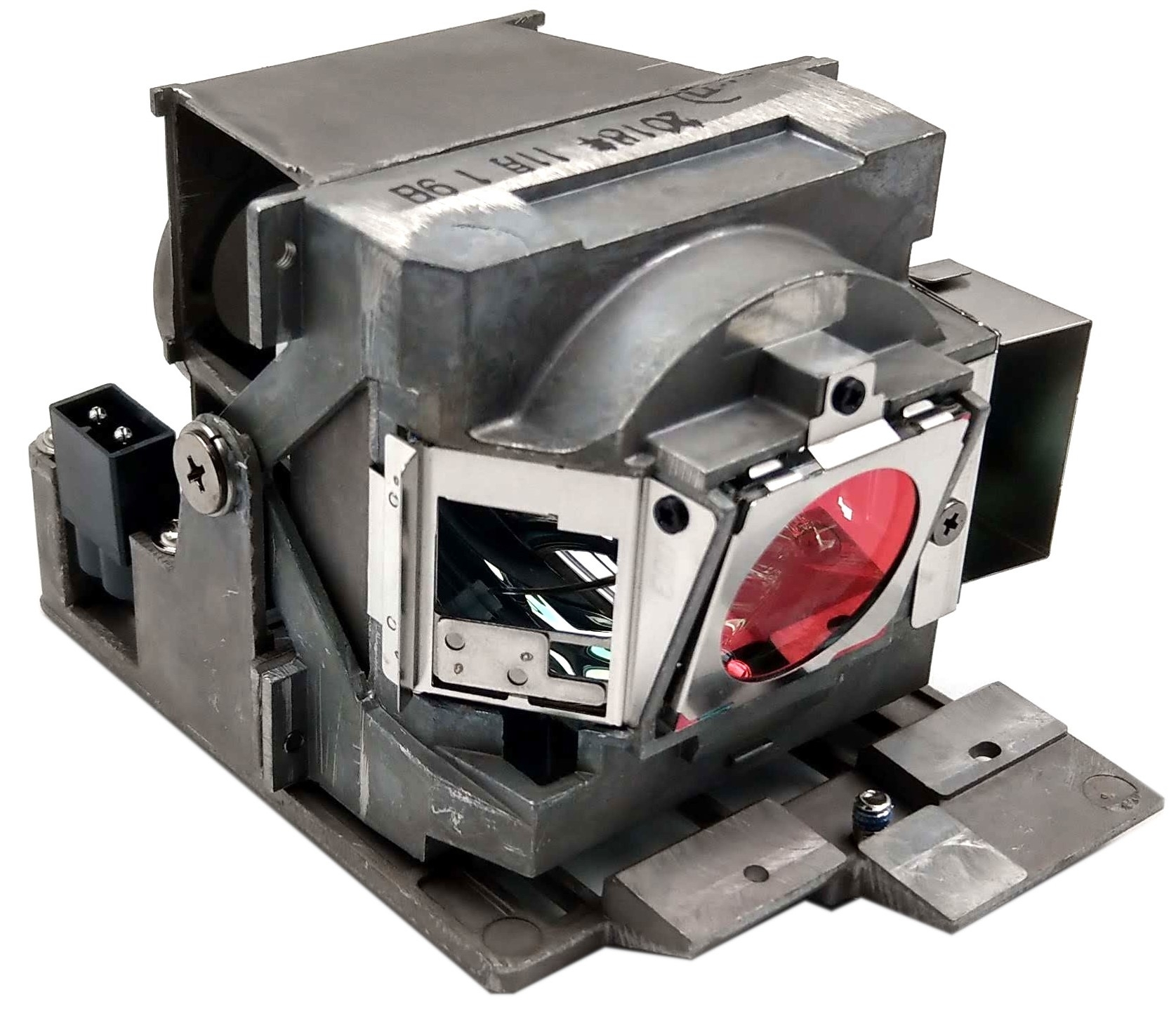

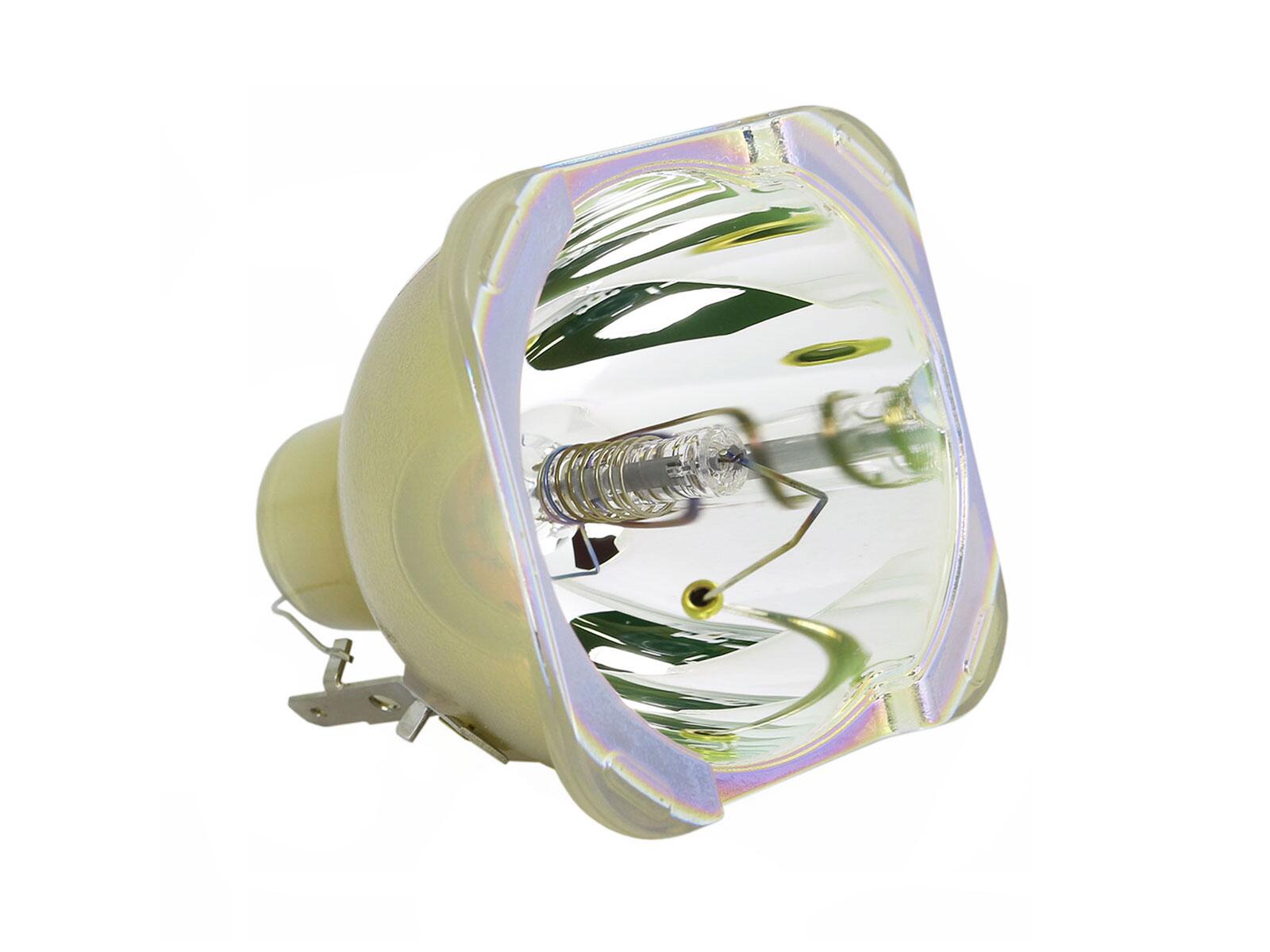

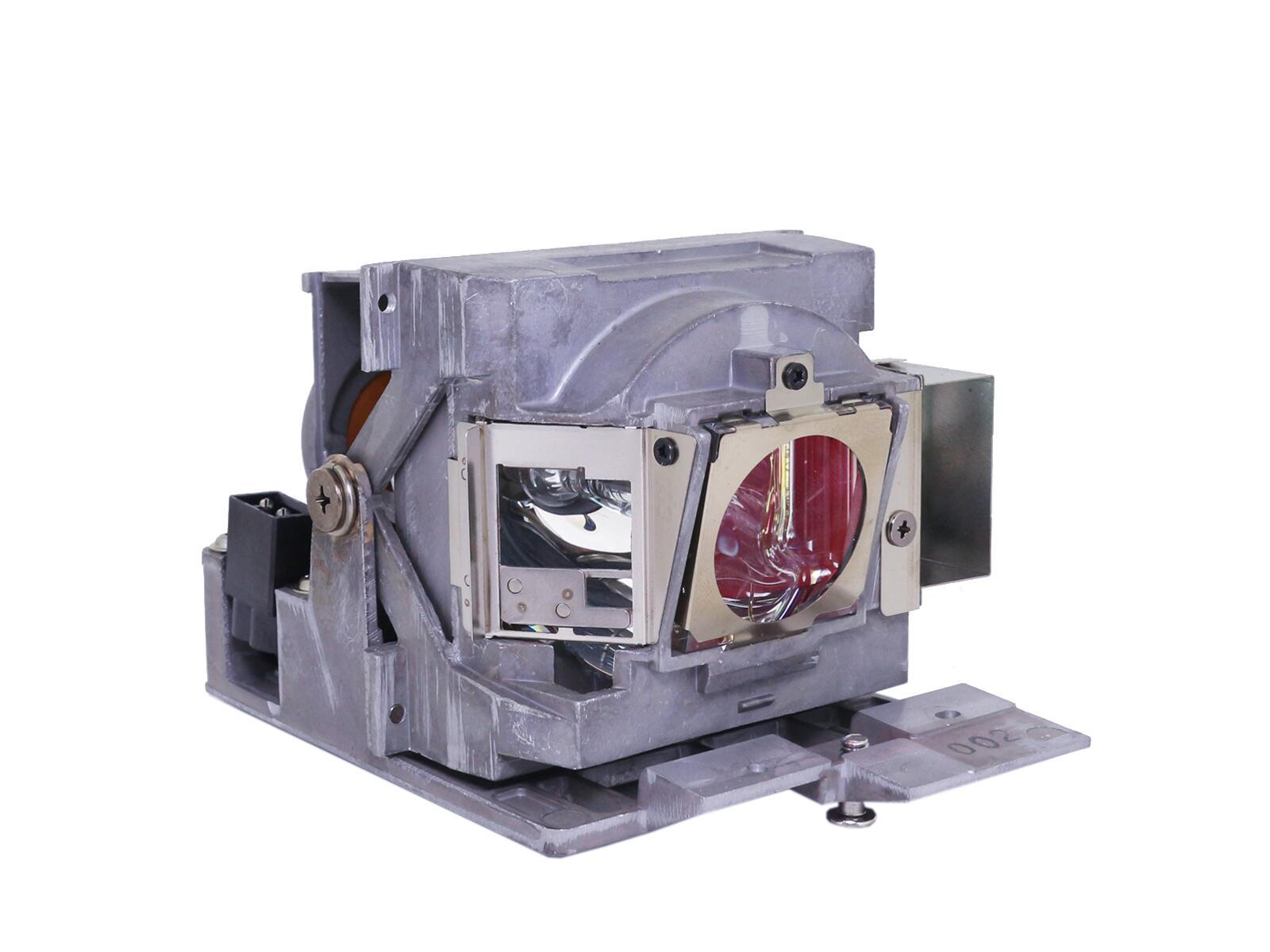

370W Lamp
Article Nr.: 5J.JDP05.001
|
|
| Light Life |
2000 h. 2500 h. in Eco Mode |
| Operating Costs |
-
|
|
214 - 342 cm
|
 |
|
Lux: |
2222 Lux |
|
Room light max.: |
444 Lux |
|
Candela pro m²: |
706 cd/m² |
|
Foot-Lamberts: |
206 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,6 |
| Objective |
F=2,45-3,07 f=15,78-25,12 mm |
| Throw Ratio |
1,07-1,71:1 show |
| Audio |
2 x 10W |

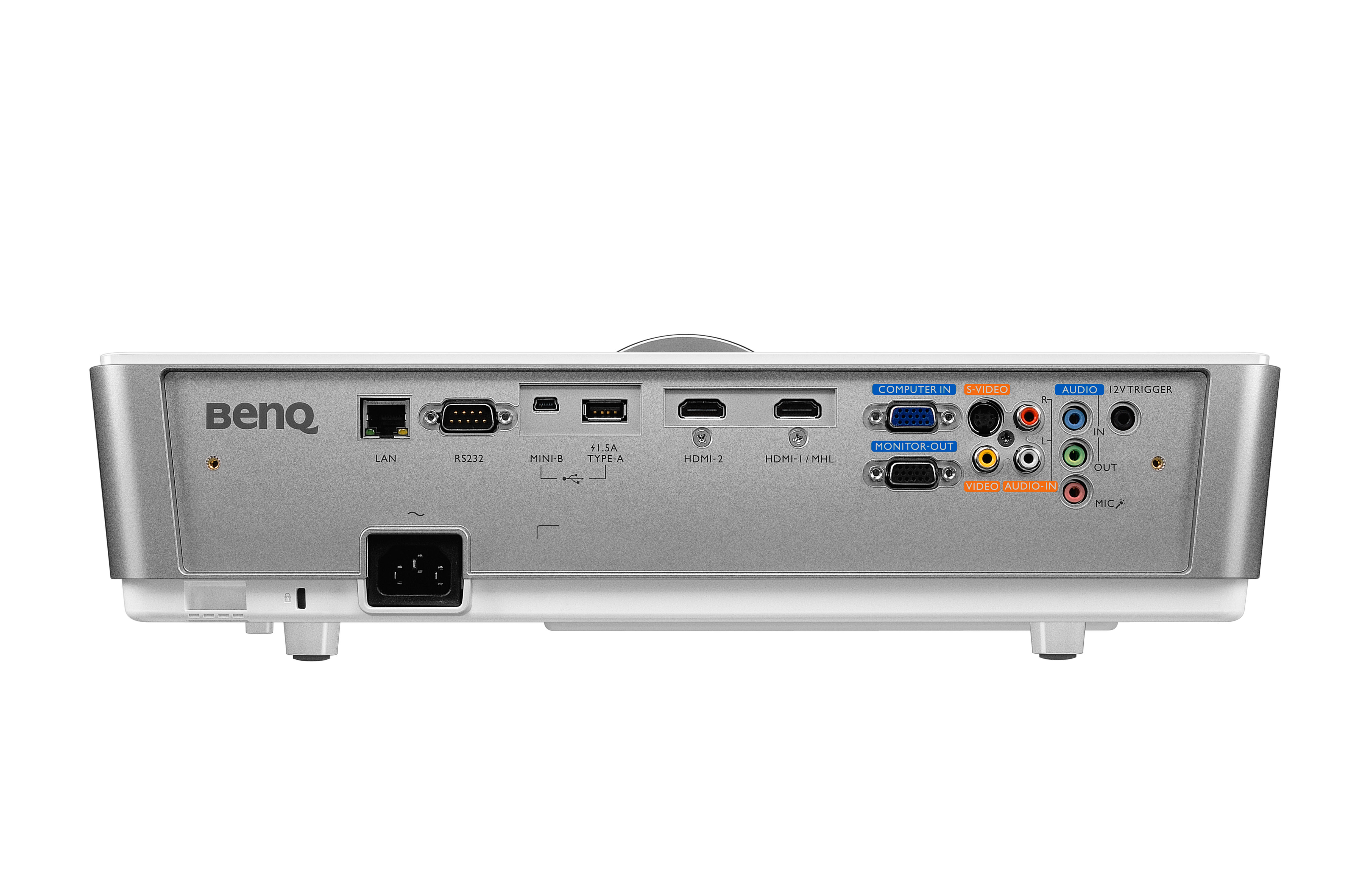

| Connections |
2 x HDMI 1.4 mit MHL in
DVI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 in
12V Trigger out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
490W |
| Size WxHxD |
411,4 x 118,4 x 267,5 mm (16,2"x4,7"x10,5") 12,95 L/dm³
|
| Operating Noise |
36 / 33 dB in Eco Mode |
Key: 124 cm
Shift: 68 cm |
Key: 124 cm
Shift: 4 cm |
| Key: 124 cm
Shift: 4 cm |
| |
|
|
| Weight |
4,90 kg / 10,8 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-102 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
206 fL
/ max. 718 cm screen width |
| Candela m² |
706 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
sRGB
Lan network compatible.
|
|
über HDMI MHL |
In Comparison
The Benq SU922 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
61 |
Weight: |
|
76 |
| Contrast: |
|
1 |
dB: |
|
33 |
| Black level: |
|
94 |
Power cons.: |
|
94 |
| Picture Total Points: | 52 |
Projector Total Points: | 68 |
|
| Popularity Top 100 |
|
| Points: |
|
12 |
| Ranking: |
764 (From: 7662) |
|
|
|
|
|
| Status |
2015 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2015-11-03 15:55:48
|
| Data |
 Product Sheet
Product Sheet english HC
User Manual english (5.44 MB)

|
Benq Website
