Brief Introduction
Beta 2.5 |

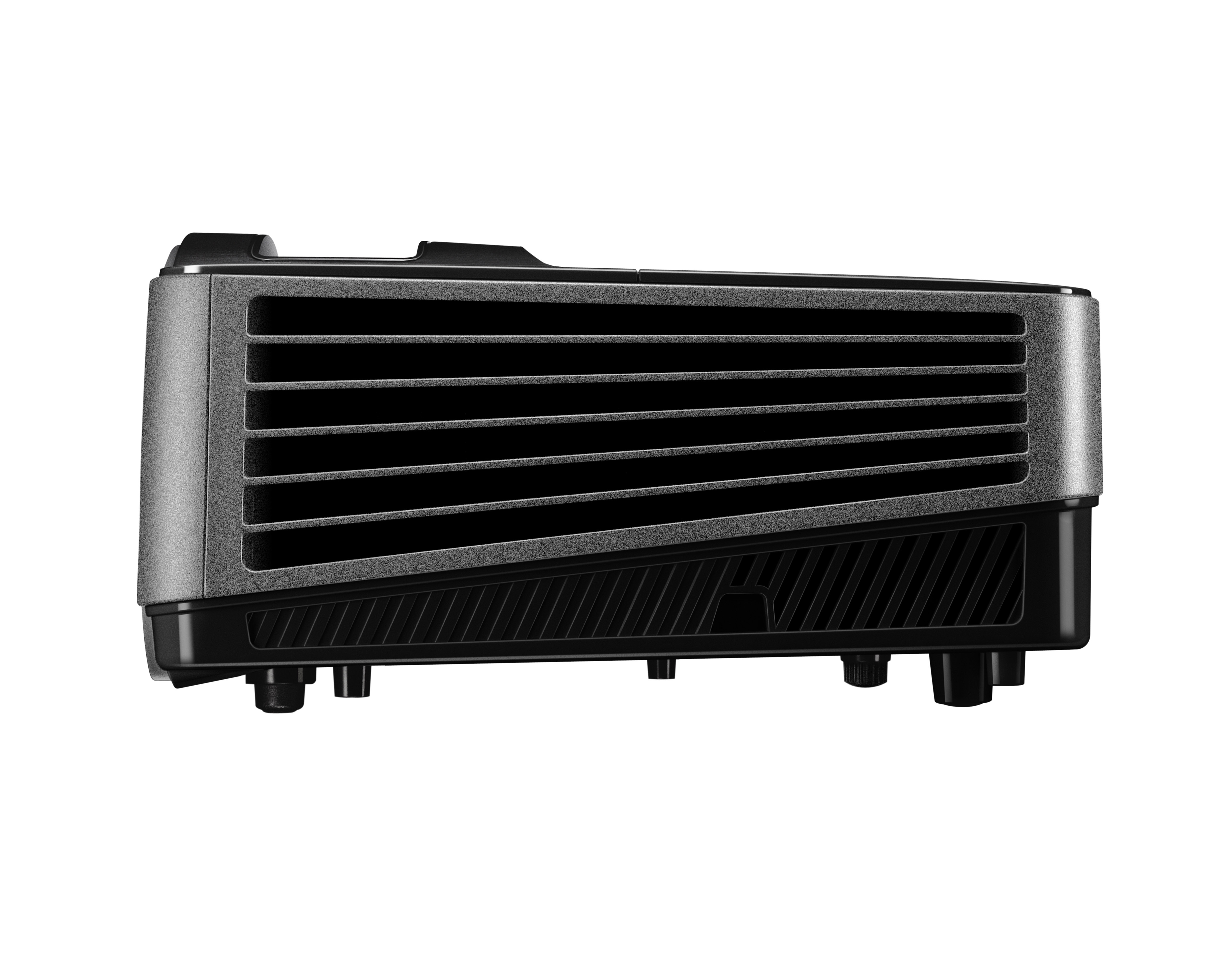

With the MW516, manufacturer Benq offers a DLP projector with WXGA 1280 x 800 resolution and a contrast of 10000:1. The manufacturer specifies a lamp life of 4500 hours, which is over 6.2 years with a daily viewing time of 2 hours. 2800 Ansi lumens ensure that a picture width of 538 cm is also possible. However, if room light is available, the picture should be max. 359 cm wide. Even 1080P video signals are no problem for the projector. The projector is very quiet compared to others with 27 decibels of operating noise. The model was built by Benq in 2011 and is no longer current, but is still a popular projector in our database.
|
| Display Type |
1 x DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2800 |
Screen |
1120 Lux (200 cm Screen width) |
| Contrast |
10000:1 full on/off |
10000:1 full on/off
|
| Black Level |
0,2800 min. Lumen |
0,112 min. Lumen |
| Offset |
60% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
| Frame Sequential (3D Ready) |
|
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
190W Lamp
Article Nr.: 5J.J5E05.001
|
|
| Light Life |
4500 h. 6000 h. in Eco Mode |
| Operating Costs |
-
|
|
292 - 320 cm
|
 |
|
Lux: |
1120 Lux |
|
Room light max.: |
224 Lux |
|
Candela pro m²: |
356 cd/m² |
|
Foot-Lamberts: |
104 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,55-3,06 f=21-25,6 mm |
| Throw Ratio |
1,46-1,60:1 show |
| Audio |
1 x 2W |
| Connections |
1 x HDMI 1.3 in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
USB Typ B
RS232C Din 9 pin
Mini Jack Audio in und out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
245W |
| Size WxHxD |
302 x 124 x 232,7 mm (11,9"x4,9"x9,2") 8,69 L/dm³
|
| Operating Noise |
27 / 25 dB in Eco Mode |
|
| Weight |
2,45 kg / 5,4 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 31-90 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
104 fL
/ max. 538 cm screen width |
| Candela m² |
356 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Blank (Black screen button)
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Password protection
BrilliantColor™
Digital Zoom
6-segment colour wheel (RYWCBG),
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Benq MW516 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
33 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
56 |
| Black level: |
|
99 |
Power cons.: |
|
98 |
| Picture Total Points: | 44 |
Projector Total Points: | 81 |
|
| Popularity Top 100 |
|
| Points: |
|
10 |
| Ranking: |
1373 (From: 7662) |
|
|
|
|
|
| Status |
2011 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (7.36 MB)

|
Benq Website
