Brief Introduction
Beta 2.5 |

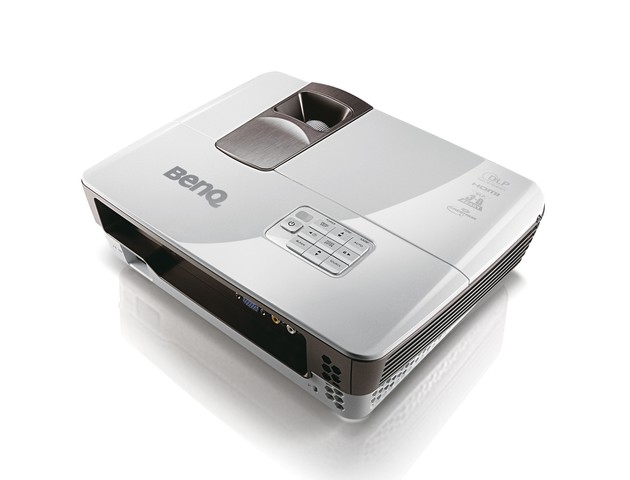

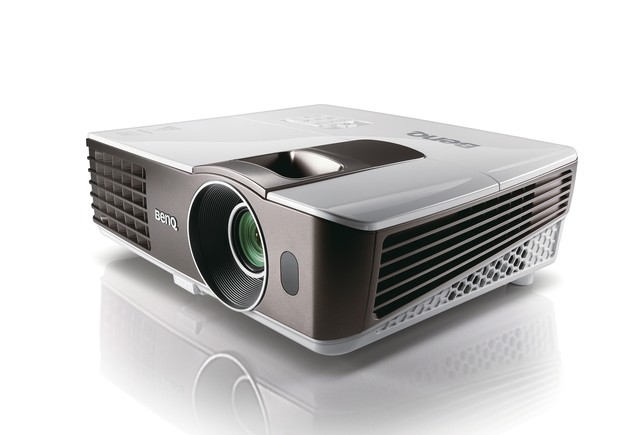

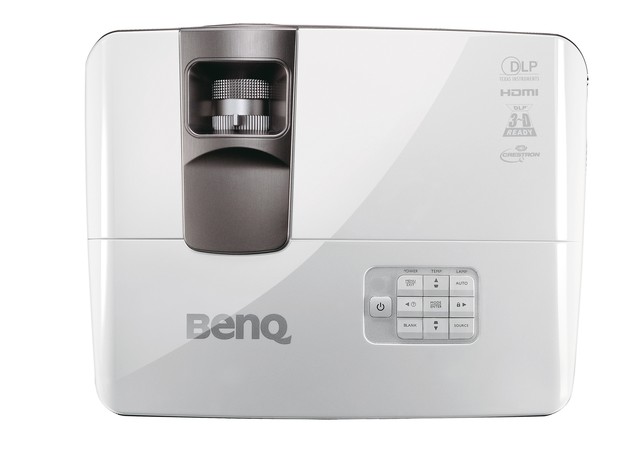

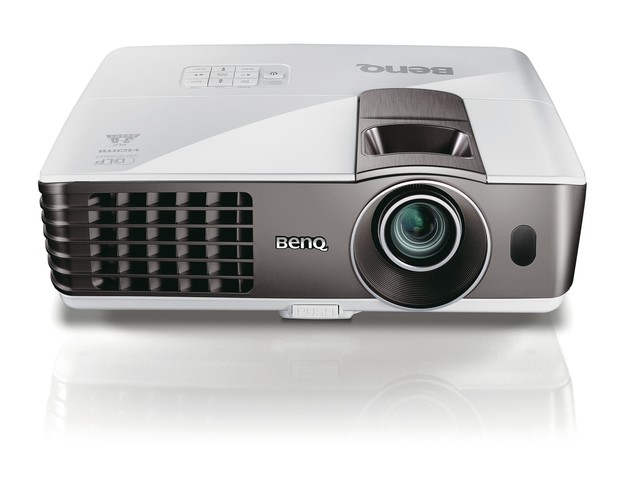

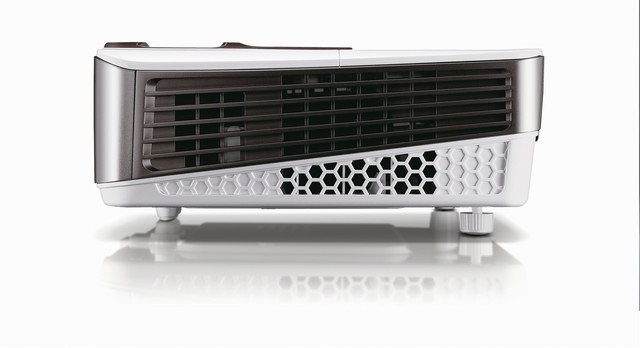

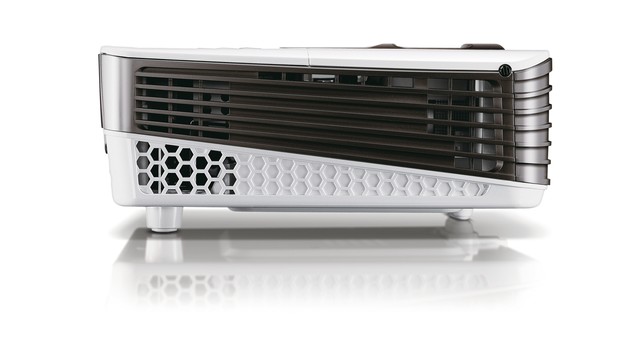

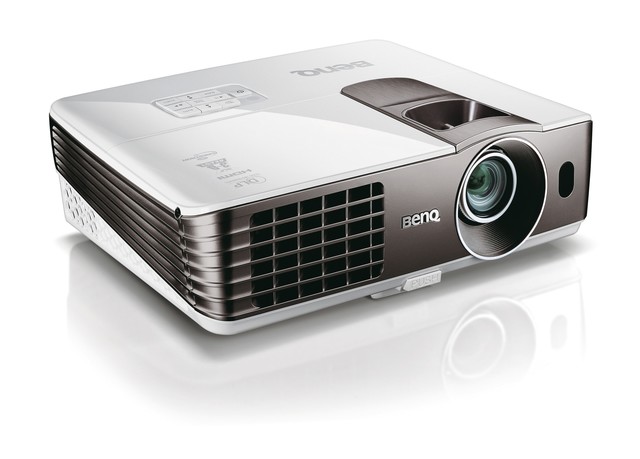

A brief introduction to the MX711: The Benq standard portable 3D BrilliantColor DLP projector offers 3200 Ansi lumens, a contrast of 5300:1 and an XGA 1024 x 768 resolution. Thanks to the lamp, the projector has a lamp life of up to 3500 hours, which is over 4.8 years if enjoyed for two hours a day. Includes an integrated media player for direct playback of files. Built-in horizontal and vertical keystone correction provides freedom when positioning the projector. 493 cm image width, the projector will be able to illuminate well. However, if room light is available, the picture width should ideally not exceed 329 cm. Even 1080P video signals are no problem for the projector. The model built in 2010 is no longer offered by Benq, but is still very popular in our projector database.
|
| Display Type |
1 x DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3200 |
Screen |
1067 Lux (200 cm Screen width) |
| Contrast |
5300:1 full on/off |
5300:1 full on/off
|
| Black Level |
0,6038 min. Lumen |
0,201 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Media player formats: JPEG(JPEG) • PNG • TIFF
BMP • GIF |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |

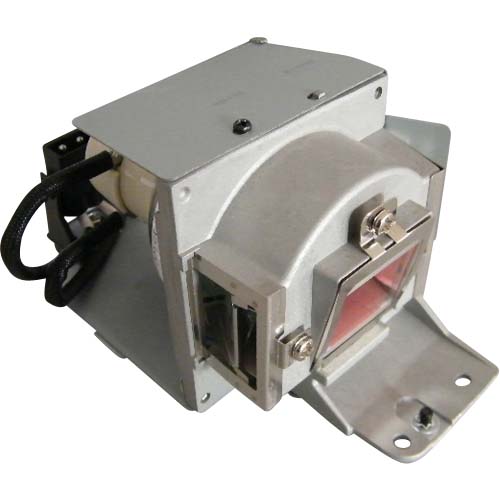

| Light Source |
230W Lamp
Article Nr.: 5J.J3V05.001
|
|
| Light Life |
3500 h. 5000 h. in Eco Mode |
| Operating Costs |
-
|
|
300 - 394 cm
|
 |
|
Lux: |
1067 Lux |
|
Room light max.: |
213 Lux |
|
Candela pro m²: |
339 cd/m² |
|
Foot-Lamberts: |
99 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,31 |
| Objective |
F=2,59 f=2,87mm |
| Throw Ratio |
1,5-1,97:1 show |
| Audio |
- |

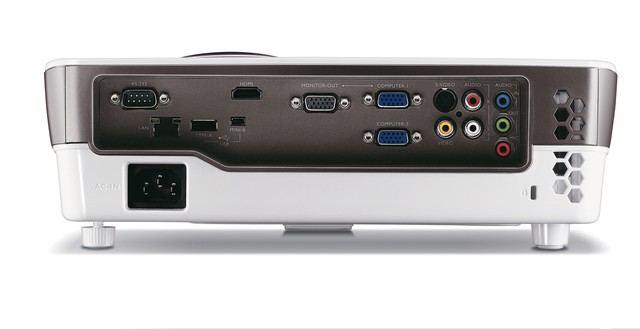

| Connections |
HDMI 1.3 in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
RJ45 in
USB Typ A, B
Mini Jack Audio in und out
Mikrofon in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
320W |
| Size WxHxD |
311 x 104 x 244 mm (12,2"x4,1"x9,6") 7,89 L/dm³
|
| Operating Noise |
33 / 28 dB in Eco Mode |
Key: 252 cm |
Key: 252 cm | | Key: 252 cm |
| |
|
|
| Weight |
2,70 kg / 5,95 lbs. |
| Keystone |
Vert.: +/-40° automatisch
Hori.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 31-92 kHz
V-sync: 48-120 Hz
|
| Foot-Lamberts |
99 fL
/ max. 493 cm screen width |
| Candela m² |
339 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Integrated Mediaplayer
Freeze
Blank (Black screen button)
Blackboard Modus
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
sRGB
Password protection
BrilliantColor™
Remote control with laser pointer
PJLink™
Control via web browser
Lan network compatible.
Crestron®-Software compatible.
Digital zoom (x2)
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Benq MX711 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
38 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
41 |
| Black level: |
|
98 |
Power cons.: |
|
97 |
| Picture Total Points: | 46 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
12 |
| Ranking: |
763 (From: 7662) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
