Brief Introduction
Beta 2.5 |
The 3M DMS 700 DLP projector has 1500 Ansi lumens, a contrast of 1200:1 and an XGA 1024 x 768 resolution. The integrated media player allows files to be played directly. The horizontal and vertical keystone correction provides leeway when setting up. Thanks to the short throw projection ratio of just 0.619:1, the projector does not distort the room. For a 2m wide image, the projector only needs to be 124 cm away from the screen. The model built in 2006 is no longer offered by 3M.
|
| Display Type |
1 x 0,7" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1500 |
Screen |
500 Lux (200 cm Screen width) |
| Contrast |
1200:1 full on/off |
1200:1 full on/off
|
| Black Level |
1,2500 min. Lumen |
0,418 min. Lumen |
| Offset |
80% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Media player formats: JPEG |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Short Distance | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

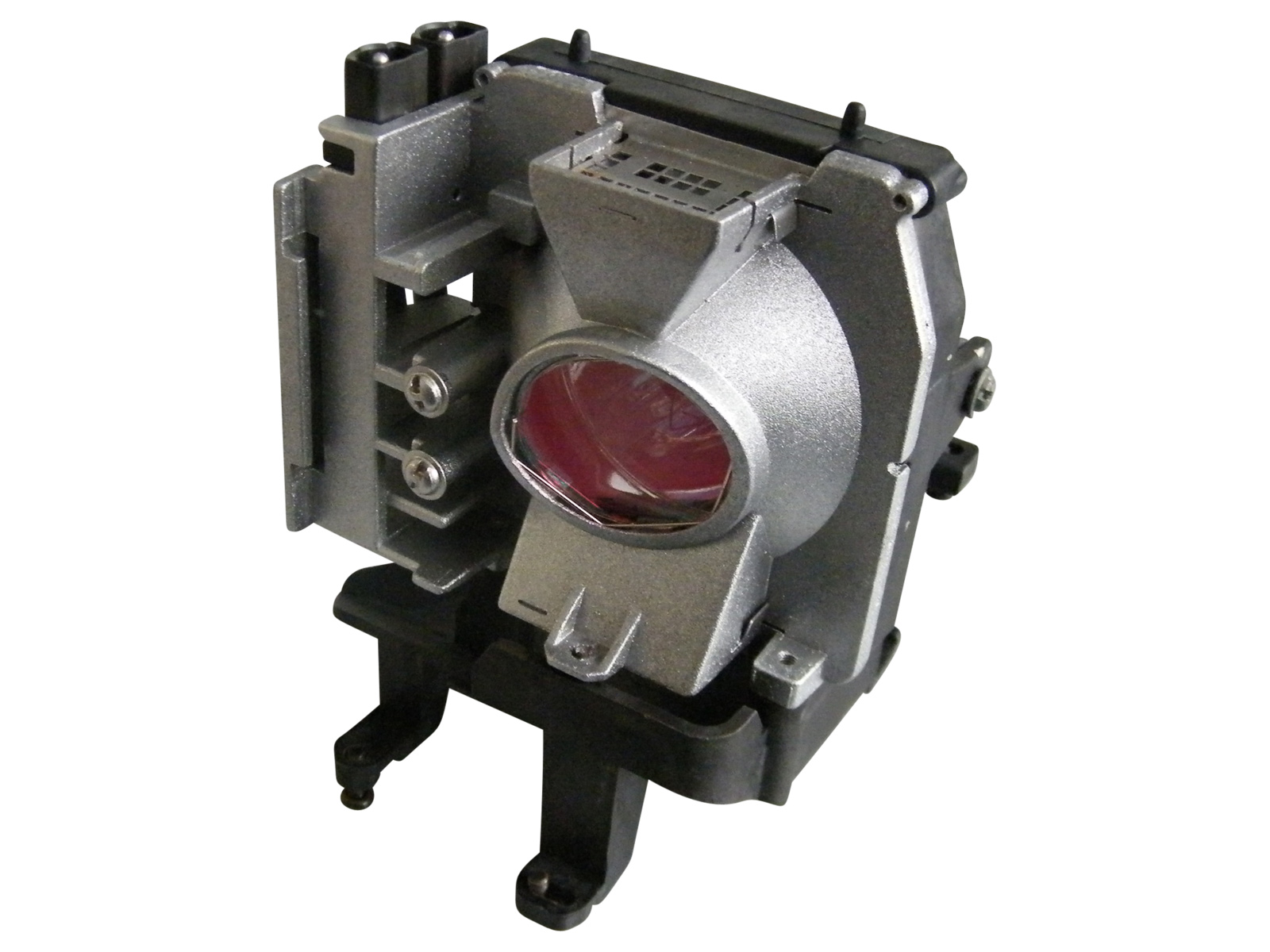

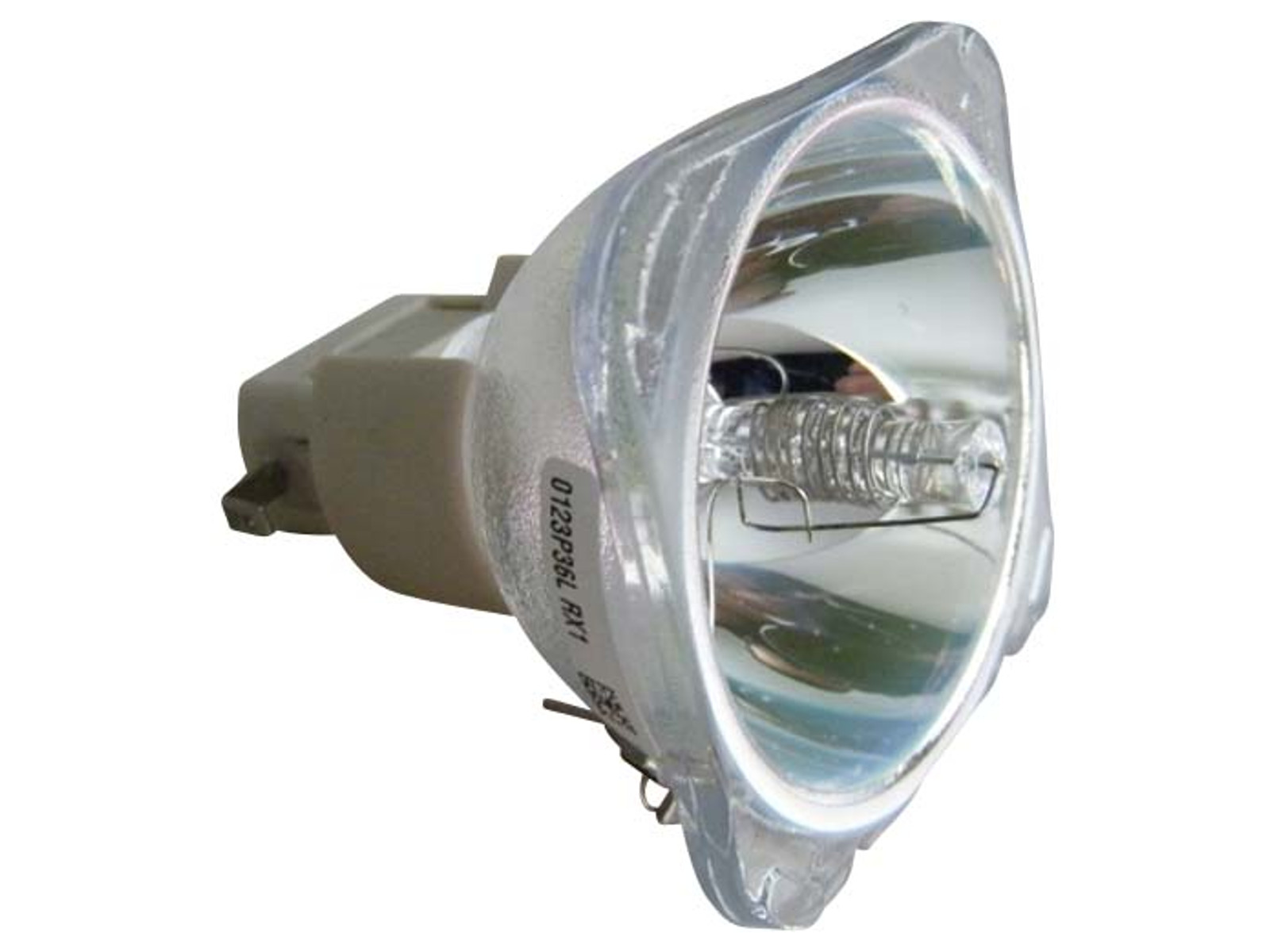

230W Lamp
Article Nr.: 78-6969-9881-0
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
124 cm (no Zoom)
|
 |
|
Lux: |
500 Lux |
|
Room light max.: |
100 Lux |
|
Candela pro m²: |
158 cd/m² |
|
Foot-Lamberts: |
46 fL |
|
 |
| 120 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=2,4 f=9,6mm |
| Throw Ratio |
0,619:1 |
| Audio |
2 x 2,5W |
| Connections |
HDMI in
D-sub 15pin in
YUV in
S-Video in
Cinch Video in
Coaxial out
RS232C
USB in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
285W |
| Size WxHxD |
343,5 x 153,3 x 312,6 mm (13,5"x6"x12,3") 16,37 L/dm³
|
| Operating Noise |
- |
Key: 224 cm |
Key: 72 cm |
| Key: 72 cm |
| |
|
|
| Weight |
4,50 kg / 9,92 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-82 kHz
V-sync: 15-85 Hz
|
| Foot-Lamberts |
46 fL
/ max. 337 cm screen width |
| Candela m² |
158 cd/m² |
| Features |
 Integrated Mediaplayer
Freeze
Eco Mode
Kensington Slot
Gamma correction
Picture-in-Picture
Short-throw projector
Digital Zoom
Dolby 2.0 / (2) 2.5W speakers
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The 3M DMS 700 compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
16 |
Weight: |
|
92 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
98 |
Power cons.: |
|
94 |
| Picture Total Points: | 38 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
19 |
| Ranking: |
265 (From: 974) |
|
|
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet DMS Serie
Product Sheet english
Product Sheet english 2
Product Sheet english DMS Serie
Product Sheet english DMS Serie 2
Product Sheet english HC
User Manual english (5.32 MB)

|
3M Website
