Brief Introduction
Beta 2.5 |
The standard portable 3M AD20X DLP projector has 2200 Ansi lumens, a contrast of 1800:1 and an XGA 1024 x 768 resolution. 2200 Ansi lumens ensure that a picture width of 408 cm is also possible. However, if room light is available, the picture should be max. 272 cm wide. This model is no longer offered by 3M.
|
| Display Type |
1 x 0,55" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2200 |
Screen |
733 Lux (200 cm Screen width) |
| Contrast |
1800:1 full on/off |
1800:1 full on/off
|
| Black Level |
1,2222 min. Lumen |
0,408 min. Lumen |
| Offset |
65% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |

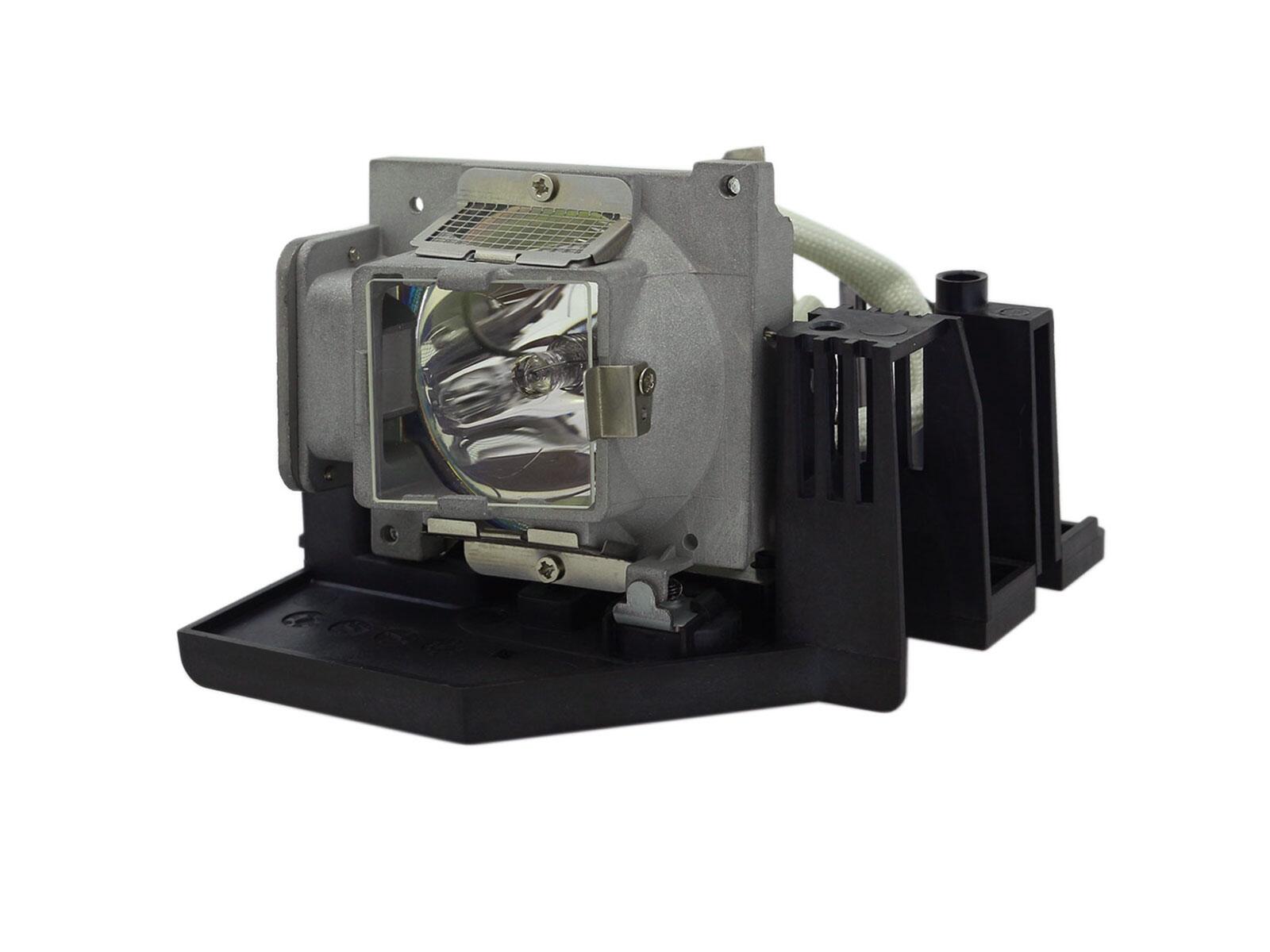

| Light Source |
230W Lamp
Article Nr.: 3797610800
|
|
| Light Life |
2000 h. 4000 h. in Eco Mode |
| Operating Costs |
|
|
382 - 438 cm
|
 |
|
Lux: |
733 Lux |
|
Room light max.: |
147 Lux |
|
Candela pro m²: |
233 cd/m² |
|
Foot-Lamberts: |
68 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,15 |
| Objective |
f=21,3-24,5 mm |
| Throw Ratio |
1,91-2,19:1 show |
| Audio |
- |
| Connections |
DVI-D in
D-sub 15 pin in
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in
RS232C Din 9 pin in
USB |
| Ceiling Mounting |
Yes, is possible. |
| Power |
290W |
| Size WxHxD |
300 x 88 x 244 mm (11,8"x3,5"x9,6") 6,44 L/dm³
|
| Operating Noise |
36 / 33 dB in Eco Mode |
|
| Weight |
3,50 kg / 7,72 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-90 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
68 fL
/ max. 408 cm screen width |
| Candela m² |
233 cd/m² |
| Features |
 Eco Mode
|
|
- |
In Comparison
The 3M AD20X compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
26 |
Weight: |
|
83 |
| Contrast: |
|
1 |
dB: |
|
33 |
| Black level: |
|
95 |
Power cons.: |
|
97 |
| Picture Total Points: | 41 |
Projector Total Points: | 71 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3556 (From: 7662) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
