Brief Introduction
Beta 2.5 |
The Compact SX+42 BrilliantColor DLP projector from 3D perception has 2000 Ansi lumens, a contrast of 4000:1 and an SXGA+ 1400 x 1050 resolution. Thanks to the brightness of 2000 Ansi lumens, a picture width of 389 cm is possible. In room light, the picture should be max. 259 cm wide. This model is no longer offered by 3D perception.
|
| Display Type |
1 x LVDS DC3 DLP Chip
SXGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2000 |
Screen |
667 Lux (200 cm Screen width) |
| Contrast |
4000:1 full on/off |
4000:1 full on/off
|
| Black Level |
0,5000 min. Lumen |
0,167 min. Lumen |
| Offset |
54,5% show
|
| Resolution |
SXGA+ 1400 x 1050
1.470.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

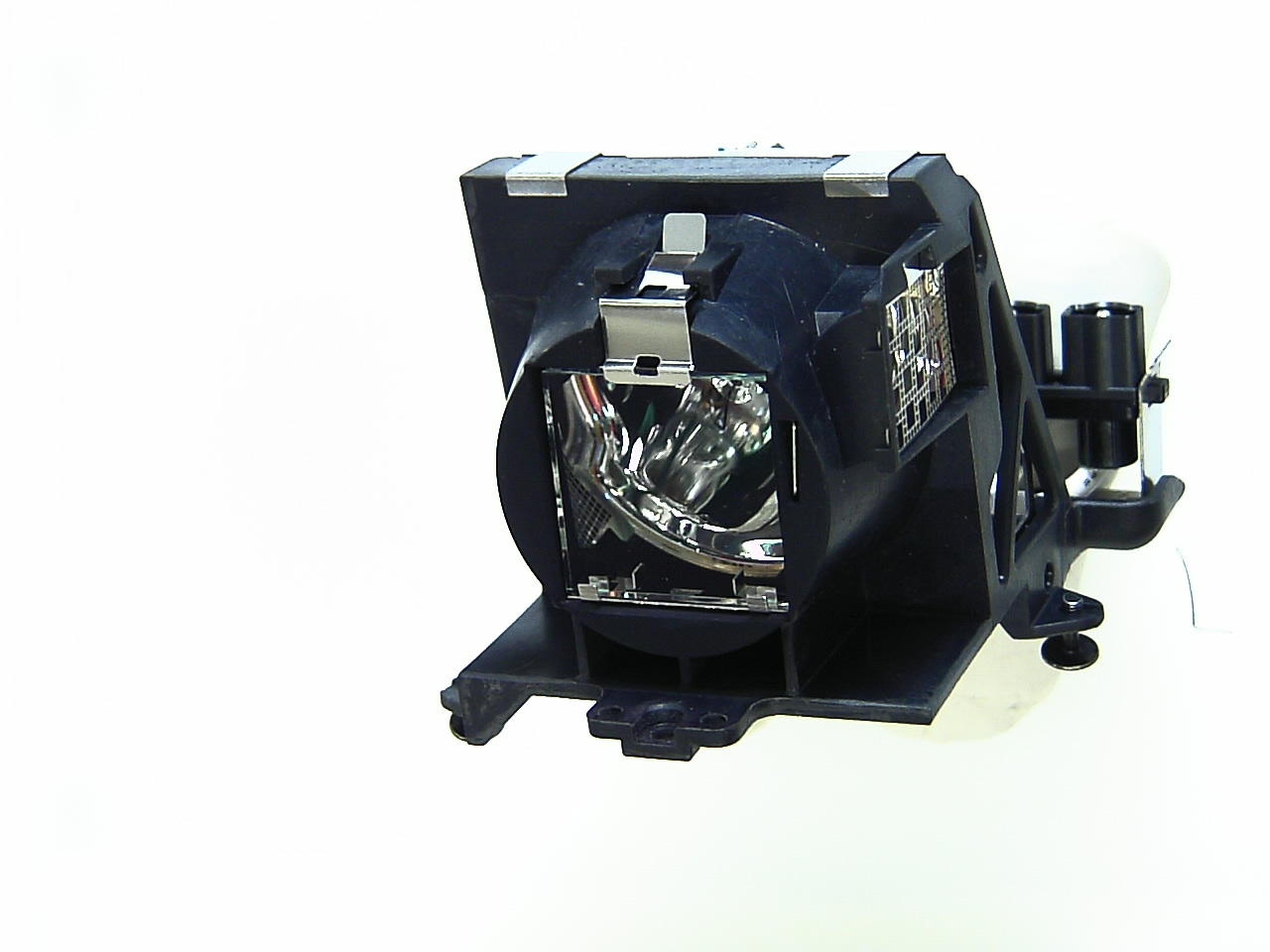

300W UHP Lamp
Article Nr.: LMP19472
|
|
| Light Life |
2000 h. 2500 h. in Eco Mode |
| Operating Costs |
-
|
|
344 - 440 cm
|
 |
|
Lux: |
667 Lux |
|
Room light max.: |
133 Lux |
|
Candela pro m²: |
212 cd/m² |
|
Foot-Lamberts: |
62 fL |
|
 |
| 82 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,27 |
| Objective |
F=2,75-3,07 f=33-42 mm |
| Throw Ratio |
1,72-2,20:1 show |
| Audio |
Nein |
| Connections |
HDMI 1.3a
DVI-D mit HDCP
2 x D-sub 15 pin in
YUV in
S-Video in
Cinch Video in
RS232C Din 9 pin in und out
RJ45 in
USB in
2 x 12V Trigger out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
450W |
| Size WxHxD |
268 x 104 x 300 mm (10,6"x4,1"x11,8") 8,36 L/dm³
|
| Operating Noise |
- |
|
| Weight |
3,50 kg / 7,72 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15-150 kHz
V-sync: 48-190 Hz
|
| Foot-Lamberts |
62 fL
/ max. 389 cm screen width |
| Candela m² |
212 cd/m² |
| Features |
 Eco Mode
BrilliantColor™
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The 3D perception Compact SX+42 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
83 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
98 |
Power cons.: |
|
95 |
| Picture Total Points: | 41 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3975 (From: 7662) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| wide angle | 1.03:1 | 206 m |
54.5% |
|
No Zoom |
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2025-02-26
|
| Data |
 Product Sheet english
Product Sheet english HC
|
3D perception Website
