Brief Introduction
Beta 2.5 |
The standard portable Compact SX+26 BrilliantColor DLP has 1500 Ansi lumens, a contrast of 2500:1 and an SXGA+ 1400 x 1050 resolution. The projector will be able to illuminate a picture width of 337 cm well. However, if room light is available, the image width should ideally not exceed 225 cm. The projector was launched in 2009 and is no longer sold by the manufacturer. Unfortunately, we can no longer offer replacement lamps for this model, neither originals nor replicas.
|
| Display Type |
1 x DLP Chip
SXGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1500 |
Screen |
500 Lux (200 cm Screen width) |
| Contrast |
2500:1 full on/off |
2500:1 full on/off
|
| Black Level |
0,6000 min. Lumen |
0,2 min. Lumen |
| Offset |
54,5% show
|
| Resolution |
SXGA+ 1400 x 1050
1.470.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |

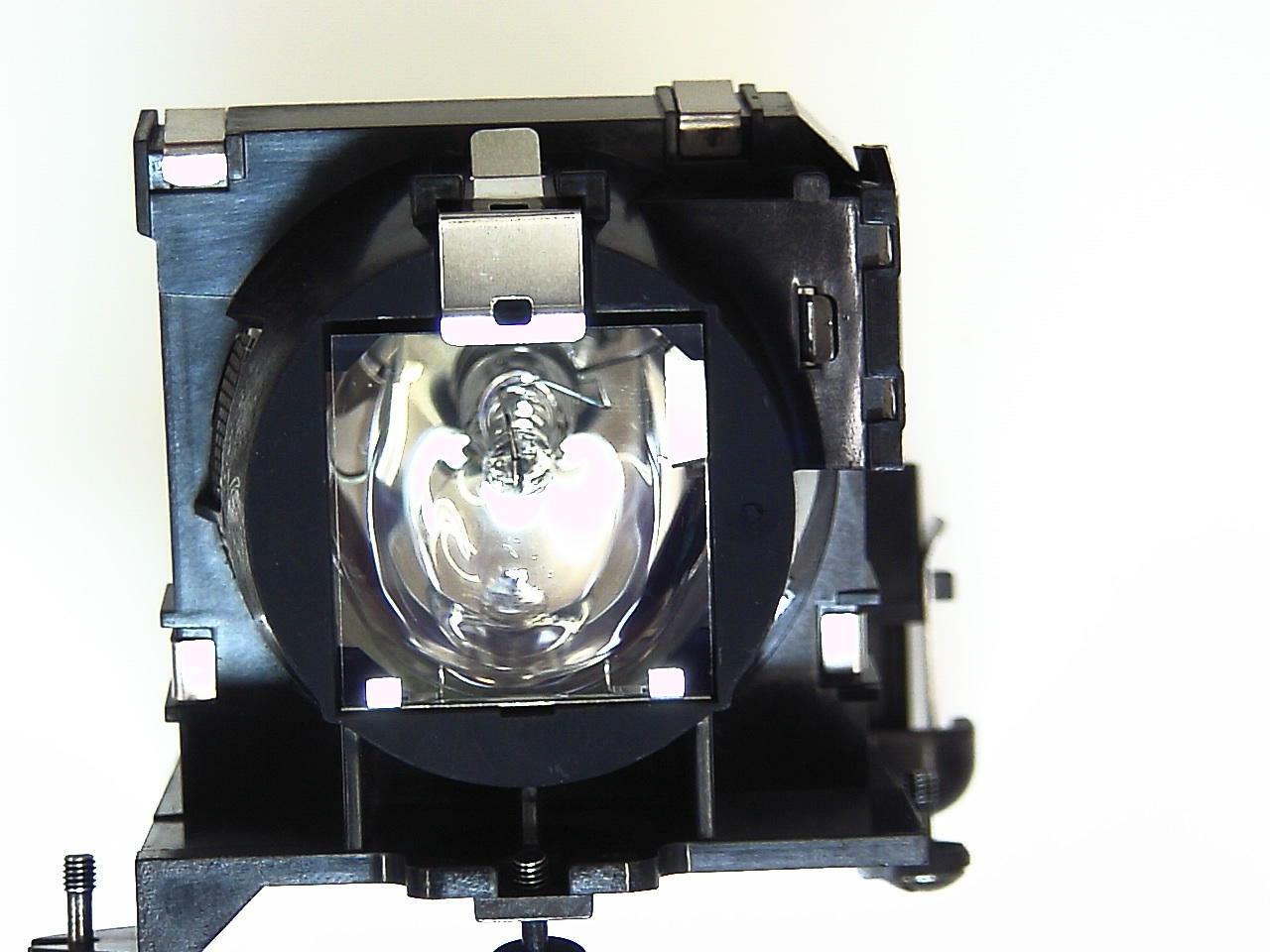

| Light Source |
220W / 300W UHP Lamp
Article Nr.: LMP19471
|
|
| Light Life |
2000 h. 2500 h. in Eco Mode |
| Operating Costs |
|
|
344 - 440 cm
|
 |
|
Lux: |
500 Lux |
|
Room light max.: |
100 Lux |
|
Candela pro m²: |
158 cd/m² |
|
Foot-Lamberts: |
46 fL |
|
 |
| 82 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,27 |
| Objective |
F=2,75-3,07 f=33-42 mm |
| Throw Ratio |
1,72-2,20:1 show |
| Audio |
Nein |
| Connections |
HDMI 1.3
DVI-D mit HDCP
2 x D-sub 15 pin in
YUV in
S-Video in
Cinch Video in
RS232C Din 9 pin in und out
RJ45 in
USB in
2 x 12V Trigger out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
450W |
| Size WxHxD |
264 x 104 x 300 mm (10,4"x4,1"x11,8") 8,24 L/dm³
|
| Operating Noise |
- |
|
| Weight |
3,50 kg / 7,72 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15-150 kHz
V-sync: 48-190 Hz
|
| Foot-Lamberts |
46 fL
/ max. 337 cm screen width |
| Candela m² |
158 cd/m² |
| Features |
 Eco Mode
BrilliantColor™
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The 3D perception Compact SX+26 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
17 |
Weight: |
|
83 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
98 |
Power cons.: |
|
95 |
| Picture Total Points: | 39 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4438 (From: 7662) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| wide angle | 1.03:1 | 206 m |
54.5% |
|
No Zoom |
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2025-03-03
|
| Data |
 Product Sheet english
Product Sheet english HC
|
3D perception Website
