Brief Introduction
Beta 2.5 |
The CompactView SX60 HA DLP has 6500 Ansi lumens, a contrast of 7500:1 and an SXGA+ 1400 x 1050 resolution. The built-in lens shift and keystone correction function provides freedom when setting up. Thanks to the brightness of 6500 Ansi lumens, an image width of 702 cm is possible. The projector can also handle slightly brighter rooms with a smaller picture width (we recommend max. 468 cm). On the market since 2006, the model is no longer offered by the manufacturer 3D perception, but is still very popular in our projector database.
|
| Display Type |
1 x 0,95" LVDS DC3 DLP Chip
SXGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
6500 - 1000 stufenlos regelbar |
Screen |
2167 Lux (200 cm Screen width) |
| Contrast |
7500:1 full on/off |
7500:1 full on/off
|
| Black Level |
0,8667 min. Lumen |
0,289 min. Lumen |
| Lens shift |
Vert.: +/-55% Hori.: +/-45% motorisch
|
| Resolution |
SXGA+ 1400 x 1050
1.470.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, EDTV HDTV 720p, 1080i, |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |

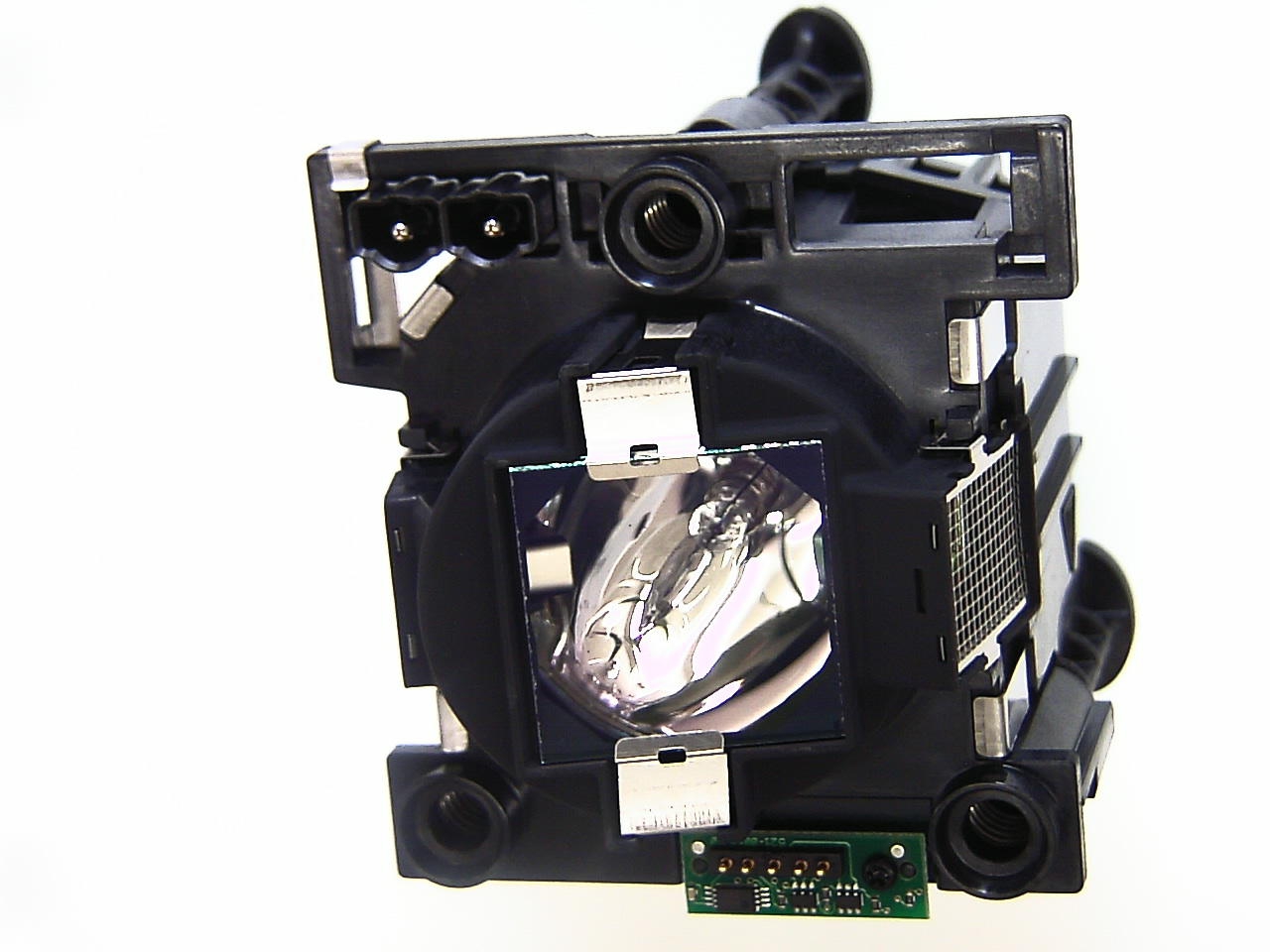

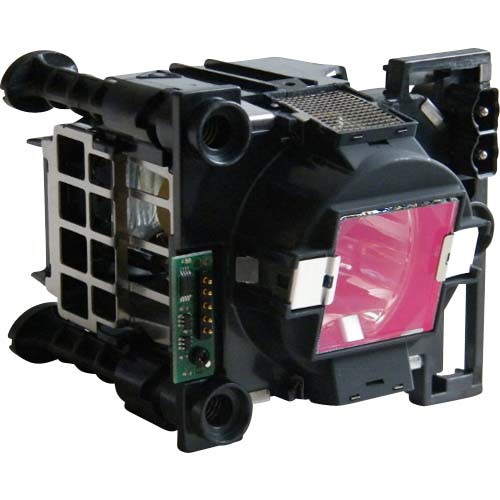

2 x 300W UHP Lamp
Article Nr.: LMP15695
|
|
| Light Life |
2000 h. 4000 h. in Eco Mode |
| Operating Costs |
|
|
|
 |
|
Lux: |
2167 Lux |
|
Room light max.: |
433 Lux |
|
Candela pro m²: |
689 cd/m² |
|
Foot-Lamberts: |
201 fL |
|
 |
| 83 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |
| Connections |
DVI-D mit HDCP
D-sub 15pin in und out
5 x BNC RGBHV
YUV
Cinch Video in
S-Video in
Mini Jack
USB
RJ45 Hub
RS232C Din 9pin
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1050W |
| Size WxHxD |
507,3 x 218,3 x 375,4 mm (20"x8,6"x14,8") 41,45 L/dm³
|
| Operating Noise |
30 dB in Eco Mode |
Shift: 83 cm
|
Shift: 90 cm
|
|
Shift: 90 cm
|
| |
|
|
| Weight |
15,00 kg / 33,07 lbs. |
| Keystone |
Vertical und horizontal |
| Illumination |
- |
| Frequenz |
H-sync: 15-150 kHz
V-sync: 48-190 Hz
Range max.: 205 MHz |
| Foot-Lamberts |
201 fL
/ max. 702 cm screen width |
| Candela m² |
689 cd/m² |
| Features |
 Lens shift Funktion motorisch
Eco Mode
Dynamic iris
Lan network compatible.
Faroudja DCDi with pull down
colour wheel optionally:
- 3-segment 3x graphics, visualisation and simulation
- 4-segment 2x graphics
- 4-segment 2x high brightness
|
|
- |
In Comparison
The 3D perception CompactView SX60 HA compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
64 |
Weight: |
|
95 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
97 |
Power cons.: |
|
86 |
| Picture Total Points: | 54 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
23 |
| Ranking: |
1080 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| EN16 | 4-7:1 | 800-1400 m |
+/-55% |
+/-45% |
Powered |
| EN14 | 2.5-4:1 | 500-800 m |
+/-55% |
+/-45% |
Powered |
| EN11 | 1.7-2.5:1 | 340-500 m |
+/-55% |
+/-45% |
Powered |
| EN13 | 1.3-1.7:1 | 260-340 m |
+/-55% |
+/-45% |
Powered |
| EN12 | 0.8:1 | 160 m |
0.0% Fix |
+/-45% |
No Zoom |
| EN15 | 1.2:1 | 240 m |
+/-55% |
+/-45% |
No Zoom |
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC
|
3D perception Website
